Gates Corporation Hydraulic Coupling / Adapter Part No: G35212-0808
$35.60
C5E

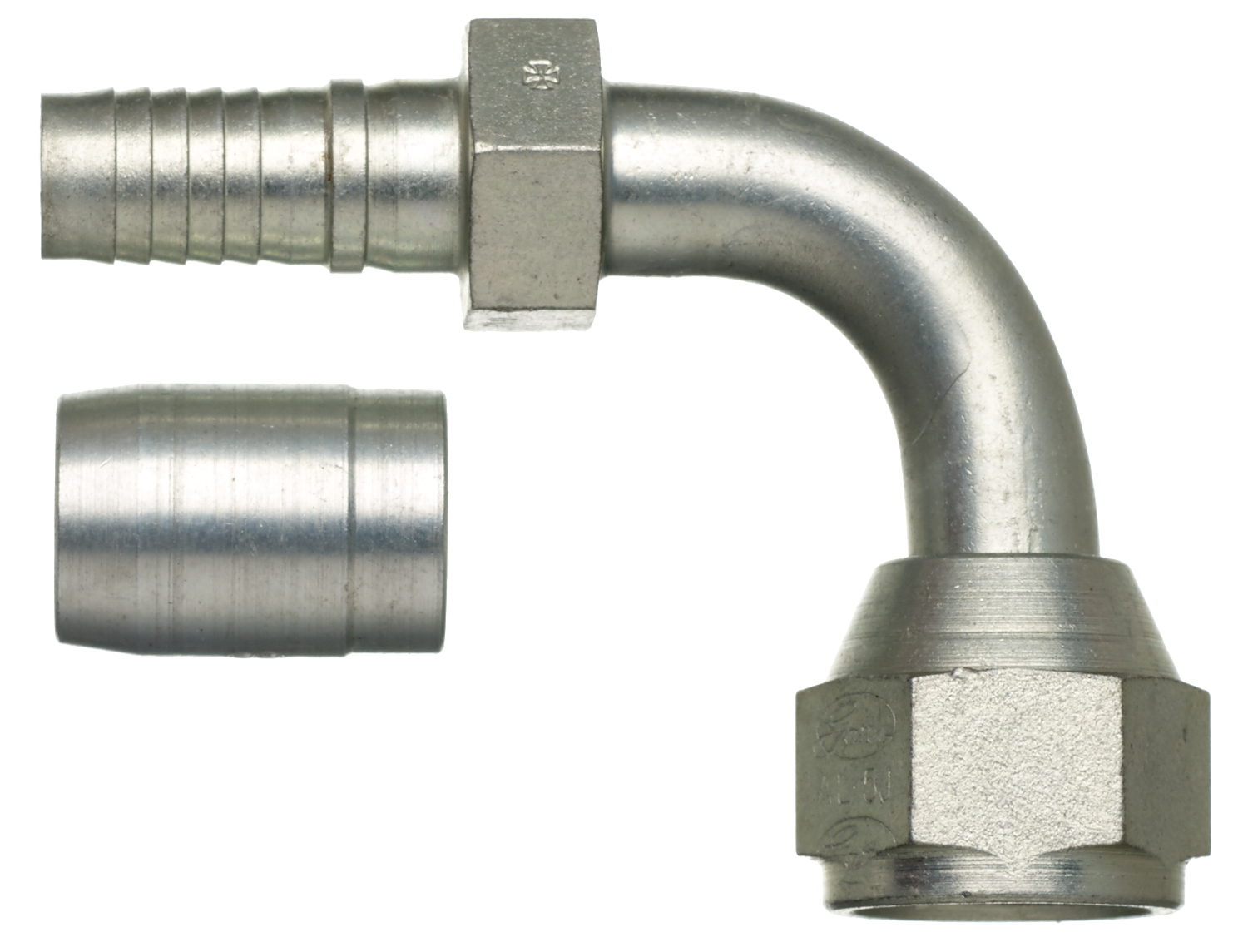

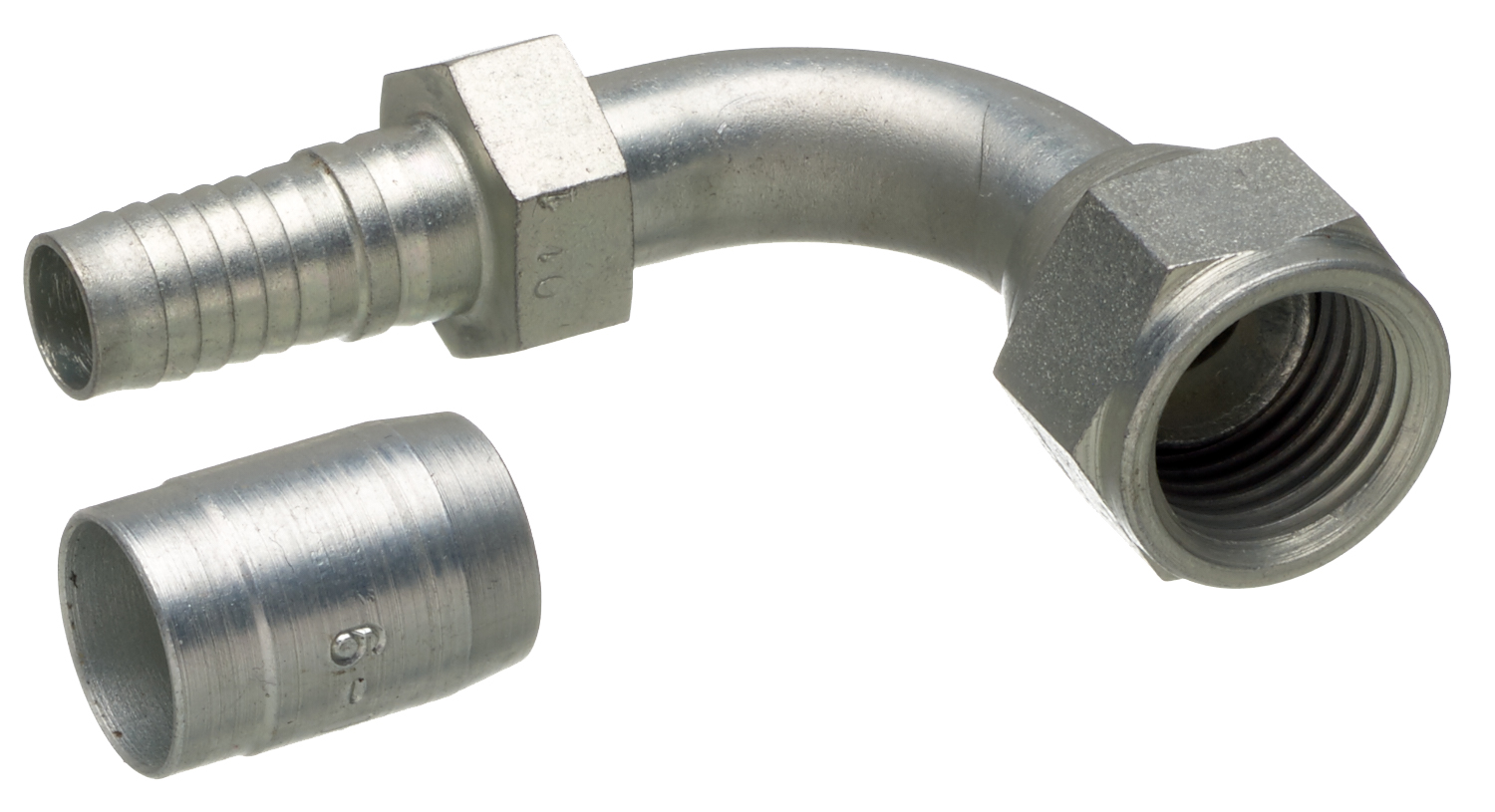

Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel (C5E Hose)
Specifications
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Thread Size: 3/4-16
H1 Stem Hex (in) 0.6875
H1 Stem Hex (mm) 17.46
H2 Nut Hex (in) 0.875
H2 Nut Hex (mm) 22.23
T Drop (in) 1.091
C Cutoff (in) 1.54
C Cutoff (mm) 39.11
L Length (in) 2.539
L Length (mm) 64.5
Hose Inside Diameter (in) 0.406
Hose Inside Diameter (mm) 10.3
C (in) 1.54
L (in) 2.54
Angle. 90
H1 Stem Hex (in) 0.6875
H1 Stem Hex (mm) 17.46
H2 Nut Hex (in) 0.875
H2 Nut Hex (mm) 22.23
T Drop (in) 1.091
C Cutoff (in) 1.54
C Cutoff (mm) 39.11
L Length (in) 2.539
L Length (mm) 64.5
Hose Inside Diameter (in) 0.406
Hose Inside Diameter (mm) 10.3
C (in) 1.54
L (in) 2.54
Angle. 90
Weight
0.2500
Compatibility
Alternative Part Numbers
- Dayco 124915
- Dayco 125279
- NAPA G35212-0808
- Parker 23921-08-08
- Parker 23921-8-8
- Weatherhead 21308N668
