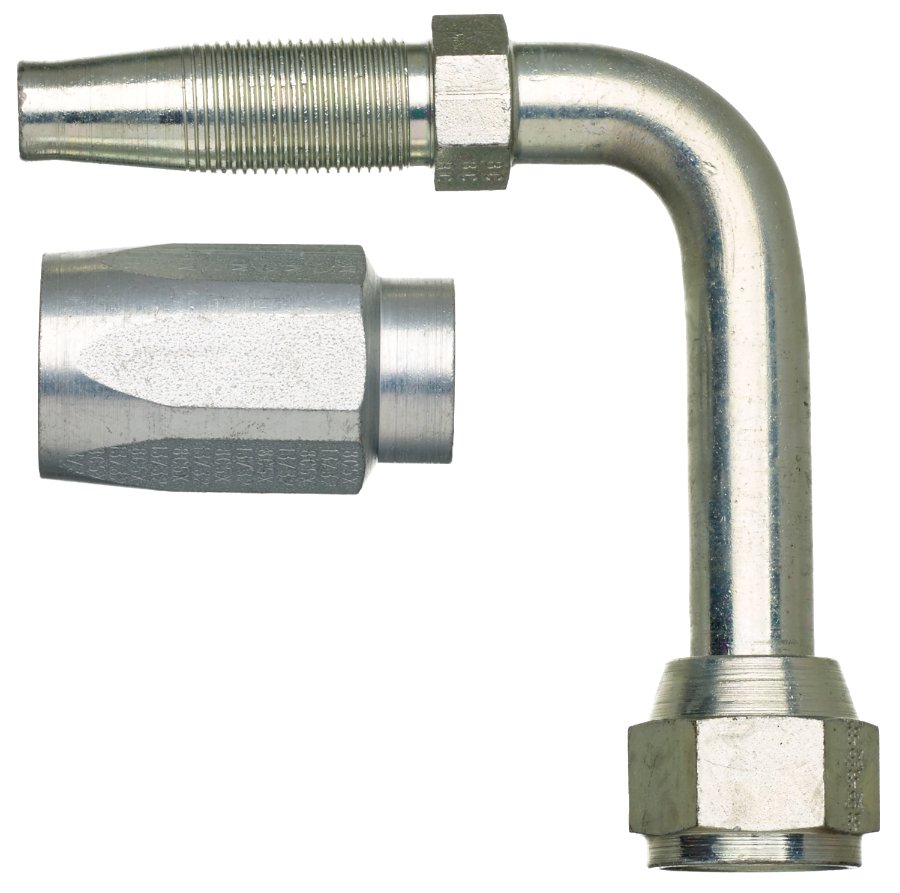

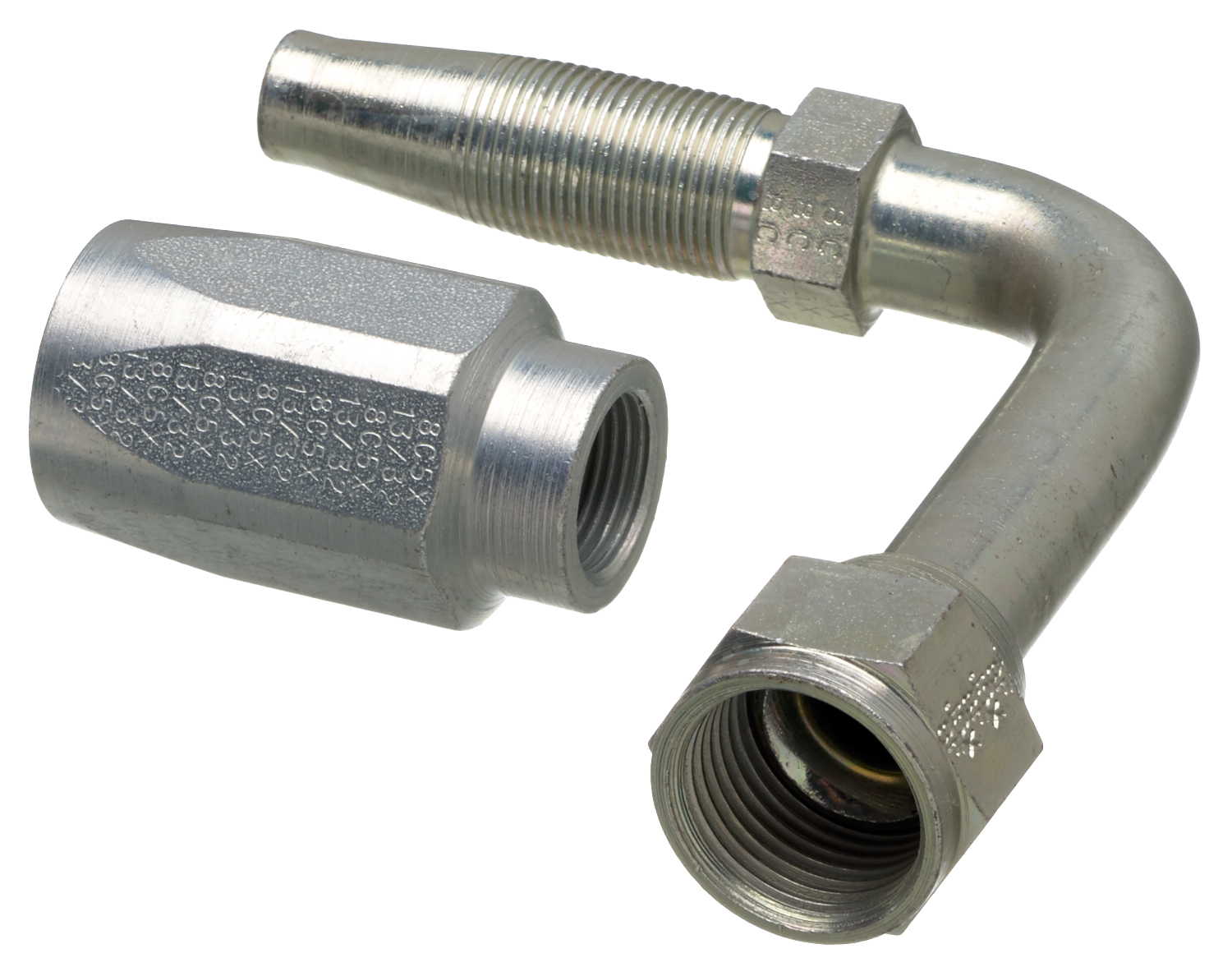

Gates Corporation Hydraulic Coupling / Adapter Part No: G34205-0606
$31.37
Hydraulic Coupling / Adapter G60301-0606 is essential for connecting Male O-Ring Boss to Male JIC 37 Flare fittings. This hydraulic adapter is designed for SAE to SAE connections and supports pressures up to 6000 psi, making it perfect for replacing bent tube assemblies with standard stock couplings. Featuring a thread size of 9/16-18 and compatibility with SAE 100R2 maximum working pressure, this durable hydraulic coupling ensures efficient fluid transfer and reliable performance. Ideal for various hose systems, it represents high-quality coupling parts from Gates Corporation, which is known for meeting rigorous safety and quality standards.
Specifications
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Thread Size: 5/8-18
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.75
H2 Nut Hex (mm) 19.05
T Drop (in) 0.839
C Cutoff (in) 1.33
C Cutoff (mm) 33.78
L Length (in) 2.28
L Length (mm) 57.9
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.33
L (in) 2.28
Angle. 90
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.75
H2 Nut Hex (mm) 19.05
T Drop (in) 0.839
C Cutoff (in) 1.33
C Cutoff (mm) 33.78
L Length (in) 2.28
L Length (mm) 57.9
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.33
L (in) 2.28
Angle. 90
Weight
0.1900
Compatibility
Alternative Part Numbers
- OEM:
- 121436
- 190302-6S
- 24706N466
- 27920-06-06
- 27920-6-6
- Aeroquip
- Dayco
- G34205-0606
- Gates 6C5-6RFSX90
- Gates G34205-0606
- NAPA
- Parker
- Parker
- Weatherhead
