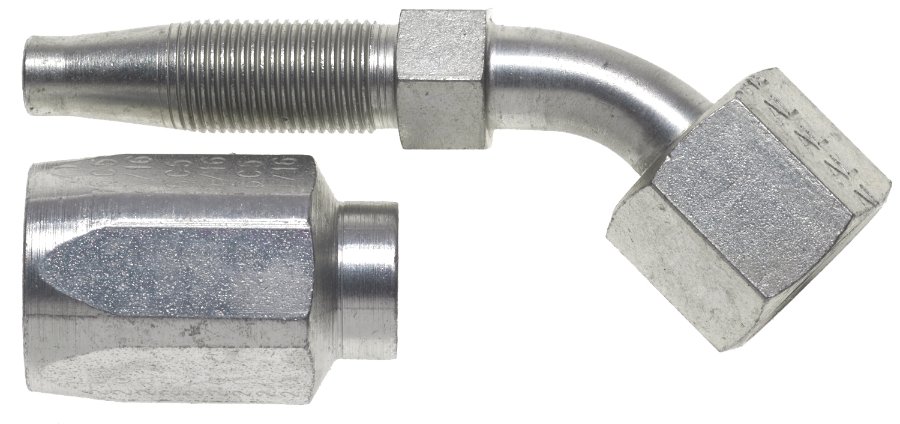

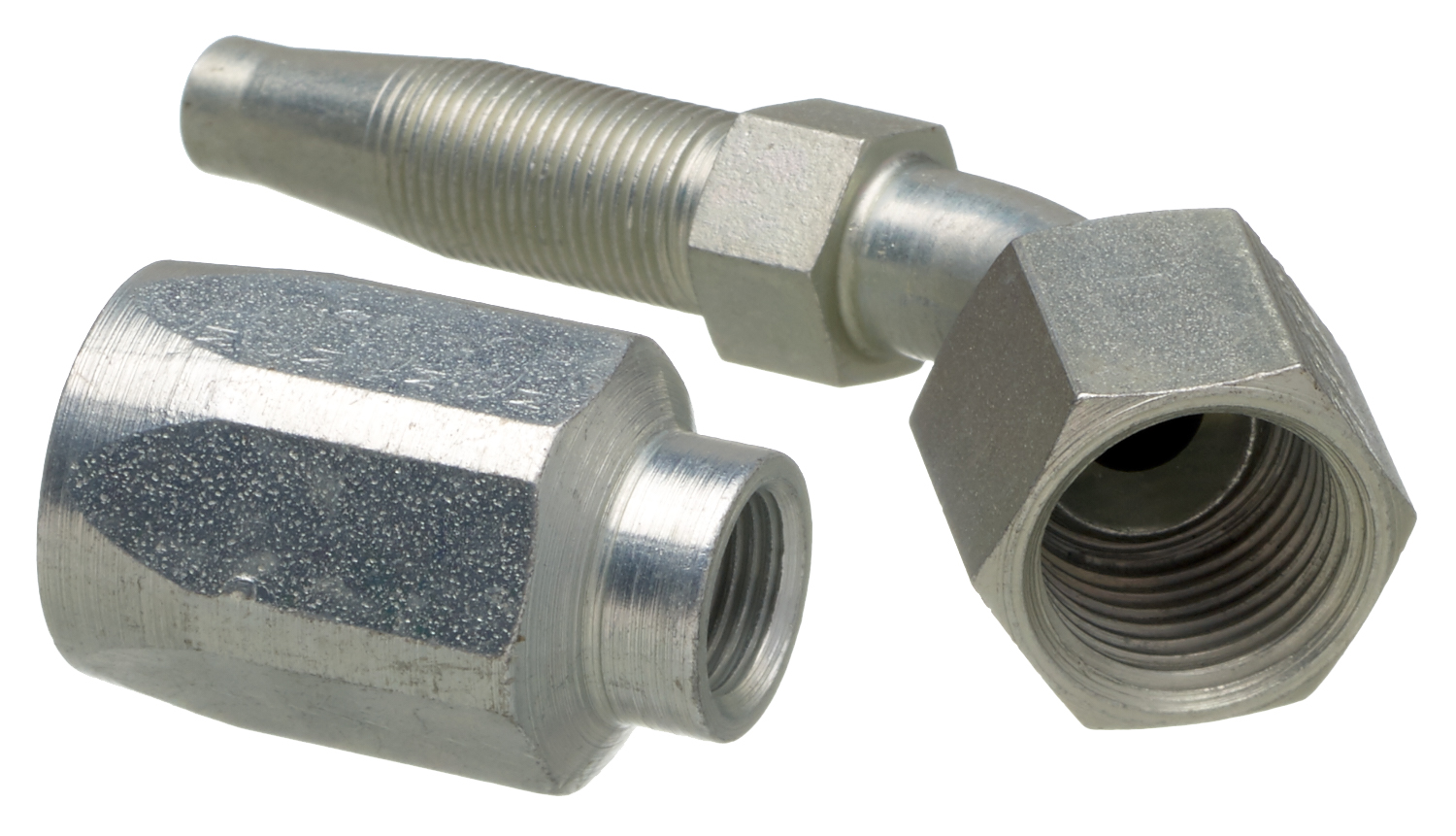

Hydraulic Coupling / Adapter

Female SAE 45 Flare Swivel - 45 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)

Gates Corporation Part No: G34202-0606

$31.54

Specifications

Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.

Weight

0.1800

Thread Size: 5/8-18
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.75
H2 Nut Hex (mm) 19.05
T Drop (in) 0.409
C Cutoff (in) 1.47
C Cutoff (mm) 37.33
L Length (in) 2.421
L Length (mm) 61.5
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.47
L (in) 2.42
Angle. 45

Compatibility

Alternative Part Numbers

OEM: Gates G34202-0606
Gates 6C5-6RFSX45

Aeroquip
190299-6S
Dayco
121426
Dayco
121426A
Goodyear
FG-SFFX-0606
NAPA
G34202-0606
Parker
27720-06-06
Parker
27720-6-6
Weatherhead
24706N486
