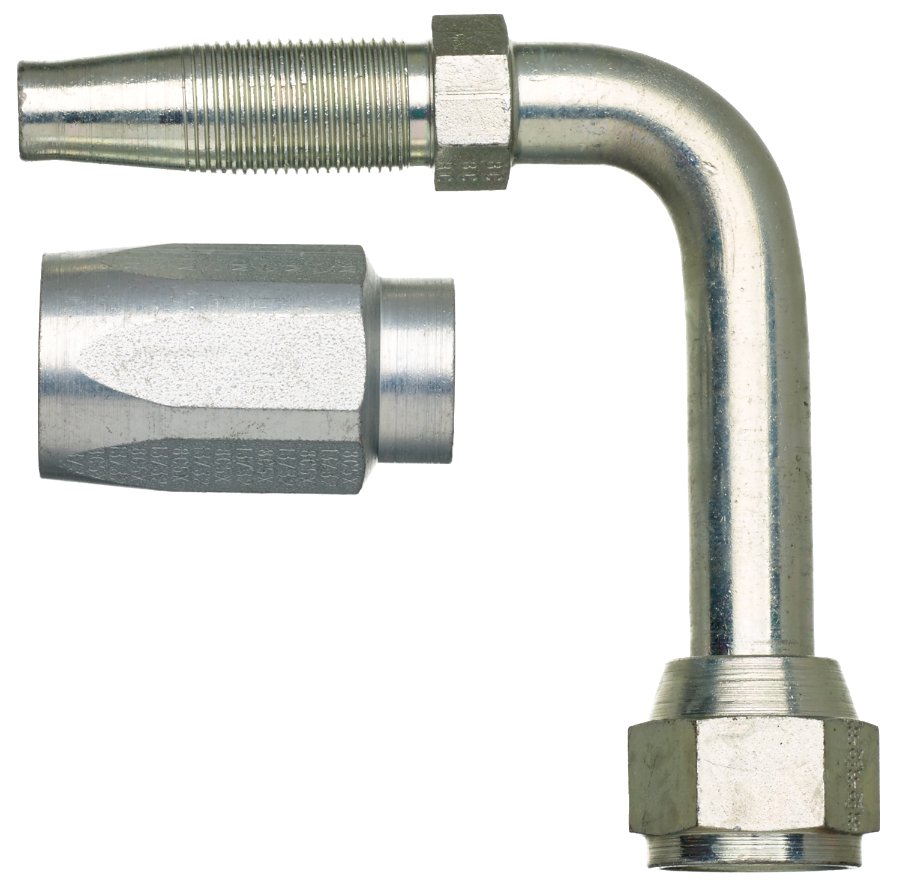

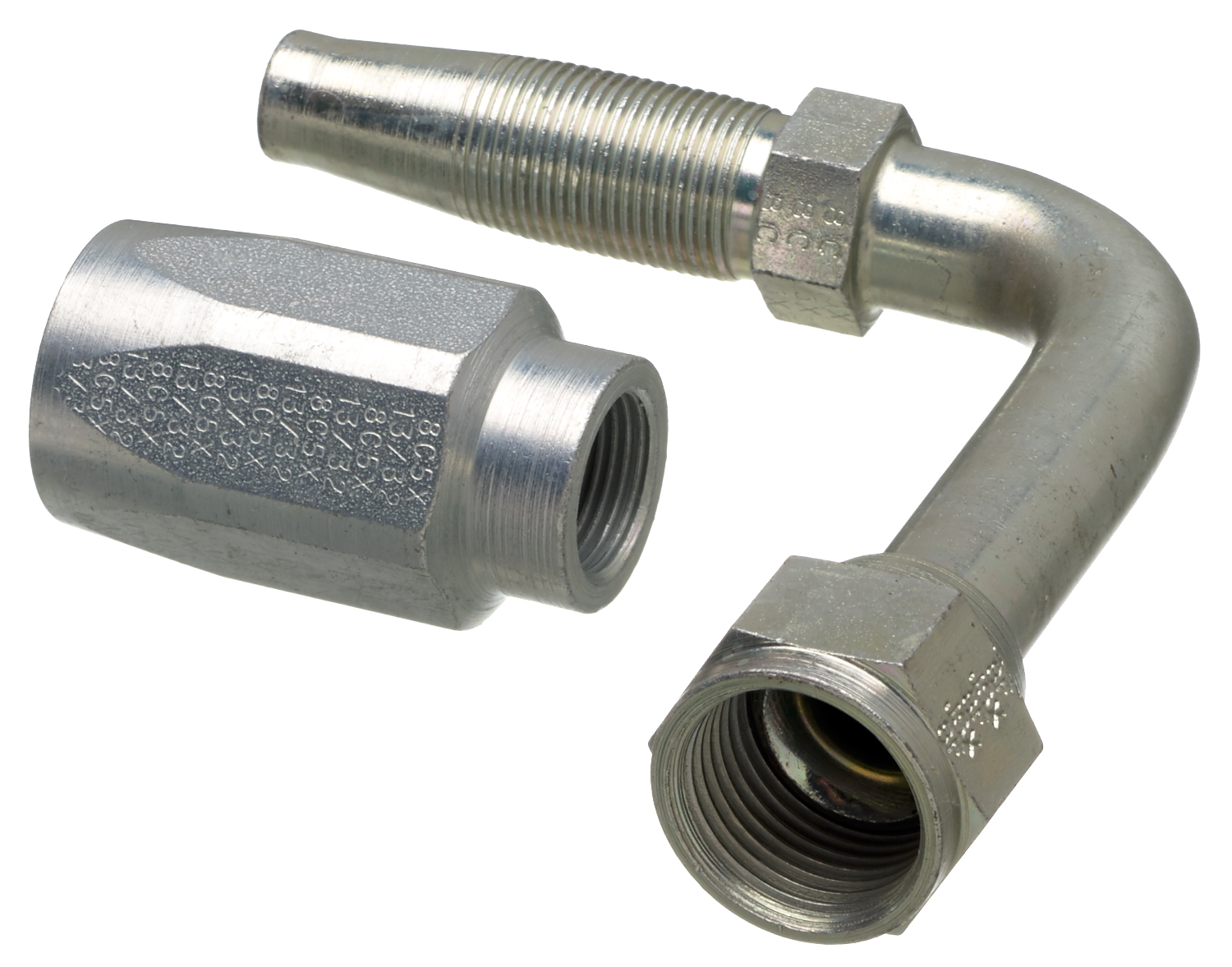

Gates Corporation Hydraulic Coupling / Adapter Part No: G34212-0808
$34.72
Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel
Specifications
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Thread Size: 3/4-16
H1 Stem Hex (in) 0.625
H1 Stem Hex (mm) 15.88
H2 Nut Hex (in) 0.875
H2 Nut Hex (mm) 22.23
T Drop (in) 1.142
C Cutoff (in) 1.65
C Cutoff (mm) 41.9
L Length (in) 2.791
L Length (mm) 70.9
Hose Inside Diameter (in) 0.406
Hose Inside Diameter (mm) 10.3
C (in) 1.67
L (in) 2.79
Angle. 90
H1 Stem Hex (in) 0.625
H1 Stem Hex (mm) 15.88
H2 Nut Hex (in) 0.875
H2 Nut Hex (mm) 22.23
T Drop (in) 1.142
C Cutoff (in) 1.65
C Cutoff (mm) 41.9
L Length (in) 2.791
L Length (mm) 70.9
Hose Inside Diameter (in) 0.406
Hose Inside Diameter (mm) 10.3
C (in) 1.67
L (in) 2.79
Angle. 90
Weight
0.2900
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Aeroquip 190296-8S
- Dayco 121691
- Gates 8C5X-8RFJSX90S
- Gates G34212-0808
- Goodyear 18425-0808
- Goodyear FG-JCFX90-0808
- NAPA G34212-0808
- Parker 23920-10-10
- Weatherhead 24710N670
