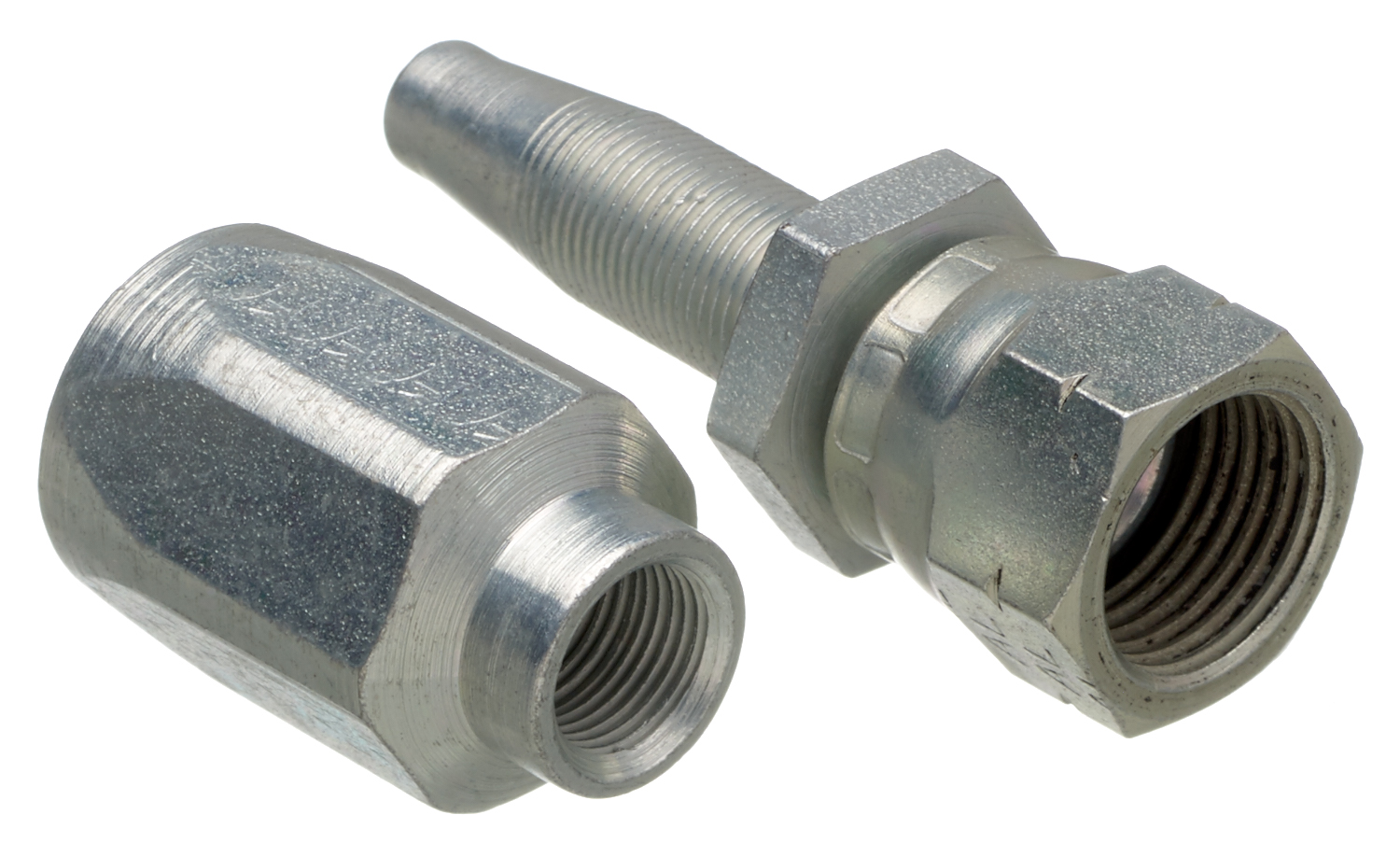

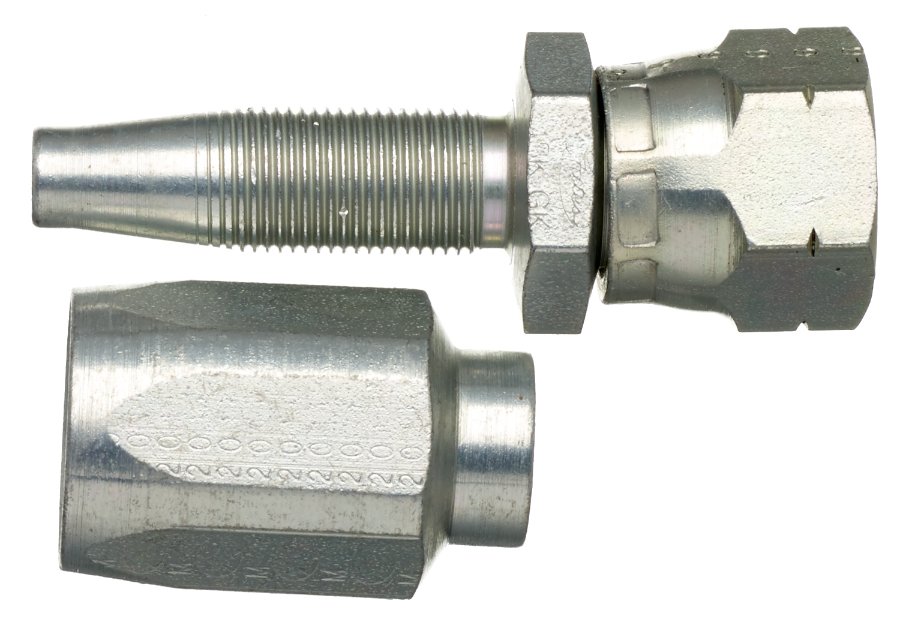

Gates Corporation Hydraulic Coupling / Adapter Part No: G34200-0606
$12.51
Female SAE 45 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
Specifications
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Thread Size: 5/8-18
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 0.75
H2 Nut Hex (mm) 19.05
C Cutoff (in) 1.47
C Cutoff (mm) 37.33
L Length (in) 2.421
L Length (mm) 61.5
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.47
L (in) 2.42
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 0.75
H2 Nut Hex (mm) 19.05
C Cutoff (in) 1.47
C Cutoff (mm) 37.33
L Length (in) 2.421
L Length (mm) 61.5
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.47
L (in) 2.42
Weight
0.1800
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- 06906D406
- 121410
- 18775-0606
- 20820-06-06
- 24706N406
- 4401-6S
- Aeroquip
- Dayco
- G34200-0606
- Gates 6C5-6RFSX
- Gates G34200-0606
- Goodyear
- NAPA
- Parker
- Weatherhead
- Weatherhead
