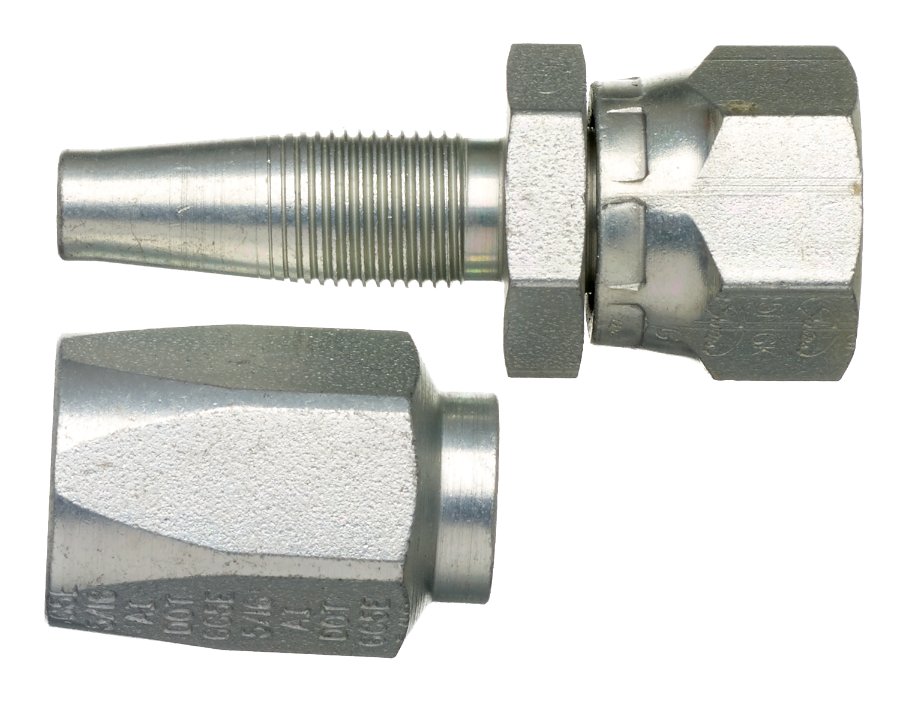

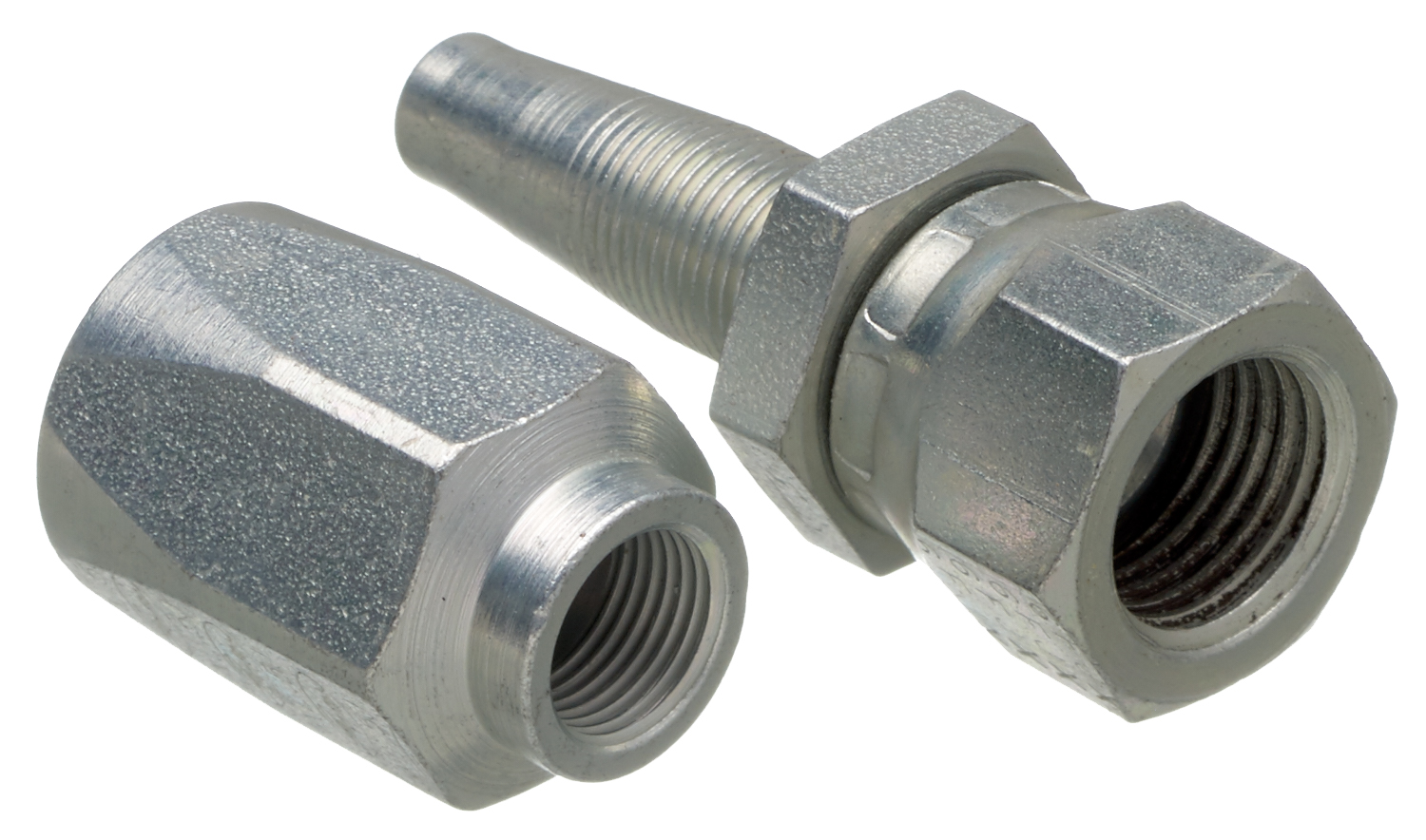

Gates Corporation Hydraulic Coupling / Adapter Part No: G35170-1616
$41.43
C5E
Female JIC 37 Flare Swivel - Steel (C5E Hose)
Specifications
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Thread Size: 1 5/16-12
H1 Stem Hex (in) 1.5
H1 Stem Hex (mm) 38.1
H2 Nut Hex (in) 1.5
H2 Nut Hex (mm) 38.1
C Cutoff (in) 1.84
C Cutoff (mm) 46.73
L Length (in) 2.902
L Length (mm) 73.7
Hose Inside Diameter (in) 0.874
Hose Inside Diameter (mm) 22.2
C (in) 1.84
L (in) 2.9
H1 Stem Hex (in) 1.5
H1 Stem Hex (mm) 38.1
H2 Nut Hex (in) 1.5
H2 Nut Hex (mm) 38.1
C Cutoff (in) 1.84
C Cutoff (mm) 46.73
L Length (in) 2.902
L Length (mm) 73.7
Hose Inside Diameter (in) 0.874
Hose Inside Diameter (mm) 22.2
C (in) 1.84
L (in) 2.9
Weight
0.5900
Compatibility
Alternative Part Numbers
- Dayco 124593
- Goodyear UT-JCFX-1616
- NAPA G35170-1616
- Parker 20621-16-16
- Weatherhead 21316N616
