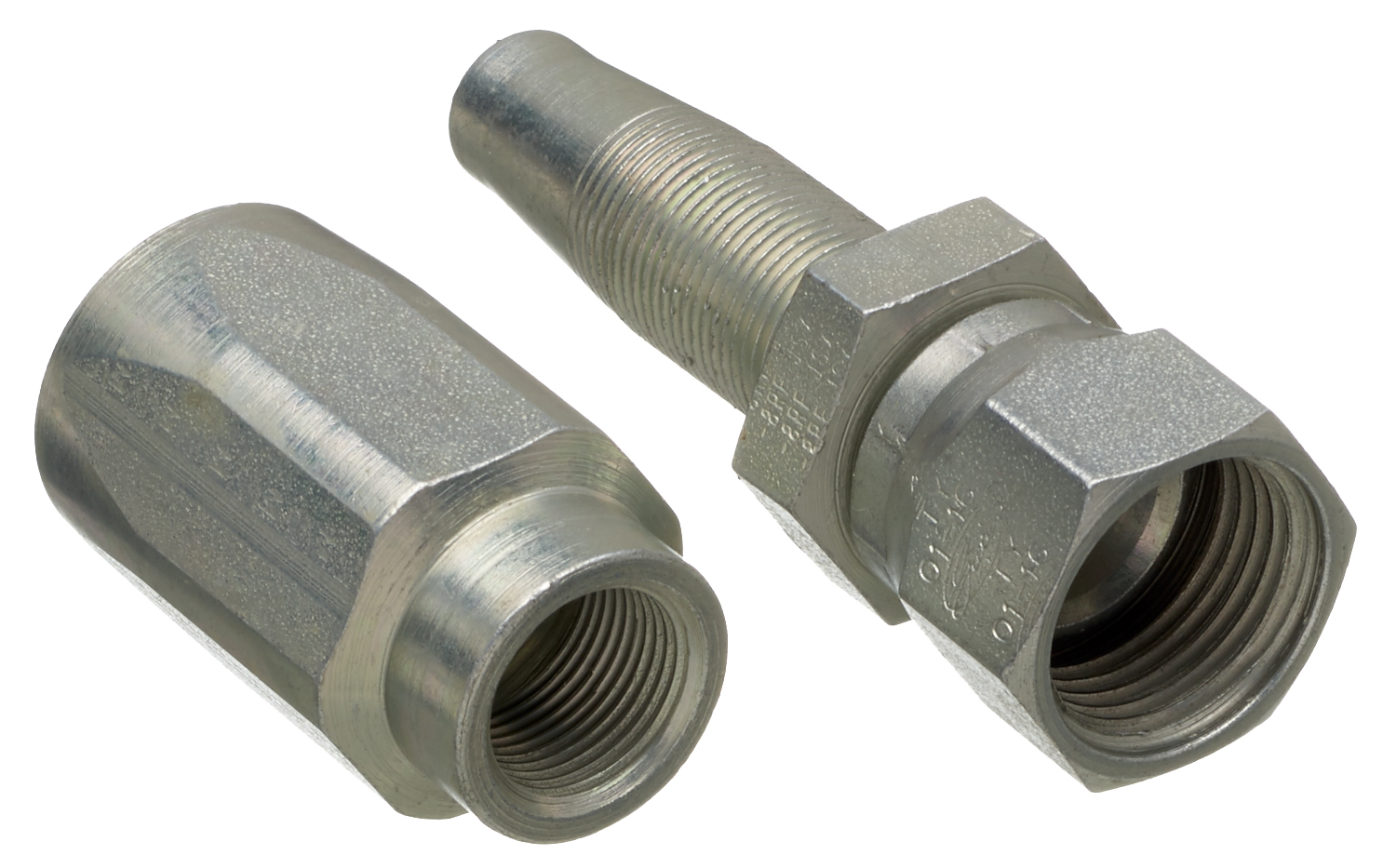

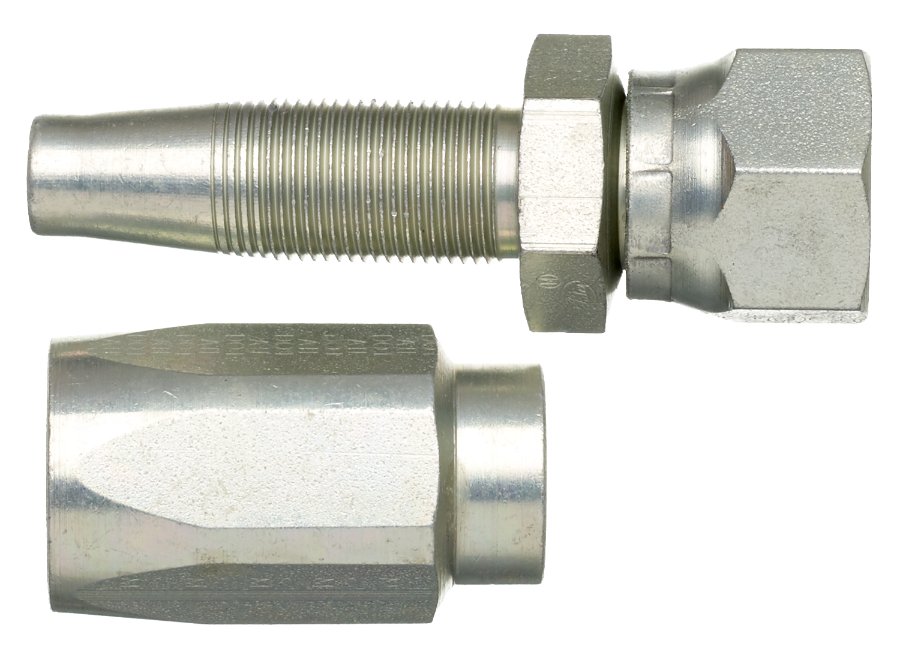

Hydraulic Coupling / Adapter

Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)

Gates Corporation Part No: G34210-0404

$10.51

Specifications

Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.

Weight

0.2000

Thread Size: 7/16-20
H1 Stem Hex (in) 0.5625 H1 Stem Hex (mm) 14.29 H2 Nut Hex (in) 0.5625 H2 Nut Hex (mm) 14.29 C Cutoff (in) 1.22 C Cutoff (mm) 30.98 L Length (in) 1.921 L Length (mm) 48.8 Hose Inside Diameter (in) 0.189 Hose Inside Diameter (mm) 4.8 C (in) 1.22 L (in) 1.92

Compatibility

Alternative Part Numbers

OEM: Gates G34210-0404
Gates 4C5-4RFJSX

Aeroquip
411-4S
Aeroquip
4401-4S
Aeroquip
4411-4S
Dayco
121402
Dayco
121445
Goodyear
18400-0404
Goodyear
18775-0404
Goodyear
FG-JCFX-0404
Goodyear
FG-OBM-0404
Goodyear
FG-SFFX-0404
NAPA
G34210-0404
Parker
20620-04-04
Parker
20620-4-4
Weatherhead
06904D604
Weatherhead
24704N604
Weatherhead
24704N604CT
