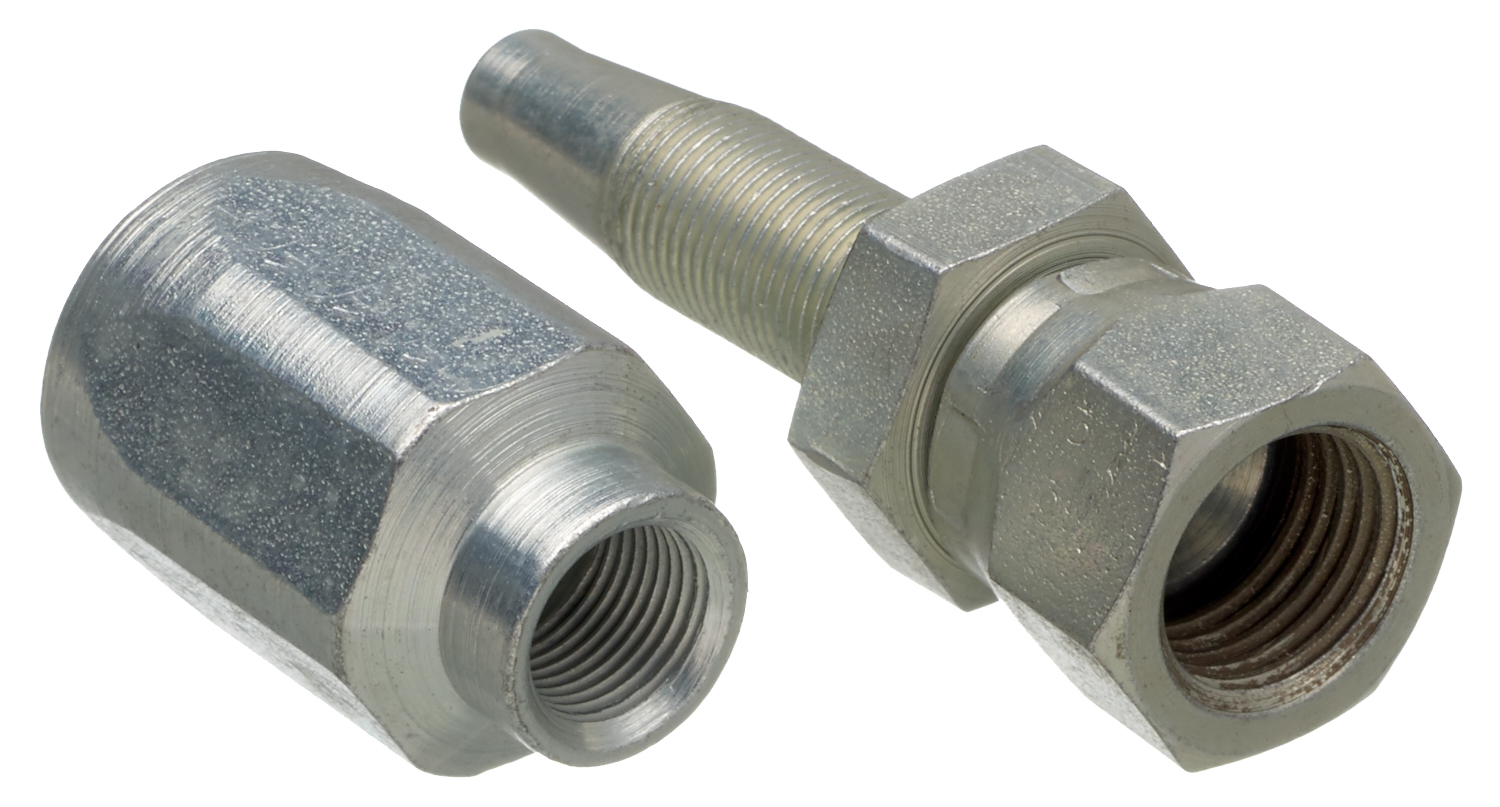

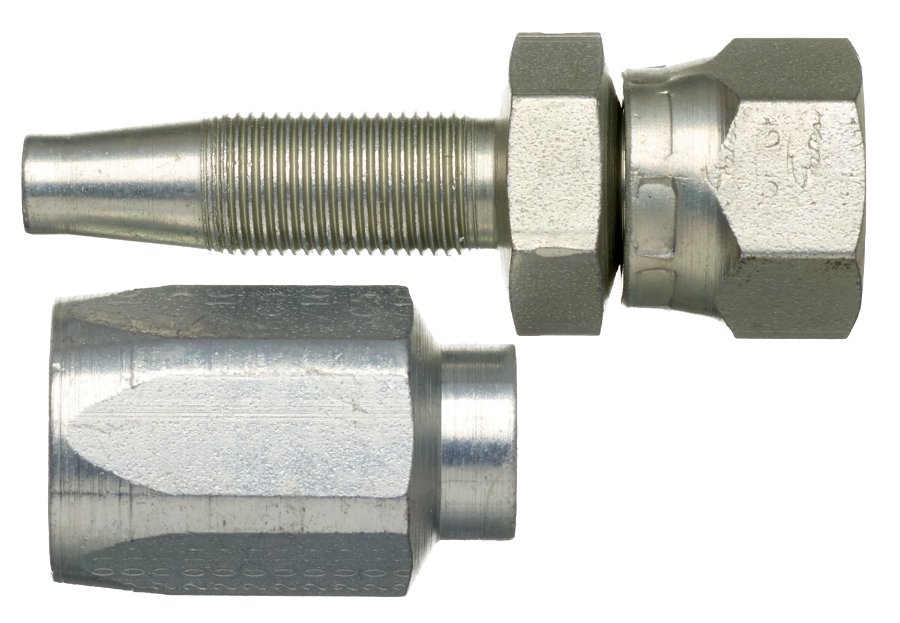

Gates Corporation Hydraulic Coupling / Adapter Part No: G34170-0606
$11.82
Female JIC 37 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
Specifications
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Thread Size: 9/16-18
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 0.75
H2 Nut Hex (mm) 19.05
C Cutoff (in) 1.44
C Cutoff (mm) 36.57
L Length (in) 2.39
L Length (mm) 60.7
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.44
L (in) 2.39
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 0.75
H2 Nut Hex (mm) 19.05
C Cutoff (in) 1.44
C Cutoff (mm) 36.57
L Length (in) 2.39
L Length (mm) 60.7
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.44
L (in) 2.39
Weight
0.1700
Compatibility
Alternative Part Numbers
- Aeroquip 411-6S
- Aeroquip 4411-6S
- Dayco 121453
- Goodyear 18400-0606
- Goodyear FG-JCFX-0606
- NAPA G34170-0606
- Parker 20620-06-06
- Parker 20620-6-6
- Weatherhead 06906D606
- Weatherhead 24706N606
