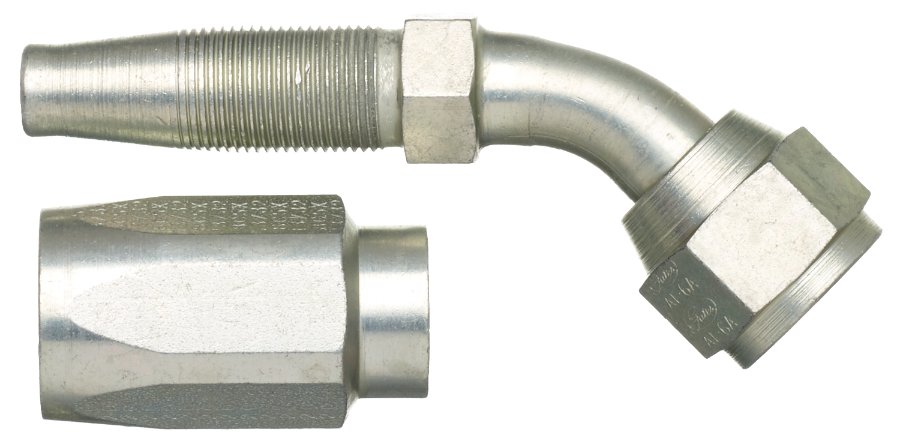

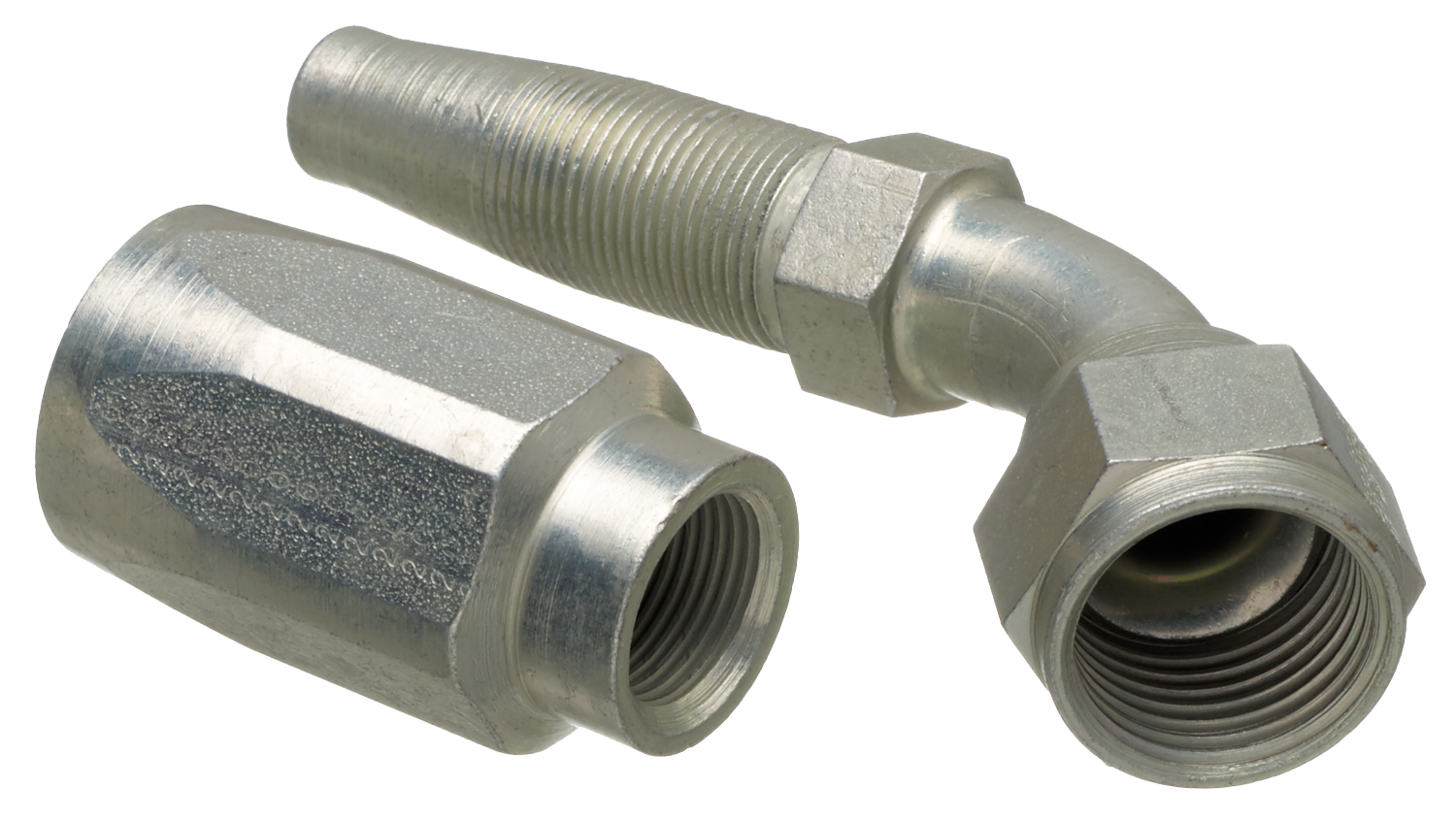

Gates Corporation Hydraulic Coupling / Adapter Part No: G34211-1010
$41.49
Dual Seat Female JIC 37/SAE 45 Flare Swivel - 45 Bent Tube - Steel
Specifications
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Thread Size: 7/8-14
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 1
H2 Nut Hex (mm) 25.4
T Drop (in) 0.63
C Cutoff (in) 2.31
C Cutoff (mm) 58.67
L Length (in) 3.598
L Length (mm) 91.4
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 2.31
L (in) 3.6
Angle. 45
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 1
H2 Nut Hex (mm) 25.4
T Drop (in) 0.63
C Cutoff (in) 2.31
C Cutoff (mm) 58.67
L Length (in) 3.598
L Length (mm) 91.4
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 2.31
L (in) 3.6
Angle. 45
Weight
0.4500
Compatibility
Alternative Part Numbers
- Aeroquip 190297-10S
- Dayco 121665
- Goodyear 18420-1010
- Goodyear FG-JCFX45-1010
- Goodyear FG-SFFX-1010
- NAPA G34211-1010
- Parker 23720-10-10
