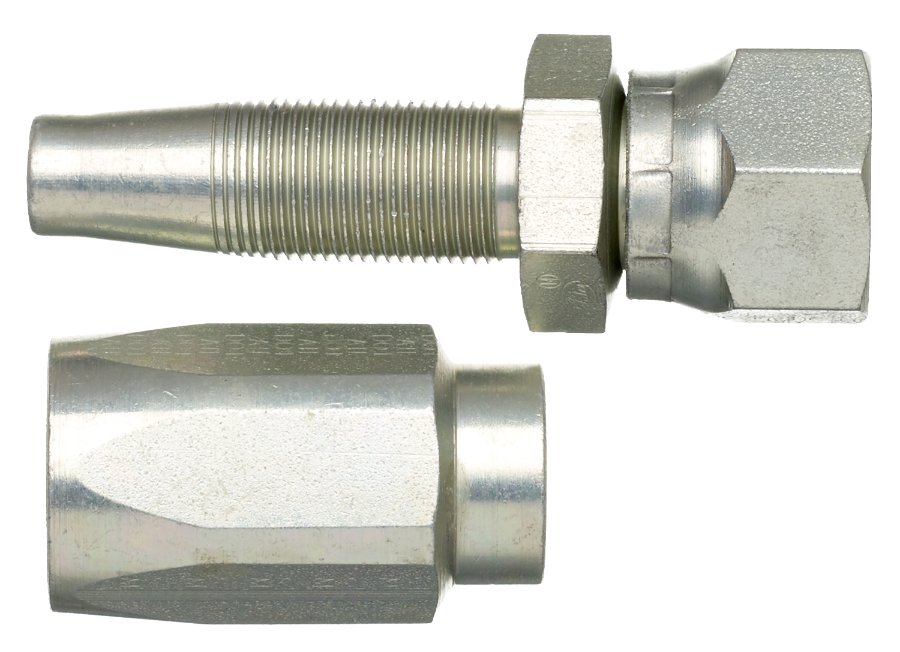

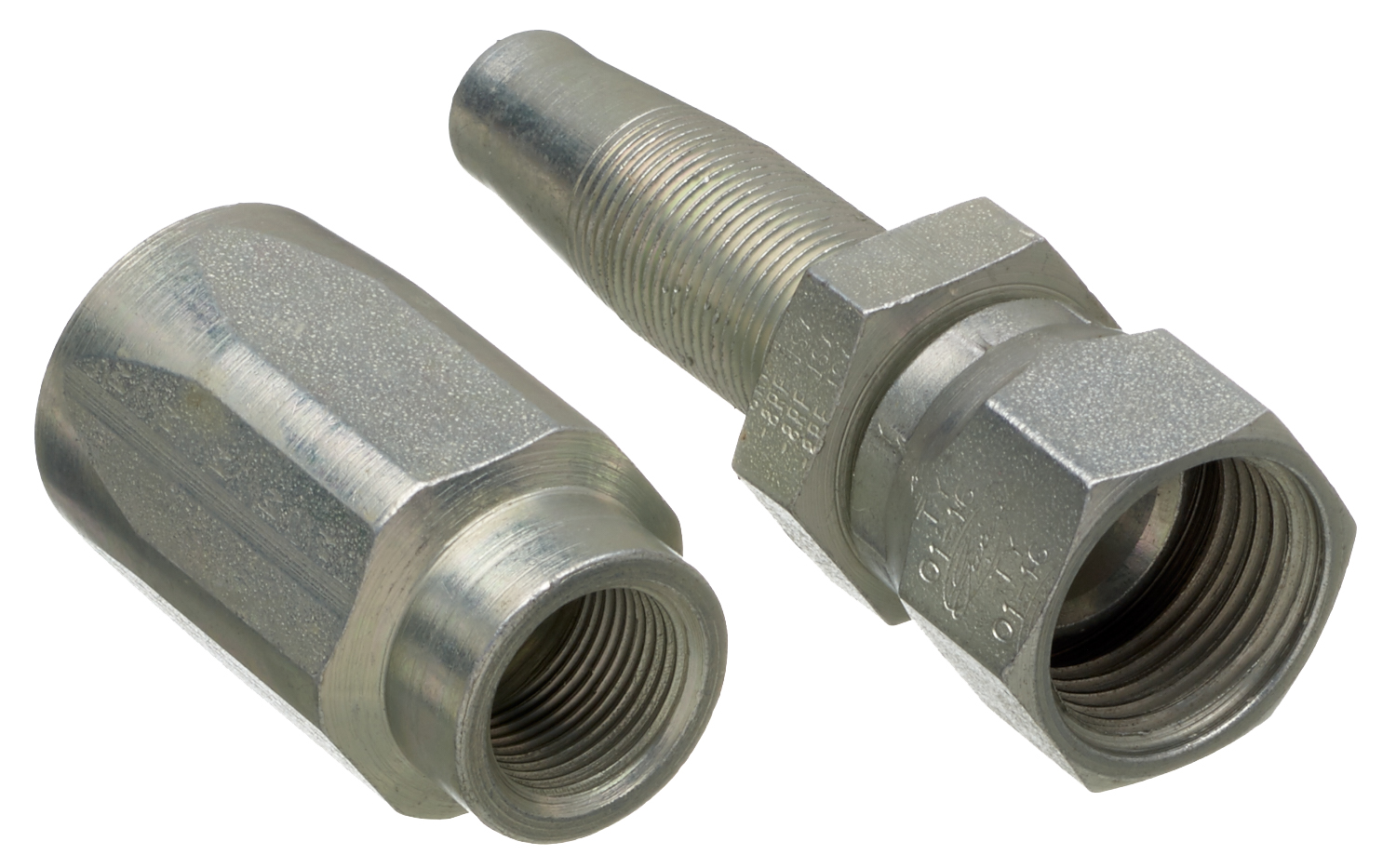

Gates Corporation Hydraulic Coupling / Adapter Part No: G34210-1010
$24.20
Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel (C5CXH, C5C, C5D & C5M Hose)
Specifications
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Thread Size: 7/8-14
H1 Stem Hex (in) 1.0625
H1 Stem Hex (mm) 26.99
H2 Nut Hex (in) 1.0625
H2 Nut Hex (mm) 26.99
C Cutoff (in) 1.81
C Cutoff (mm) 45.97
L Length (in) 3.098
L Length (mm) 78.7
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 1.81
L (in) 3.1
H1 Stem Hex (in) 1.0625
H1 Stem Hex (mm) 26.99
H2 Nut Hex (in) 1.0625
H2 Nut Hex (mm) 26.99
C Cutoff (in) 1.81
C Cutoff (mm) 45.97
L Length (in) 3.098
L Length (mm) 78.7
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 1.81
L (in) 3.1
Weight
0.4400
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- 06910D610
- 121417
- 121460
- 124522
- 18400-1010
- 20820-10-10
- 24710N610
- 411-10S
- 4401-10S
- 4411-10S
- Aeroquip
- Aeroquip
- Aeroquip
- Dayco
- Dayco
- Dayco
- FG-JCFX-1010
- FG-OBM-1010
- G34210-1010
- Gates 10C5-10RFJSX
- Gates G34210-1010
- Goodyear
- Goodyear
- Goodyear
- NAPA
- Parker
- Weatherhead
- Weatherhead
