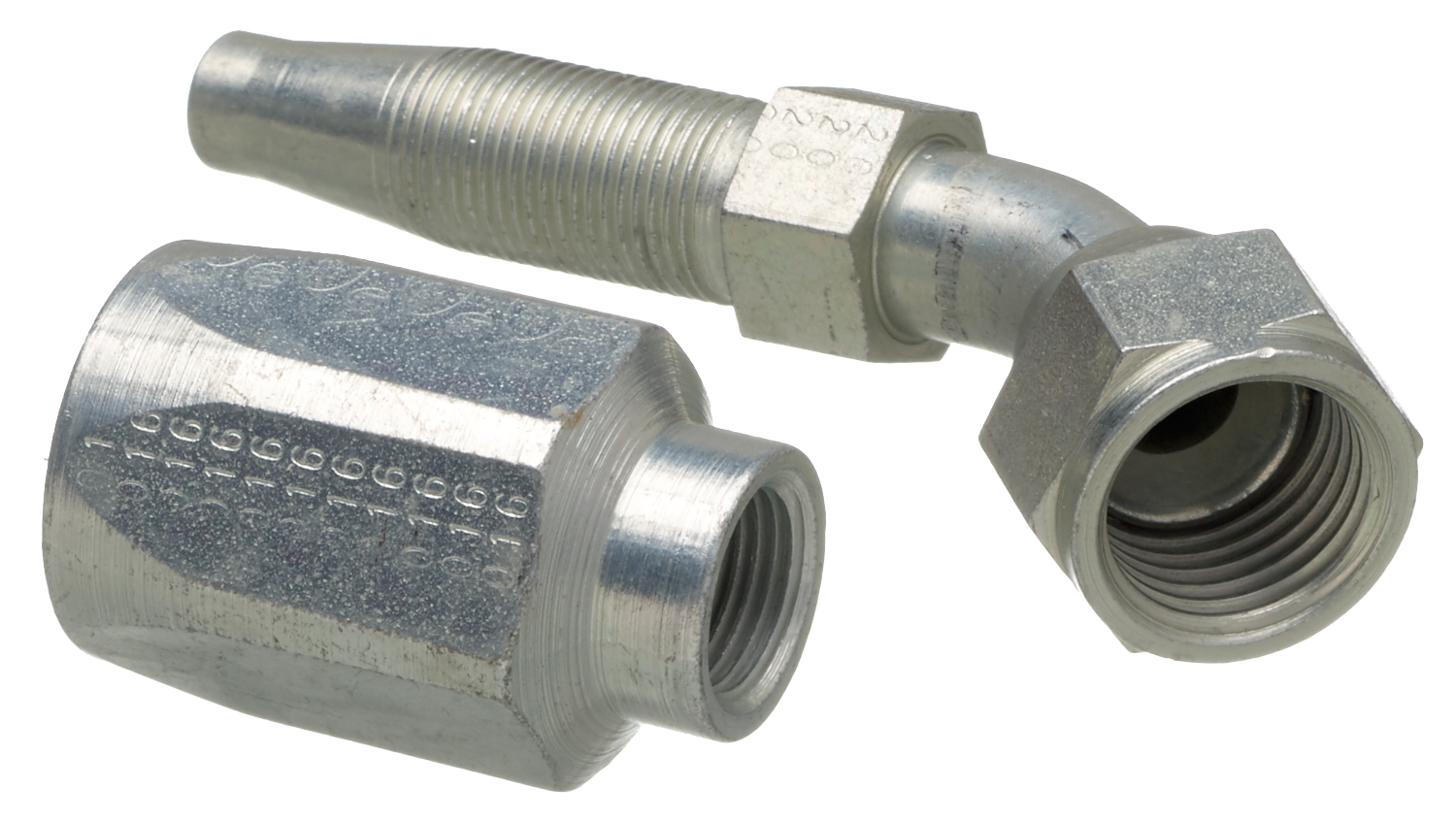

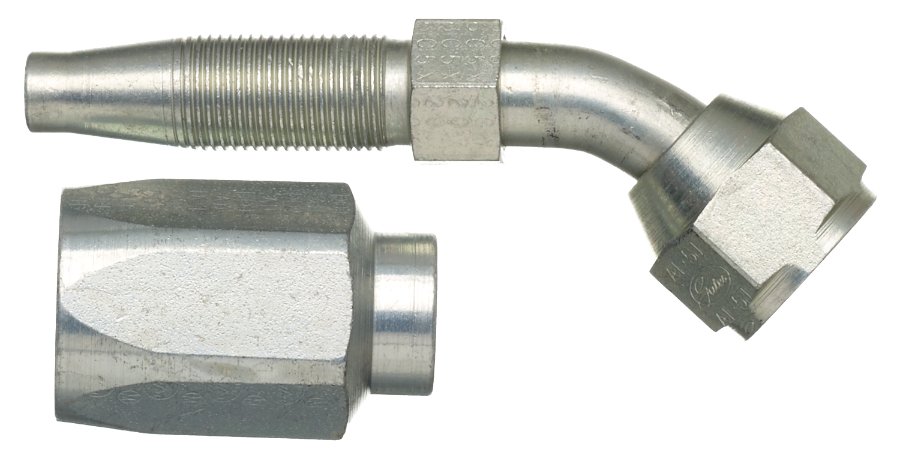

Hydraulic Coupling / Adapter

Female JIC 37 Flare Swivel - 45 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)

Gates Corporation Part No: G34175-0606

$31.65

Specifications

Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.

Weight

0.1500

Thread Size: 9/16-18
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.6875
H2 Nut Hex (mm) 17.46
T Drop (in) 0.409
C Cutoff (in) 1.45
C Cutoff (mm) 36.83
L Length (in) 2.402
L Length (mm) 61
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.45
L (in) 2.4
Angle. 45

Compatibility

Alternative Part Numbers

OEM: Gates G34175-0606
Gates 6C5-6RFJX45

Aeroquip
190265-6S
Dayco
121658
Goodyear
18420-0606
Goodyear
FG-JCFX45-0606
NAPA
G34175-0606
Parker
23720-06-06
Parker
23720-6-6
Weatherhead
24706N686
