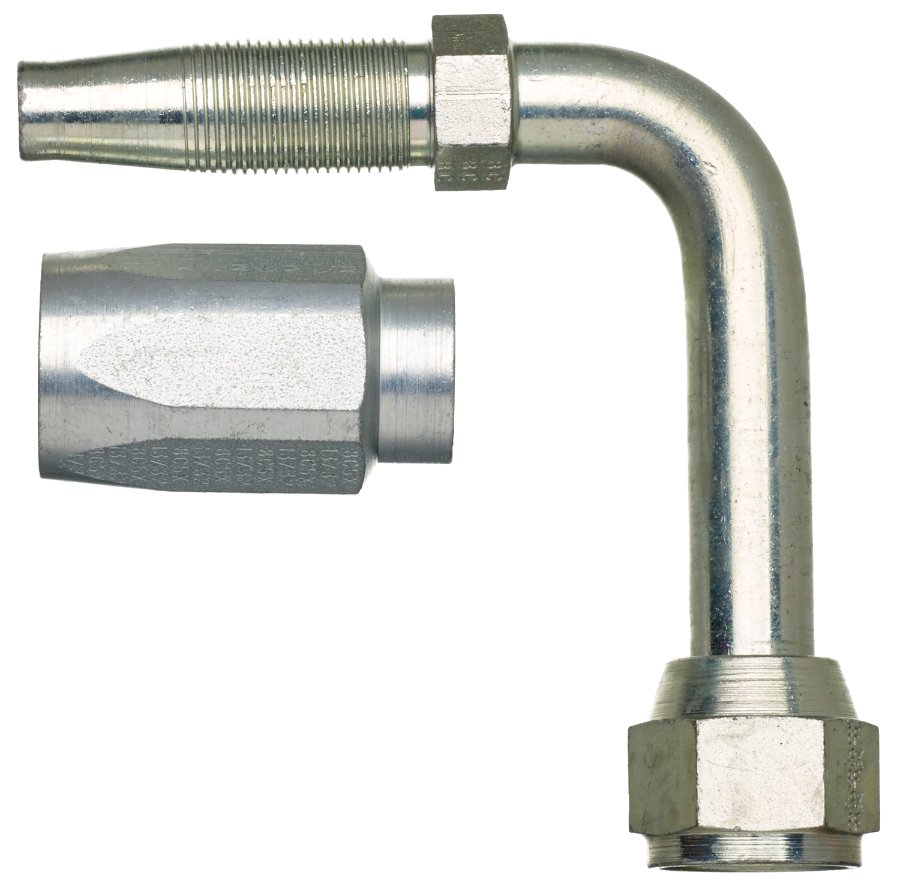

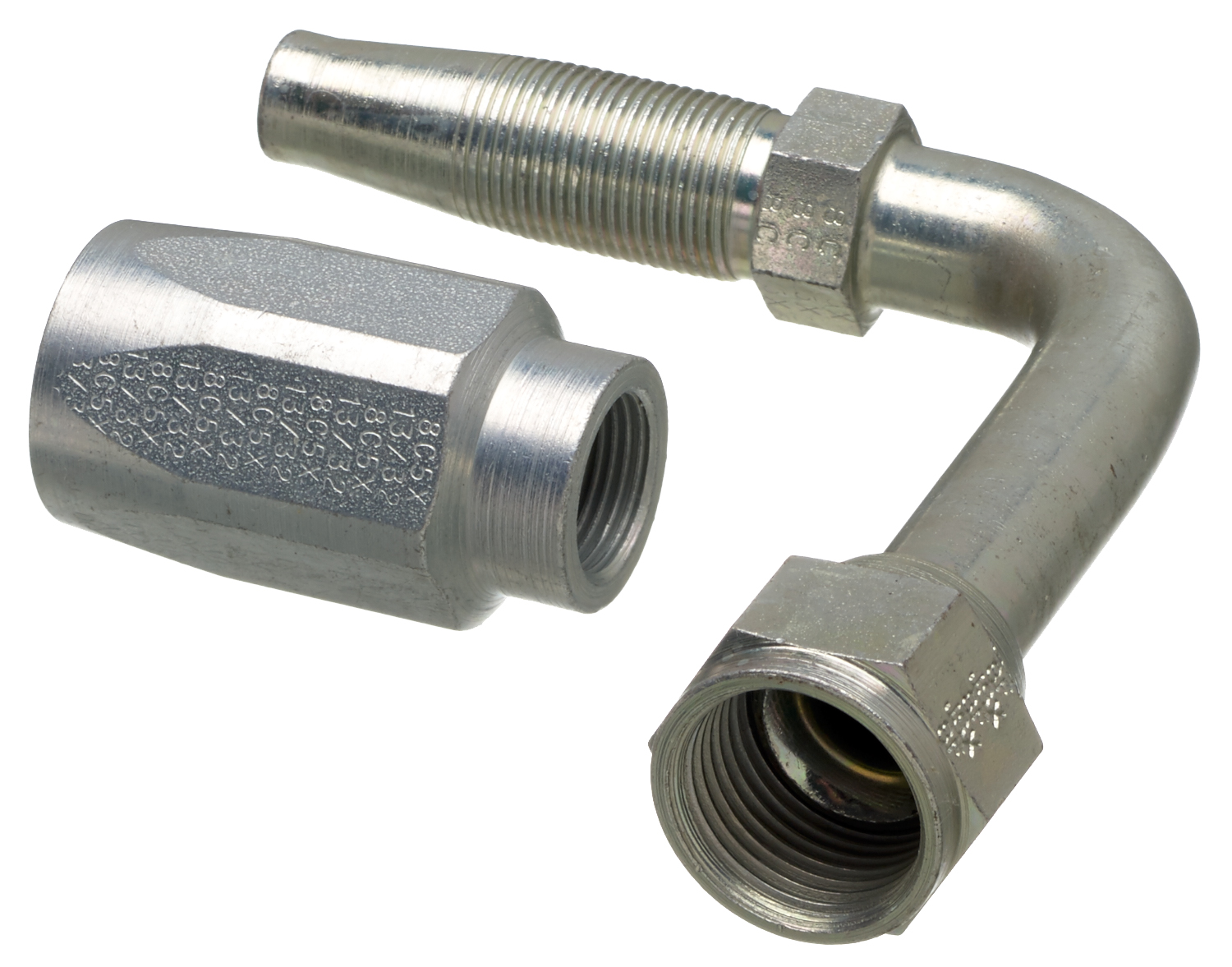

Gates Corporation Hydraulic Coupling / Adapter Part No: G34180-0606
$30.35
Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C5CXH, C5C, C5D & C5M Hose)
Specifications
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Thread Size: 9/16-18
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.6875
H2 Nut Hex (mm) 17.46
T Drop (in) 0.839
C Cutoff (in) 1.33
C Cutoff (mm) 33.78
L Length (in) 2.28
L Length (mm) 57.9
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.33
L (in) 2.28
Angle. 90
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.6875
H2 Nut Hex (mm) 17.46
T Drop (in) 0.839
C Cutoff (in) 1.33
C Cutoff (mm) 33.78
L Length (in) 2.28
L Length (mm) 57.9
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.33
L (in) 2.28
Angle. 90
Weight
0.1700
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Aeroquip 190261-6S
- Dayco 121688
- Gates 6C5-6RFJX90
- Gates G34180-0606
- Goodyear 18425-0606
- Goodyear FG-JCFX90-0606
- NAPA G34180-0606
- Parker 23920-06-06
- Parker 23920-12-12
- Weatherhead 24706N666
