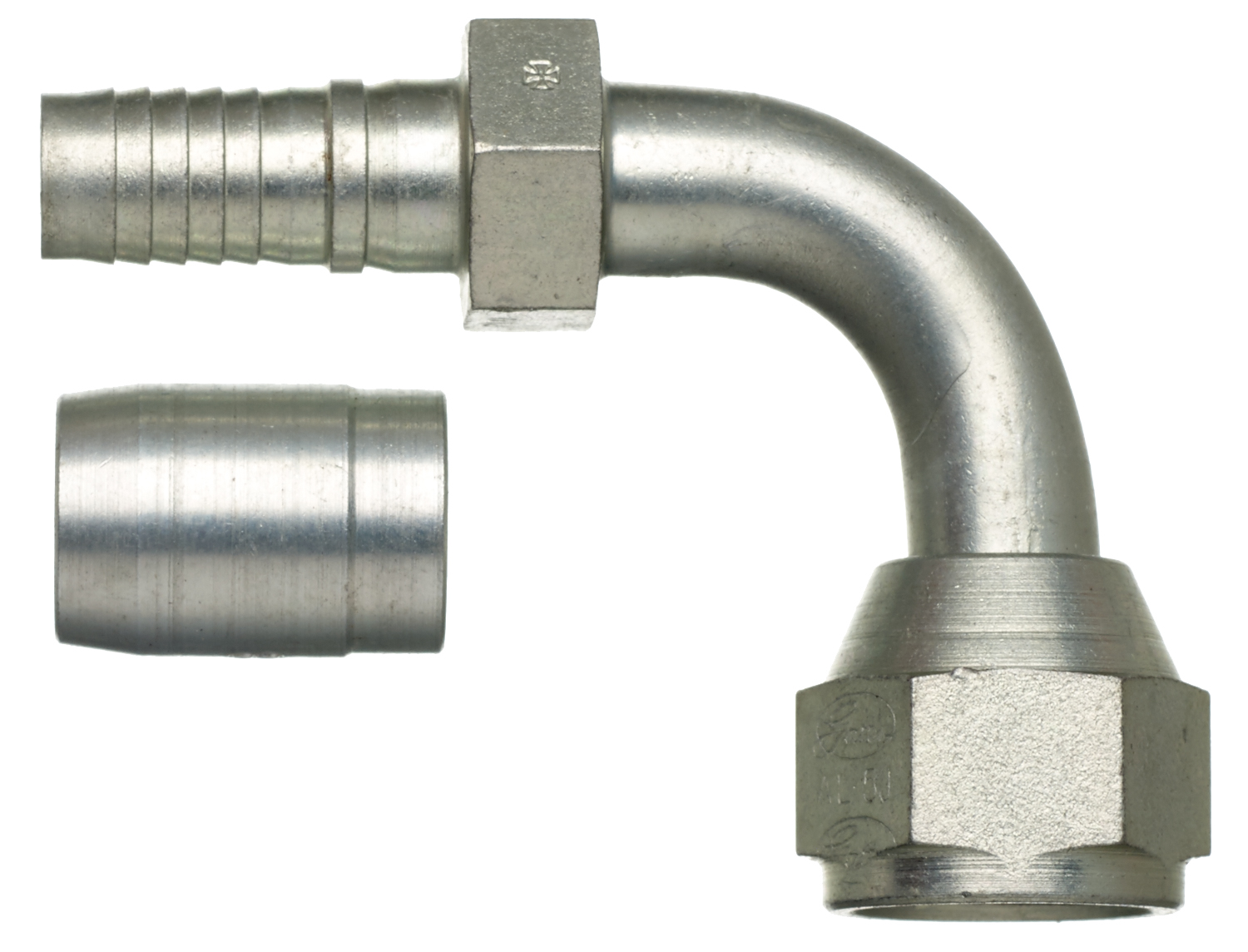

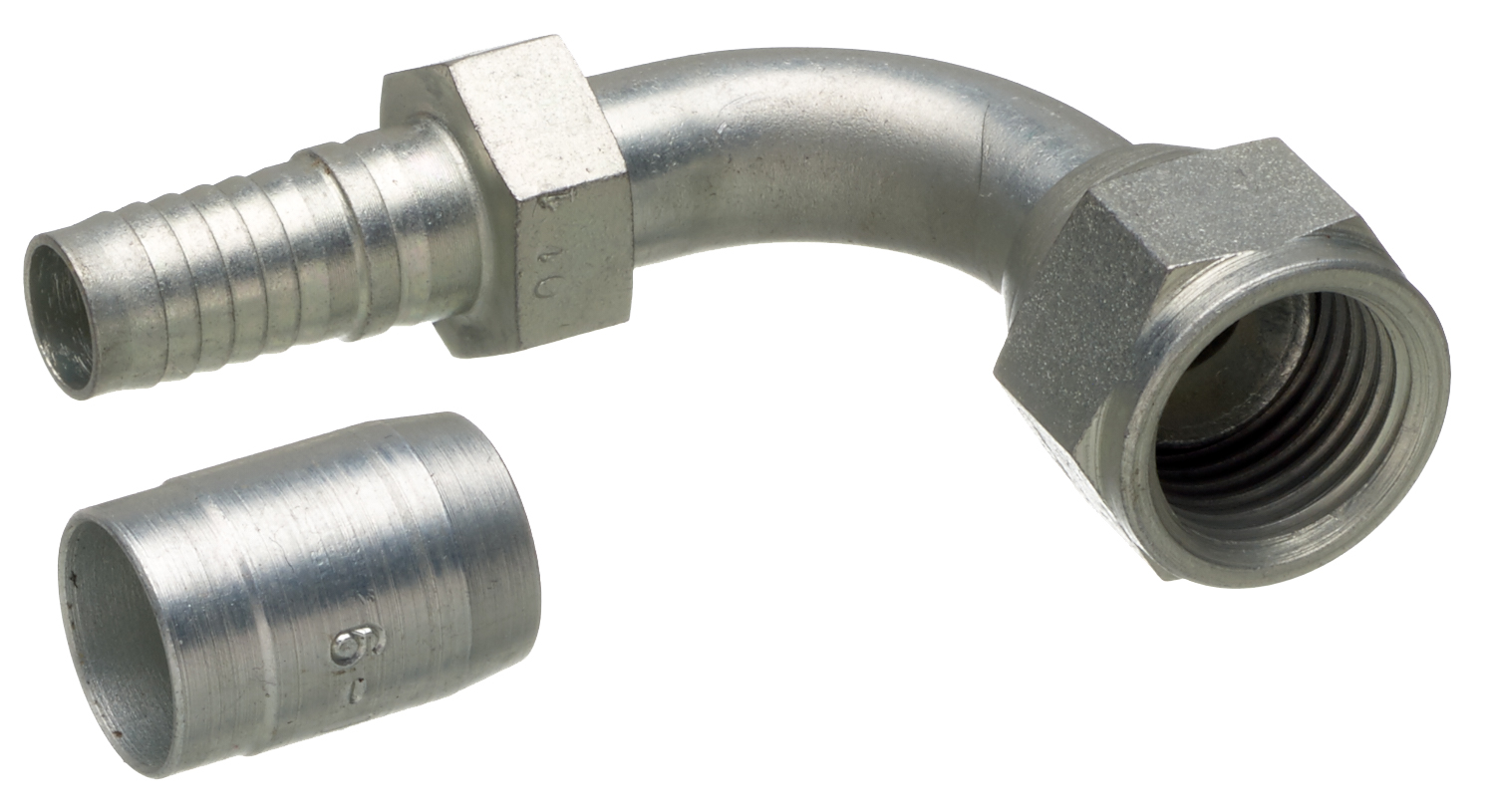

Hydraulic Coupling / Adapter

Dual Seat Female JIC 37/SAE 45 Flare Swivel - 90 Bent Tube - Steel (C5E Hose)

Gates Corporation C5E Part No: G35212-0404

$22.97

Specifications

Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.

Weight

0.0800

Thread Size: 7/16-20
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 1
H2 Nut Hex (mm) 25.4
T Drop (in) 0.63
C Cutoff (in) 2.11
C Cutoff (mm) 53.59
L Length (in) 3.169
L Length (mm) 80.5
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 2.11
L (in) 3.17
Angle. 45

Compatibility

Alternative Part Numbers

OEM: Gates G35212-0404
Gates 4C5E-4RFJSX90

Dayco
124901
Dayco
125265
Goodyear
UT-JCFX90-0404
NAPA
G35212-0404
Parker
23921-04-04
Parker
23921-4-4
Weatherhead
21304N664
