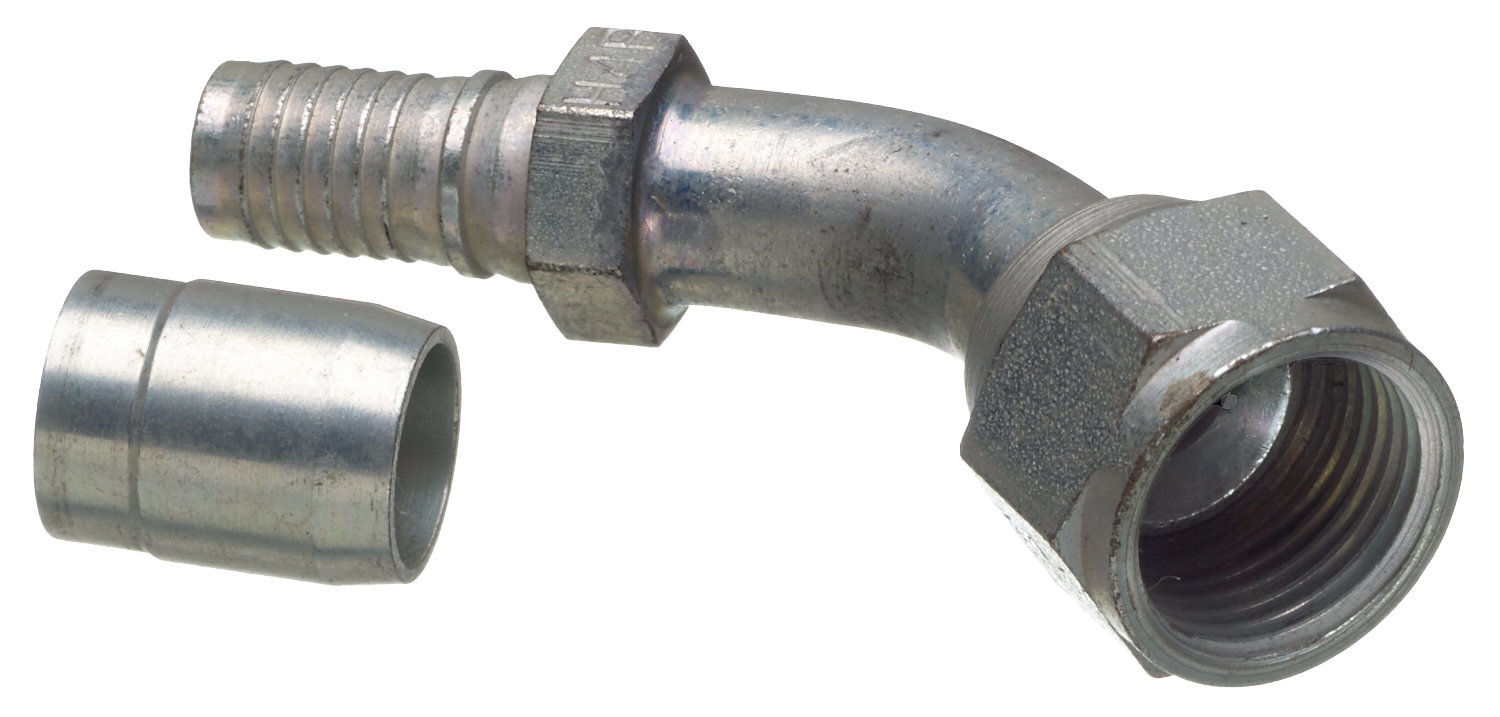

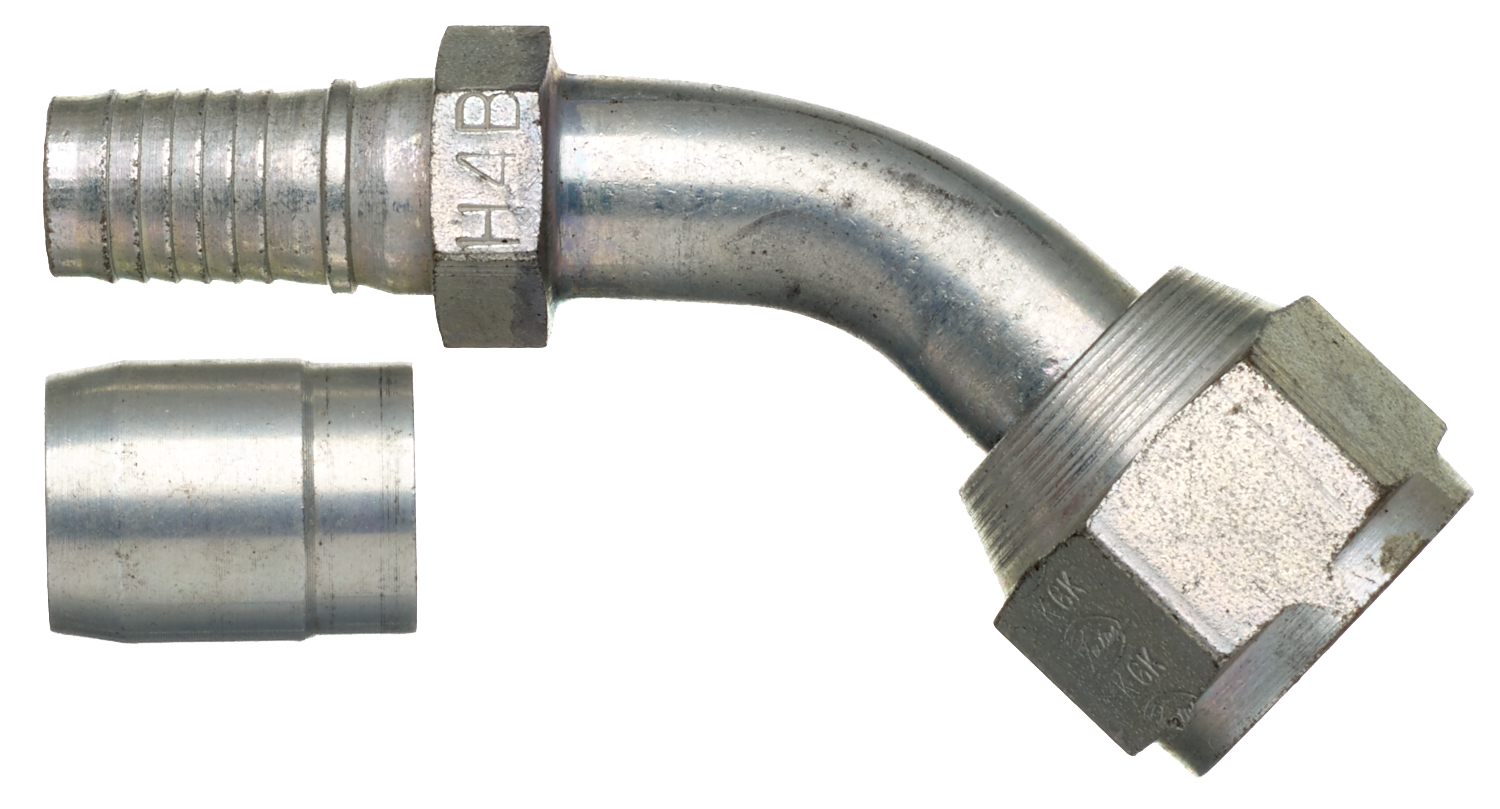

Gates Corporation Hydraulic Coupling / Adapter Part No: G35211-1010
$48.48
C5E
Dual Seat Female JIC 37/SAE 45 Flare Swivel - 45 Bent Tube - Steel (C5E Hose)
Specifications
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Thread Size: 7/8-14
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 1
H2 Nut Hex (mm) 25.4
T Drop (in) 0.63
C Cutoff (in) 2.11
C Cutoff (mm) 53.59
L Length (in) 3.169
L Length (mm) 80.5
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 2.11
L (in) 3.17
Angle. 45
H1 Stem Hex (in) 0.75
H1 Stem Hex (mm) 19.05
H2 Nut Hex (in) 1
H2 Nut Hex (mm) 25.4
T Drop (in) 0.63
C Cutoff (in) 2.11
C Cutoff (mm) 53.59
L Length (in) 3.169
L Length (mm) 80.5
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 2.11
L (in) 3.17
Angle. 45
Weight
0.3300
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Dayco 124859
- Dayco 125239
- Gates 10C5E-10RFJSX45
- Gates G35211-1010
- NAPA G35211-1010
- Parker 23721-10-10
