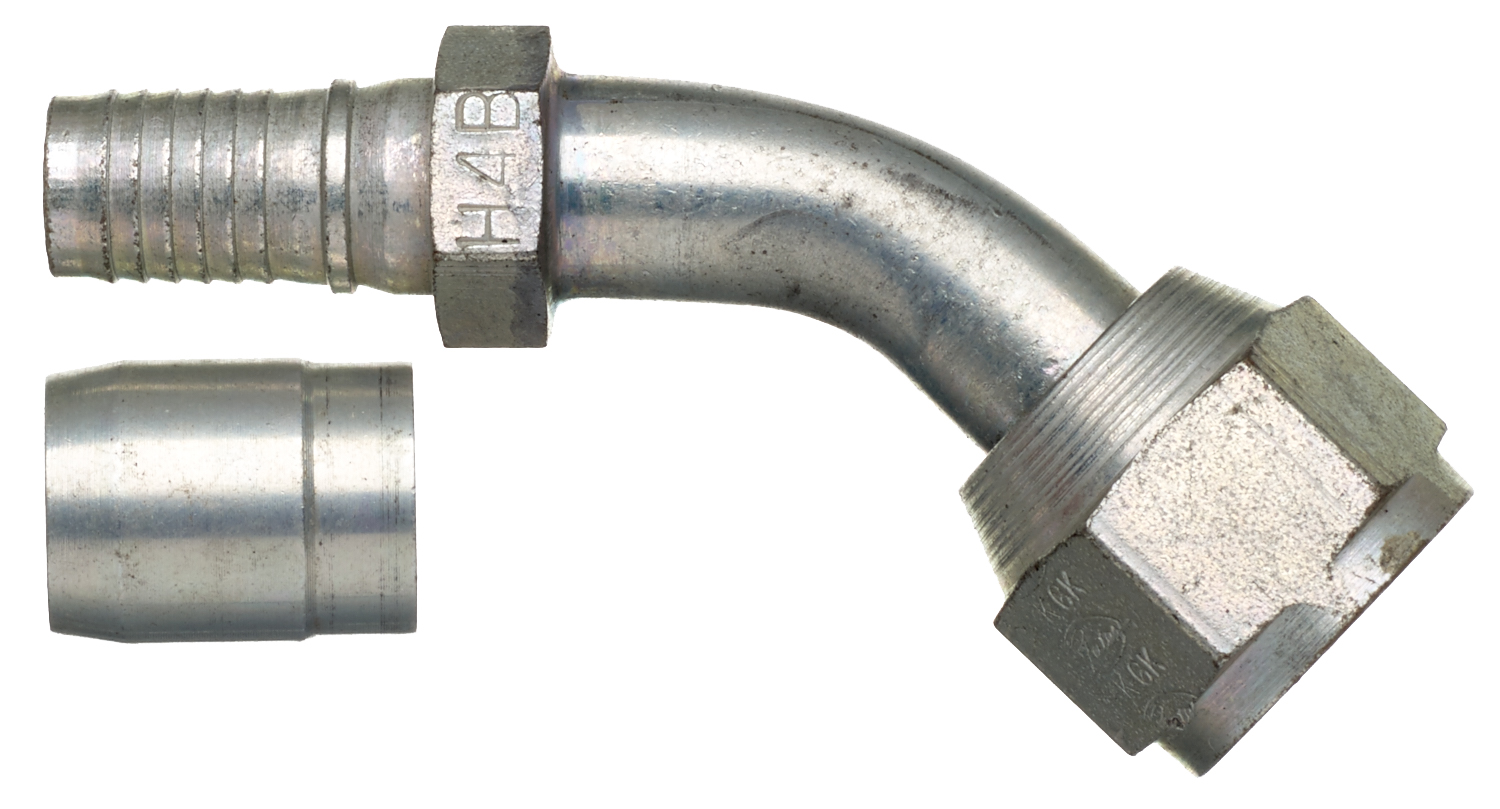

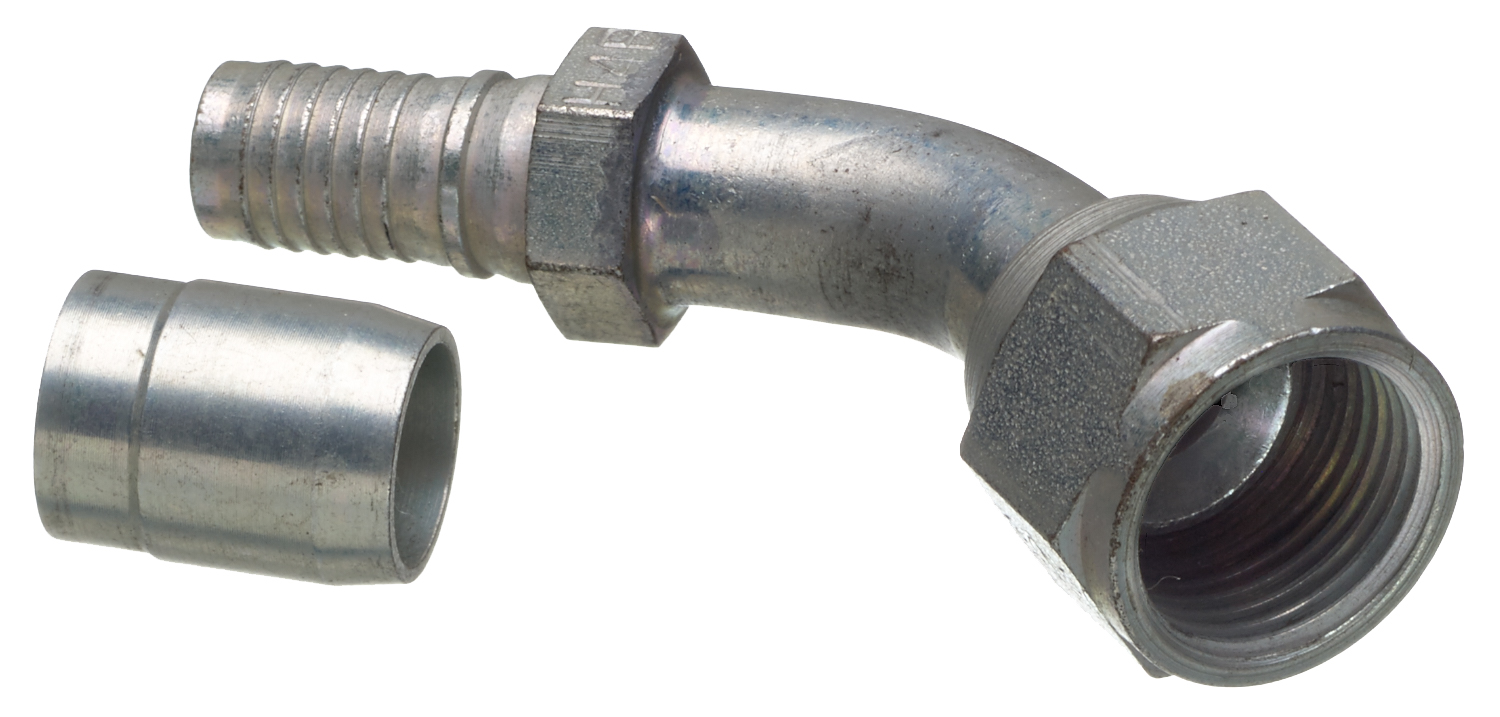

Gates Corporation Hydraulic Coupling / Adapter Part No: G35211-0404
C5E
Dual Seat Female JIC 37/SAE 45 Flare Swivel - 45 Bent Tube - Steel (C5E Hose)
Specifications
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Thread Size: 7/16-20
H1 Stem Hex (in) 1.0625
H1 Stem Hex (mm) 26.99
H2 Nut Hex (in) 1.0625
H2 Nut Hex (mm) 26.99
C Cutoff (in) 1.65
C Cutoff (mm) 41.91
L Length (in) 2.72
L Length (mm) 69.1
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 1.65
L (in) 2.72
H1 Stem Hex (in) 1.0625
H1 Stem Hex (mm) 26.99
H2 Nut Hex (in) 1.0625
H2 Nut Hex (mm) 26.99
C Cutoff (in) 1.65
C Cutoff (mm) 41.91
L Length (in) 2.72
L Length (mm) 69.1
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 1.65
L (in) 2.72
Weight
0.0900
Compatibility
Alternative Part Numbers
- Dayco 124840
- Dayco 125220
- NAPA G35211-0404
- Parker 23721-04-04
- Parker 23721-4-4
- Weatherhead 21304N684
