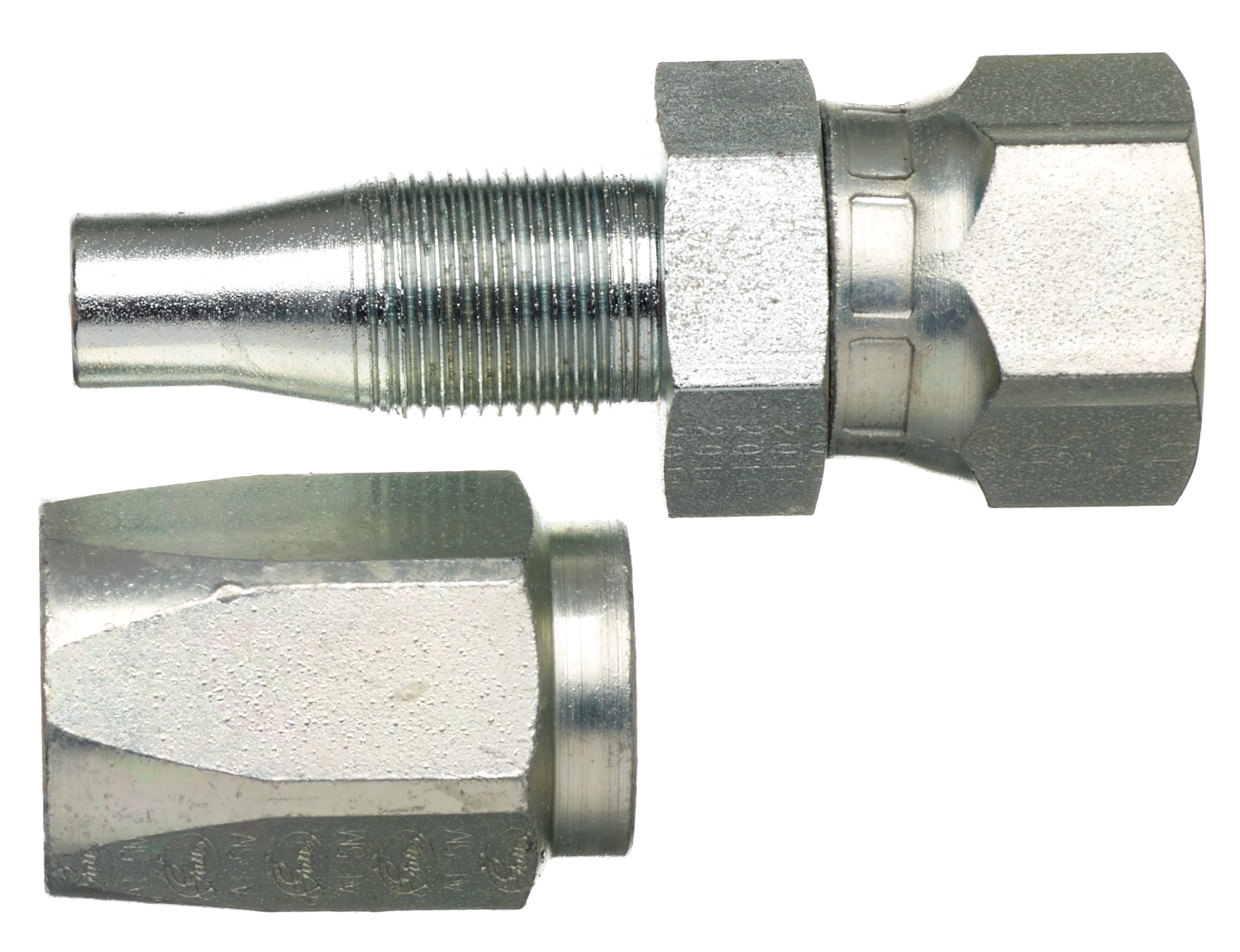

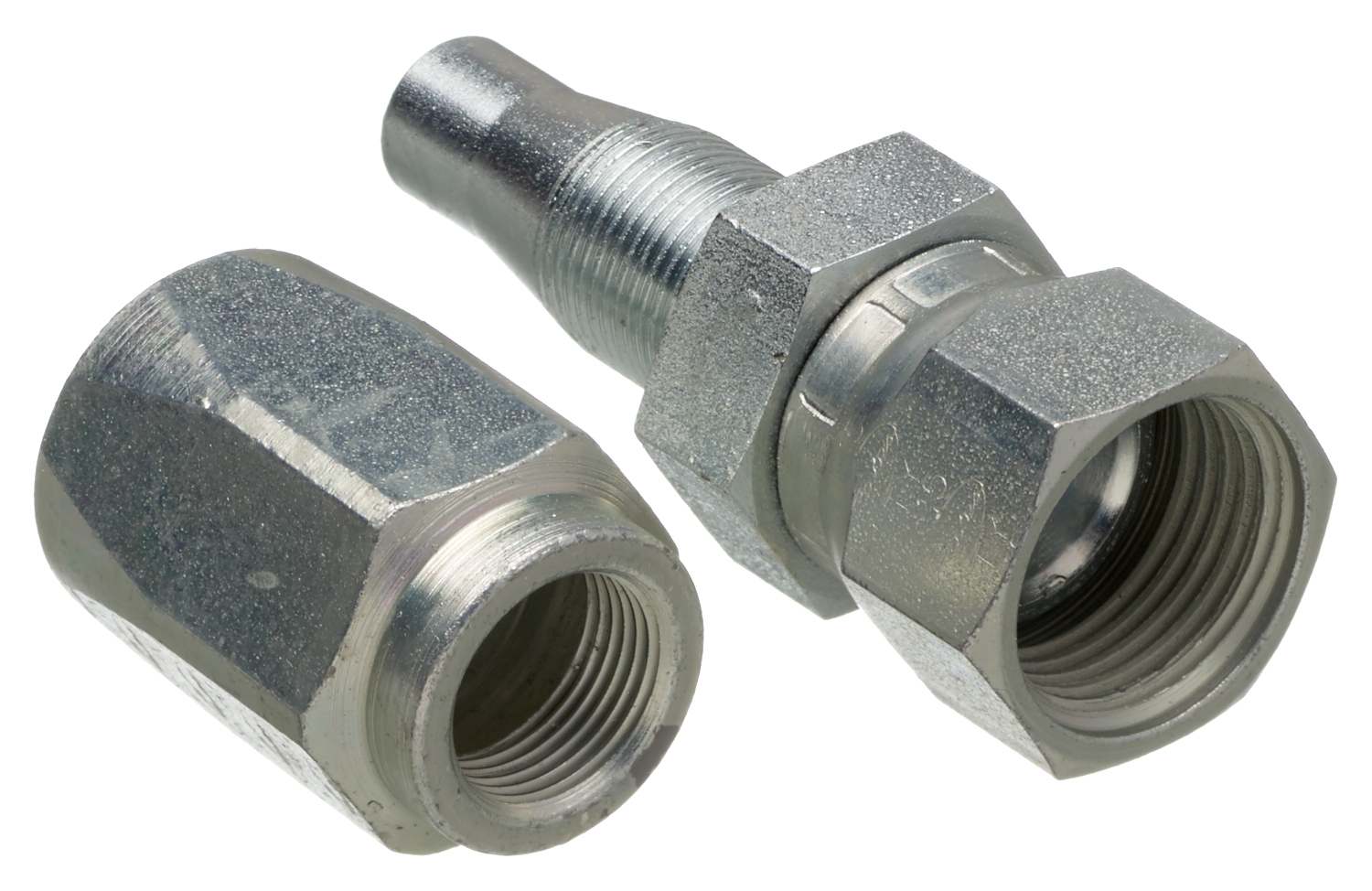

Hydraulic Coupling / Adapter

Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel (C5E Hose)

Gates Corporation C5E Part No: G35210-1010

$24.20

Specifications

Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.

Weight

0.3300

Thread Size: 7/8-14
H1 Stem Hex (in) 1.0625
H1 Stem Hex (mm) 26.99
H2 Nut Hex (in) 1.0625
H2 Nut Hex (mm) 26.99
C Cutoff (in) 1.65
C Cutoff (mm) 41.91
L Length (in) 2.72
L Length (mm) 69.1
Hose Inside Diameter (in) 0.5
Hose Inside Diameter (mm) 12.7
C (in) 1.65
L (in) 2.72

Compatibility

Alternative Part Numbers

OEM: Gates G35210-1010
Gates 10C5E-10RFJSX

Dayco
124582
Goodyear
UT-JCFX-1010
NAPA
G35210-1010
Parker
20621-10-10
Weatherhead
21310B410
Weatherhead
21310N610
