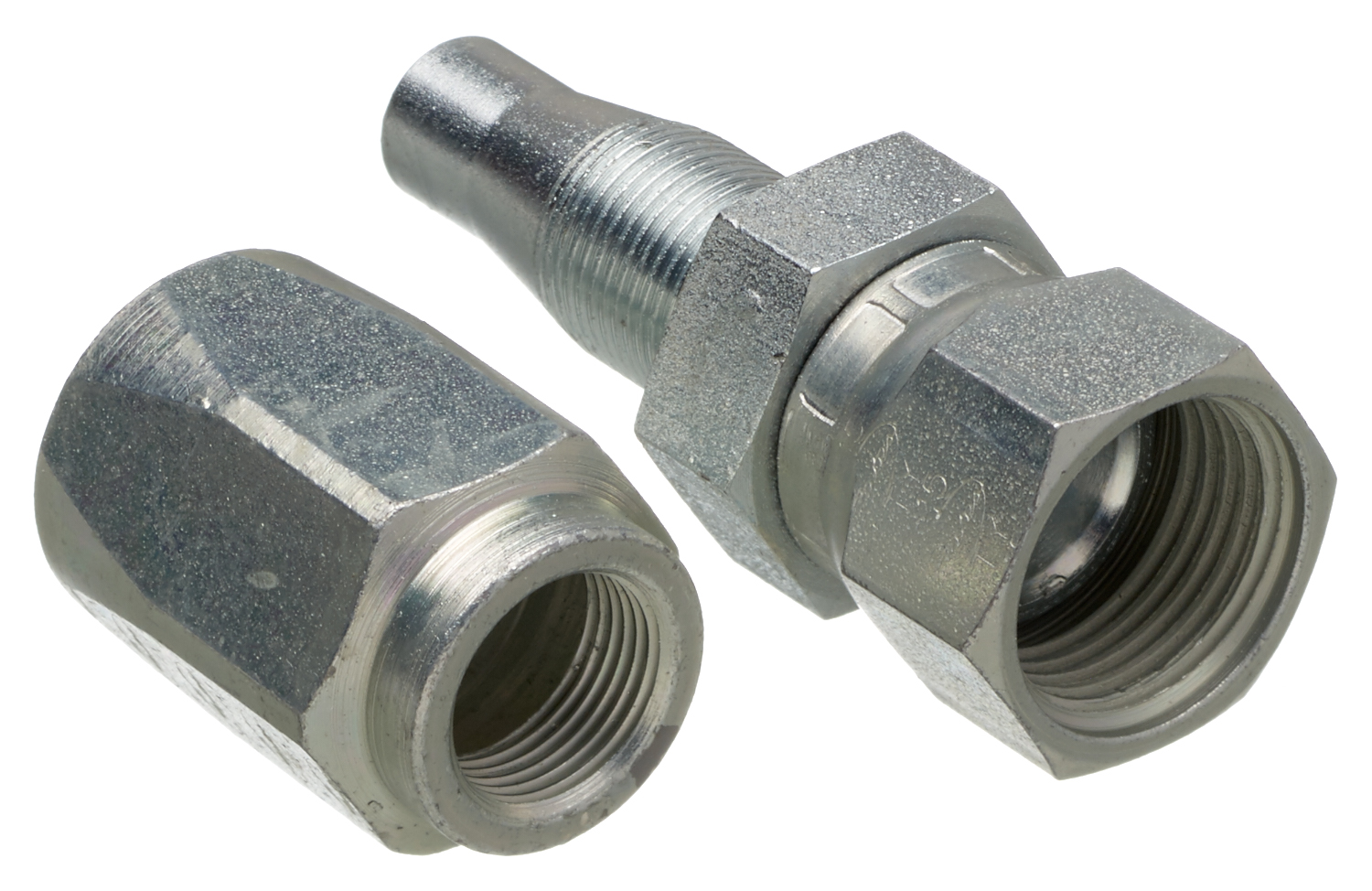

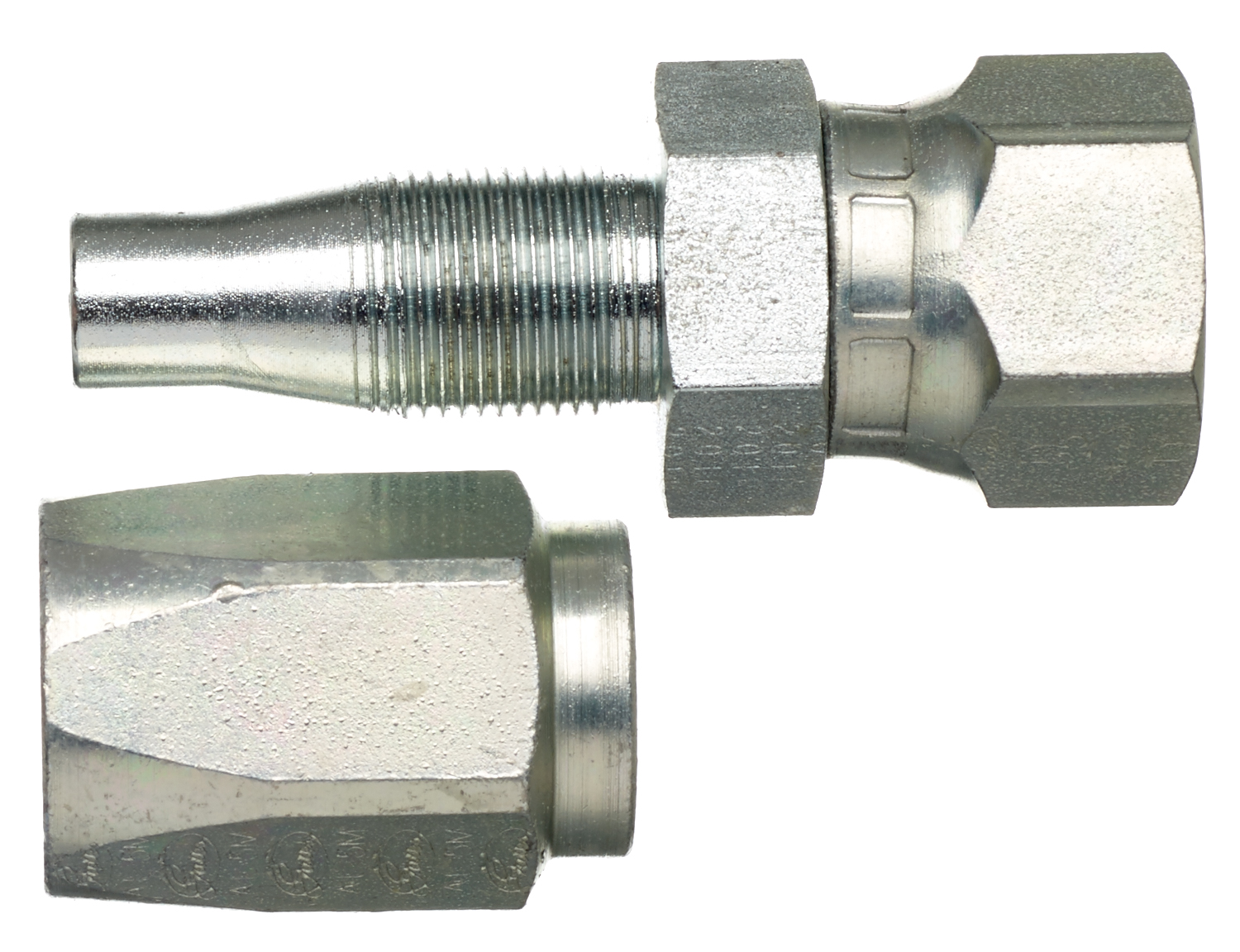

Gates Corporation Hydraulic Coupling / Adapter Part No: G35210-0808
$15.31
C5E
Dual Seat Female JIC 37/SAE 45 Flare Swivel - Steel (C5E Hose)
Specifications
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Thread Size: 3/4-16
H1 Stem Hex (in) 0.875
H1 Stem Hex (mm) 22.23
H2 Nut Hex (in) 0.875
H2 Nut Hex (mm) 22.23
C Cutoff (in) 1.45
C Cutoff (mm) 36.83
L Length (in) 2.449
L Length (mm) 62.2
Hose Inside Diameter (in) 0.406
Hose Inside Diameter (mm) 10.3
C (in) 1.45
L (in) 2.45
H1 Stem Hex (in) 0.875
H1 Stem Hex (mm) 22.23
H2 Nut Hex (in) 0.875
H2 Nut Hex (mm) 22.23
C Cutoff (in) 1.45
C Cutoff (mm) 36.83
L Length (in) 2.449
L Length (mm) 62.2
Hose Inside Diameter (in) 0.406
Hose Inside Diameter (mm) 10.3
C (in) 1.45
L (in) 2.45
Weight
0.2500
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Dayco 124517
- Gates 8C5E-8RFJSX
- Gates G35210-0808
- Goodyear 38400-0808
- Goodyear UT-JCFX-0808
- NAPA G35210-0808
- Parker 20621-08-08
- Parker 20621-8-8
- Weatherhead 21308N608
