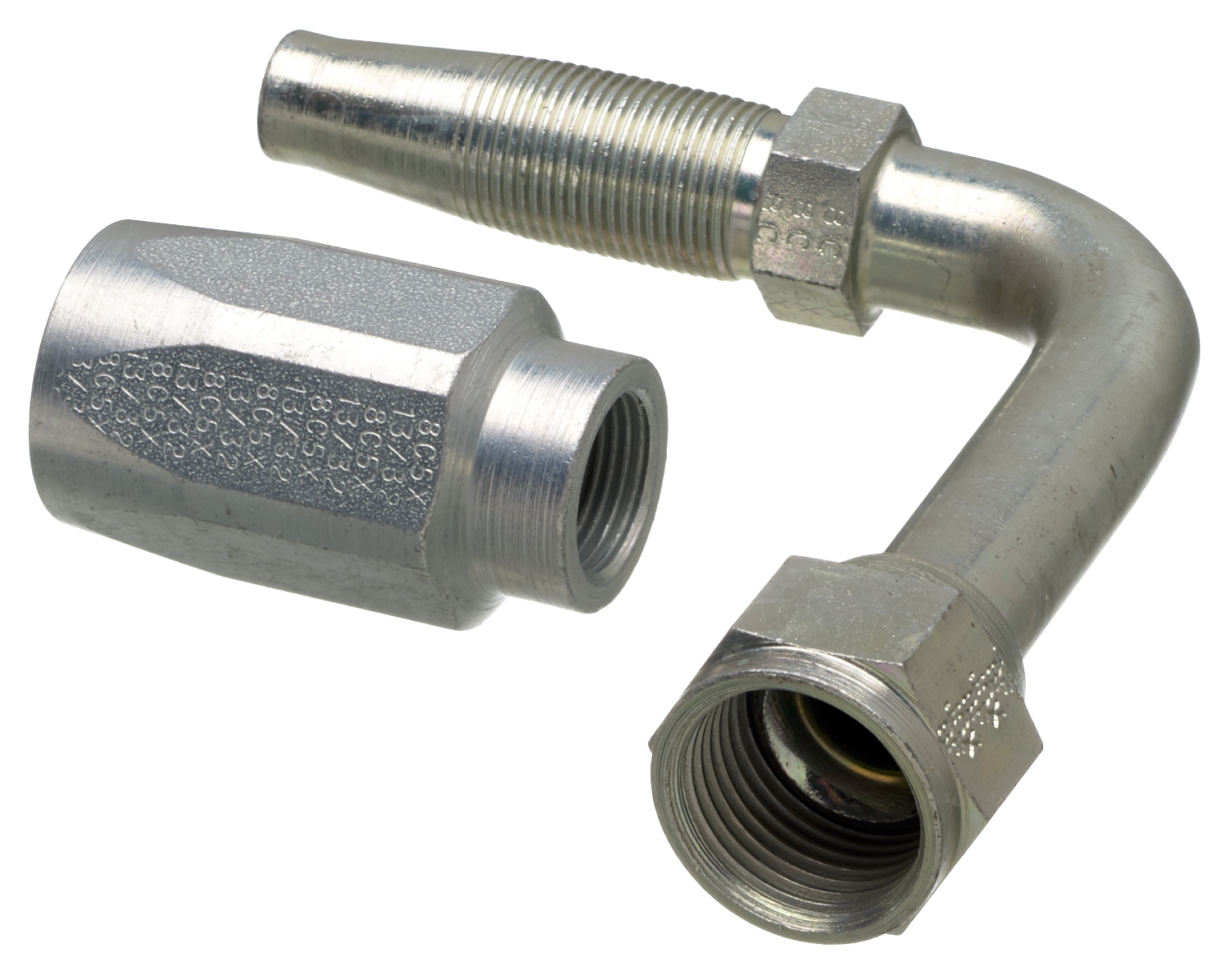

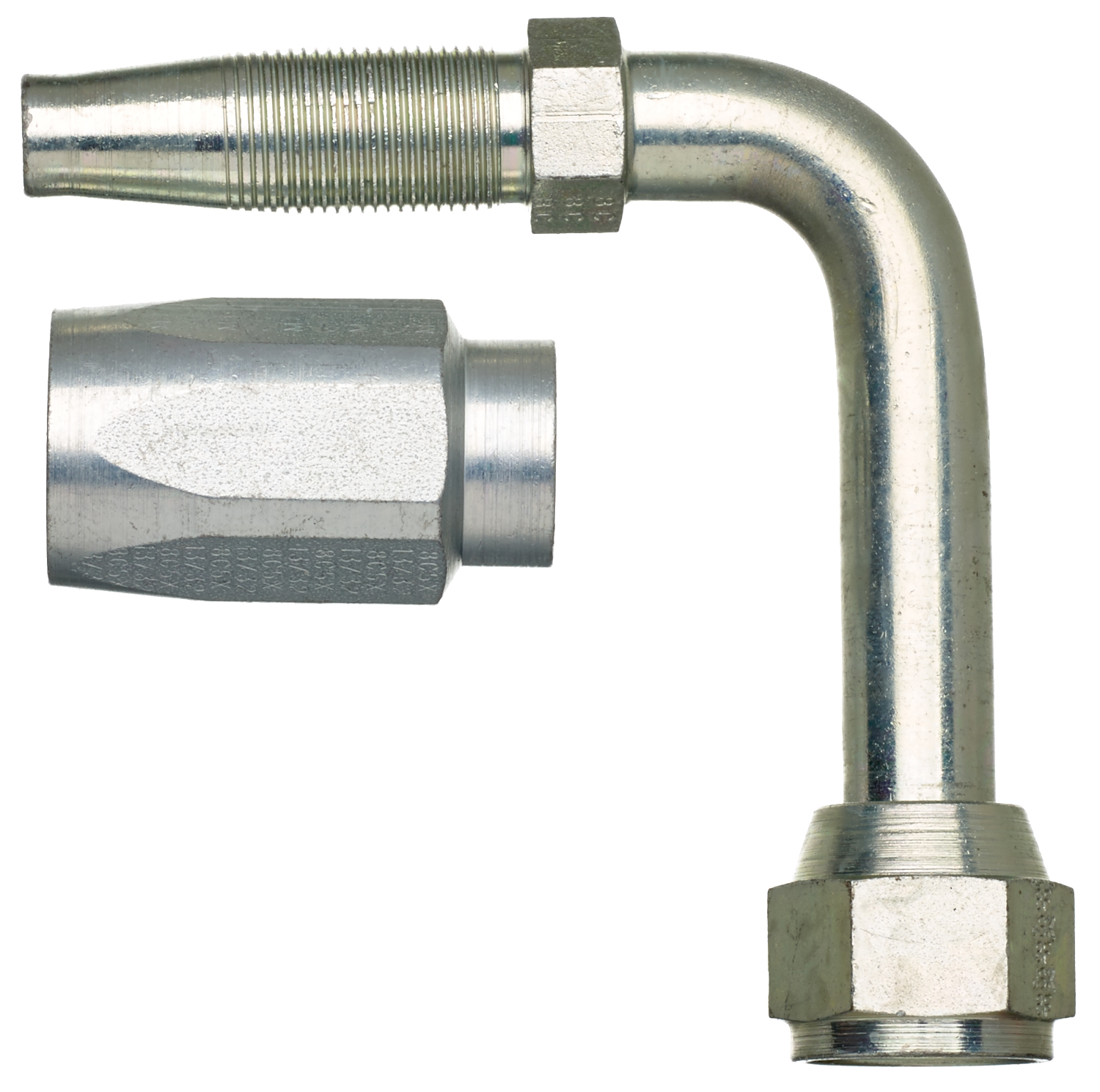

Gates Corporation Hydraulic Coupling / Adapter Part No: G35180-0606
$31.09
C5E
Female JIC 37 Flare Swivel - 90 Bent Tube - Steel (C5E Hose)
Specifications
Our D.O.T. Type A1 Field Attachable couplings work with Gates C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler, and hot oil lines without the need for a crimper.
Thread Size: 9/16-18
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.6875
H2 Nut Hex (mm) 17.46
T Drop (in) 0.839
C Cutoff (in) 1.36
C Cutoff (mm) 34.54
L Length (in) 2.209
L Length (mm) 56.1
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.78
L (in) 2.21
Angle. 90
H1 Stem Hex (in) 0.5
H1 Stem Hex (mm) 12.7
H2 Nut Hex (in) 0.6875
H2 Nut Hex (mm) 17.46
T Drop (in) 0.839
C Cutoff (in) 1.36
C Cutoff (mm) 34.54
L Length (in) 2.209
L Length (mm) 56.1
Hose Inside Diameter (in) 0.311
Hose Inside Diameter (mm) 7.9
C (in) 1.78
L (in) 2.21
Angle. 90
Weight
0.1400
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- 38425-0606
- G35180-0606
- Gates 6C5E-6RFJX90
- Gates G35180-0606
- Goodyear
- Goodyear
- NAPA
- UT-JCFX90-0606
