Gates Corporation Hydraulic Coupling / Adapter Part No: G31130-0606
$36.72
Gates Hydraulic Coupling / Adapter G31130-0606 ensures secure, leak-free connections in high-pressure hydraulic systems. This hydraulic adapter offers outstanding durability and long-lasting performance even in demanding conditions. The hydraulic coupling is designed for easy installation, minimizing downtime and maximizing system efficiency. Built to withstand wear and tear, it guarantees reliable operation under harsh working environments. Ideal for industrial machinery, this hydraulic adapter maintains smooth, continuous hydraulic system performance. Trusted by professionals, it provides secure hydraulic connections that boost overall system productivity.
Specifications
Recommended for air brake systems - compressed air connectors or suspension, steering, engine transmission or other onboard vehicle applications. Not for fuel, oil or water. Easy to assemble, push to connect, one piece fitting. Reusable and field serviceable. Designed for strength and durability. Provides significant reduction in air system leakage. Meets DOT FMVSS 571.106, SAE J1131, DIN 74324 and German TUV requirements. For use with SAE J844 or DIN 74324 nylon tubing. Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).

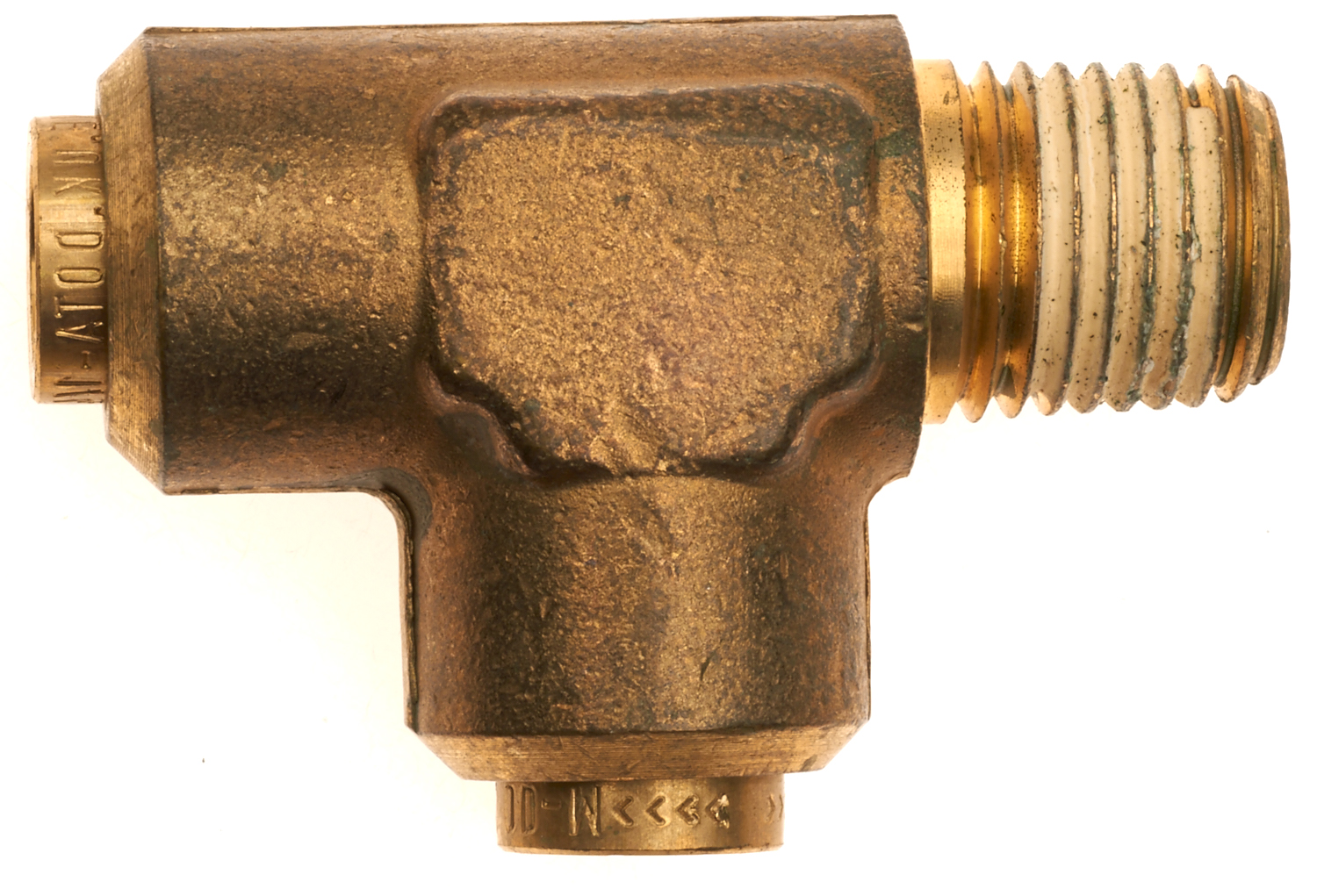

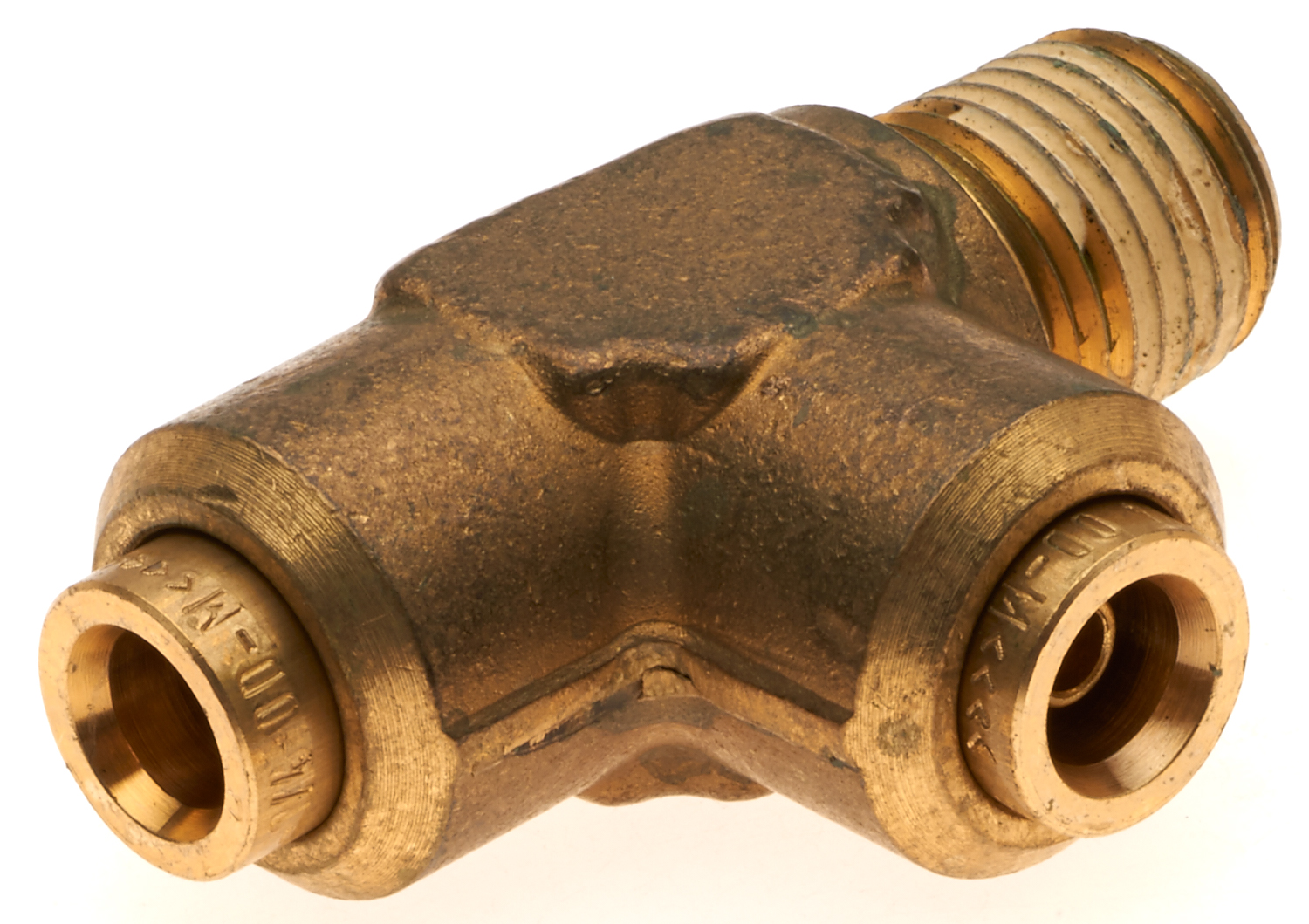

- Air Brake Run Tee to Male Pipe (SureLok)
Maximum Working Pressure:150
Material:360 Brass
Thread Size:3/8-18
Seal Material:Ethylene Propylene
Length:2.24
Drop Length:1.14
Outside Diameter:.375
Material:360 Brass
Thread Size:3/8-18
Seal Material:Ethylene Propylene
Length:2.24
Drop Length:1.14
Outside Diameter:.375
Weight
0.3200
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Alkon Corp AQ71-DOT-6X6
- Gates 6MP-6AB-6AB
- Gates G31130-0606
- IMI Norgren 95 458 610
- NAPA AQ71-DOT-6X6
- NAPA G31130-0606
- Weatherhead 1871X6X6
