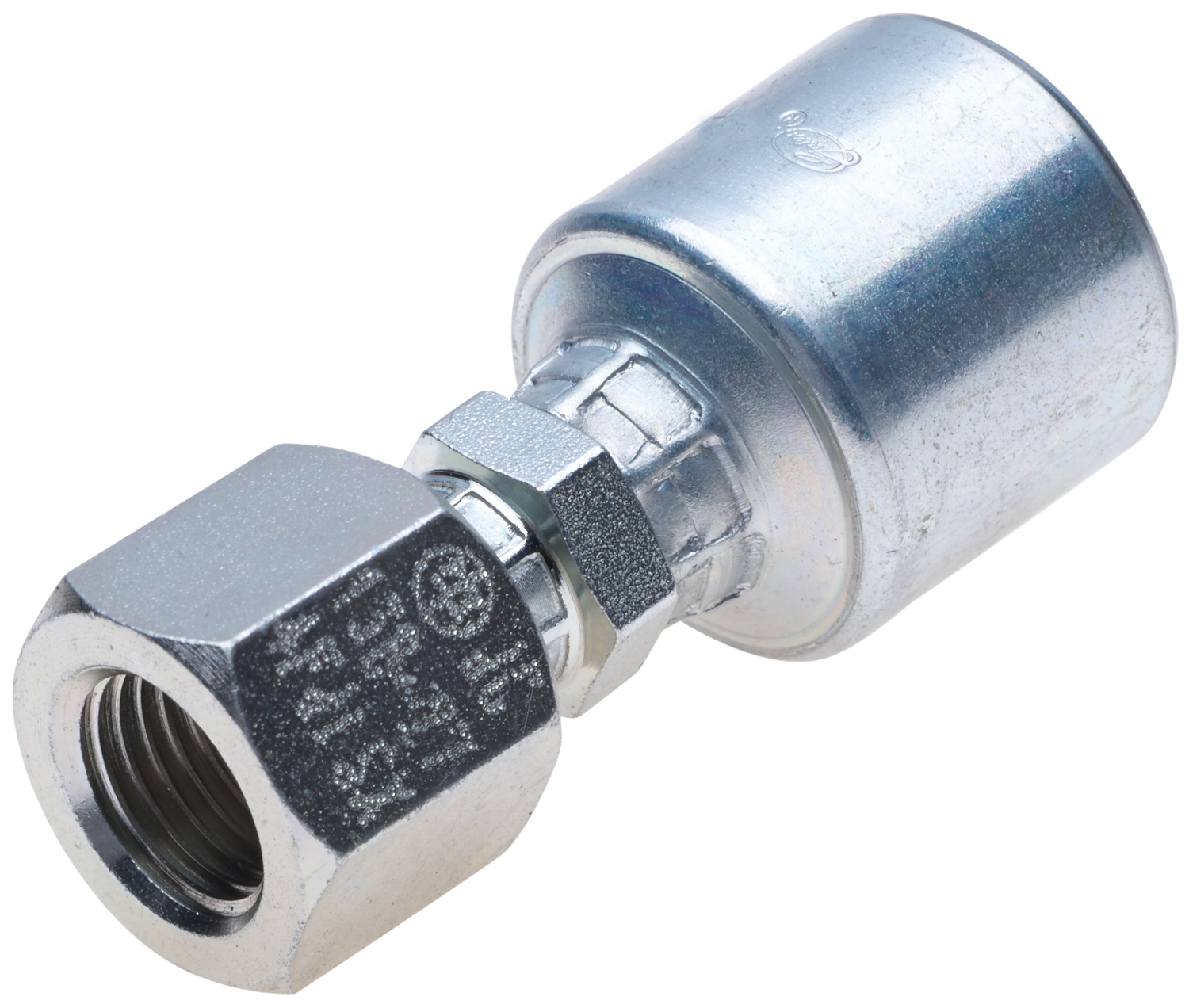

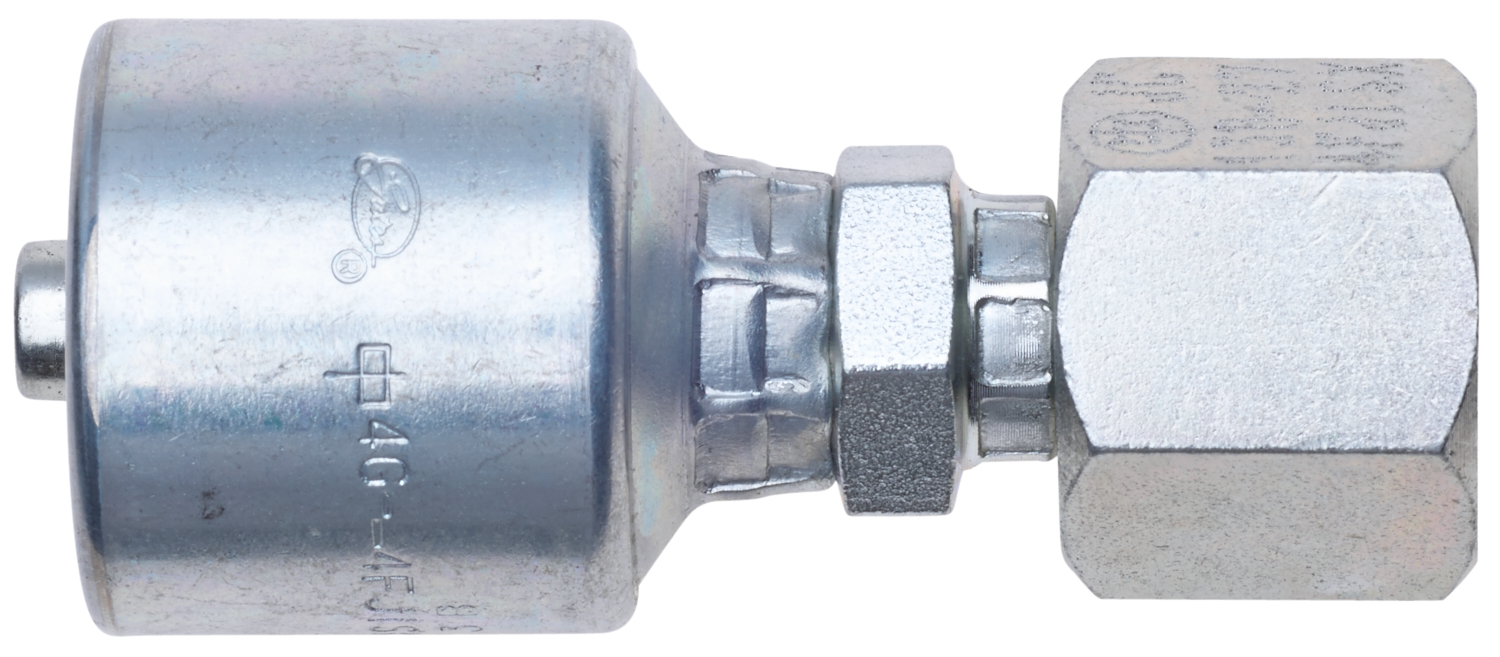

Gates Corporation Hydraulic Coupling / Adapter Part No: G25930-0808
$18.11
MegaCrimp
Female Japanese Industrial Standard Swivel (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Gender:Female
Swivel:Yes
Thread Size:1/2-14
Seal Type:Mated Angle
Inside Diameter:.5

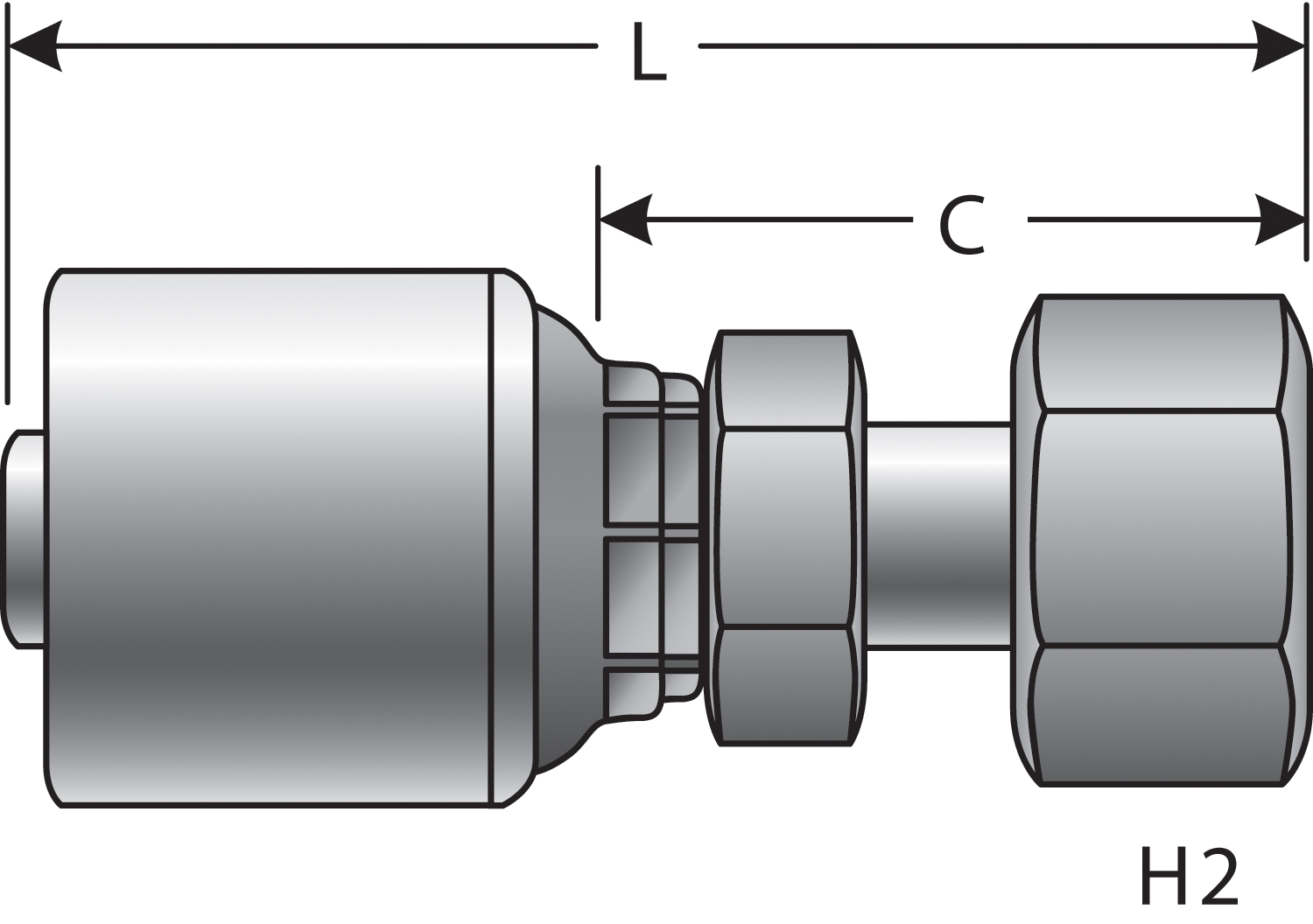

Length:3.15
Swivel:Yes
Thread Size:1/2-14
Seal Type:Mated Angle
Inside Diameter:.5
Length:3.15
Weight
0.4100
Compatibility
Alternative Part Numbers
- Aeroquip 1A8JF8
- Aeroquip FJ7905-0808S
- Dayco 101484
- Dayco 134018
- Goodyear 13520-0808
- Goodyear 14520-0808
- Goodyear B2-JSFX-0808
- Goodyear B2-KMFX90-0414
- Goodyear B2KMFX900618
- Goodyear F-JISX-08-08
- Goodyear T8-JSFX-0808
- Goodyear UC-JSFX-0808
- Kurt Hydraulics F-JISX-08-08
- NAPA G25930-0808
- Parker 1FU43-08-08
- Parker 1FU43-8-8
- Weatherhead 08E08L
- Weatherhead 08EE08L
- Weatherhead 08U08L
- Weatherhead 08Z08L
