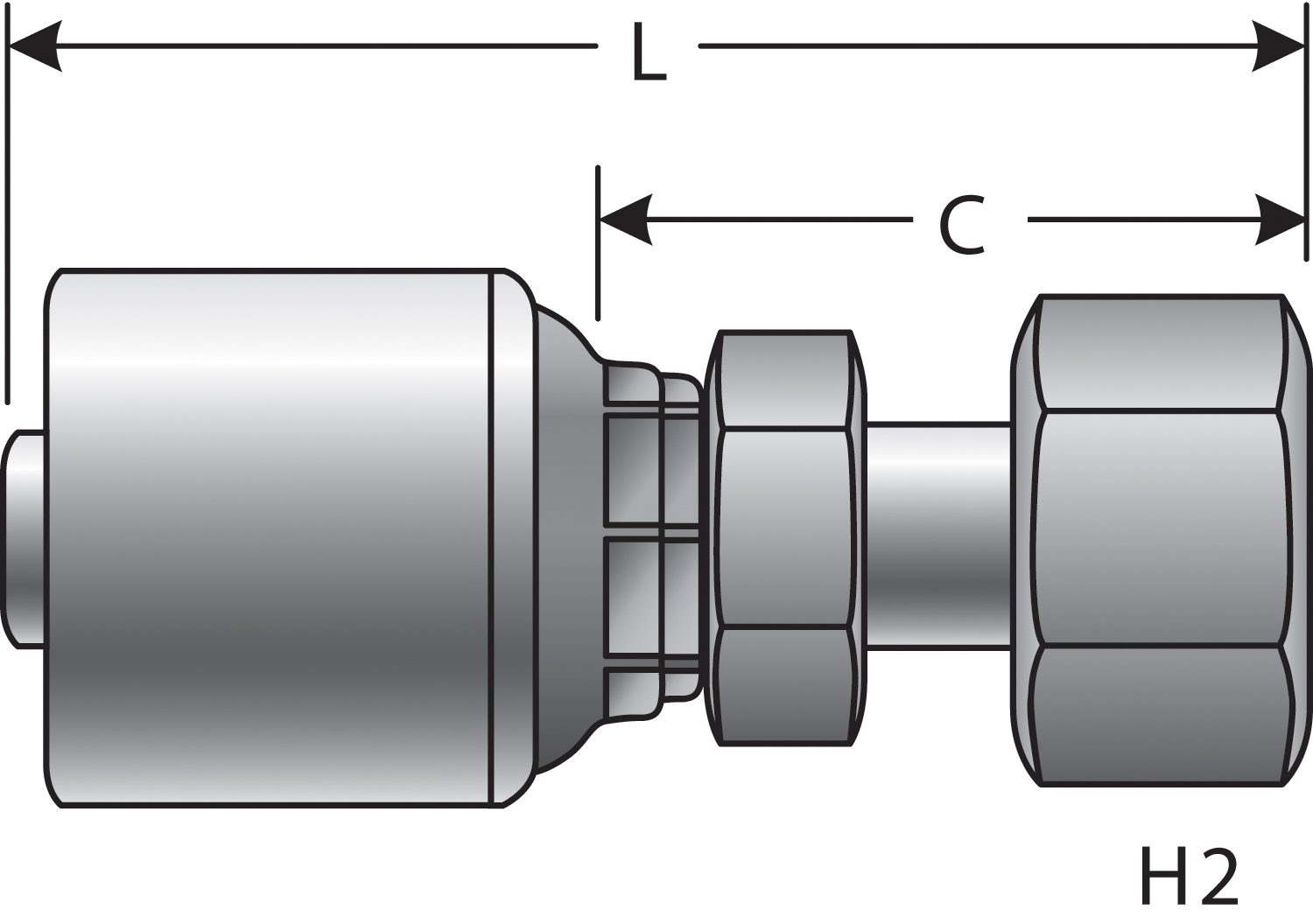

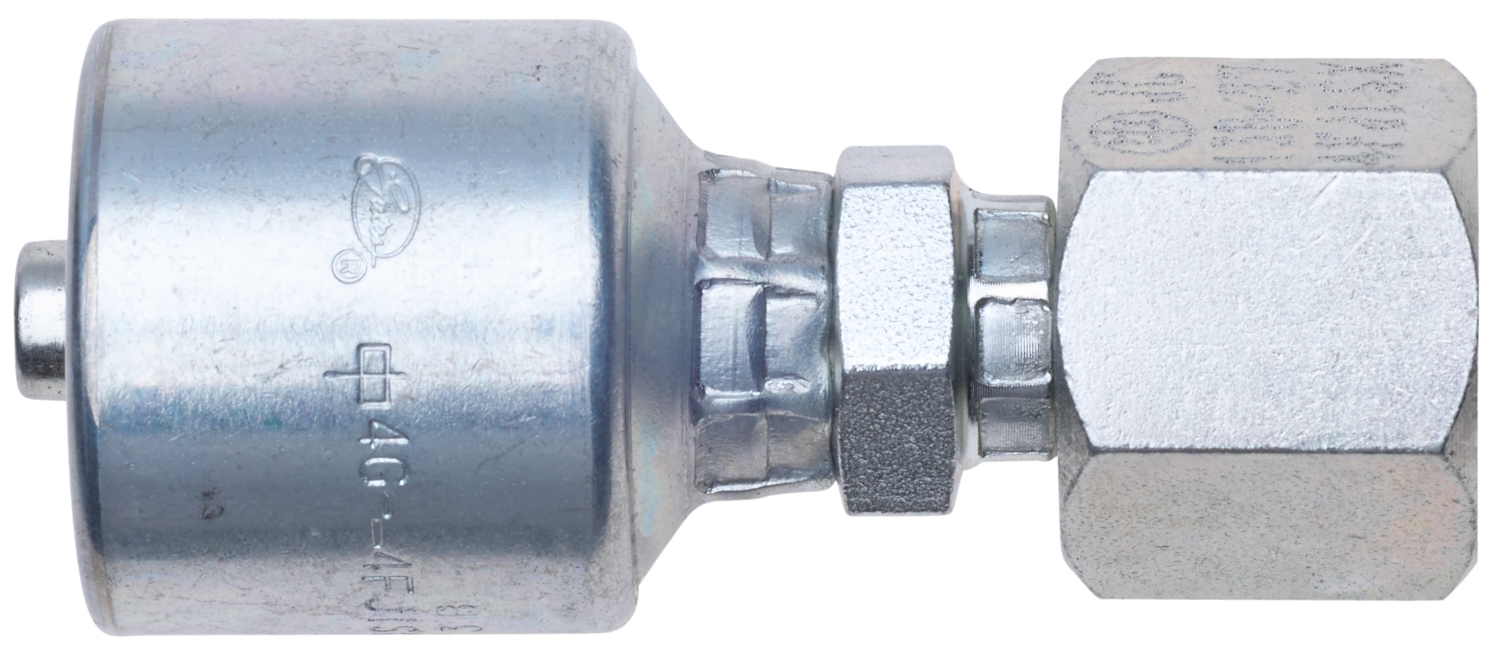

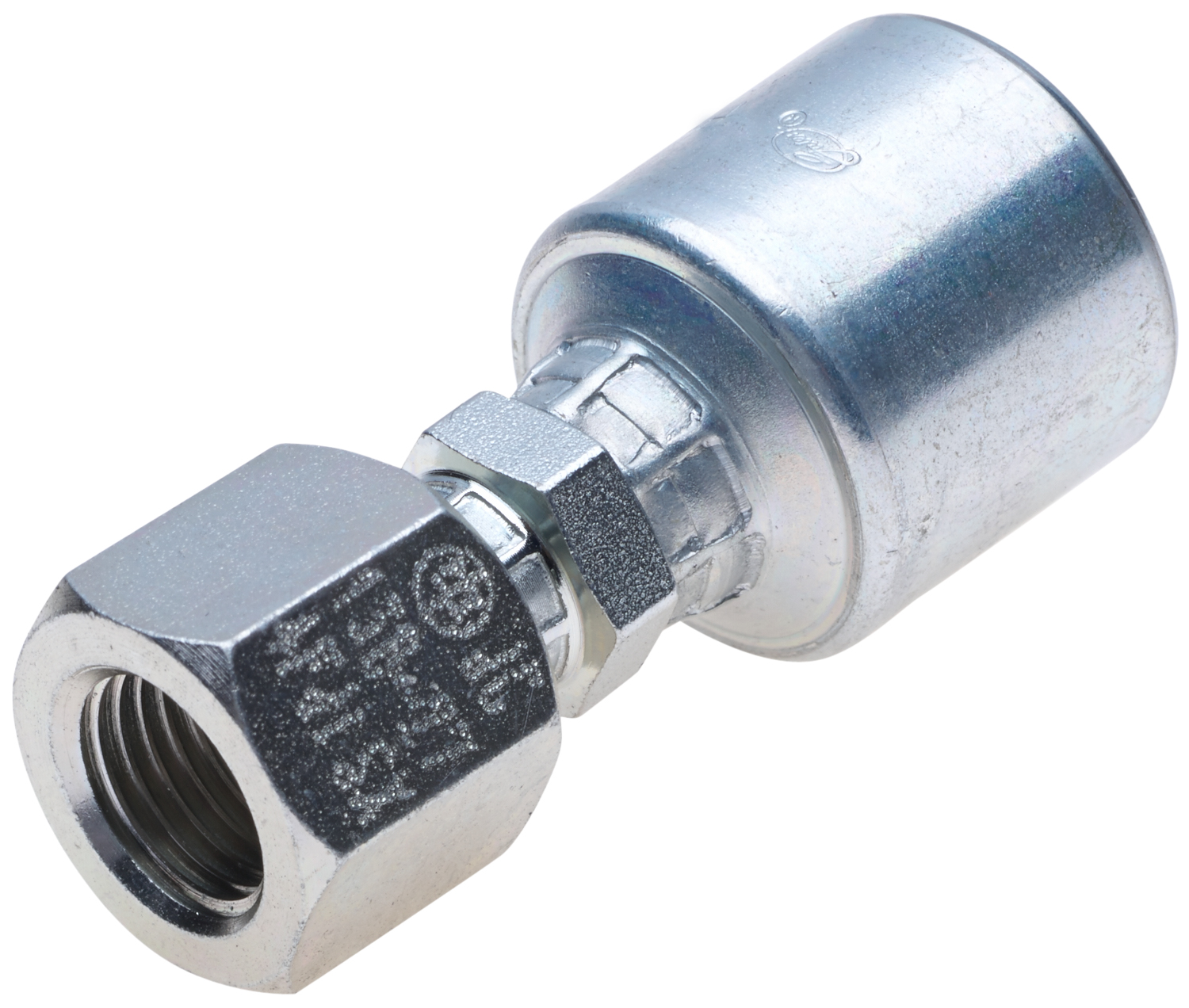

Gates Corporation Hydraulic Coupling / Adapter Part No: G25930-0606
$15.25
MegaCrimp
Gates Hydraulic Coupling / Adapter G25930-0606 provides secure, leak-free connections for high-pressure hydraulic systems. This hydraulic adapter is built for durability, offering long-lasting performance even in challenging environments. The hydraulic coupling is easy to install, reducing downtime and improving operational efficiency. Designed to resist wear, it ensures consistent performance under heavy-duty conditions. Perfect for industrial machinery, this hydraulic adapter ensures smooth, continuous operation. Trusted by professionals, it guarantees reliable hydraulic connections that boost overall system productivity.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Female Japanese Industrial Standard Swivel (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:3/8-19
Seal Type:Mated Angle
Inside Diameter:.375
Length:2.46
Swivel:Yes
Thread Size:3/8-19
Seal Type:Mated Angle
Inside Diameter:.375
Length:2.46
Weight
0.2200
Compatibility
Alternative Part Numbers
- Aeroquip 1A6JF6
- Aeroquip FJ7905-0606S
- Dayco 101481
- Dayco 134017
- Goodyear 134017
- Goodyear 13520-0606
- Goodyear 14520-0606
- Goodyear B2-JSFX-0606
- Goodyear B2-KMFX45-1024
- Goodyear B2KMFX451230
- Goodyear T8-JSFX-0606
- Goodyear UC-JSFX-0606
- Kurt Hydraulics F-JISX-06-06
- NAPA G25930-0606
- Parker 1FU43-06-06
- Parker 1FU43-6-6
- Weatherhead 06E06L
- Weatherhead 06EE06L
- Weatherhead 06U06L
- Weatherhead 06Z06L
