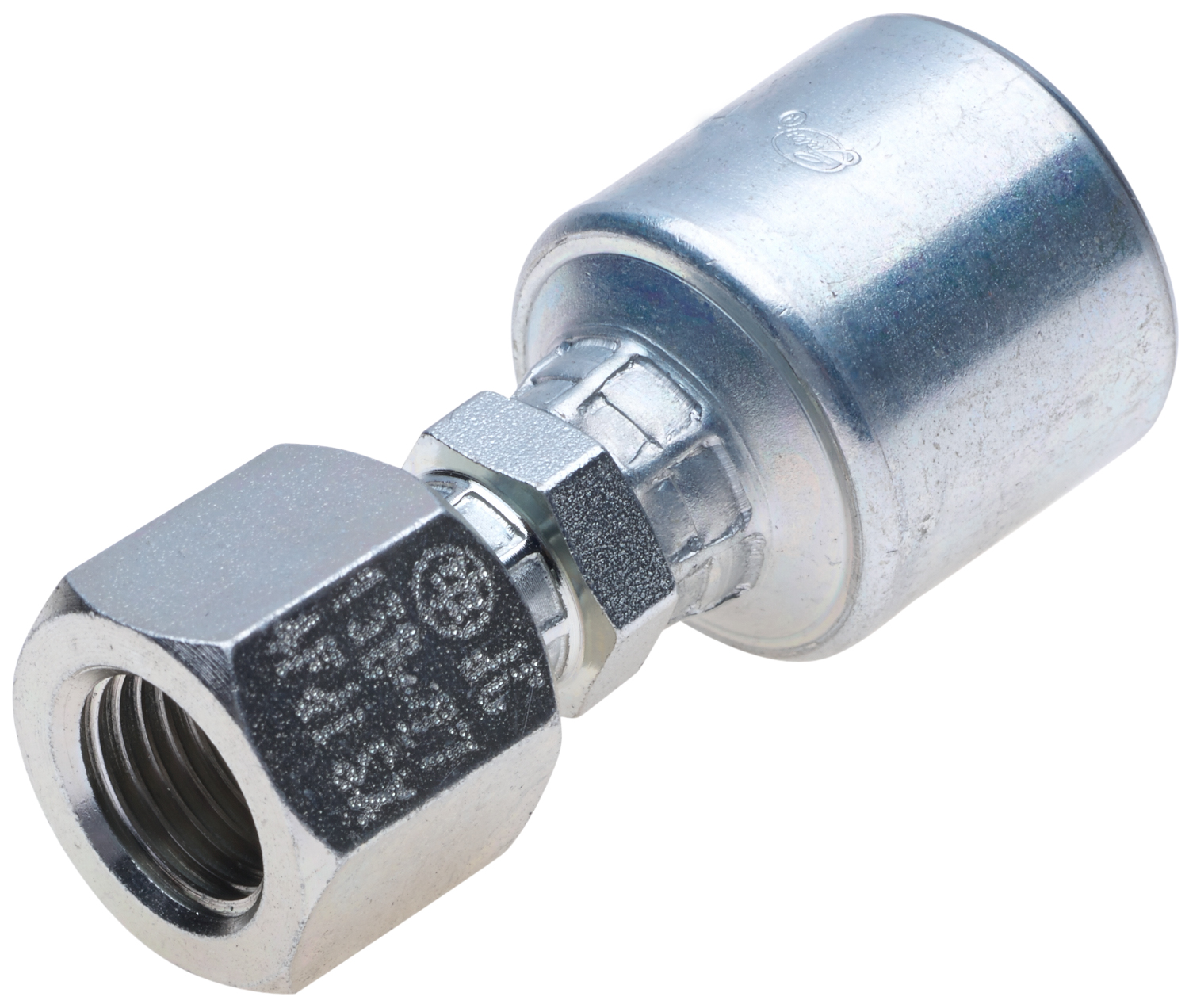

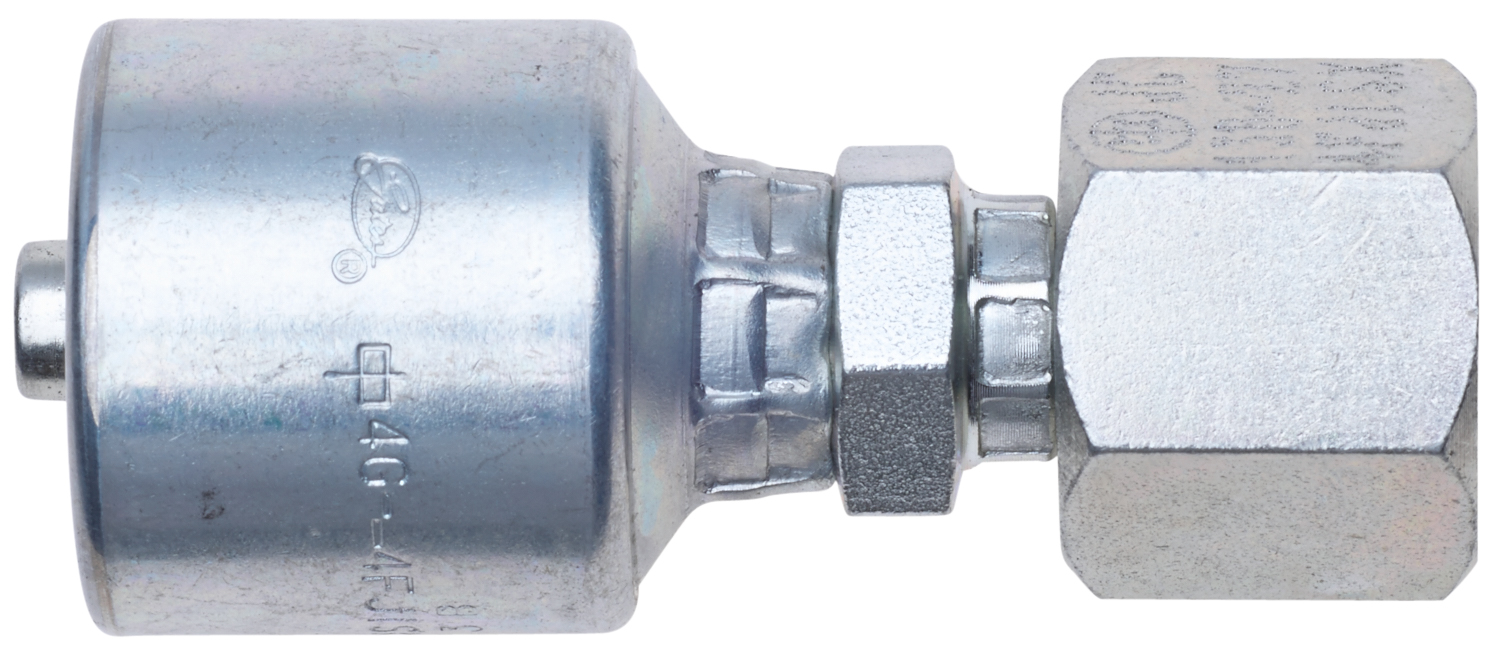

Hydraulic Coupling / Adapter - G25930-0404

Gates Corporation Hydraulic Coupling / Adapter Part No: G25930-0404

$12.57

MegaCrimp

Gates Hydraulic Coupling / Adapter G25930-0404 is designed for secure and efficient connections in hydraulic systems, ensuring a leak-free operation even under high pressure. This hydraulic adapter is built to deliver superior performance, making it a reliable choice for demanding industrial applications. With its robust design, the hydraulic coupling provides a durable solution for fluid transfer and enhances the overall efficiency of your hydraulic system. Whether you're performing maintenance or making new installations, this hydraulic adapter ensures optimal functionality and reduces the risk of downtime. Gates' hydraulic adapters are engineered for longevity, providing the durability needed for continuous operation in harsh environments.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Female Japanese Industrial Standard Swivel (MegaCrimp)

Gender:Female
Swivel:Yes
Thread Size:1/4-19
Seal Type:Mated Angle
Inside Diameter:.25

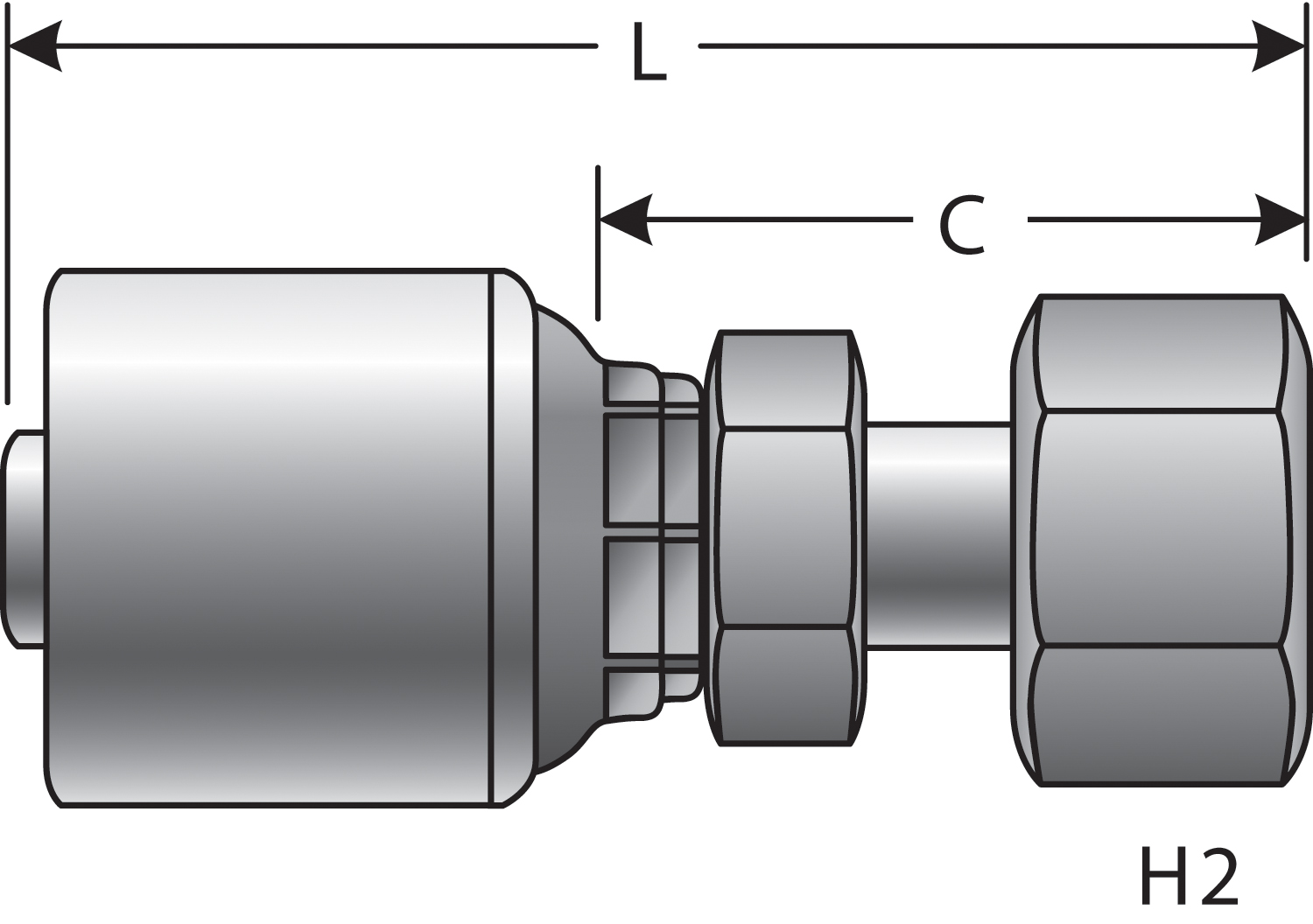

Length:2.32

Weight

0.1700

Compatibility

Alternative Part Numbers

Aeroquip 1A4JF4
Aeroquip FJ7905-0404S
Dayco 134016
Goodyear 134016
Goodyear 13520-0404
Goodyear 14520-0404
Goodyear B2-JSFX-0404
Goodyear B2KMFX450822
Goodyear T7-JSFX-0404
Goodyear T8-JSFX-0404
Goodyear UC-JSFX-0404
Kurt Hydraulics F-JISX-04-04
NAPA G25930-0404
Parker 1FU43-04-04
Parker 1FU43-4-4
Weatherhead 04E04L
Weatherhead 04EE04L
Weatherhead 04U04L
Weatherhead 04Z04L
