Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style.

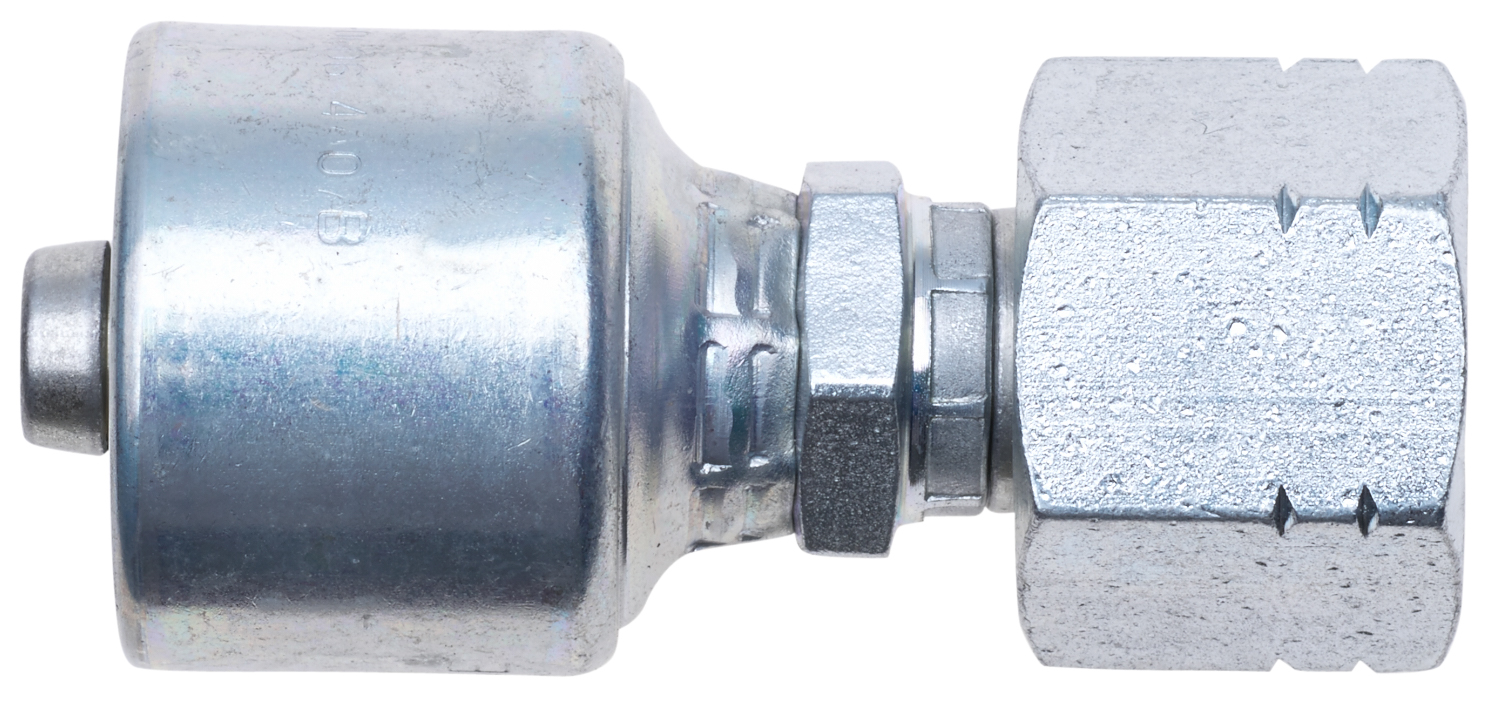

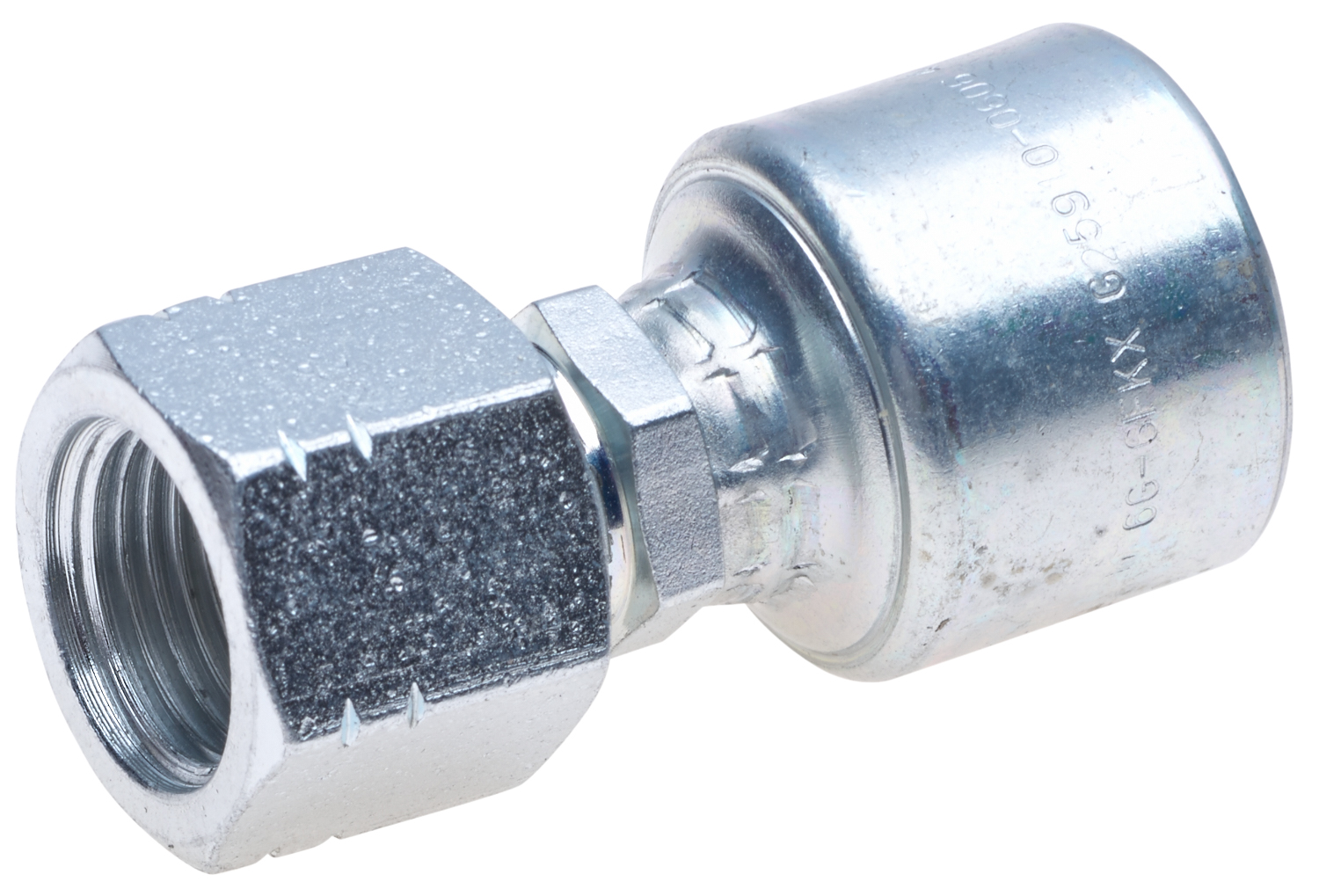

  • Female Komatsu Style Japanese Metric Swivel (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:M24X1.5
Seal Type:Mated Angle
Inside Diameter:.625

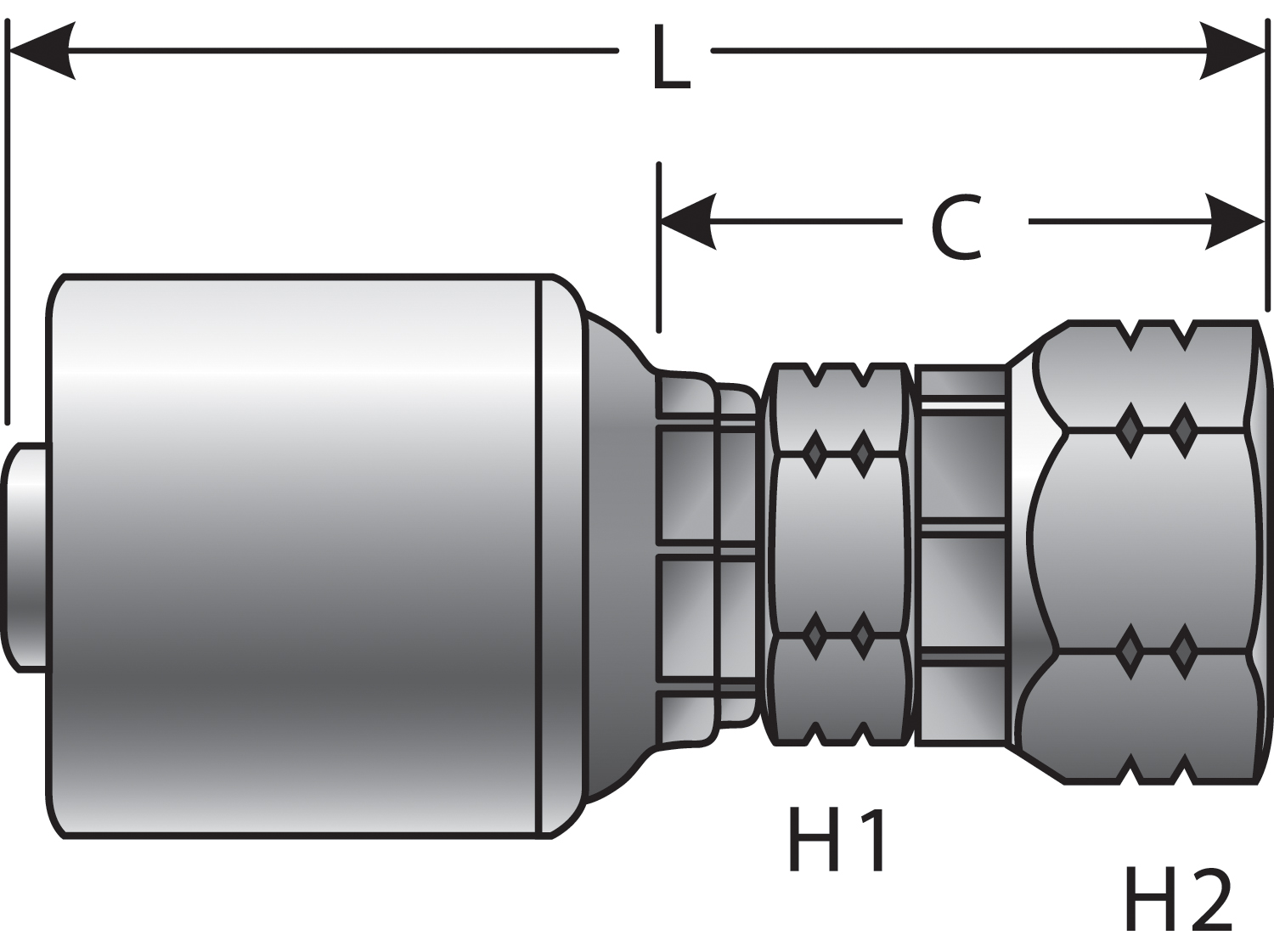

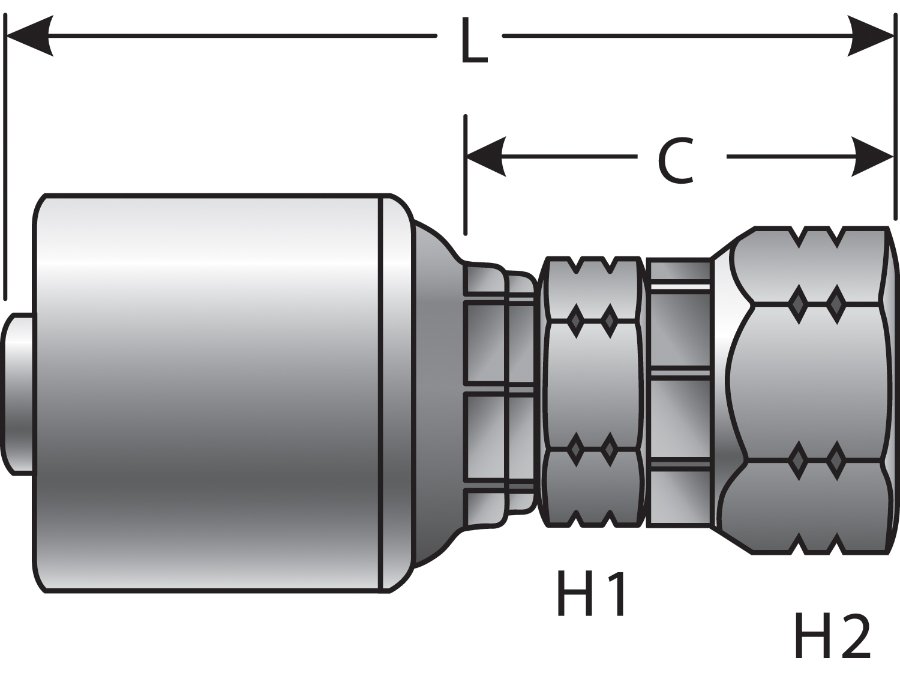

Length:3.21
Weight
0.5200

Compatibility


Alternative Part Numbers

  • Aeroquip 1A10KF10
  • Dayco 101537
  • Dayco 134003
  • Goodyear 14545-1024
  • Goodyear B2-KMFX-1024
  • Kurt Hydraulics 101537
  • Kurt Hydraulics F-KOMX-10-24
  • NAPA G25910-1010
  • Parker 1XU43-10-10
  • Weatherhead 10U24K
  • Weatherhead 10Z24K
