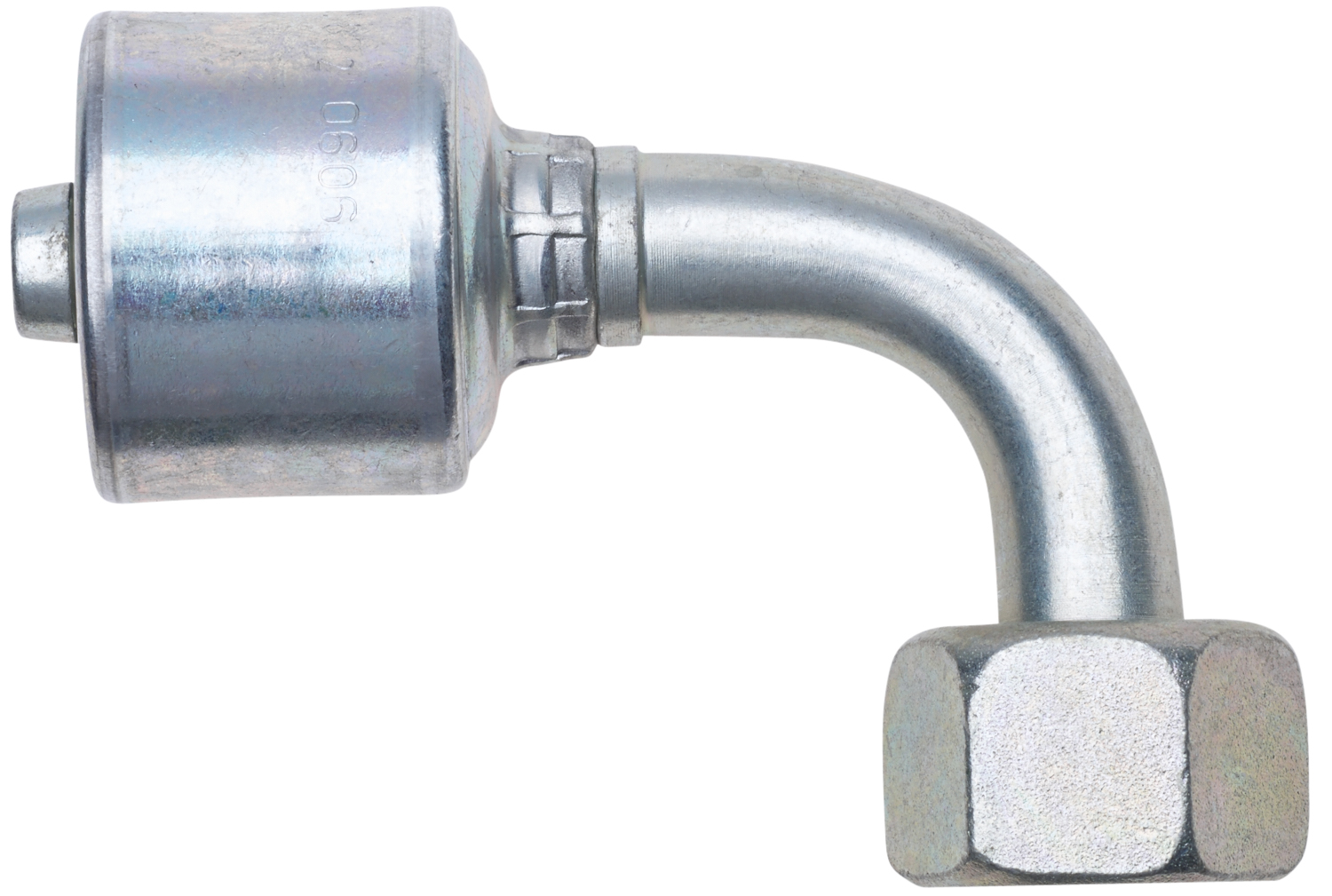

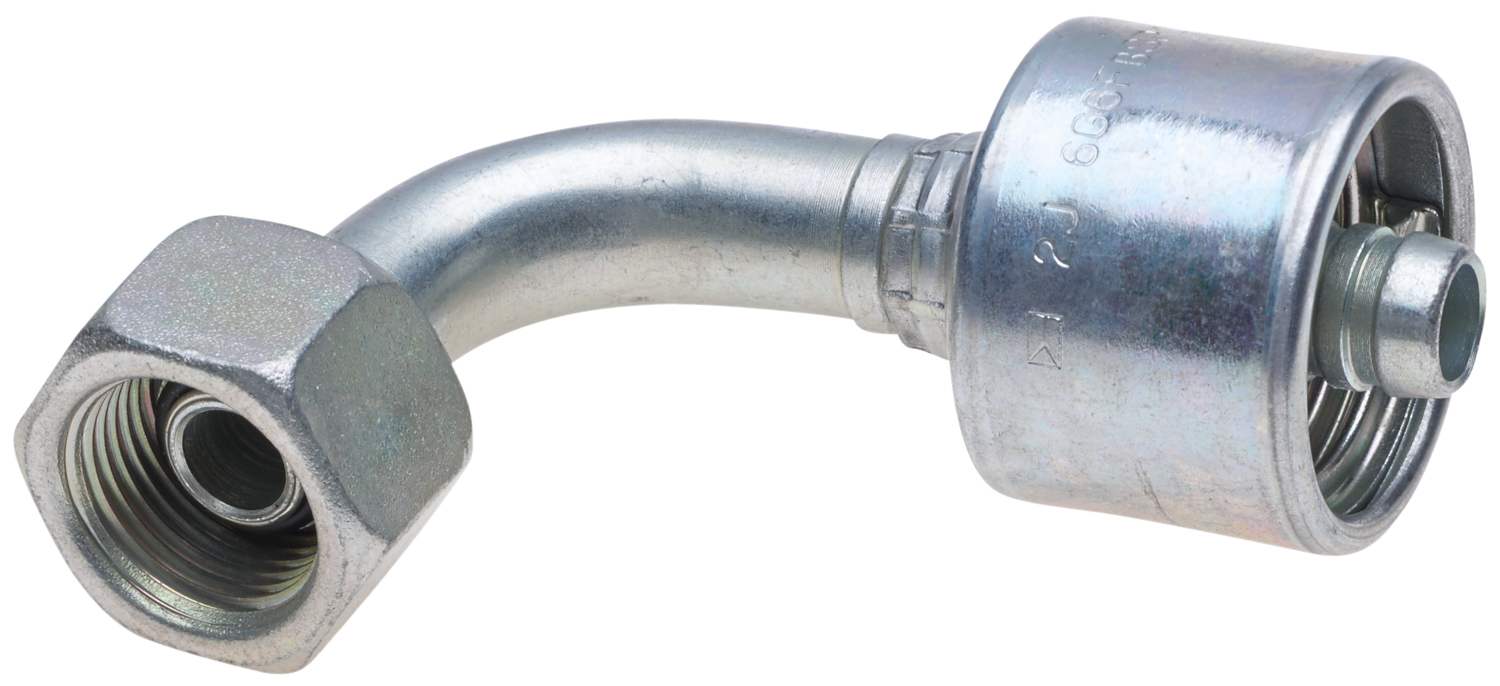

Gates Corporation Hydraulic Coupling / Adapter Part No: G25832-1212
$57.71
MegaCrimp
Gates Hydraulic Coupling / Adapter G25832-1212 ensures reliable, leak-free connections for high-pressure hydraulic systems. This hydraulic adapter is designed for exceptional durability, providing long-lasting performance even under demanding conditions. The hydraulic coupling is easy to install, reducing downtime and improving overall system efficiency. Built to resist wear, it guarantees dependable operation in heavy-duty environments. Ideal for industrial machinery, this hydraulic adapter maintains smooth, consistent hydraulic system performance. Trusted by professionals, it offers secure connections that help increase productivity and reduce maintenance costs.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Includes O-ring sealing in flare.
- Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:3/4-14
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.75

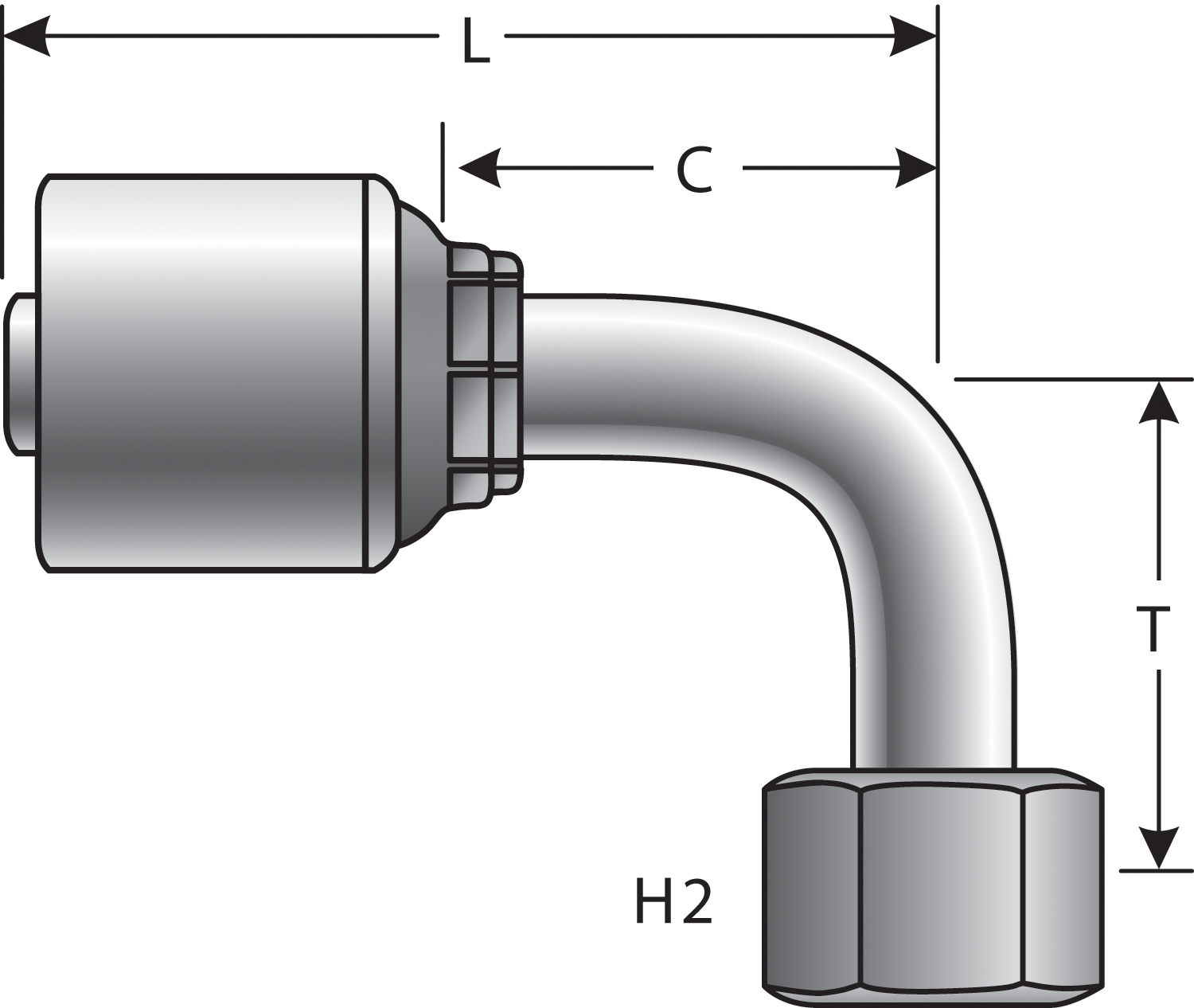

Length:3.72
Seat Angle:30
Drop Length:2.36
Swivel:Yes
Thread Size:3/4-14
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.75
Length:3.72
Seat Angle:30
Drop Length:2.36
Weight
0.8000
Compatibility
Alternative Part Numbers
- Aeroquip 1A12BFB12
- Aeroquip 1B12BFB12
- Dayco 101690
- Dayco 116269
- Goodyear 14120-1212
- Goodyear B2-BPFX90-1212
- Goodyear UC-BPFX90-1212
- Hydraulink S51-1212
- Hydraulink UC-BPFX90-1212
- Kurt Hydraulics F-BSPX90-12-12
- NAPA G25832-1212
- Parker 1B243-12-12
- Weatherhead 12E82P
- Weatherhead 12U82P
- Weatherhead 12Z82P
