Hydraulic Coupling / Adapter - G25832-0808

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25832-0808 provides reliable, leak-free connections for high-pressure hydraulic systems. This hydraulic adapter is built for exceptional durability, ensuring long-lasting performance even under challenging conditions. The hydraulic coupling allows for easy installation, reducing downtime and improving operational efficiency. Designed to resist wear and tear, it guarantees consistent, dependable performance in demanding applications. Ideal for use in heavy-duty machinery, this hydraulic adapter ensures smooth and continuous operation. Trusted by professionals, it delivers secure connections that enhance overall system productivity.

Gates Corporation MegaCrimp Part No: G25832-0808

$36.86

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Includes O-ring sealing in flare.

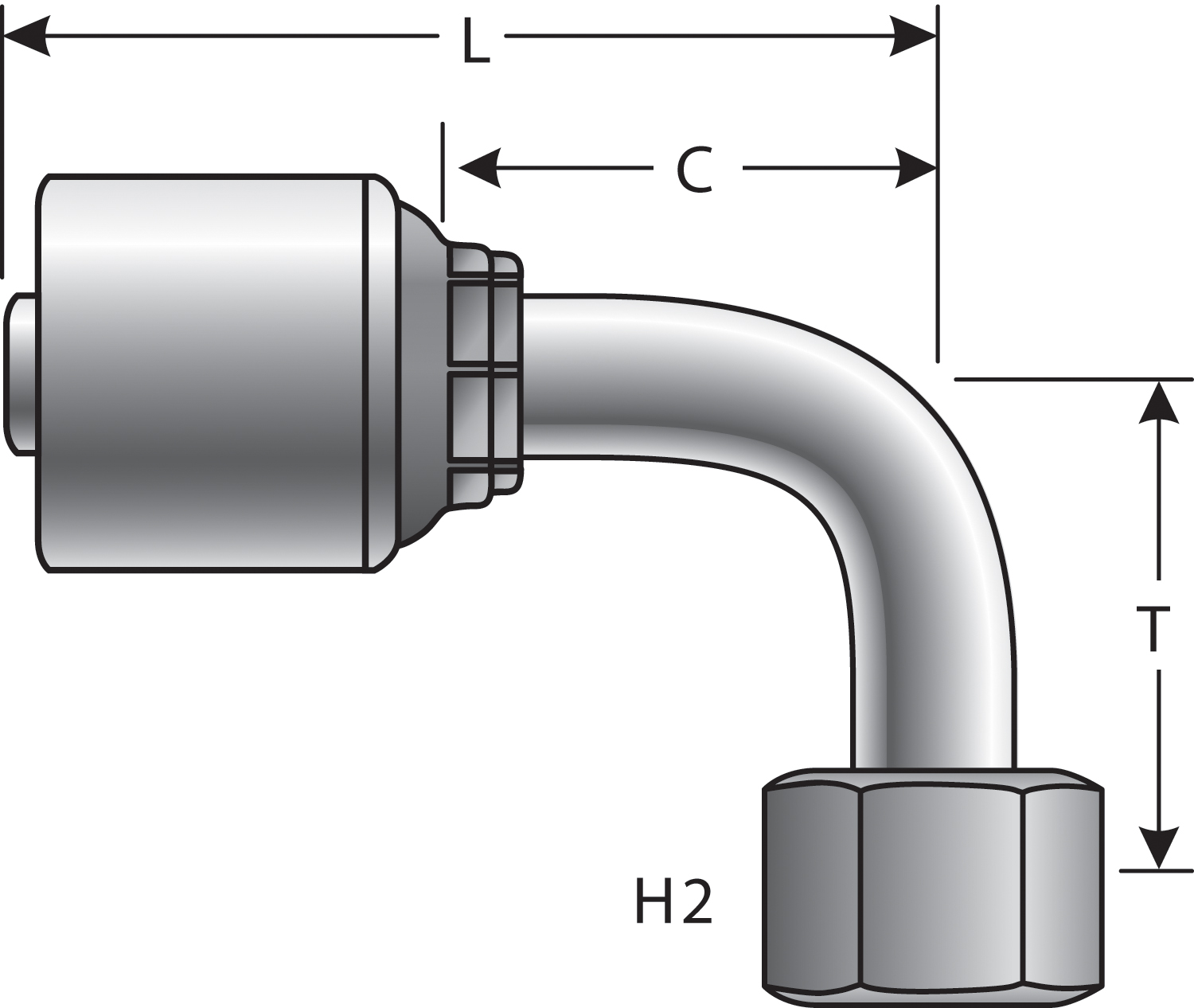

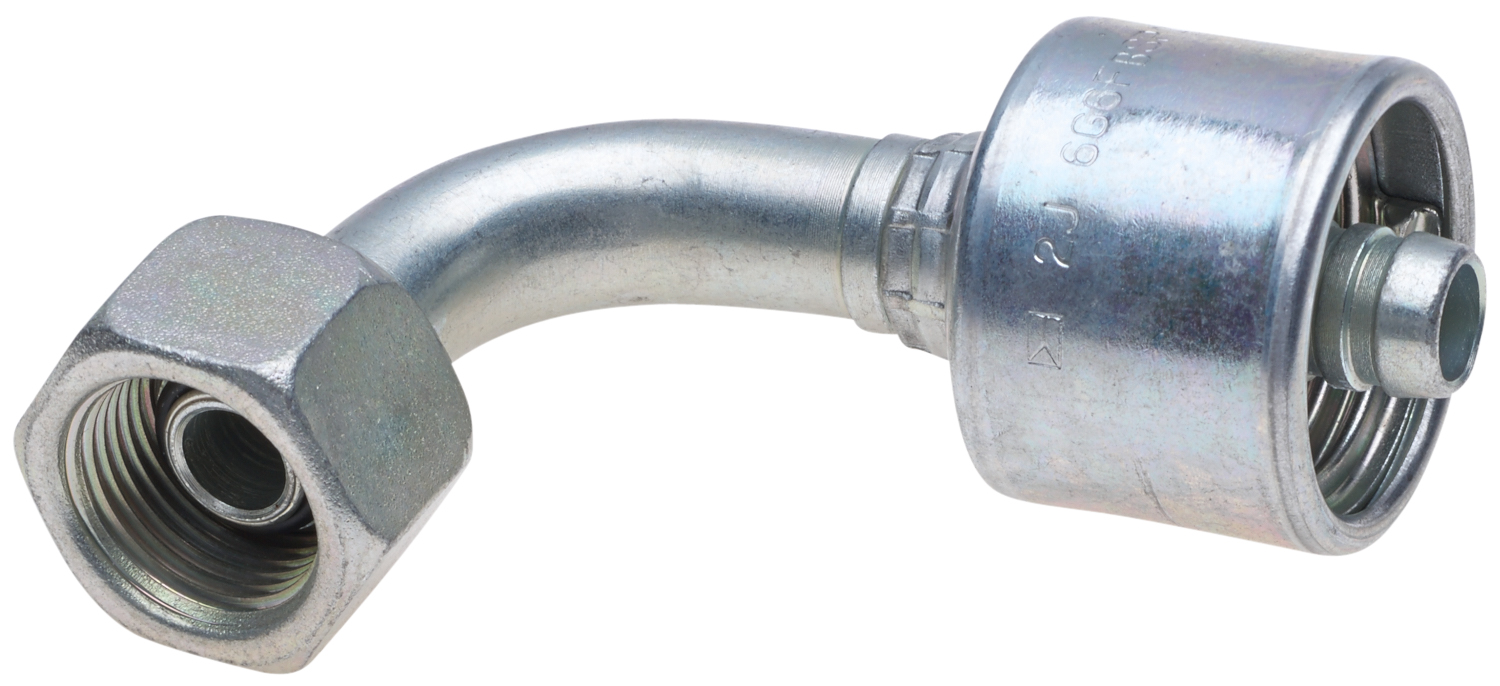

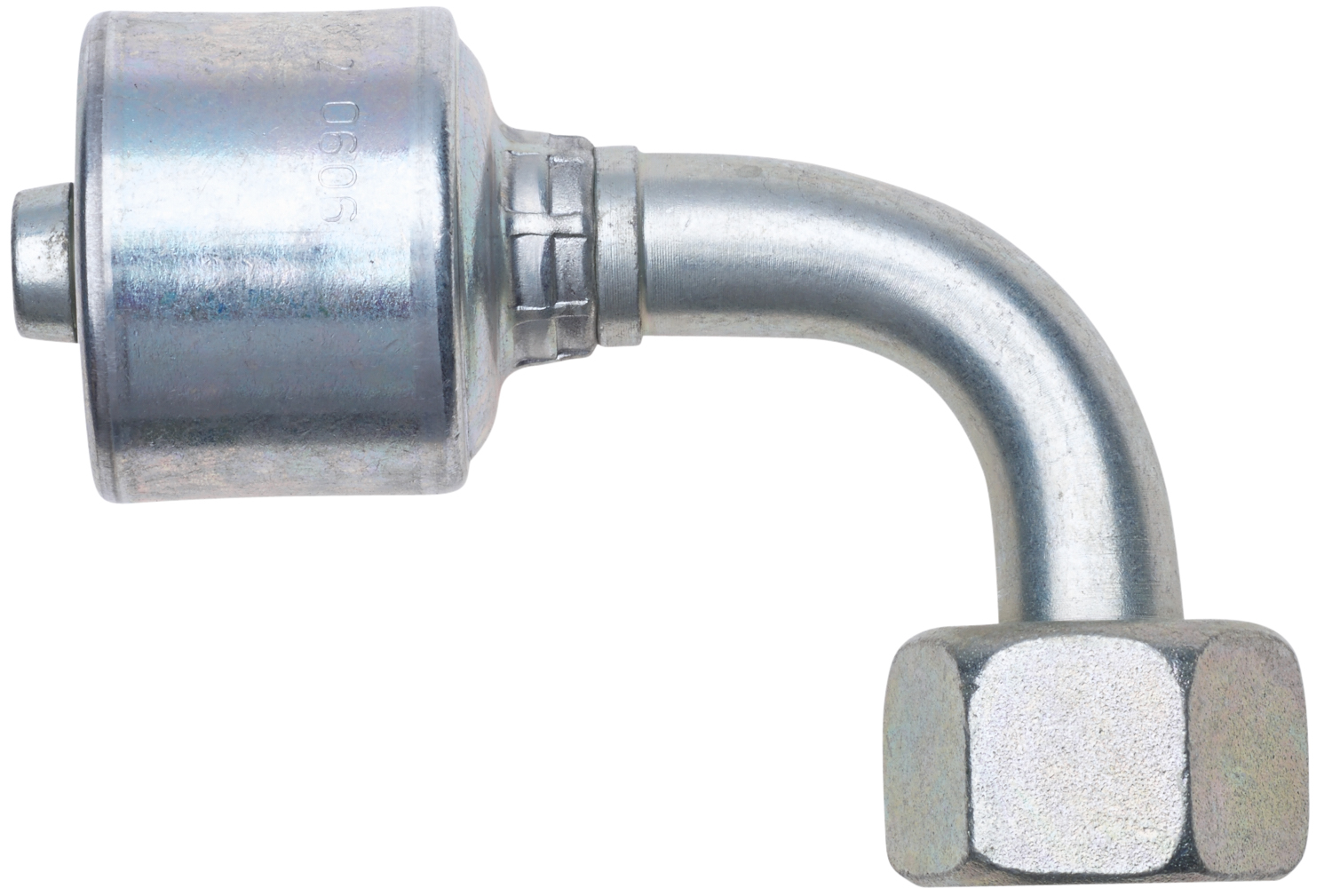

Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)

Weight

0.3600

Gender:Female
Swivel:Yes
Thread Size:1/2-14
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.5
Length:3.07
Seat Angle:30
Drop Length:1.47

Compatibility

Alternative Part Numbers

Dayco 116264
Aeroquip 1A8BFB8
Goodyear 13120-0808
Goodyear 14120-0808
Goodyear B2-BPFX90-0808
Goodyear T7-BPFX90-0808
Goodyear T8-BPFX90-0808
Goodyear UC-BPFX90-0808
Hydraulink S51-0808
Kurt Hydraulics F-BSPX90-08-08
NAPA G25832-0808
Parker 1B243-08-08
Parker 1B243-8-8
Weatherhead 08E78P
Weatherhead 08EE78P
Weatherhead 08U78P
Weatherhead 08Z78P
Goodyear 116264
