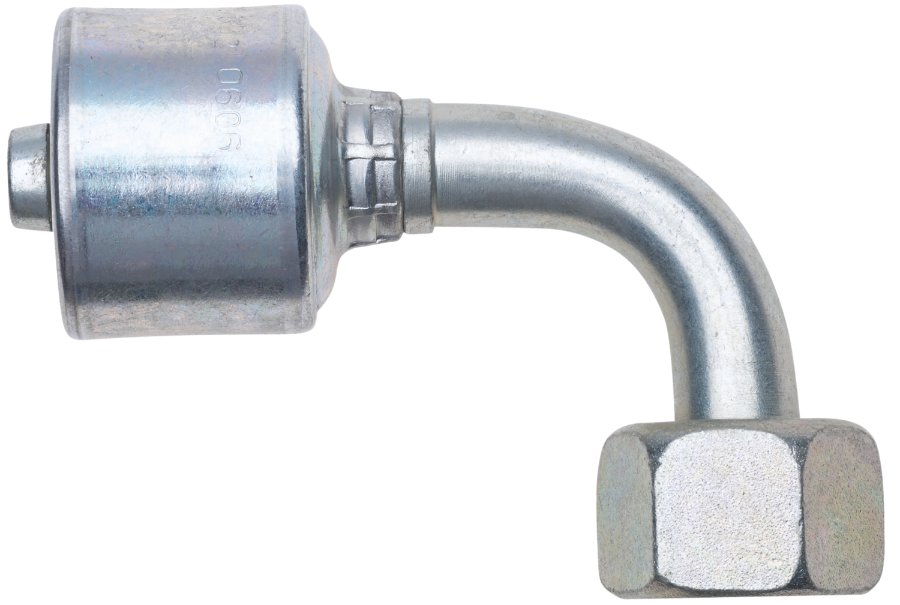

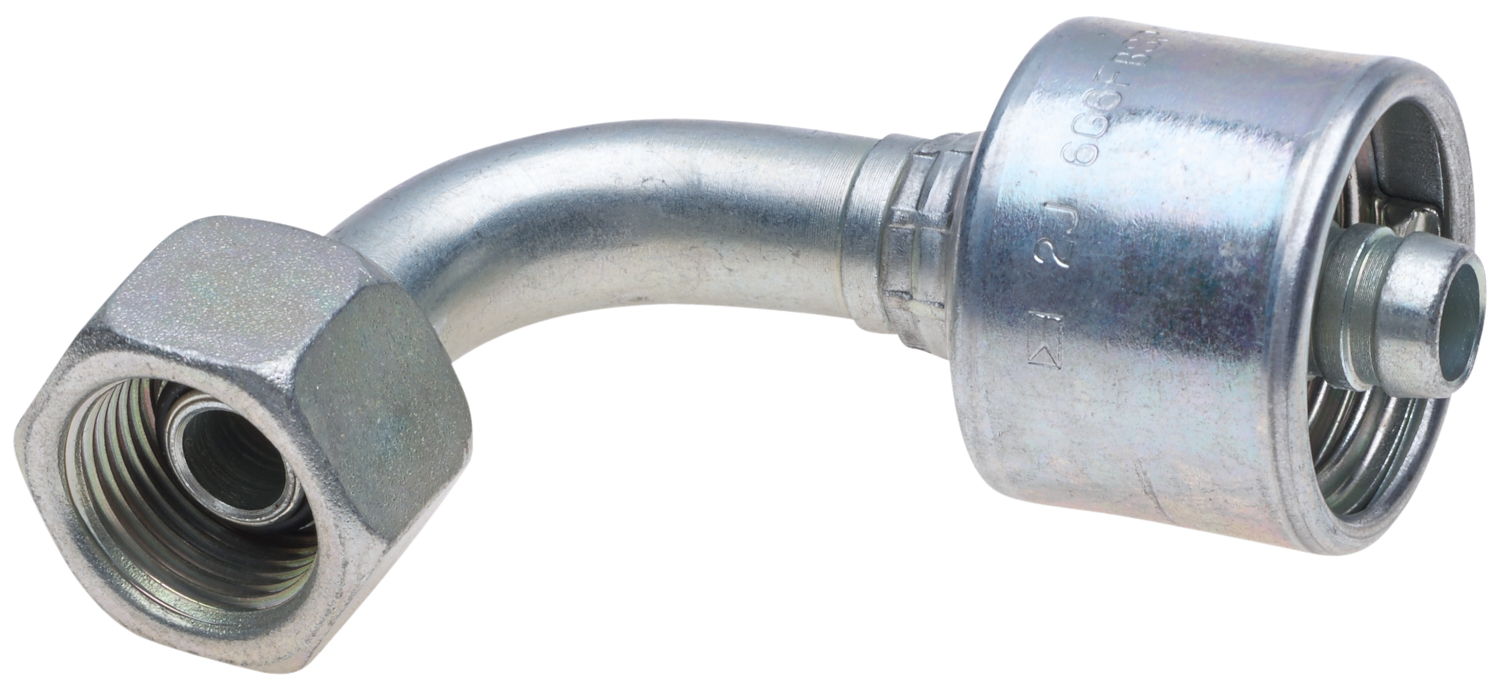

Hydraulic Coupling / Adapter - G25832-0404

Gates Corporation Hydraulic Coupling / Adapter Part No: G25832-0404

$27.08

MegaCrimp

Gates Hydraulic Coupling / Adapter G25832-0404 is designed to provide secure, leak-free connections for high-pressure hydraulic systems. This hydraulic adapter offers exceptional durability, ensuring long-lasting performance in challenging conditions. The hydraulic coupling is easy to install, reducing downtime and enhancing system efficiency. Built to resist wear, it ensures reliable operation even under heavy-duty usage. Ideal for industrial machinery, this hydraulic adapter maintains consistent performance in demanding environments. Trusted by professionals, it guarantees secure and dependable hydraulic connections that boost overall system productivity.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Includes O-ring sealing in flare.

Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube (MegaCrimp)

Gender:Female
Swivel:Yes
Thread Size:1/4-19
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.25

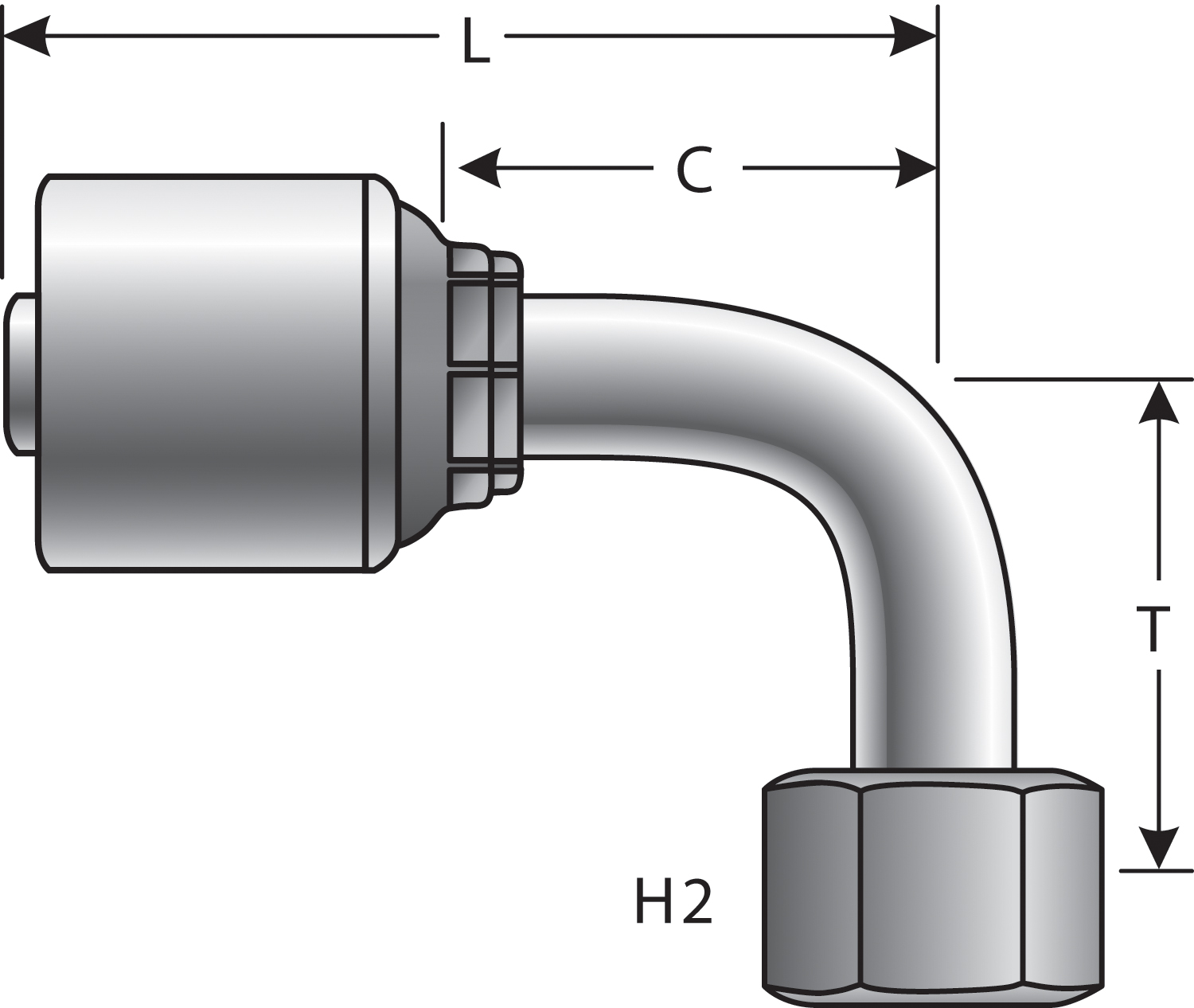

Length:1.94
Seat Angle:30
Drop Length:.93

Weight

0.1600

Compatibility

Alternative Part Numbers

Aeroquip 1A4BFB4
Dayco 101685
Dayco 116254
Goodyear 13120-0404
Goodyear 14120-0404
Goodyear B2-BPFX90-0404
Goodyear UC-BPFX90-0404
Hydraulink S51-0404
Kurt Hydraulics F-BSPX90-04-04
NAPA G25832-0404
Parker 1B243-04-04
Parker 1B243-4-4
Weatherhead 04E74P
Weatherhead 04U74P
Weatherhead 04Z74P
Weatherhead UC-BPFX90-0404
