Hydraulic Coupling / Adapter - G25830-0810

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25830-0810 delivers seamless integration into hydraulic systems, providing reliable, leak-free connections in high-pressure environments. This robust hydraulic coupling ensures efficient fluid flow and secure connections, reducing the risk of downtime and system failure. Constructed from high-quality materials, the hydraulic adapter withstands tough industrial conditions, offering exceptional durability and longevity. Whether used for new installations or as a replacement for older components, this hydraulic adapter guarantees efficient and cost-effective hydraulic performance. Its rugged design ensures it can handle extreme pressure and harsh conditions, making it an ideal choice for demanding applications. Trust Gates to provide high-performance hydraulic adapters that support smooth, uninterrupted system operation.

Gates Corporation MegaCrimp Part No: G25830-0810

$40.05

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Includes O-ring sealing in flare.

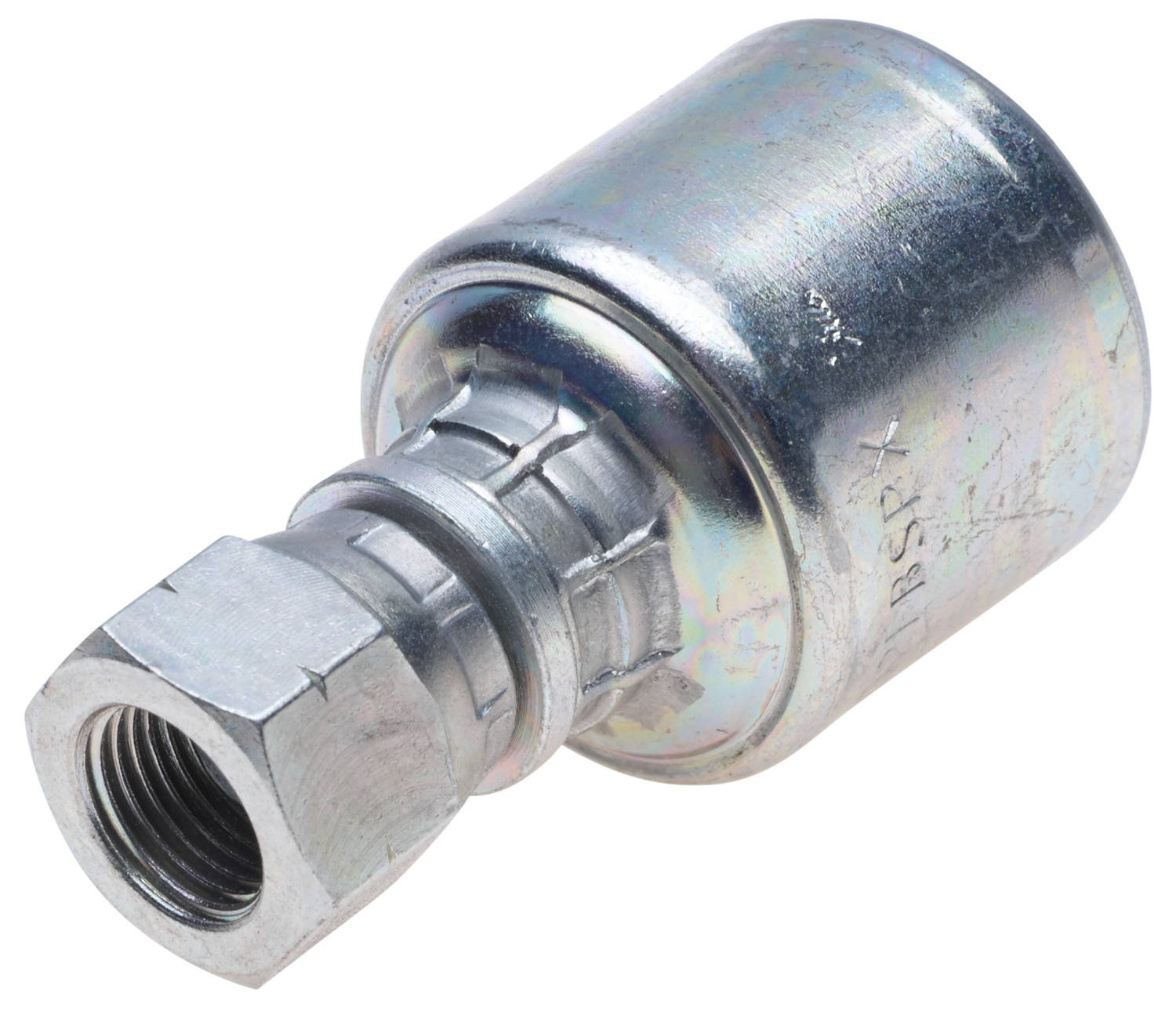

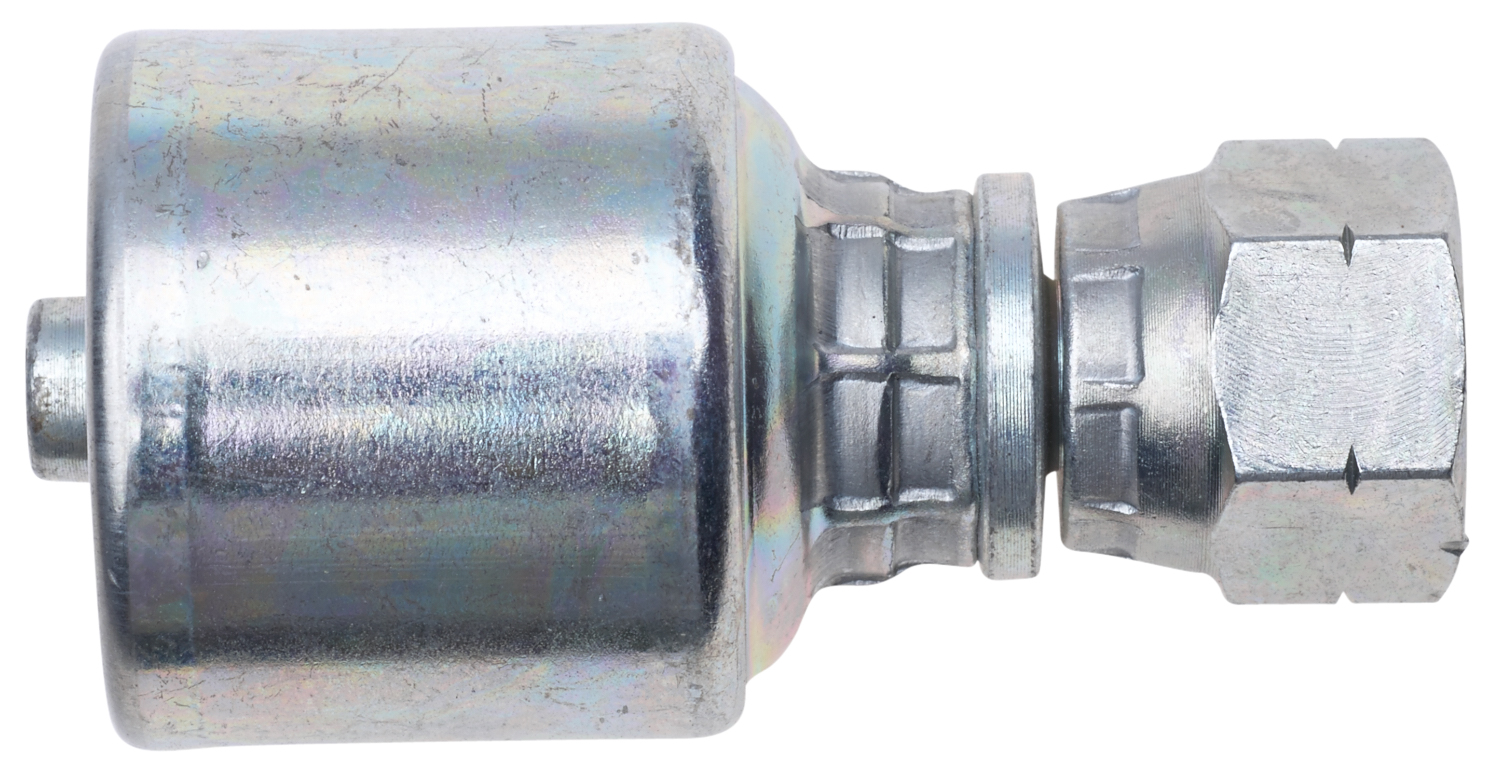

Female British Standard Parallel Pipe O-Ring Swivel (MegaCrimp)

Weight

0.3700

Gender:Female
Swivel:Yes
Thread Size:5/8-14
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.5

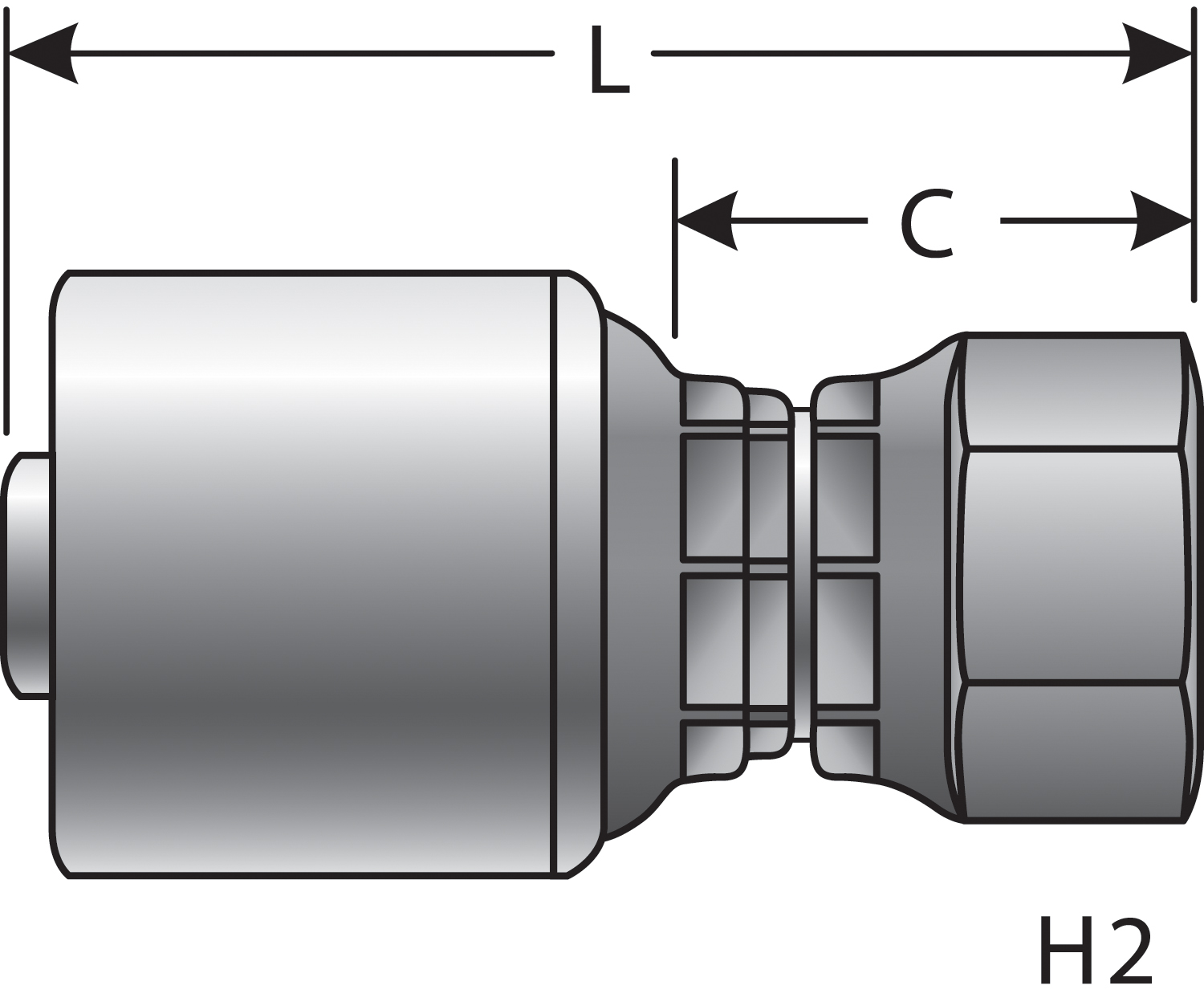

Length:2.68
Seat Angle:30

Compatibility

Alternative Part Numbers

Dayco 101653
Dayco 116037
Goodyear 13105-0810
Goodyear 14105-0810
Goodyear B2-BPFX-0810
Goodyear UC-BPFX-0810
NAPA G25830-0810
Parker 19243-10-8
Parker 1GUHY-10-8
Weatherhead 08E360
Weatherhead 08U360
Weatherhead 08Z360
Weatherhead 116037
