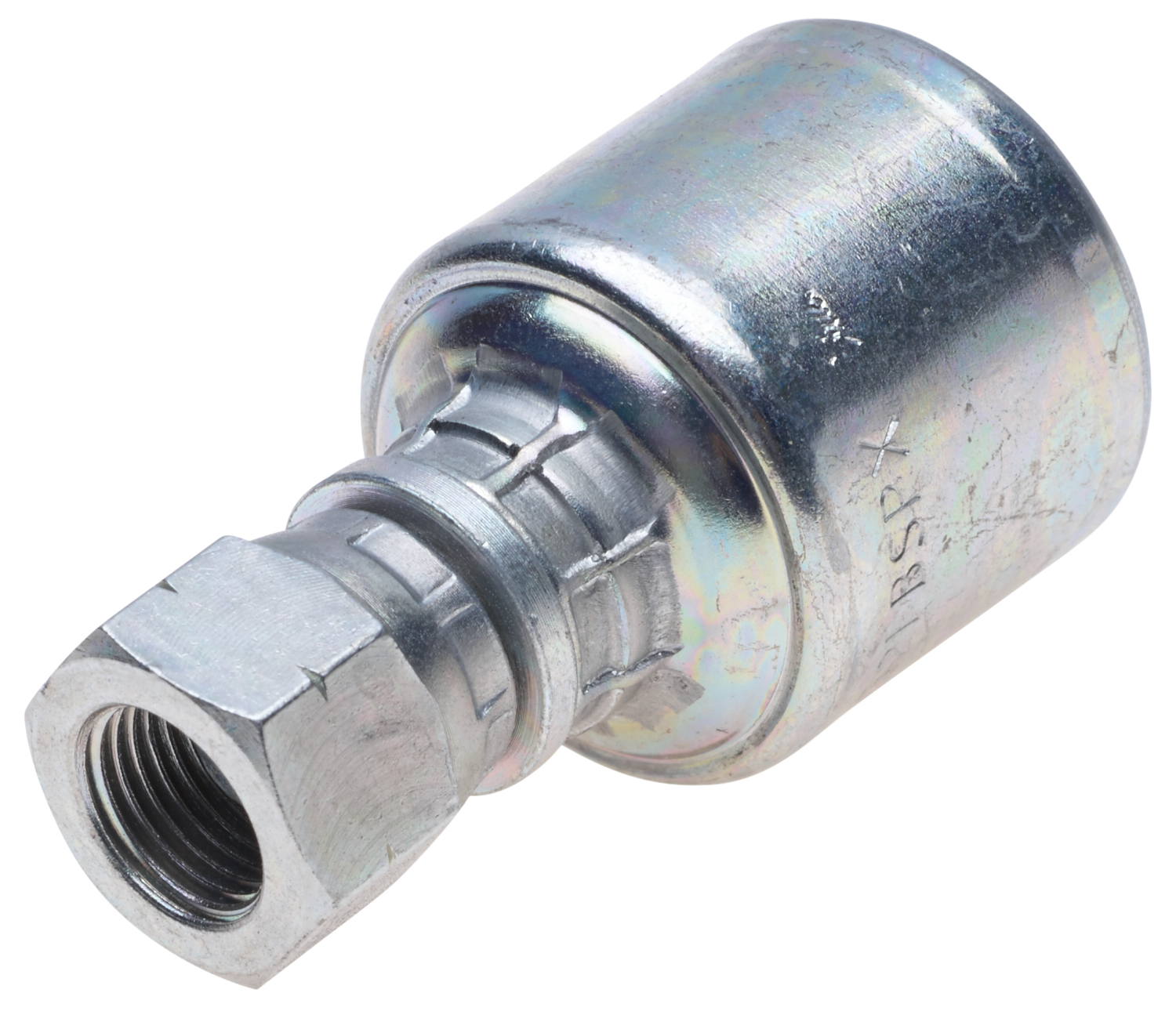

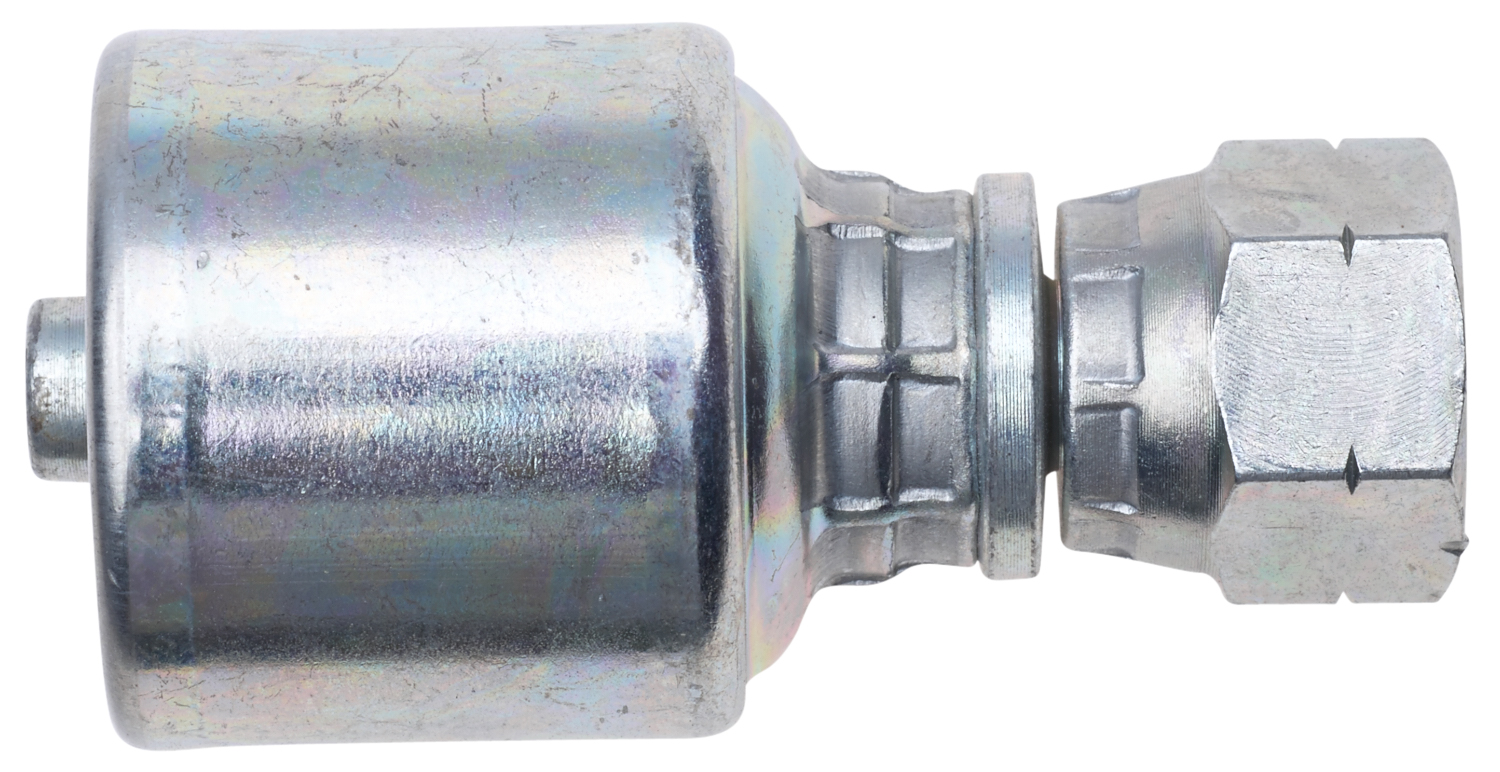

Hydraulic Coupling / Adapter - G25830-0808

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25830-0808 provides reliable, leak-free connections for high-pressure hydraulic systems. This hydraulic adapter is designed for durability, offering long-lasting performance even in demanding environments. The hydraulic coupling is easy to install, reducing downtime and enhancing system efficiency. Built to resist wear and tear, it guarantees dependable operation under tough working conditions. Perfect for industrial machinery, this hydraulic adapter ensures smooth and continuous performance in heavy-duty applications. Trusted by professionals, it delivers secure connections that boost overall system productivity.

Gates Corporation MegaCrimp Part No: G25830-0808

$18.32

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Includes O-ring sealing in flare.

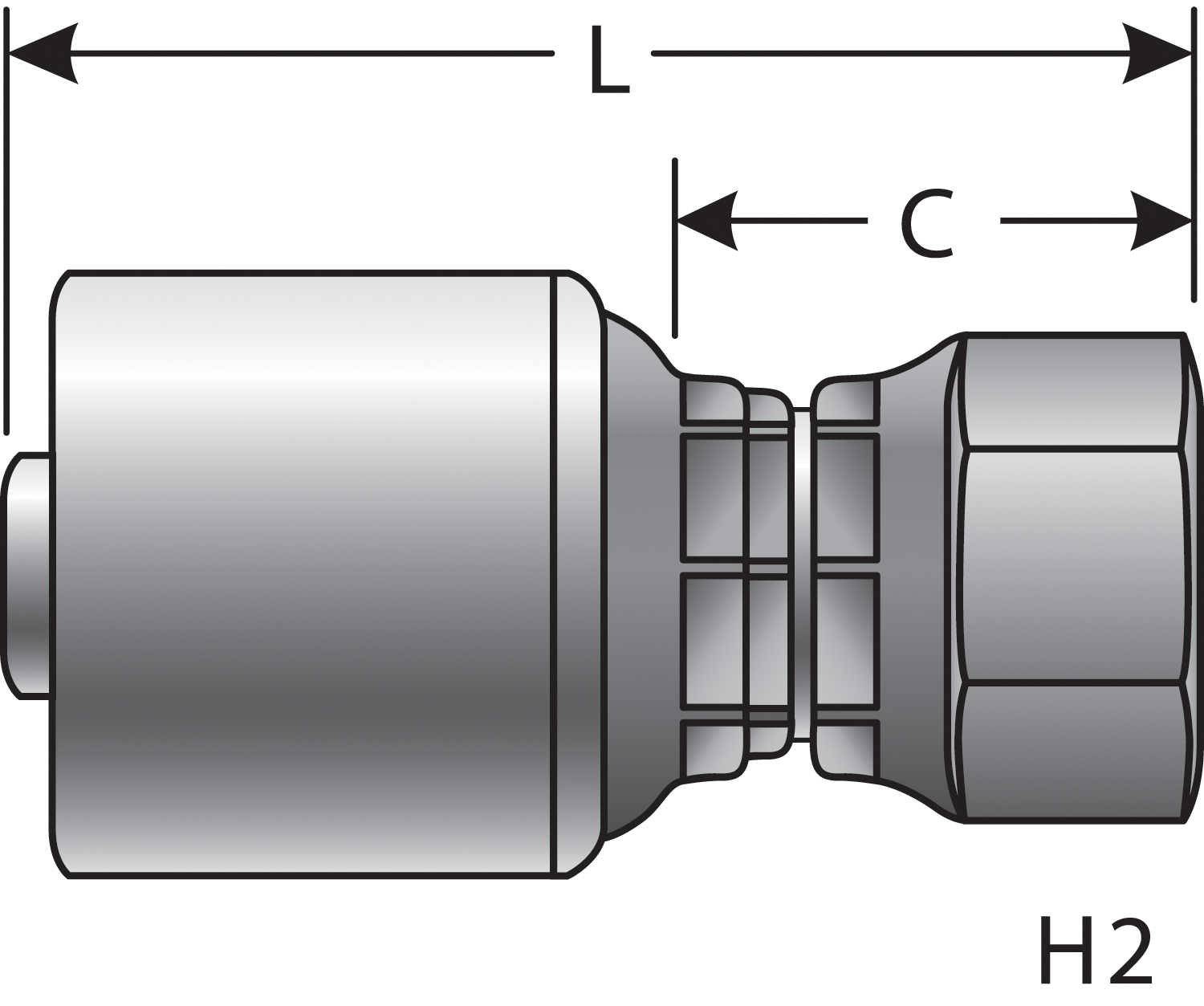

Female British Standard Parallel Pipe O-Ring Swivel (MegaCrimp)

Weight

0.3000

Gender:Female
Swivel:Yes
Thread Size:1/2-14
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.5
Length:2.53
Seat Angle:30

Compatibility

Alternative Part Numbers

Dayco 116036
Dayco 153036
Aeroquip 1A8BF8
Goodyear 13105-0808
Goodyear 14105-0808
Goodyear B2-BPFX-0808
Goodyear T7-BPFX-0808
Goodyear T8-BPFX-0808
Goodyear UC-BPFX-0808
Hydraulink S01H-0808
Kurt Hydraulics F-BSPX-08-08
NAPA G25830-0808
Parker 19243-08-08
Parker 19243-8-8
Parker 1GU43-08-08
Parker 1GU43-8-8
Parker 1GUHY-8-8
Weatherhead 08E358
Weatherhead 08EE358
Weatherhead 08U358
Weatherhead 08Z358
Goodyear 19243-8-8
