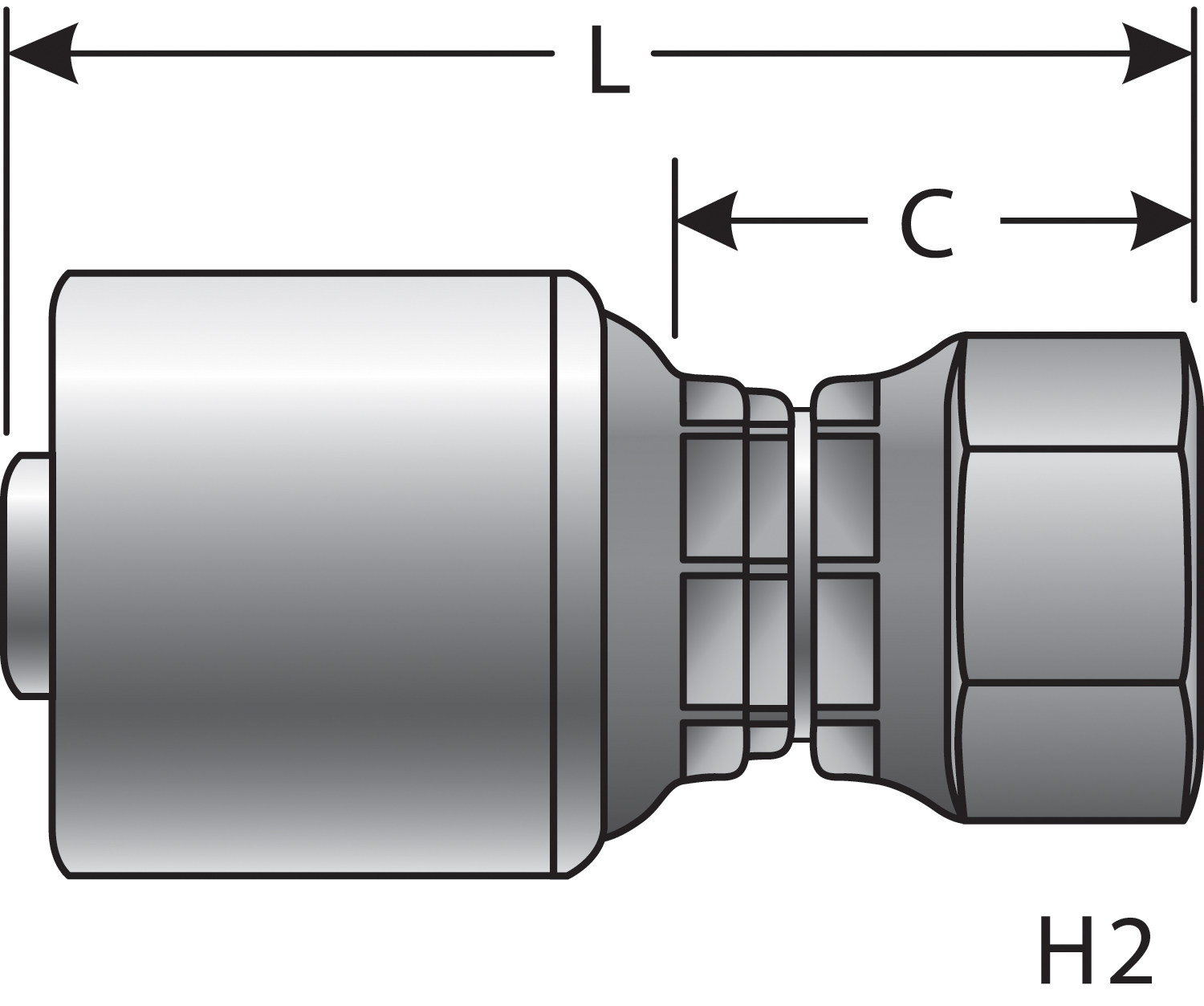

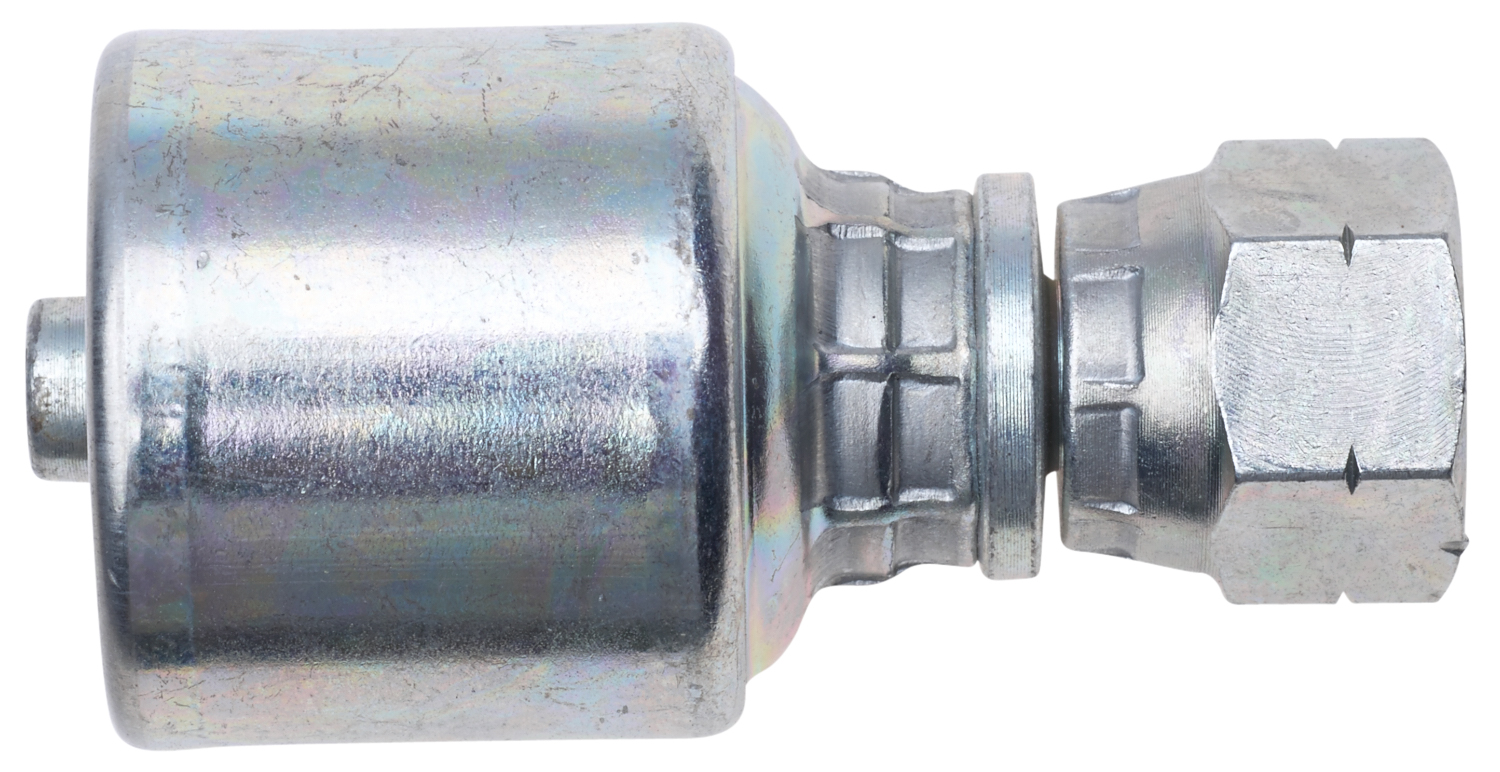

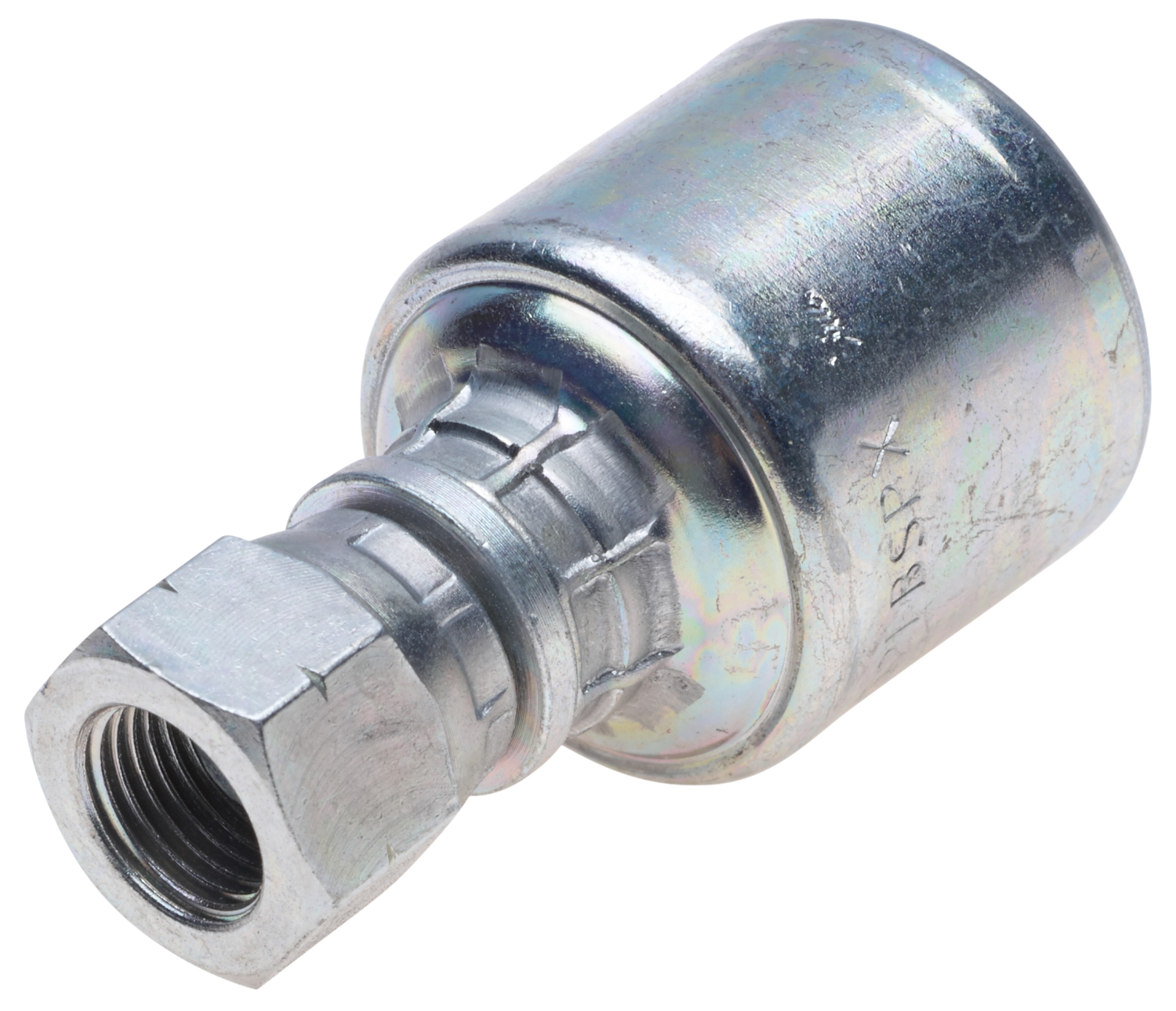

Hydraulic Coupling / Adapter
Gates Hydraulic Coupling / Adapter G25830-0606 is designed to ensure secure, leak-free connections in high-pressure hydraulic systems. This hydraulic adapter provides exceptional durability, offering long-lasting performance even in tough working conditions. The hydraulic coupling is built for easy installation, minimizing downtime and maximizing system efficiency. Resisting wear and tear, it guarantees consistent, dependable operation in demanding environments. Ideal for industrial machinery, this hydraulic adapter ensures smooth, continuous performance under pressure. Trusted by professionals, it delivers secure and reliable connections, boosting overall system productivity.
$14.94
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Includes O-ring sealing in flare.
- Female British Standard Parallel Pipe O-Ring Swivel (MegaCrimp)
Weight
0.2000
Swivel:Yes
Thread Size:3/8-19
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:1.61
Seat Angle:30
Compatibility
Alternative Part Numbers
Dayco 116032
Dayco 153032
Aeroquip 1A6BF6
Goodyear 13105-0606
Goodyear 14105-0606
Goodyear B2-BPFX-0606
Goodyear T7-BPFX-0606
Goodyear T8-BPFX-0606
Goodyear UC-BPFX-0606
Hydraulink S01H-0606
Kurt Hydraulics F-BSPX-06-06
NAPA G25830-0606
Parker 19243-06-06
Parker 19243-6-6
Parker 1GU43-06-06
Parker 1GU43-6-6
Parker 1GUHY-6-6
Weatherhead 06E356
Weatherhead 06EA26
Weatherhead 06EEA26
Weatherhead 06U356
Weatherhead 06Z356
Goodyear 1GU43-6-6
Dayco 153032
Aeroquip 1A6BF6
Goodyear 13105-0606
Goodyear 14105-0606
Goodyear B2-BPFX-0606
Goodyear T7-BPFX-0606
Goodyear T8-BPFX-0606
Goodyear UC-BPFX-0606
Hydraulink S01H-0606
Kurt Hydraulics F-BSPX-06-06
NAPA G25830-0606
Parker 19243-06-06
Parker 19243-6-6
Parker 1GU43-06-06
Parker 1GU43-6-6
Parker 1GUHY-6-6
Weatherhead 06E356
Weatherhead 06EA26
Weatherhead 06EEA26
Weatherhead 06U356
Weatherhead 06Z356
Goodyear 1GU43-6-6
