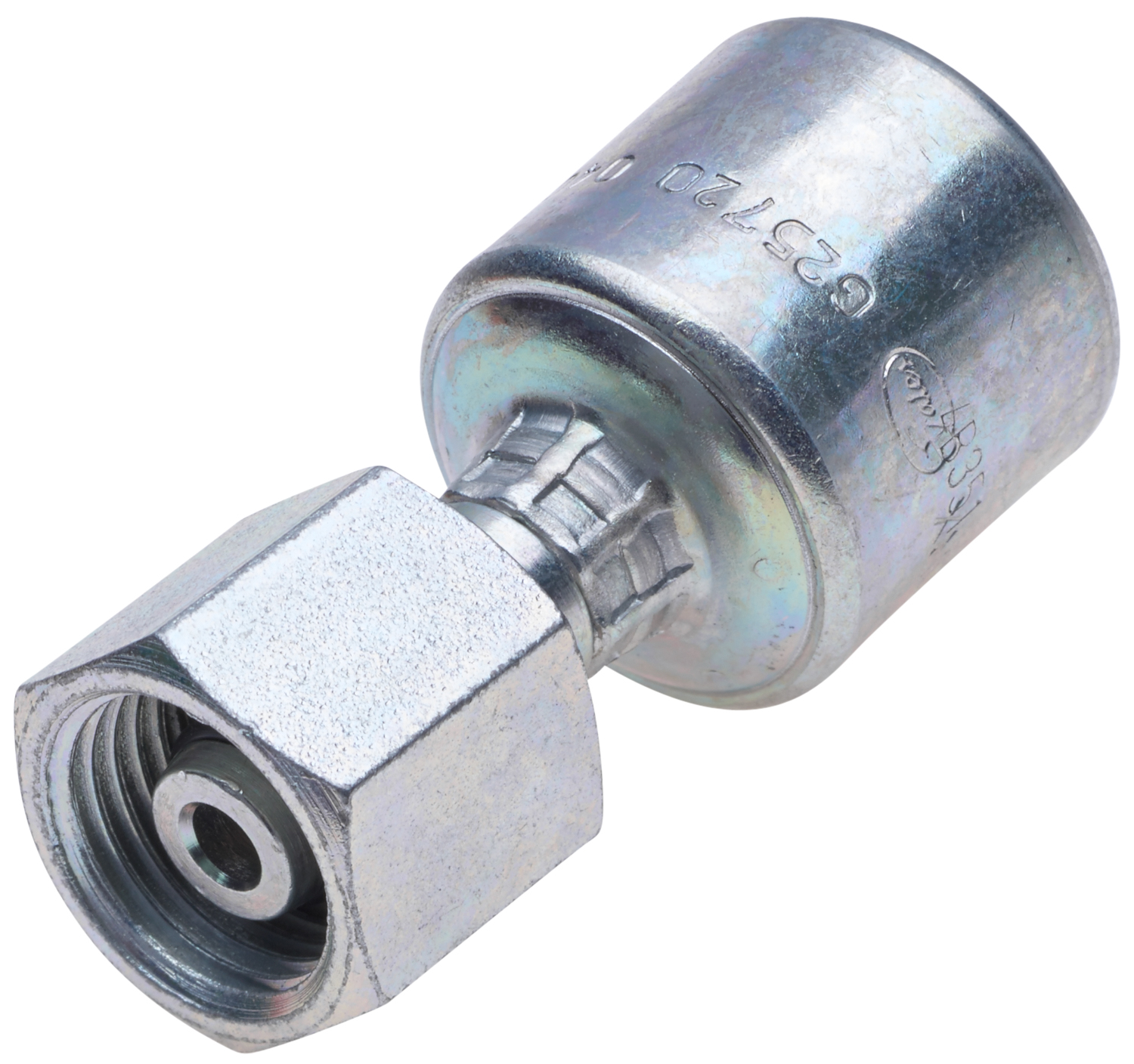

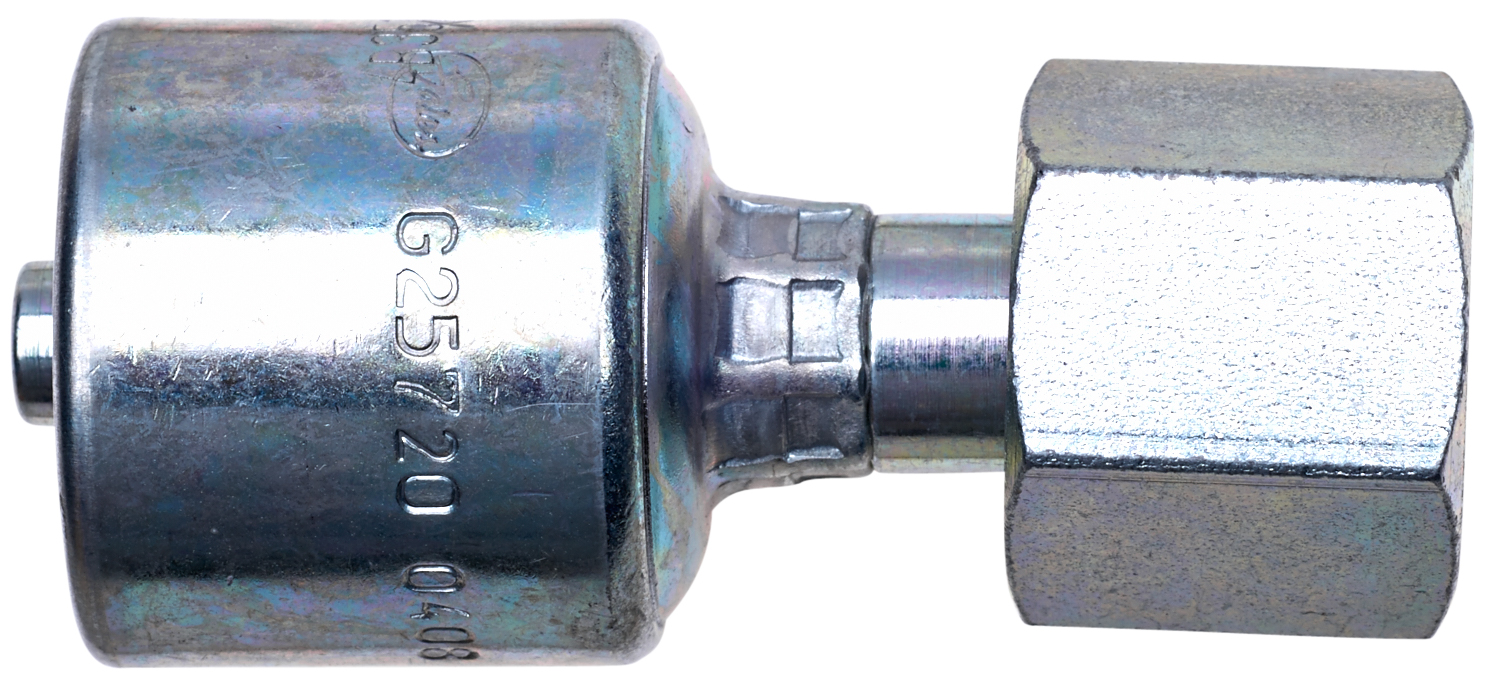

Hydraulic Coupling / Adapter - G25720-0816

Gates Corporation Hydraulic Coupling / Adapter Part No: G25720-0816

$28.72

MegaCrimp

Gates Hydraulic Coupling / Adapter G25720-0816 is designed for reliable, leak-free connections in high-pressure hydraulic systems. This hydraulic adapter offers exceptional durability, ensuring long-lasting performance even in demanding environments. The hydraulic coupling is easy to install, reducing downtime and improving operational efficiency. Built to resist wear, it guarantees dependable operation in heavy-duty applications. Perfect for industrial machinery, this hydraulic adapter supports smooth, continuous performance in tough conditions. Trusted by professionals, it ensures secure and reliable hydraulic connections, boosting system productivity.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

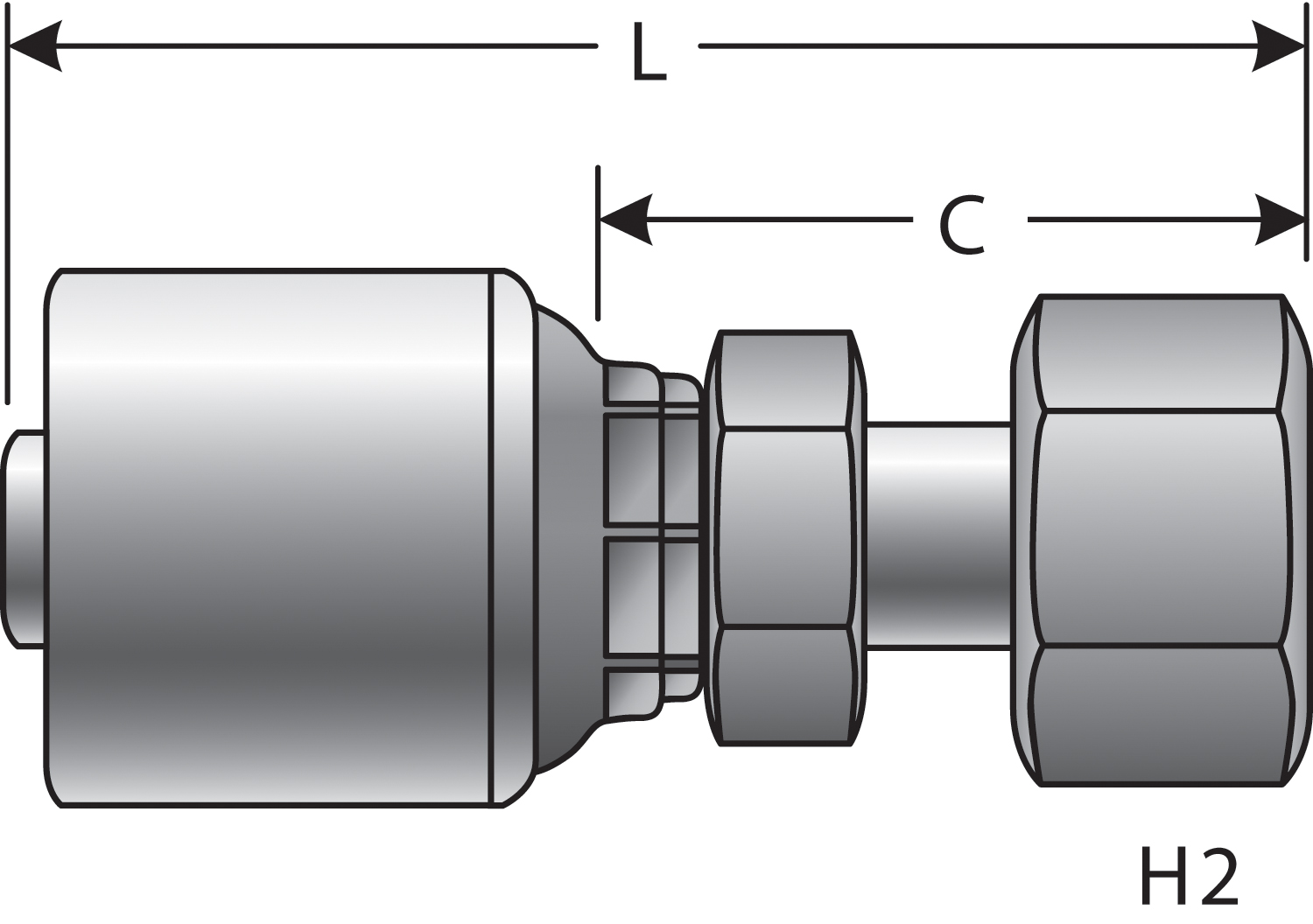

Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)

Gender:Female
Swivel:Yes
Thread Size:M24X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.5
Length:2.61
Seat Angle:24
Outside Diameter:15.4

Weight

0.4000

Compatibility

Alternative Part Numbers

Aeroquip 1A12DS8
Aeroquip 1B12DS8
Caterpillar 116-0442
Caterpillar 124-2258
Dayco 08Z66C
Dayco 116164
Goodyear 13210-0824
Goodyear 14210-0824
Goodyear B2-DHFX-0824
Goodyear UC-DHFX-0824
Kurt Hydraulics F-DINHX-08-24
Kurt Hydraulics M-DINHX-08-24
NAPA G25720-0816
Parker 1C643-16-08
Parker 1C943-16-08
Parker 1C943-16-8
Weatherhead 08U66C
Weatherhead 08Z66C
