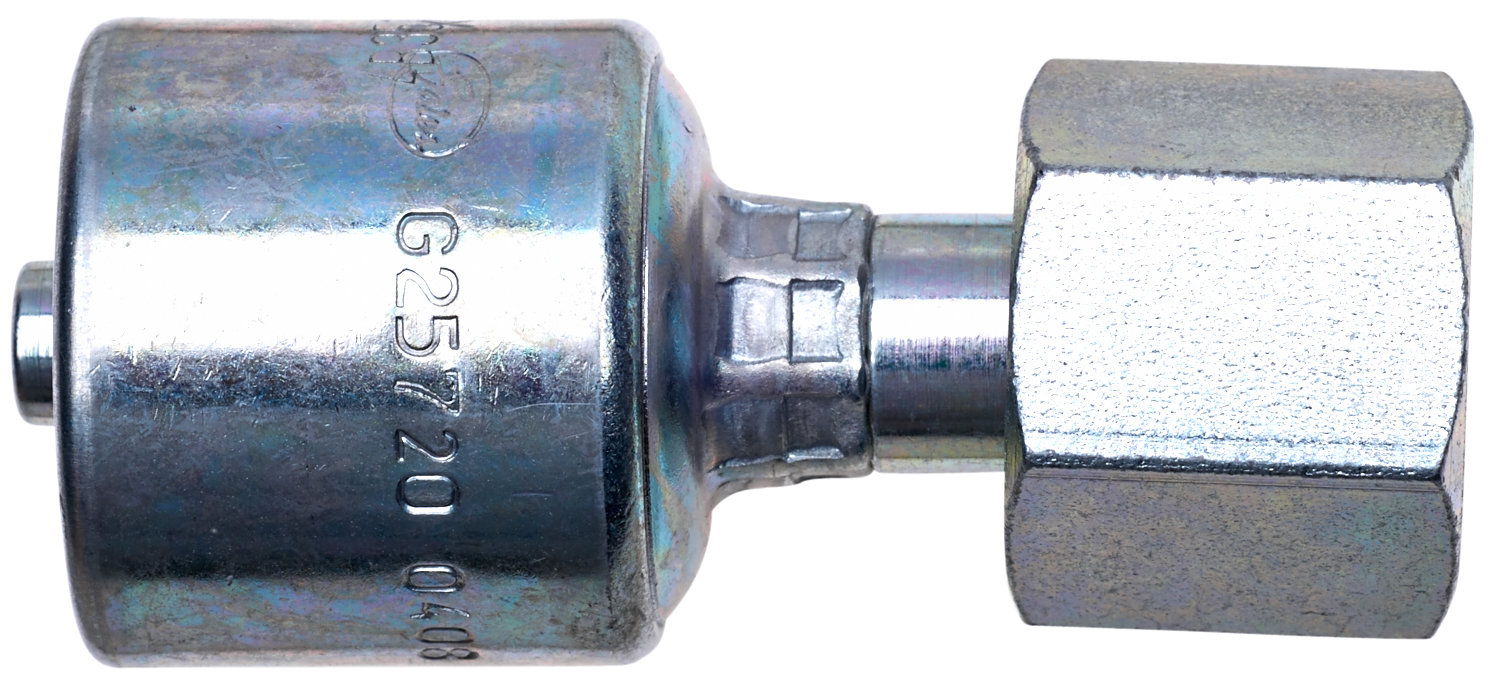

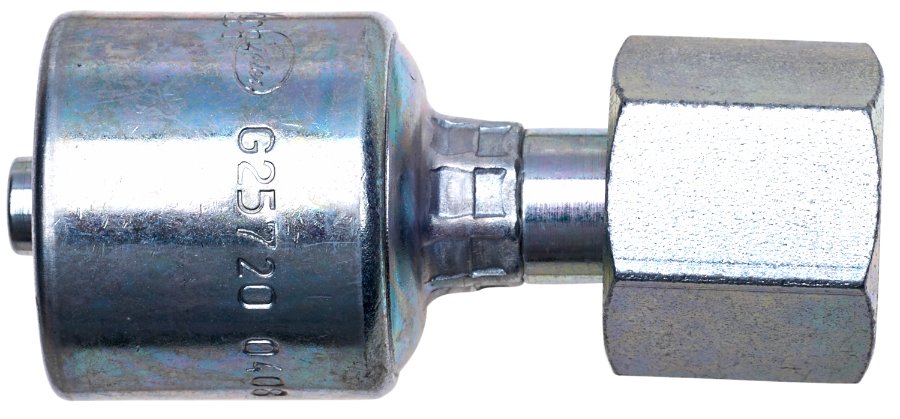

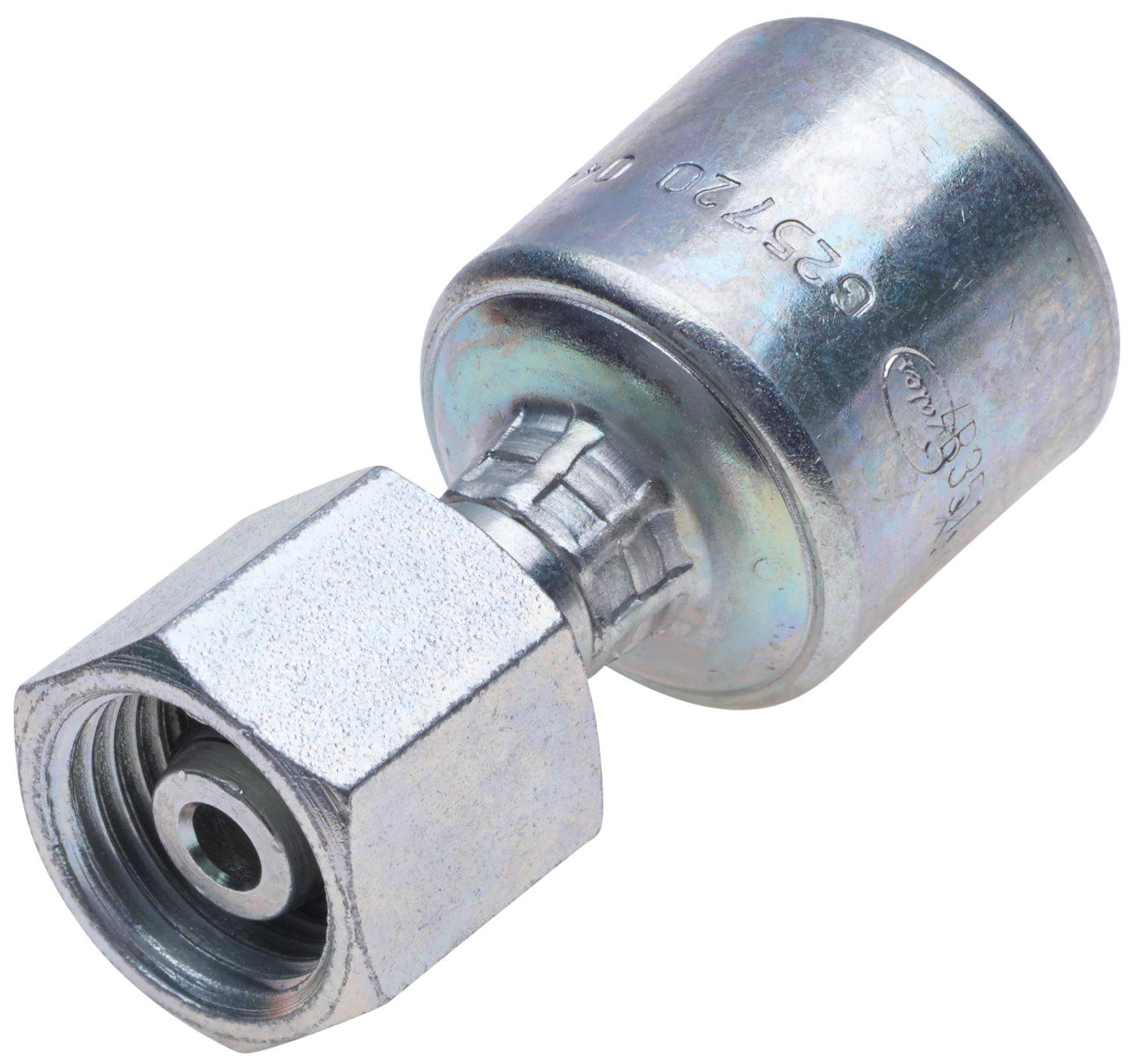

Gates Corporation Hydraulic Coupling / Adapter Part No: G25720-0612
$32.06
MegaCrimp
Gates Hydraulic Coupling / Adapter G25720-0612 is built to provide reliable, leak-free connections for high-pressure hydraulic systems. This hydraulic adapter ensures exceptional durability and long-lasting performance, even in demanding environments. Designed for ease of installation, the hydraulic coupling reduces downtime and enhances overall system efficiency. Resisting wear and tear, it ensures smooth, dependable performance for heavy-duty applications. Perfect for industrial machinery and equipment, this hydraulic adapter provides a secure connection in even the most challenging conditions. Trusted by professionals, it delivers consistent performance and reliability for hydraulic systems.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

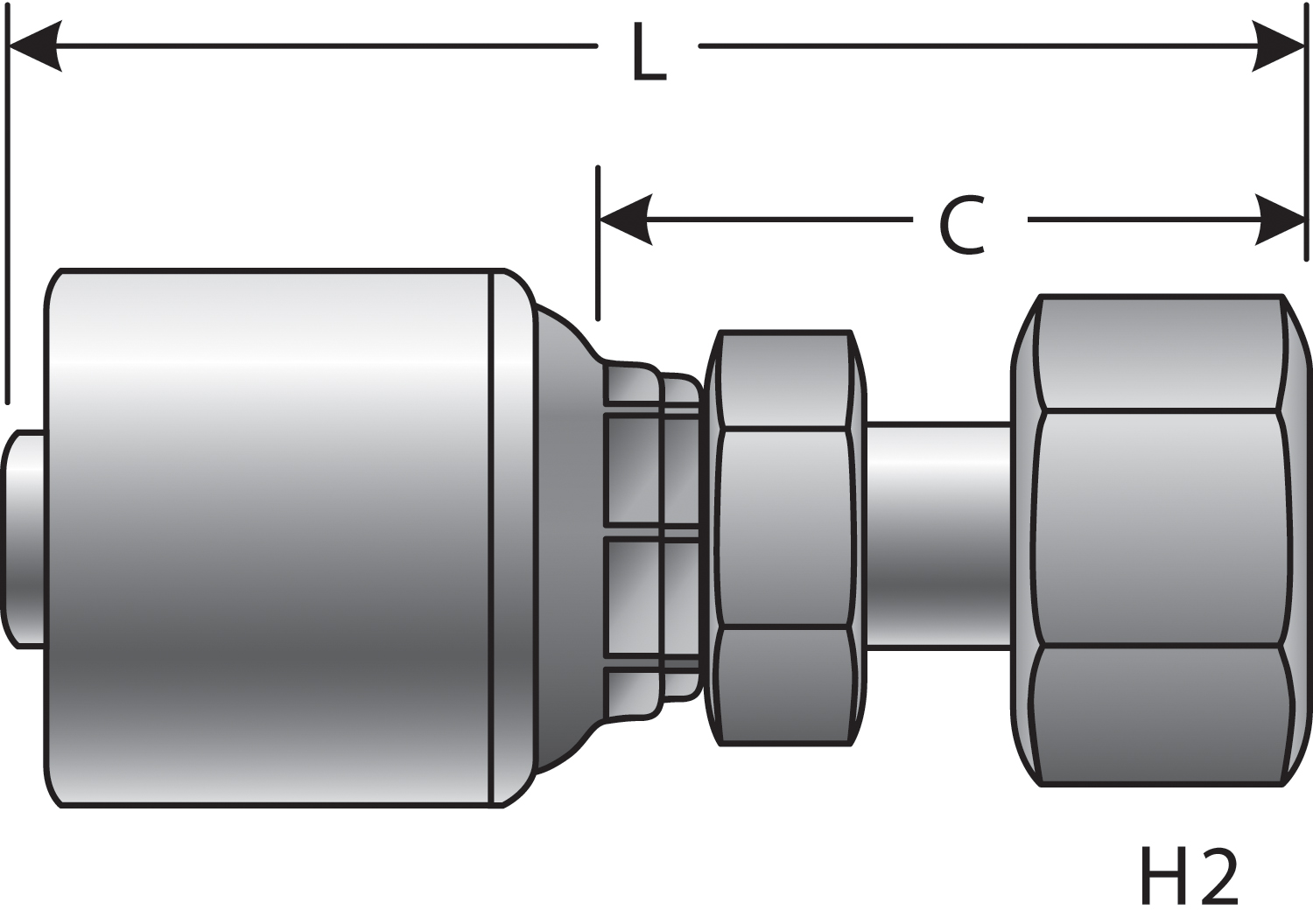

- Female DIN 24 Cone Swivel - Heavy Series with O-Ring (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:M20X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:2.09
Seat Angle:24
Outside Diameter:12
Swivel:Yes
Thread Size:M20X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:2.09
Seat Angle:24
Outside Diameter:12
Weight
0.2500
Compatibility
Alternative Part Numbers
- Aeroquip 1A8DS6
- Caterpillar 116158
- Caterpillar 124-2256
- Dayco 116156
- Dayco 116158
- Goodyear 13210-0620
- Goodyear 14210-0620
- Goodyear B2-DHFX-0620
- Goodyear UC-DHFX-0620
- NAPA G25720-0612
- Parker 1C643-12-06
- Parker 1C943-12-06
- Parker 1C943-12-6
- Weatherhead 06U62C
- Weatherhead 06Z62C
