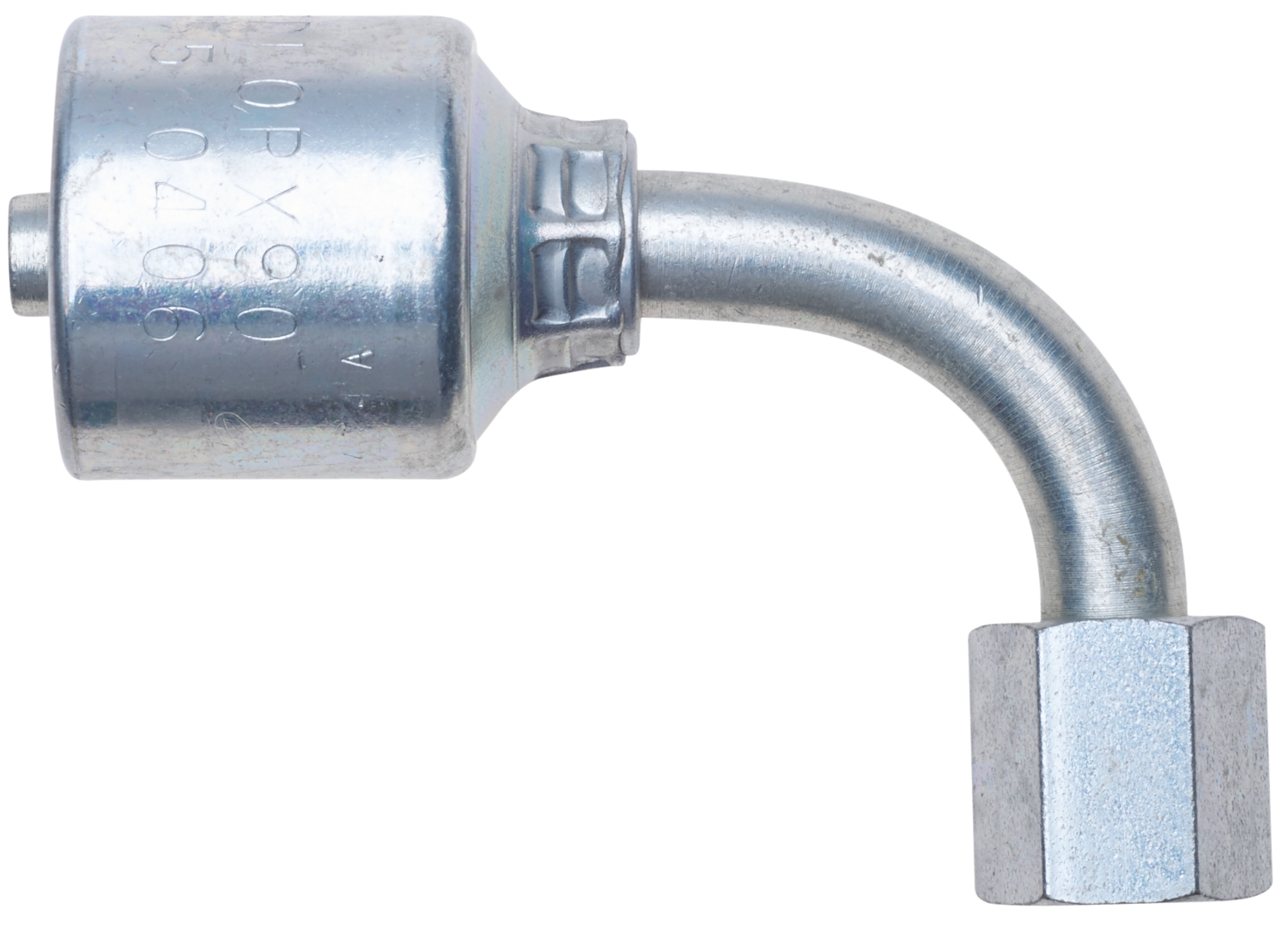

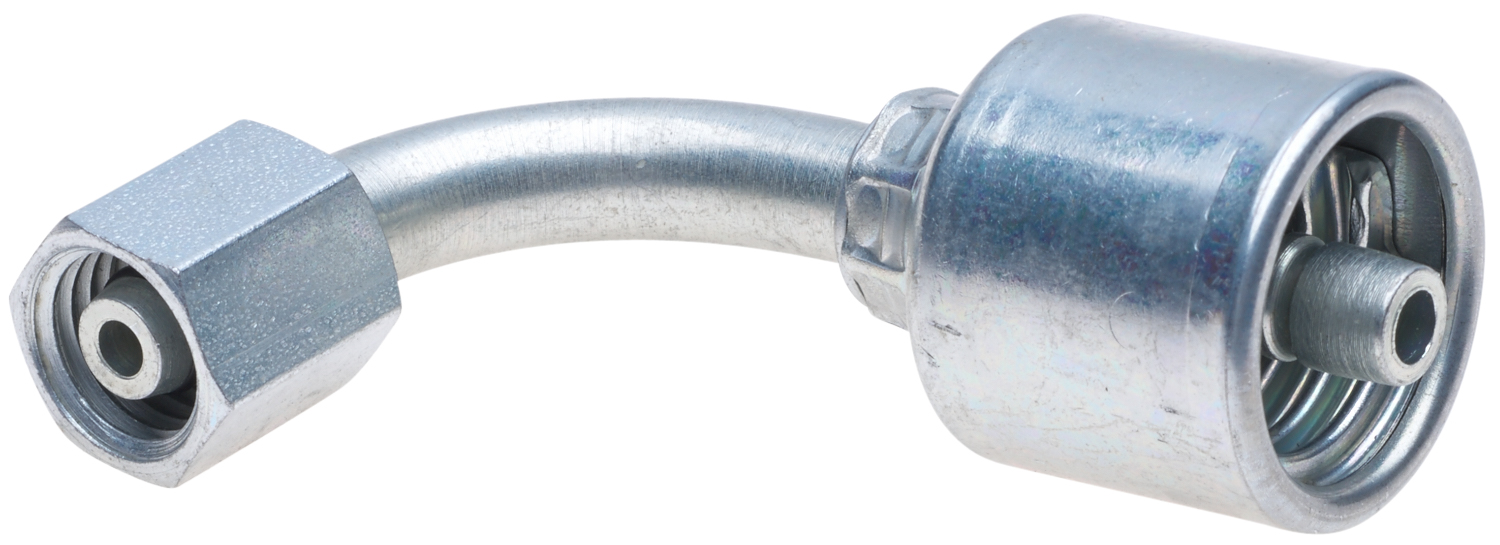

Hydraulic Coupling / Adapter - G25655-0815

Gates Corporation Hydraulic Coupling / Adapter Part No: G25655-0815

$56.52

MegaCrimp

Gates Hydraulic Coupling / Adapter G25655-0815 is designed for high-pressure hydraulic systems, providing secure and leak-free connections. This hydraulic adapter offers exceptional durability, making it ideal for tough industrial environments. The hydraulic coupling ensures reliable, long-lasting performance, even in challenging conditions. Easy to install, it minimizes downtime and enhances system efficiency. Built to resist wear and tear, this hydraulic adapter delivers consistent performance over time. Professionals trust it for its dependable operation and ability to withstand demanding tasks.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)

Gender:Female
Swivel:Yes
Thread Size:M22X1.5
Seal Type:Mated Angle w/O-Ring

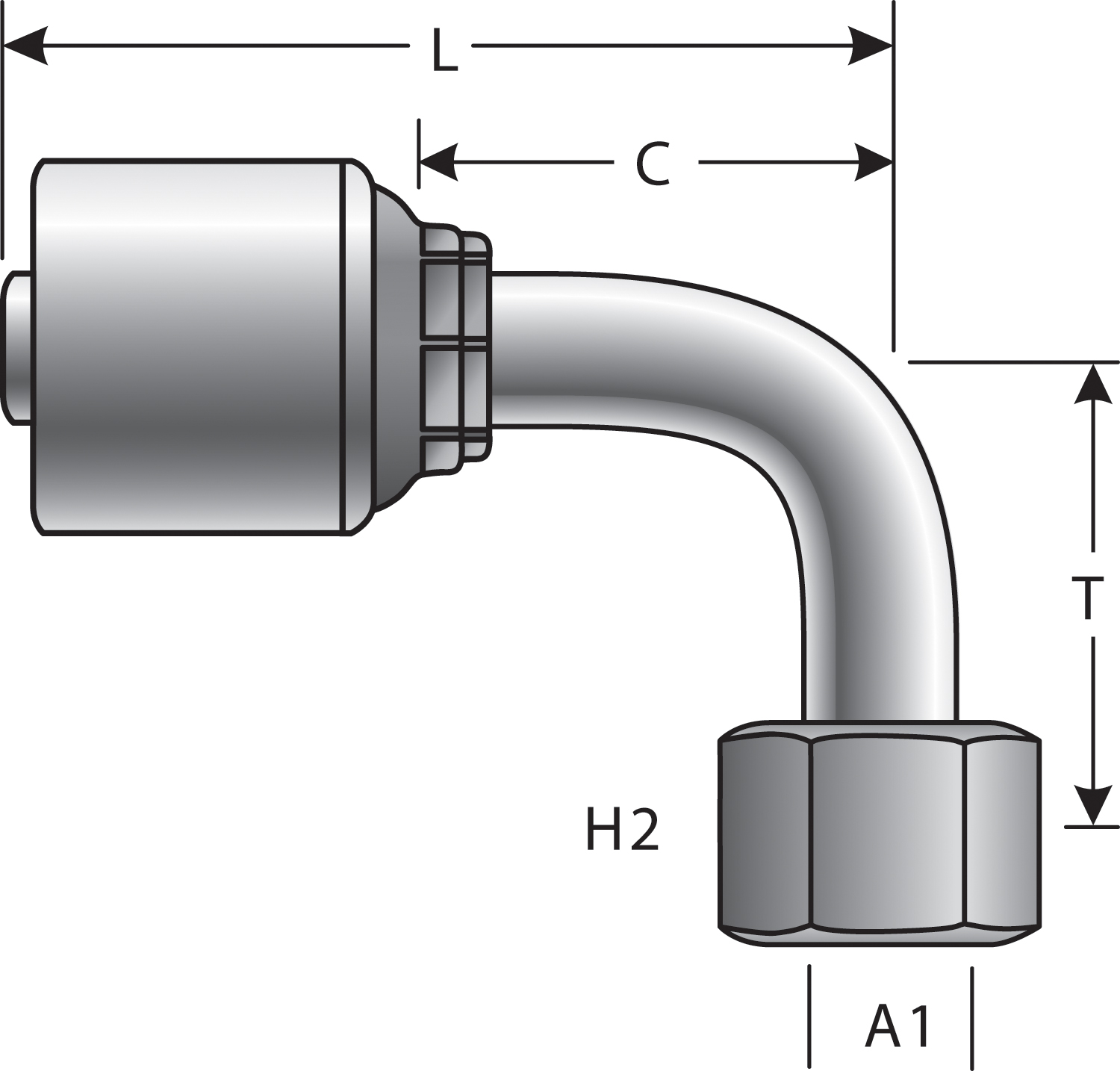

Inside Diameter:.5
Length:2.87
Seat Angle:24
Drop Length:1.65
Outside Diameter:15

Weight

0.3800

Compatibility

Alternative Part Numbers

Aeroquip 1A12DLB8
Caterpillar 124-2225
Dayco 116342
Goodyear 13250-0822
Goodyear 13280-0822
Goodyear 14250-0822
Goodyear 14280-0822
Goodyear B2-DLFX90-0822
Goodyear UC-DLFX90-0822
Kurt Hydraulics 08Z65D
Kurt Hydraulics F-DINLX90-08-22
NAPA G25655-0815
Parker 1C543-15-08
Parker 1C543-15-8
Parker 1CF43-15-08
Parker 1CF43-15-8
Weatherhead 08U65D
Weatherhead 08Z65D
