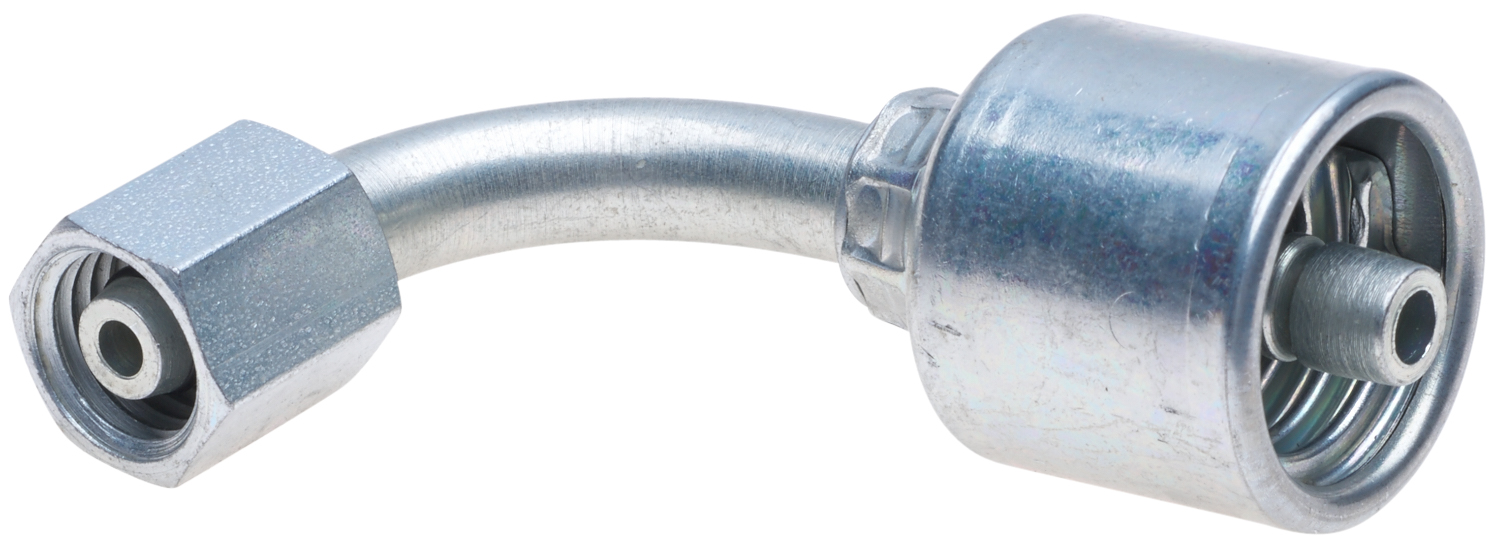

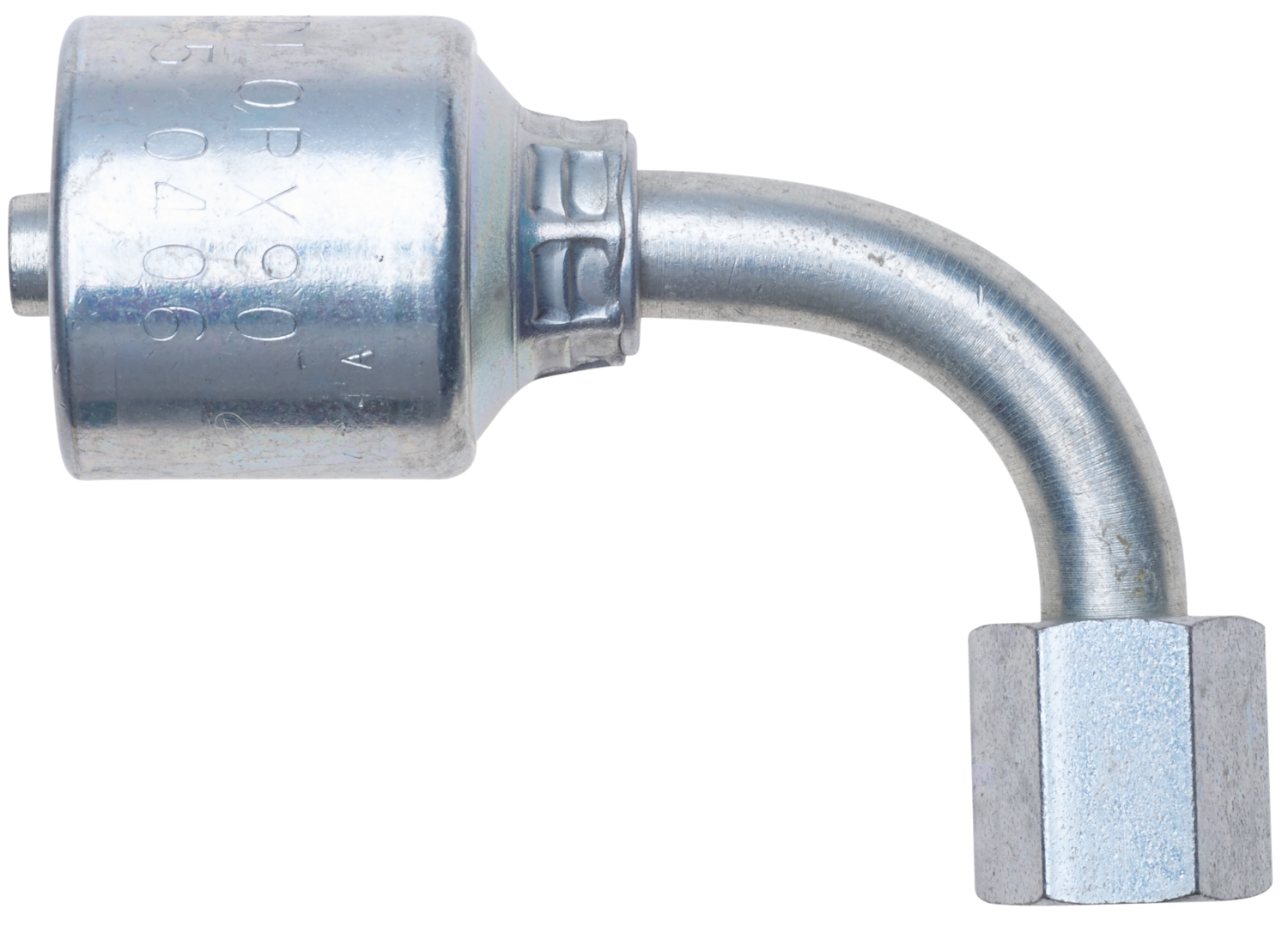

Gates Corporation Hydraulic Coupling / Adapter Part No: G25655-0612
$38.89
MegaCrimp
Gates Hydraulic Coupling / Adapter G25655-0612 delivers a reliable solution for high-pressure hydraulic applications. This hydraulic adapter ensures secure and leak-free connections, even in demanding environments. Designed for durability, the hydraulic coupling resists wear and tear, offering long-lasting performance. Easy to install, it reduces system downtime and enhances operational efficiency. Ideal for use in industrial equipment and heavy-duty machinery, this hydraulic adapter provides consistent, dependable performance. With a focus on reliability, it is trusted by professionals to maintain smooth hydraulic operations under pressure.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

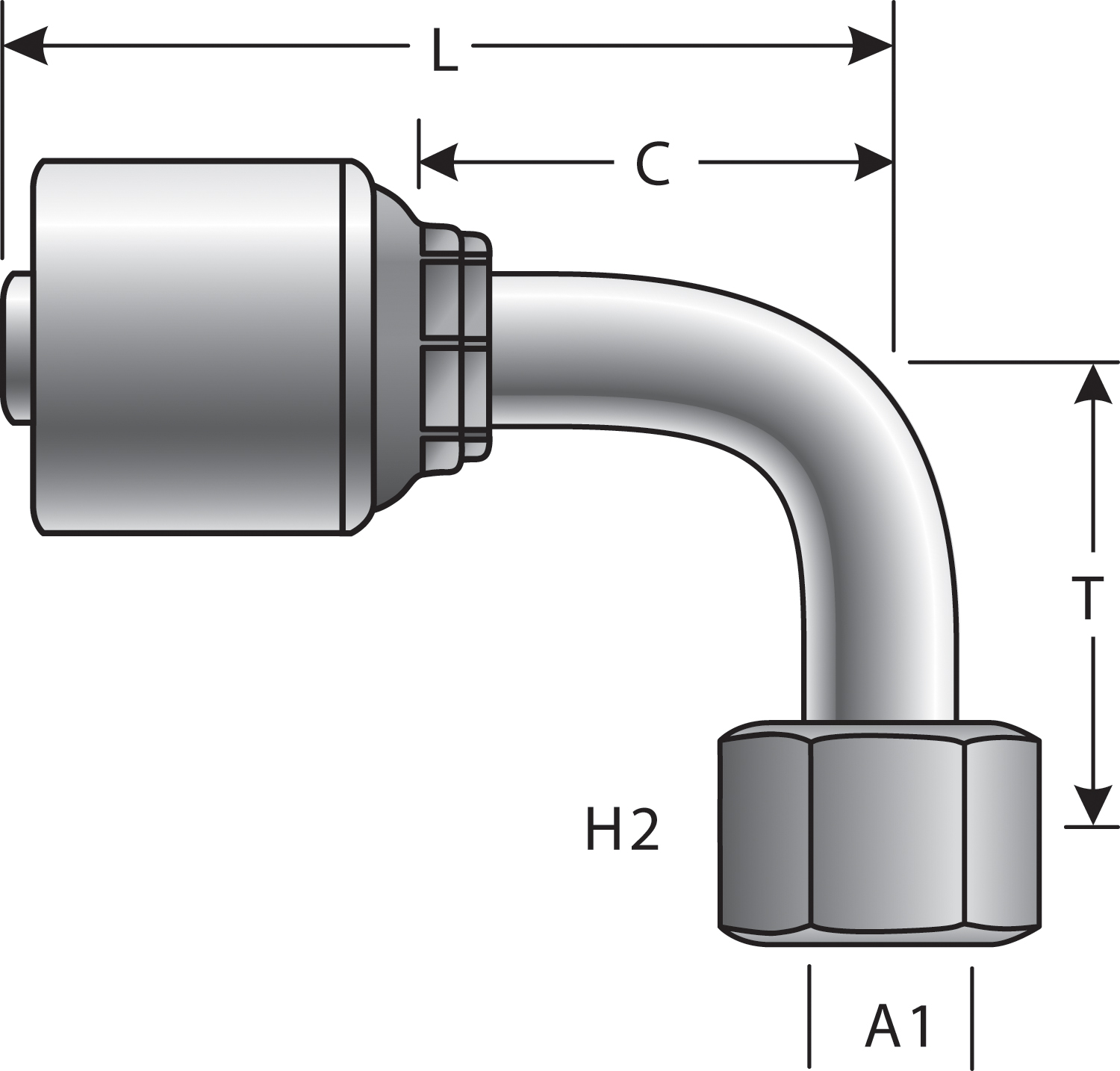

- Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:M18X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:2.18
Seat Angle:24
Drop Length:1.46
Outside Diameter:12
Swivel:Yes
Thread Size:M18X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:2.18
Seat Angle:24
Drop Length:1.46
Outside Diameter:12
Weight
0.2354
Compatibility
Alternative Part Numbers
- Aeroquip 1A10DLB6
- Dayco 116339
- Goodyear 13250-0618
- Goodyear 13280-0618
- Goodyear 14250-0618
- Goodyear 14280-0618
- Goodyear B2-DLFX90-0618
- Goodyear UC-DLFX90-0618
- NAPA G25655-0612
- Parker 1C543-12-06
- Parker 1CF43-12-06
- Parker 1CF43-12-6
- Parker G25655-0612
- Weatherhead 06U62D
- Weatherhead 06Z62D
