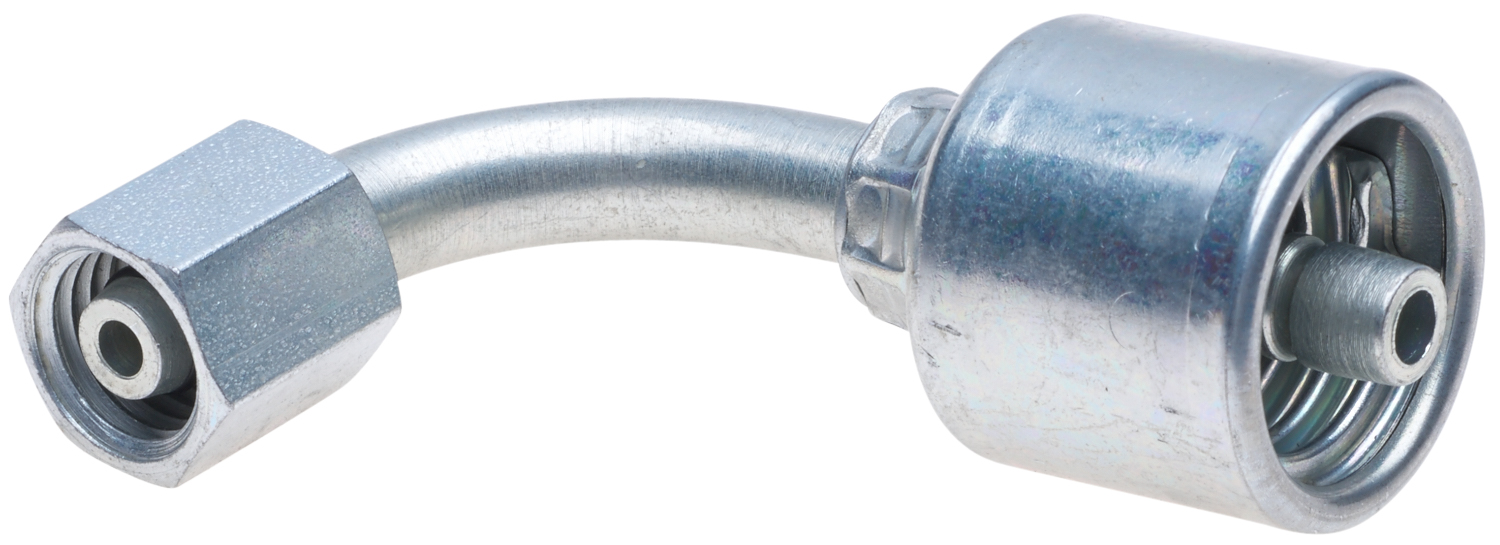

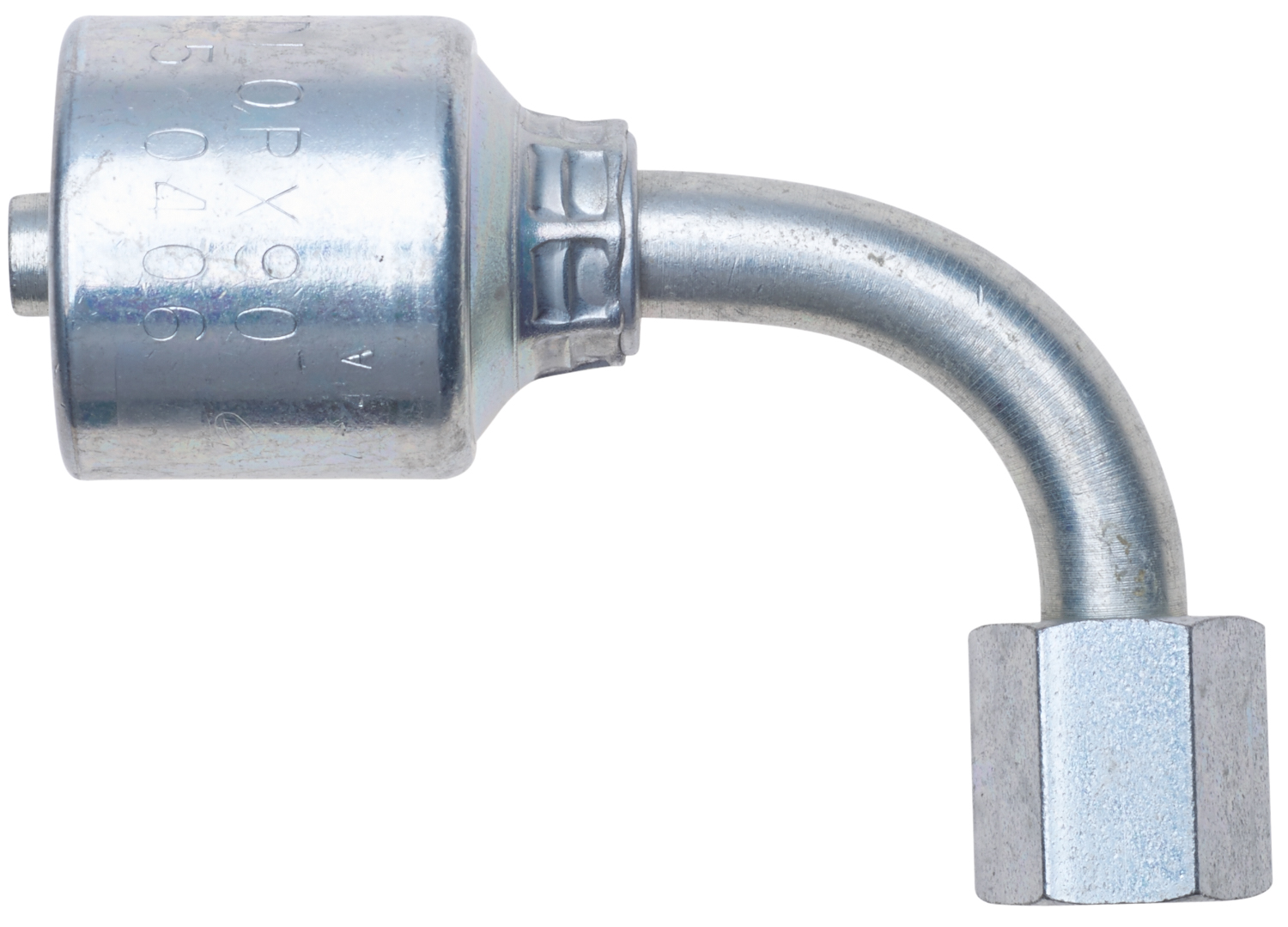

Hydraulic Coupling / Adapter - G25655-0408

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25655-0408 is engineered to provide reliable, leak-free connections in high-pressure hydraulic systems. This hydraulic adapter is designed for durability, ensuring long-lasting performance in demanding applications. Offering easy installation, it helps minimize downtime, making it an efficient choice for various hydraulic systems. The hydraulic coupling is built to resist wear, guaranteeing consistent performance even under tough conditions. Ideal for use in heavy-duty machinery and industrial setups, this hydraulic adapter ensures smooth operations and maximum reliability. Trusted by professionals, it delivers secure and dependable hydraulic connections for any demanding task.

Gates Corporation MegaCrimp Part No: G25655-0408

$29.02

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Female DIN 24 Cone Swivel - Light Series with O-Ring - 90 Bent Tube (MegaCrimp)

Weight

0.1200

Gender:Female
Swivel:Yes
Thread Size:M14X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.25

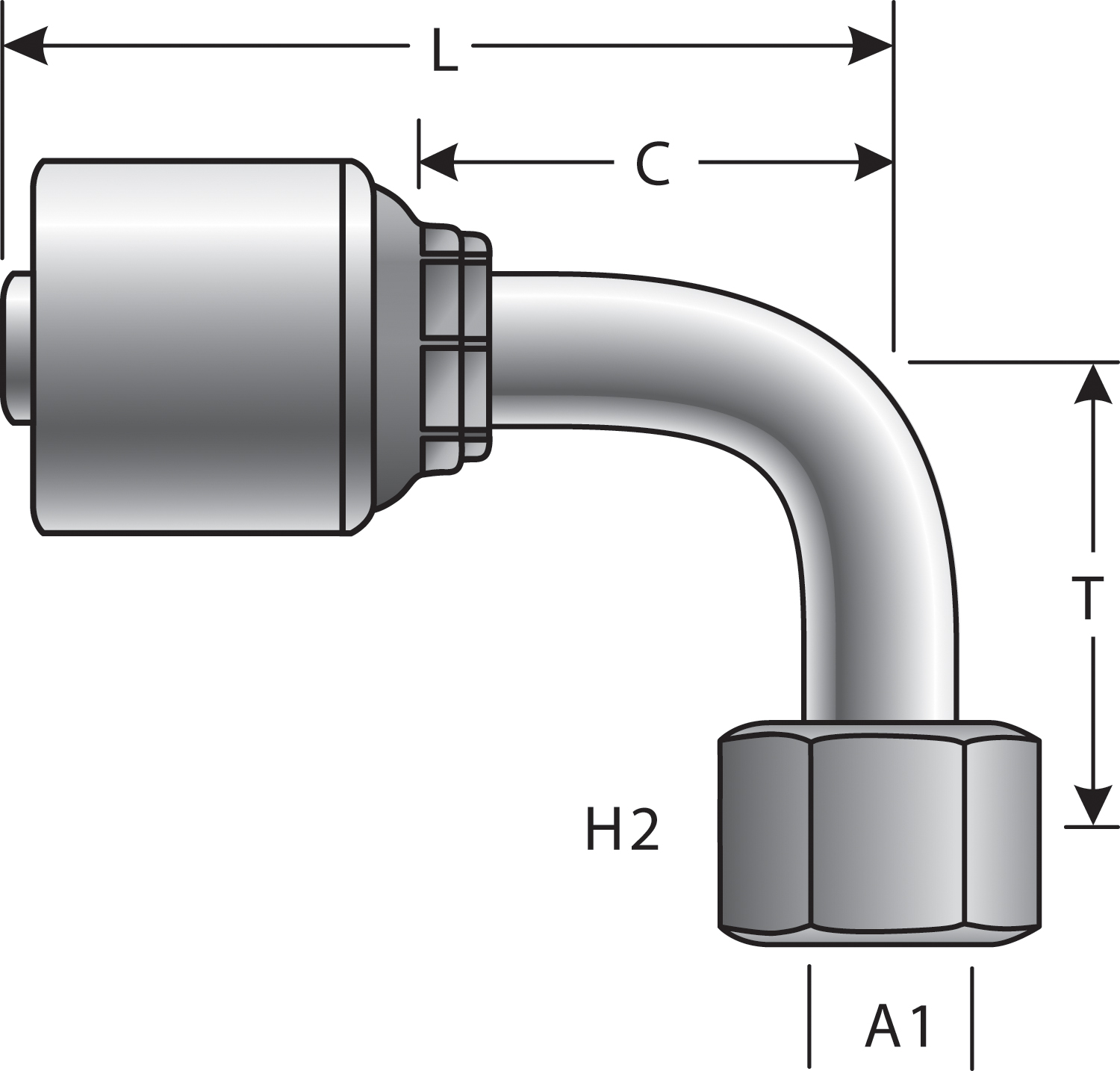

Length:2.36
Seat Angle:24
Drop Length:1.38
Outside Diameter:8

Compatibility

Alternative Part Numbers

Dayco 101761
Dayco 116330
Aeroquip 1A6DLB4
Goodyear 13250-0414
Goodyear 13280-0414
Goodyear 14250-0414
Goodyear 14280-0414
Goodyear B2-DLFX90-0414
Goodyear UC-DLFX90-0414
Kurt Hydraulics F-DINLX90-04-14
NAPA G25655-0408
Parker 1C543-08-04
Parker 1C543-8-4
Parker 1CF43-8-4
Weatherhead 04U58D
Weatherhead 04Z58D
Goodyear 1C543-8-4
