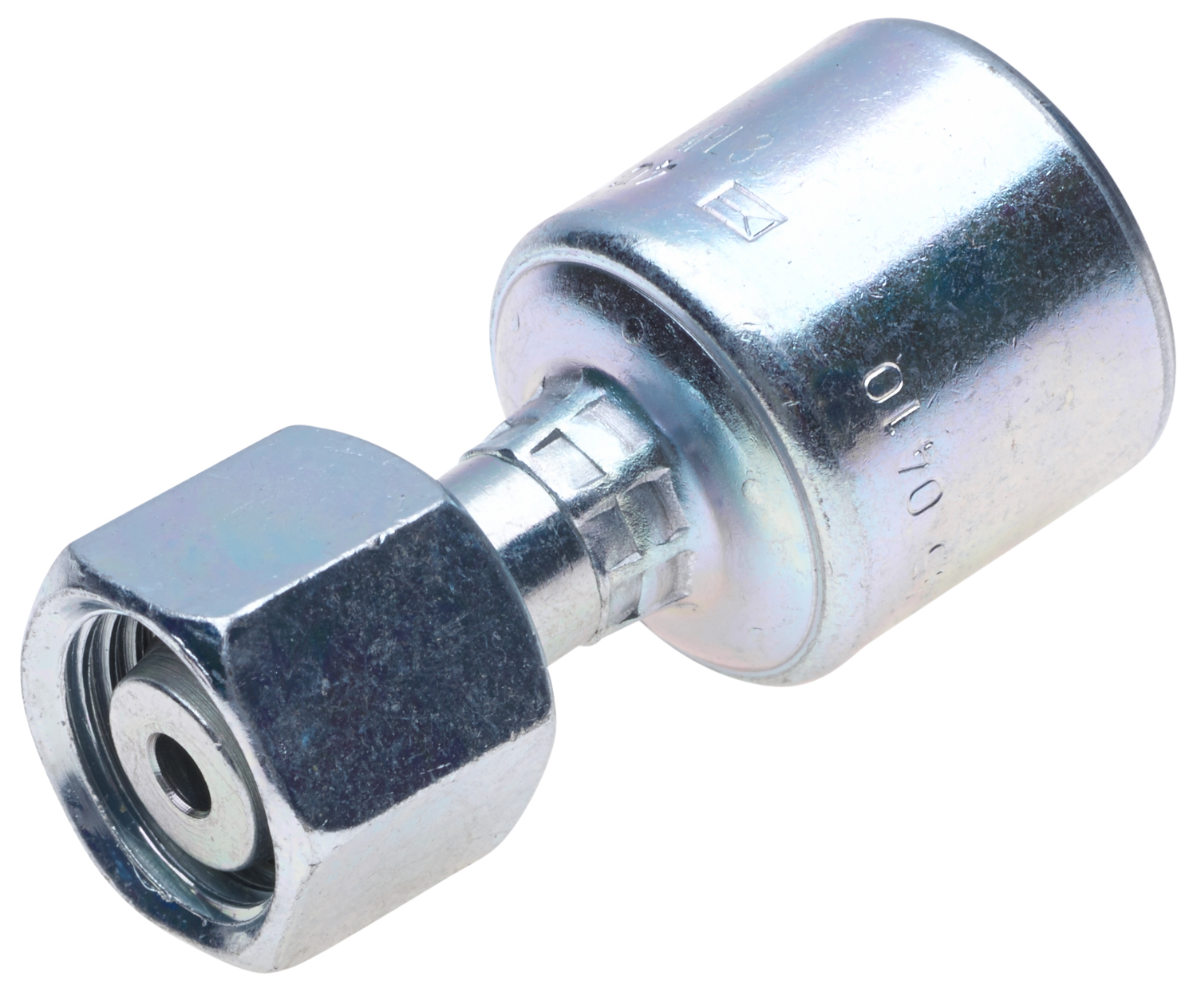

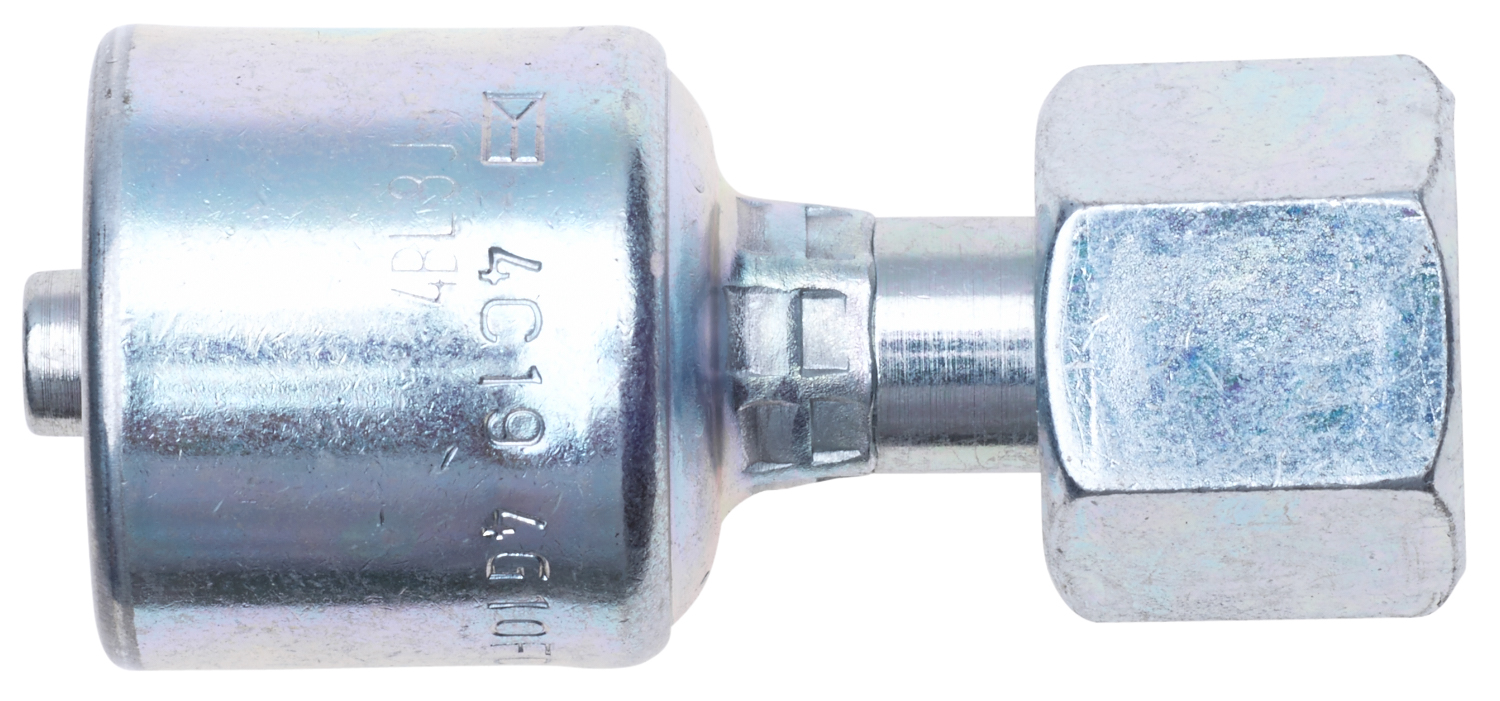

Hydraulic Coupling / Adapter
Gates Hydraulic Coupling / Adapter G25645-0815 offers a robust solution for high-pressure hydraulic systems. This hydraulic adapter ensures secure, leak-free connections even in demanding environments. Built for longevity, it is resistant to wear and tear, providing long-term durability. Easy to install, this hydraulic coupling minimizes downtime and enhances system efficiency. Ideal for heavy-duty machinery and industrial applications, it guarantees reliable performance under pressure. Trusted by professionals, this hydraulic adapter ensures smooth and dependable operation for all hydraulic needs.
$21.40
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Weight
0.3212
Swivel:Yes
Thread Size:M22X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.5

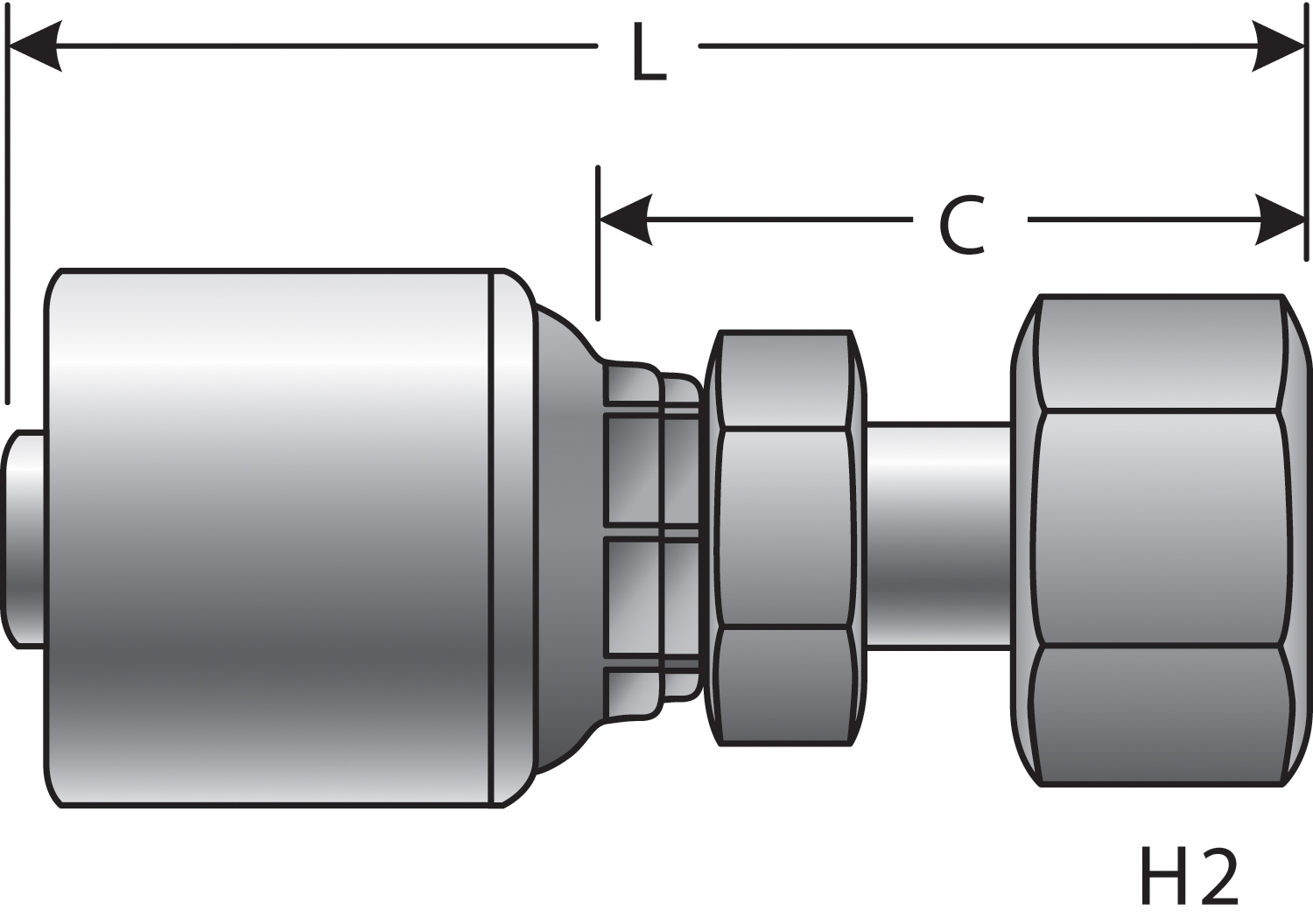

Length:2.43
Seat Angle:24
Outside Diameter:15
Compatibility
Alternative Part Numbers
Aeroquip 1A12DL8
Aeroquip 1B12DL8
Caterpillar 124-2207
Goodyear 13240-0822
Goodyear 14240-0822
Goodyear B2-DLFX-0822
Goodyear UC-DLFX-0822
Kurt Hydraulics F-DINLX-08-22
NAPA G25645-0815
Parker 1C343-15-08
Parker 1C343-15-8
Parker 1CA43-15-08
Parker 1CA43-15-8
Weatherhead 08U15C
Weatherhead 08Z15C
Caterpillar 1B12DL8
Aeroquip 1B12DL8
Caterpillar 124-2207
Goodyear 13240-0822
Goodyear 14240-0822
Goodyear B2-DLFX-0822
Goodyear UC-DLFX-0822
Kurt Hydraulics F-DINLX-08-22
NAPA G25645-0815
Parker 1C343-15-08
Parker 1C343-15-8
Parker 1CA43-15-08
Parker 1CA43-15-8
Weatherhead 08U15C
Weatherhead 08Z15C
Caterpillar 1B12DL8
