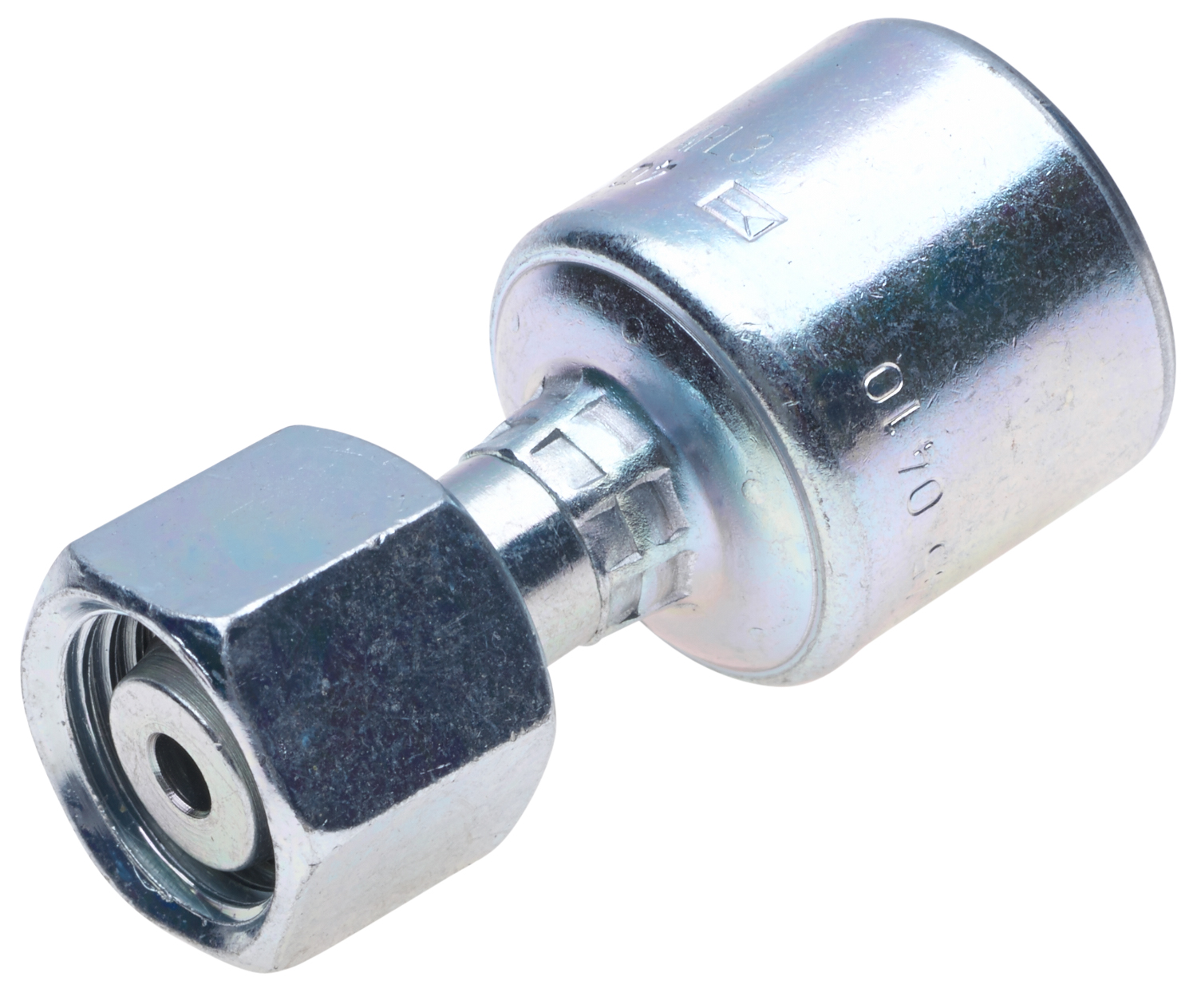

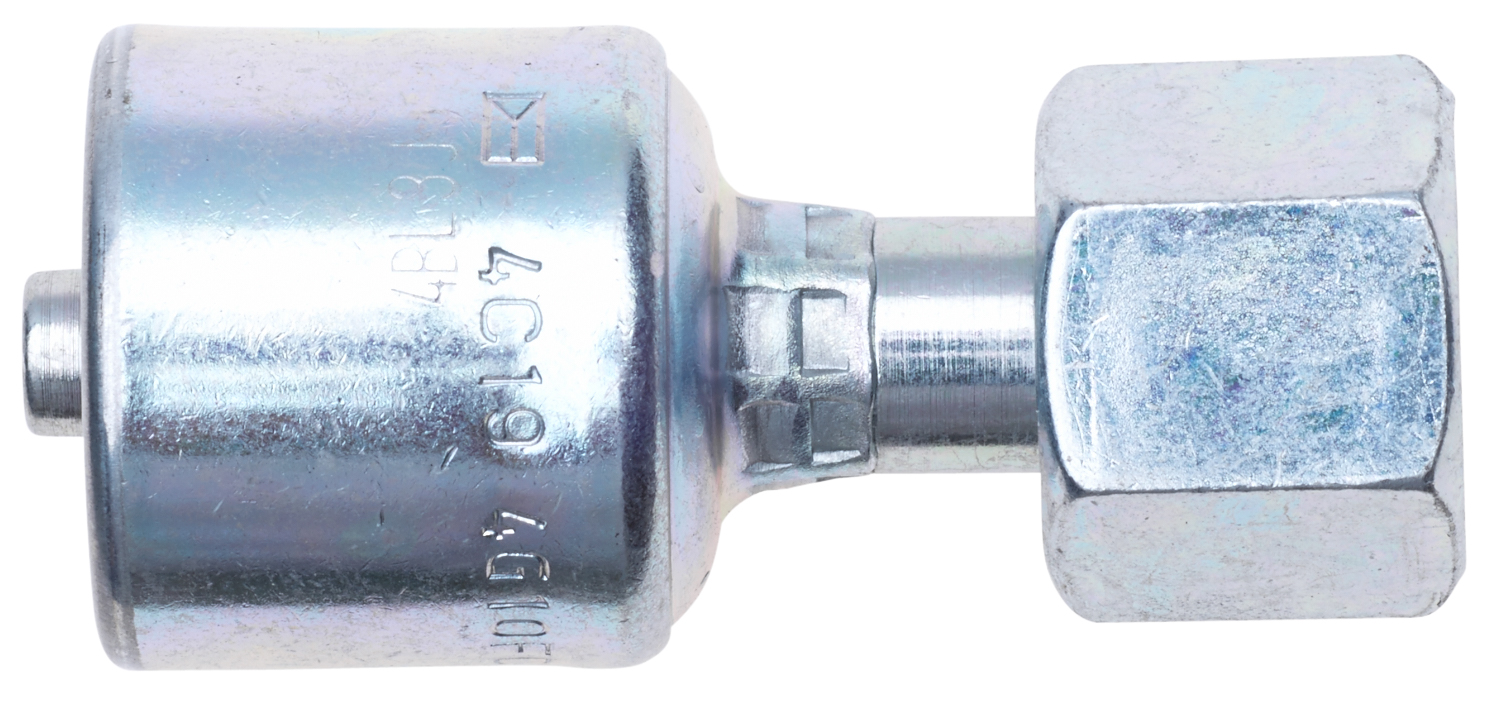

Gates Corporation Hydraulic Coupling / Adapter Part No: G25645-0612
$14.75
MegaCrimp
Gates Hydraulic Coupling / Adapter G25645-0612 provides a reliable solution for high-pressure hydraulic systems. This hydraulic adapter is built for durability, designed to ensure secure, leak-free connections. Ideal for tough industrial environments, it works seamlessly with a variety of hydraulic systems, offering superior performance under pressure. The hydraulic coupling offers an easy installation process, minimizing downtime and enhancing operational efficiency. Trusted for its long-lasting performance, this hydraulic adapter is perfect for professionals looking for a dependable connection. Whether you're working on machinery or large equipment, this coupling ensures the system runs smoothly and efficiently.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:M18X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375

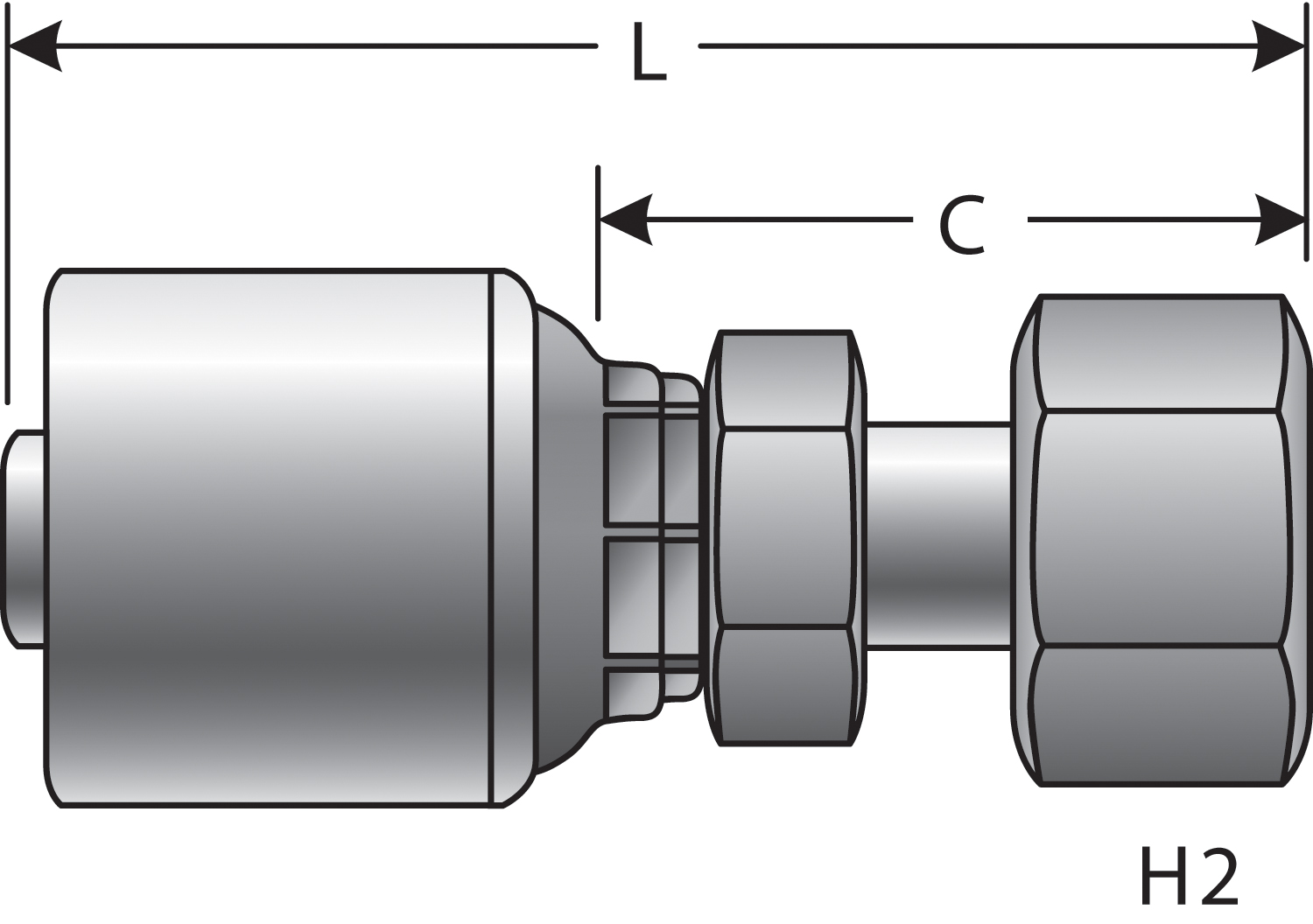

Length:2.19
Seat Angle:24
Outside Diameter:12
Swivel:Yes
Thread Size:M18X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:2.19
Seat Angle:24
Outside Diameter:12
Weight
0.2000
Compatibility
Alternative Part Numbers
- Aeroquip 1A10DL6
- Dayco 116154
- Dayco F-DINLX-06-18
- Goodyear 13240-0618
- Goodyear 14240-0618
- Goodyear B2-DLFX-0618
- Goodyear UC-DLFX-0618
- Kurt Hydraulics F-DINLX-06-18
- NAPA G25645-0612
- Parker 1C343-12-06
- Parker 1C343-12-6
- Parker 1CA43-12-06
- Parker 1CA43-12-6
- Weatherhead 06U12C
- Weatherhead 06Z12C
