Gates Corporation Hydraulic Coupling / Adapter Part No: G25645-0610
$17.42
MegaCrimp
Gates Hydraulic Coupling / Adapter G25645-0610 is designed to ensure a reliable, leak-proof connection under high pressure. This hydraulic adapter provides excellent performance, making it ideal for heavy-duty applications. With its robust construction, the hydraulic coupling resists wear, ensuring durability over time. Installation is quick and easy, allowing for minimal downtime and efficient system integration. Engineered for versatility, this hydraulic adapter is perfect for a wide range of industrial systems, enhancing overall performance. Trust Gates for high-quality hydraulic solutions designed to withstand the toughest conditions. Keep your equipment running smoothly with this durable and dependable coupling.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

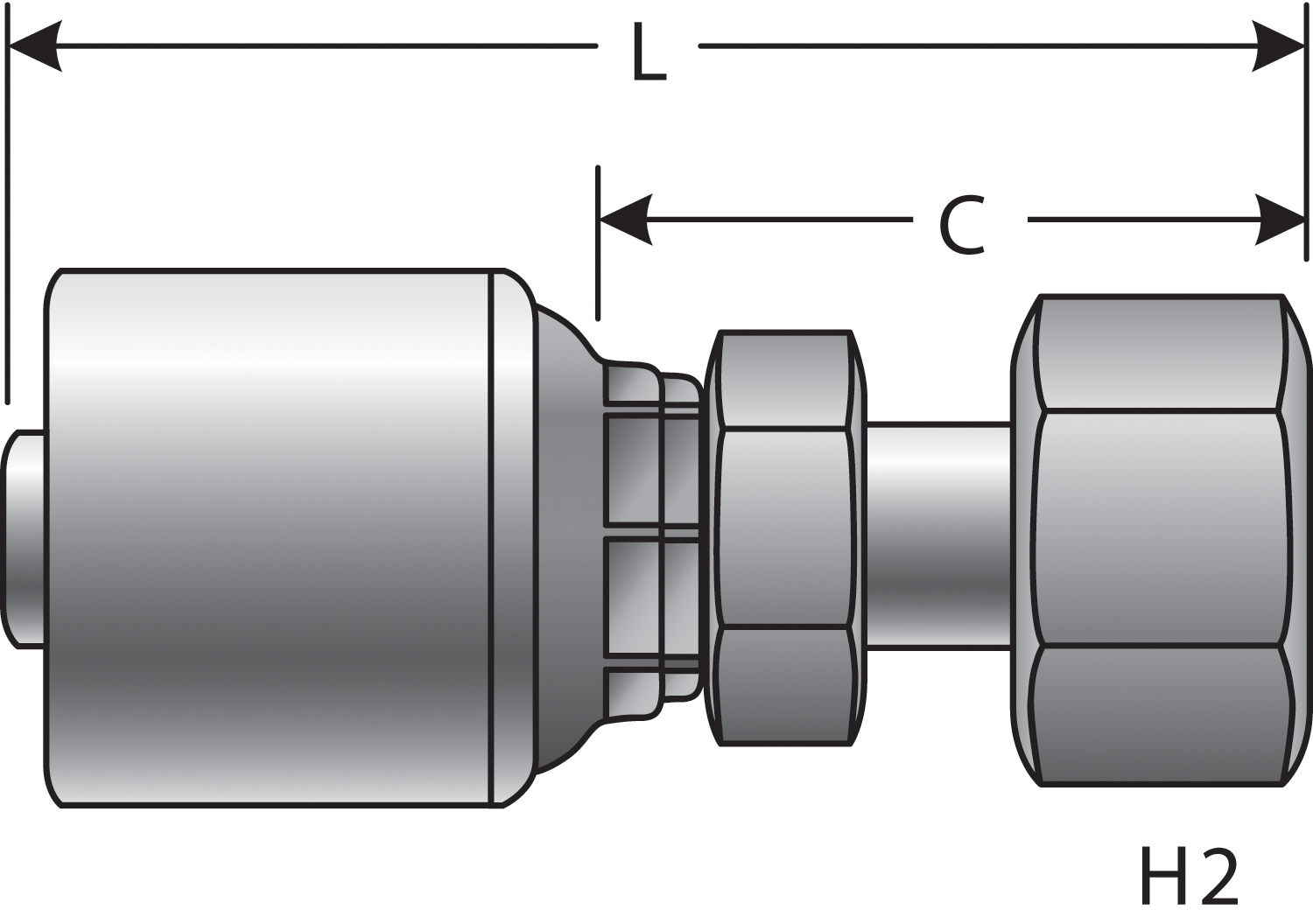

- Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:M16X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:2.06
Seat Angle:24
Outside Diameter:10
Swivel:Yes
Thread Size:M16X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.375
Length:2.06
Seat Angle:24
Outside Diameter:10
Weight
0.2000
Compatibility
Alternative Part Numbers
- Aeroquip 1A8DL6
- Caterpillar 124-2235
- Dayco 116148
- Dayco 116150
- Goodyear 13240-0616
- Goodyear 14240-0616
- Goodyear B2-DLFX-0616
- Goodyear UC-DLFX-0616
- NAPA G25645-0610
- Parker 1C343-10-06
- Parker 1C343-10-6
- Parker 1CA43-10-6
- Weatherhead 06U10C
- Weatherhead 06Z10C
