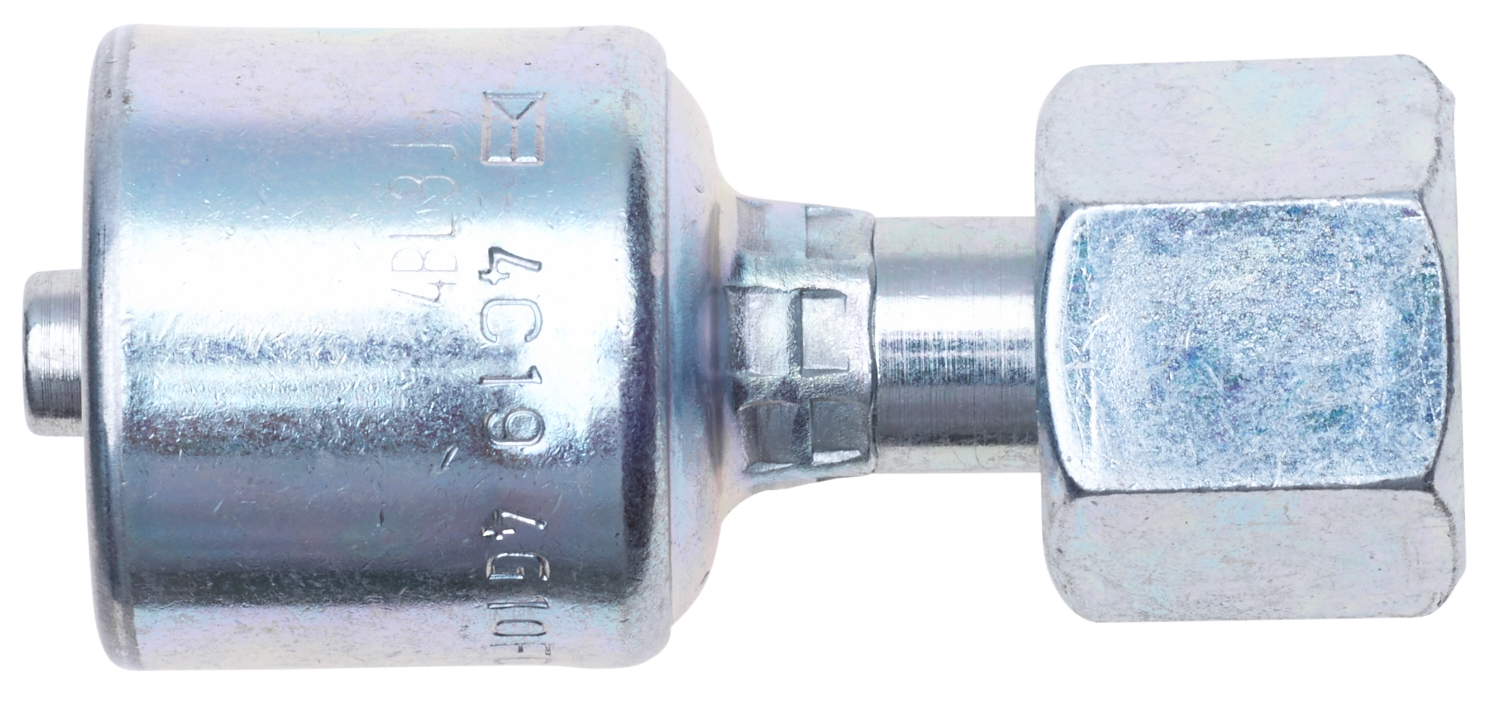

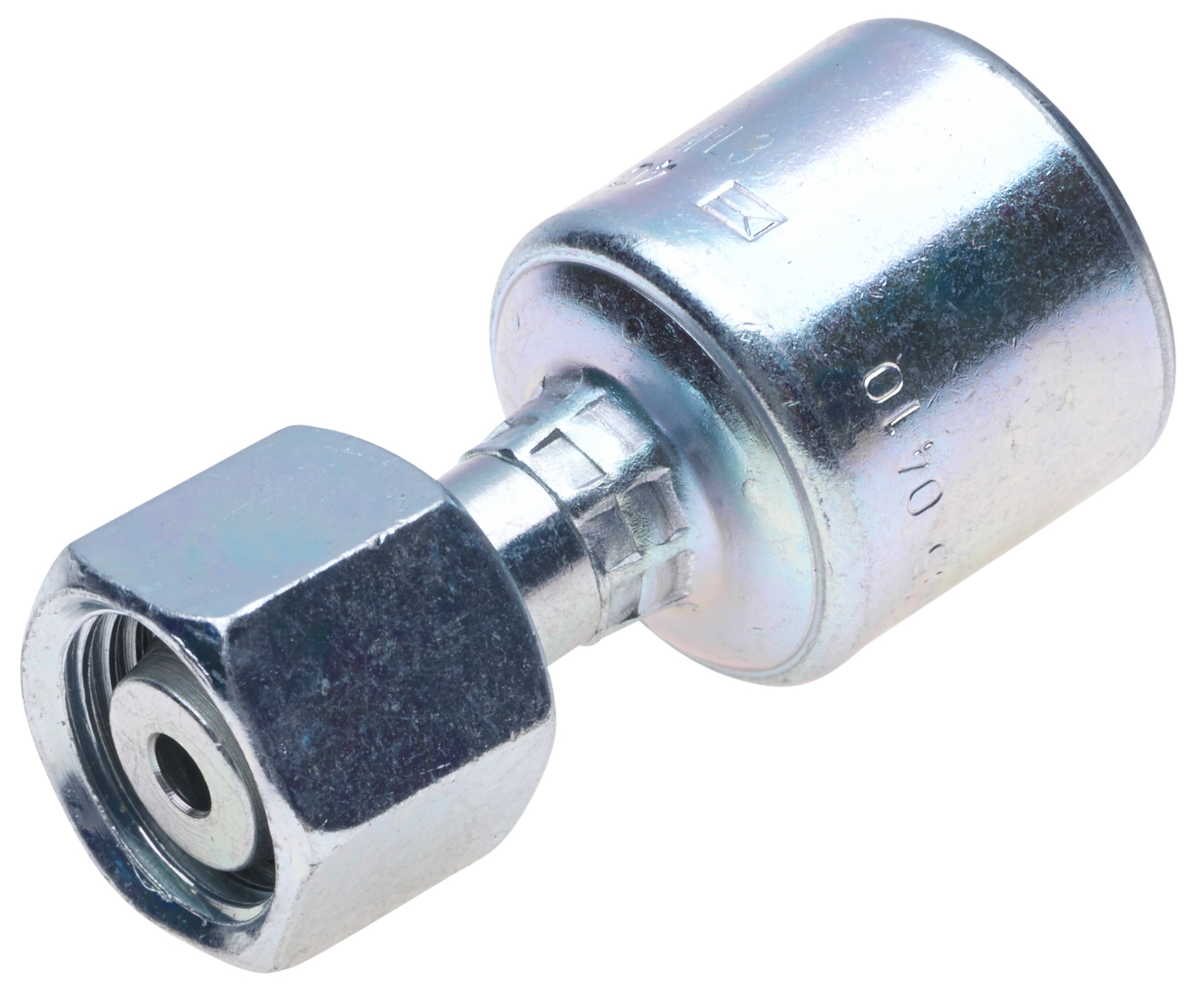

Hydraulic Coupling / Adapter - G25645-0408

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25645-0408 is designed to deliver secure and durable hydraulic connections in demanding environments. This hydraulic adapter ensures a tight, leak-free fit, even under high-pressure conditions. Crafted for longevity, the hydraulic coupling resists wear and degradation, providing a dependable solution for your machinery. Designed for easy installation, this hydraulic adapter integrates seamlessly into existing systems, reducing downtime and optimizing performance. Ideal for a wide range of industrial applications, it offers versatility and reliability. Rely on Gates for high-performance hydraulic solutions that stand up to the toughest conditions. Keep your equipment running smoothly with this top-quality hydraulic adapter.

Gates Corporation MegaCrimp Part No: G25645-0408

$14.43

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

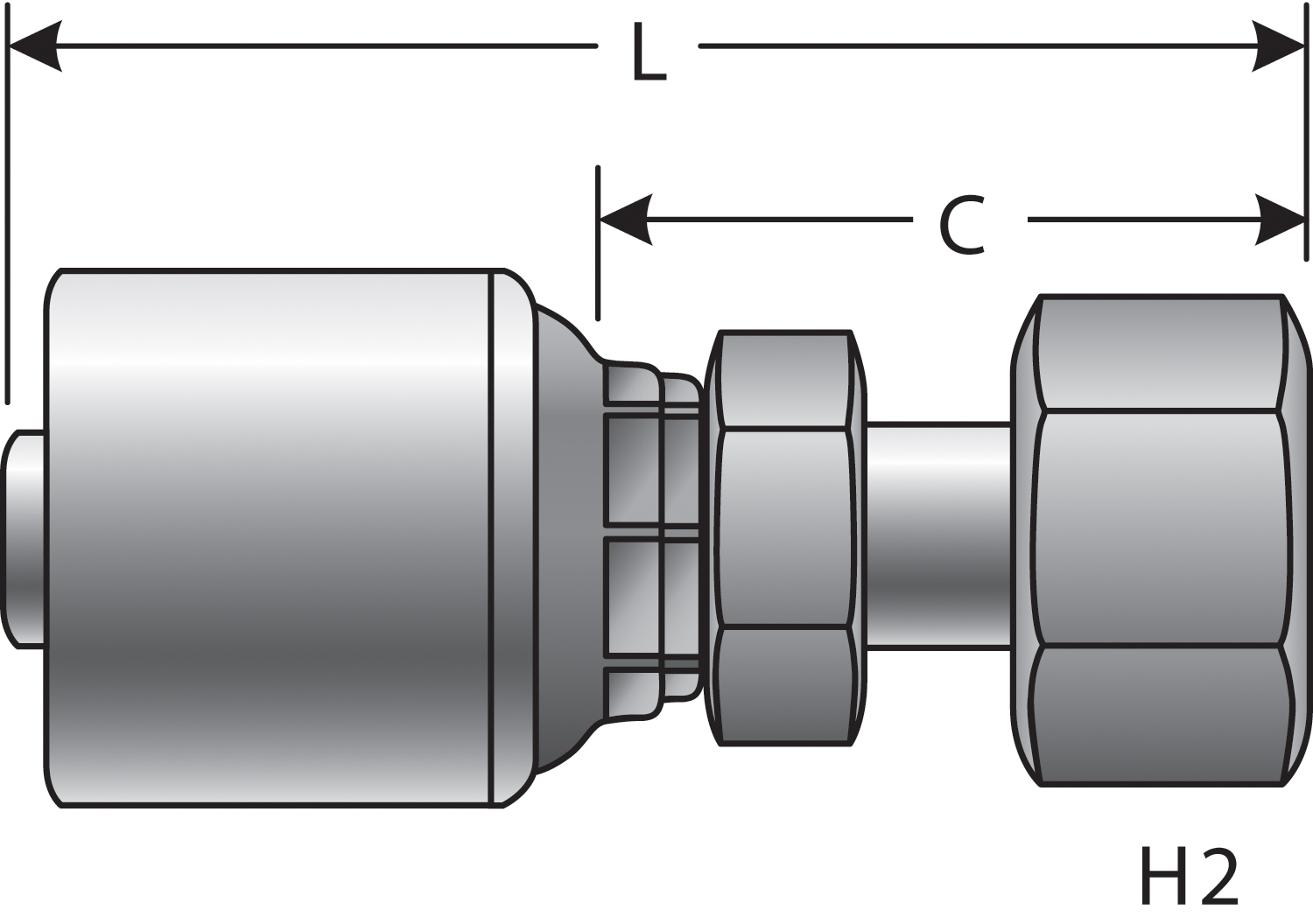

Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)

Weight

0.1500

Gender:Female
Swivel:Yes
Thread Size:M14X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.25
Length:2.02
Seat Angle:24
Outside Diameter:8

Compatibility

Alternative Part Numbers

Dayco 101702
Dayco 116144
Aeroquip 1A6DL4
Goodyear 13240-0414
Goodyear 14240-0414
Goodyear B2-DLFX-0414
Goodyear UC-DLFX-0414
Kurt Hydraulics F-DINLX-04-14
NAPA G25645-0408
Parker 1C343-08-04
Parker 1C343-8-4
Parker 1CA43-08-04
Parker 1CA43-8-4
Weatherhead 04U08C
Weatherhead 04Z08C
Parker F-DINLX-04-14
