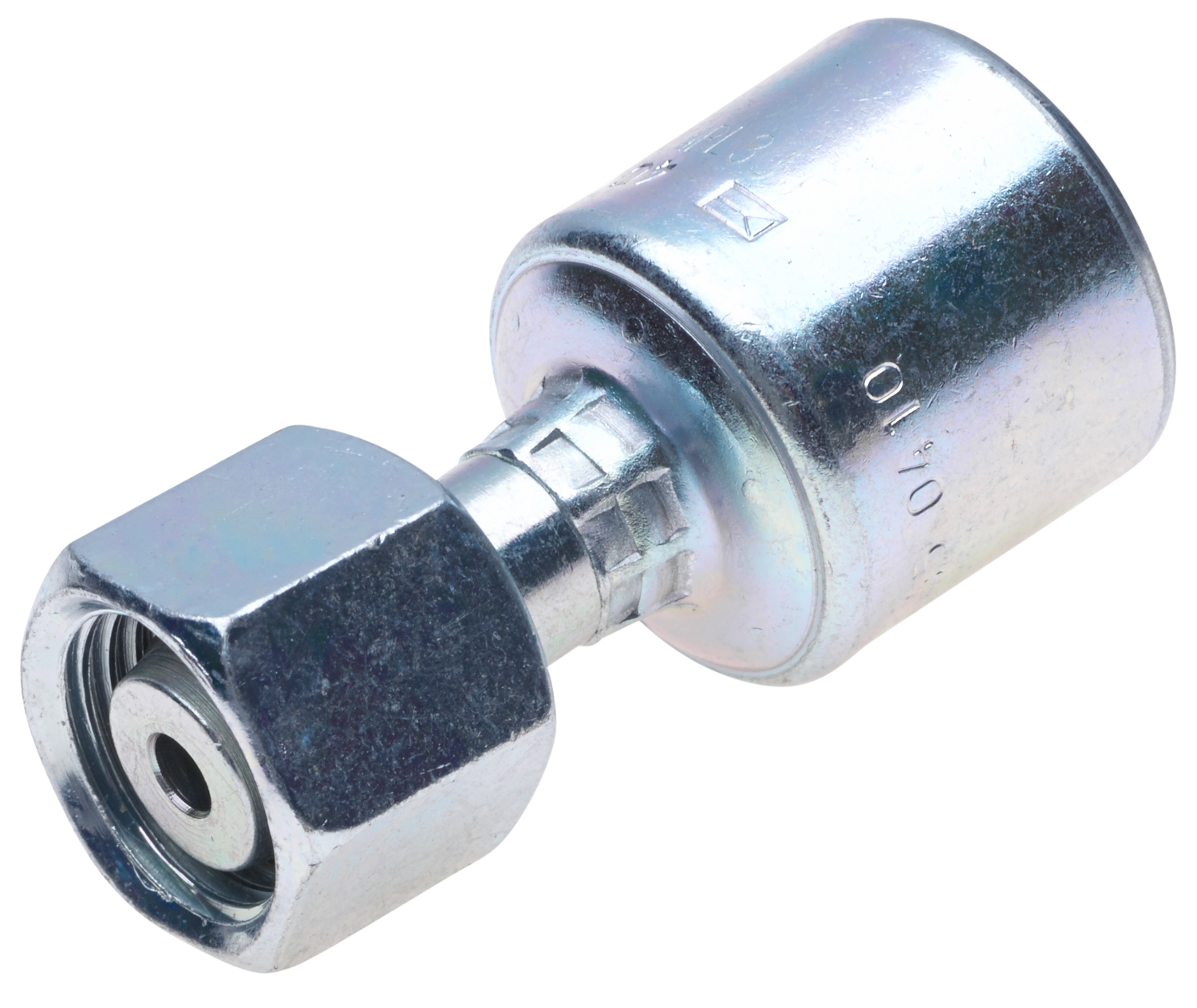

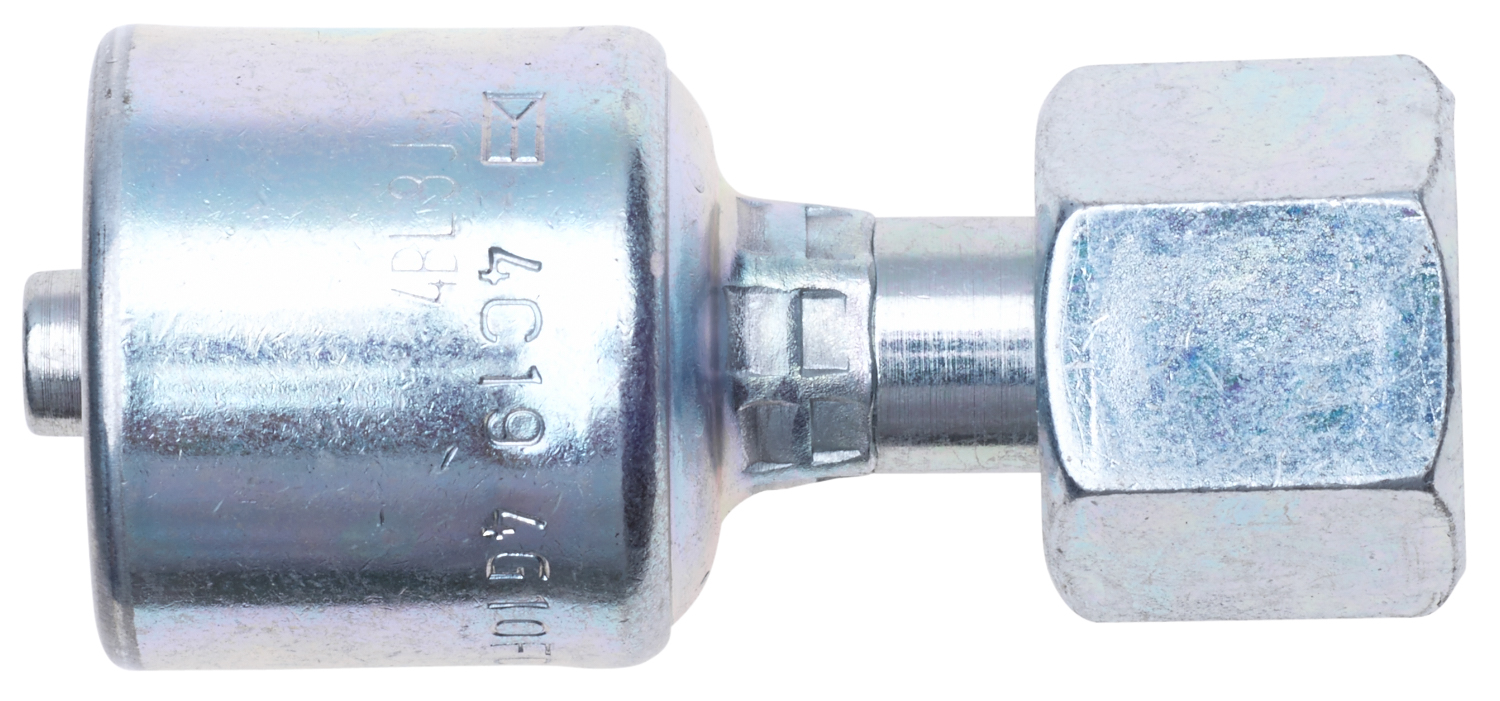

Hydraulic Coupling / Adapter
Gates Hydraulic Coupling / Adapter G25645-0406 ensures secure connections, improving system performance in hydraulic setups. This hydraulic adapter is built for high-pressure environments, guaranteeing leak-free operation and minimal maintenance needs. With its robust design, the hydraulic coupling provides exceptional durability, making it ideal for industrial applications. Easy to install, this hydraulic adapter integrates seamlessly into existing systems, reducing downtime and enhancing overall productivity. Whether replacing or upgrading components, this Gates hydraulic coupling provides long-term reliability and efficient operation for all hydraulic systems.
$18.95
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
- Female DIN 24 Cone Swivel - Light Series with O-Ring (MegaCrimp)
Weight
0.1188
Swivel:Yes
Thread Size:M12X1.5
Seal Type:Mated Angle w/O-Ring
Inside Diameter:.25

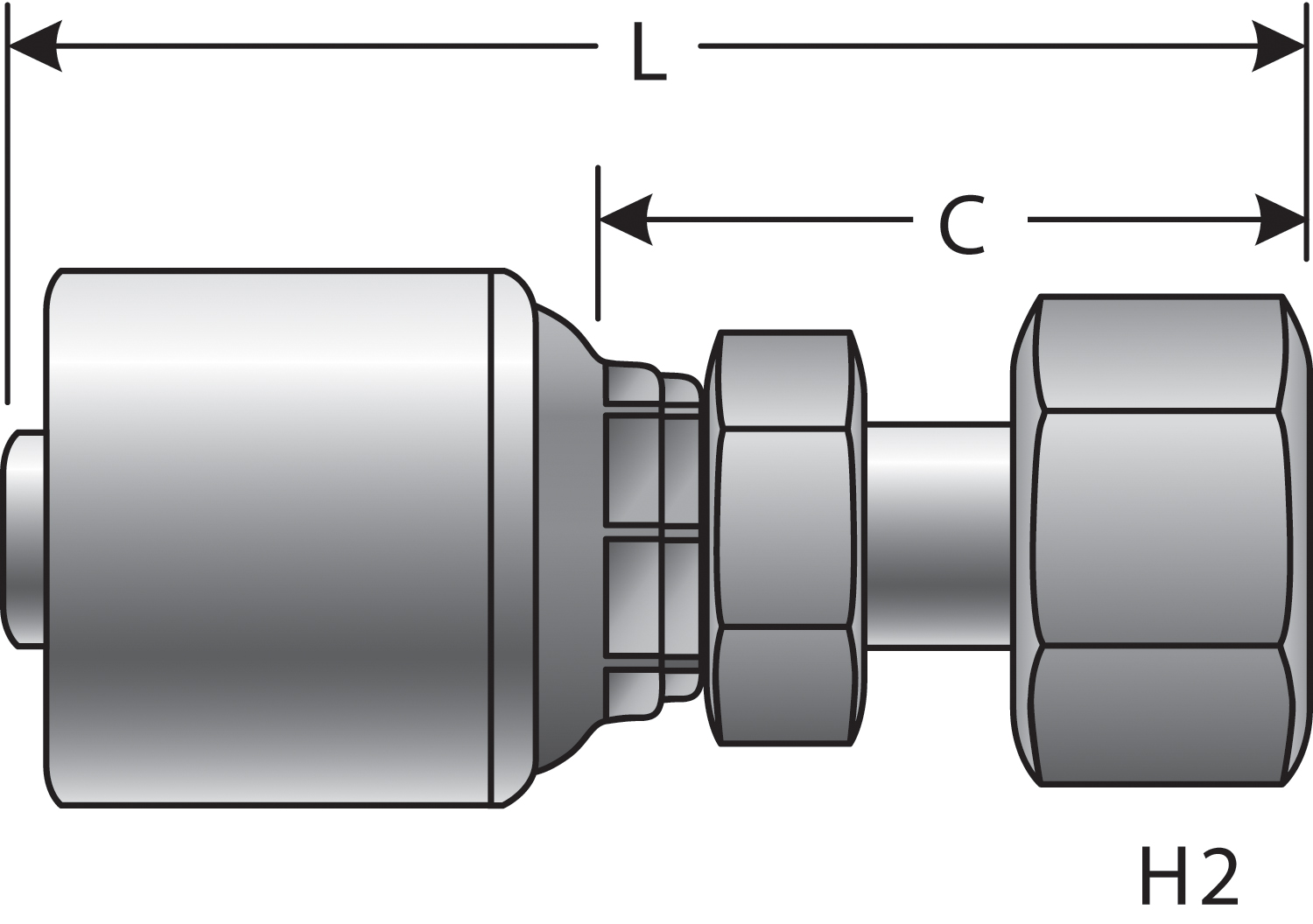

Length:1.92
Seat Angle:24
Outside Diameter:6
Compatibility
Alternative Part Numbers
Dayco 101701
Dayco 116142
Aeroquip 1A5DL4
Goodyear 13240-0412
Goodyear 14240-0412
Goodyear B2-DLFX-0412
Goodyear UC-DLFX-0412
NAPA G25645-0406
Parker 1C343-06-04
Parker 1C343-6-4
Parker 1CA43-06-04
Parker 1CA43-6-4
Weatherhead 04U06C
Weatherhead 04Z06C
Parker G25645-0406
Dayco 116142
Aeroquip 1A5DL4
Goodyear 13240-0412
Goodyear 14240-0412
Goodyear B2-DLFX-0412
Goodyear UC-DLFX-0412
NAPA G25645-0406
Parker 1C343-06-04
Parker 1C343-6-4
Parker 1CA43-06-04
Parker 1CA43-6-4
Weatherhead 04U06C
Weatherhead 04Z06C
Parker G25645-0406
