Gates Corporation Hydraulic Coupling / Adapter Part No: G25240-1212
$51.58
MegaCrimp

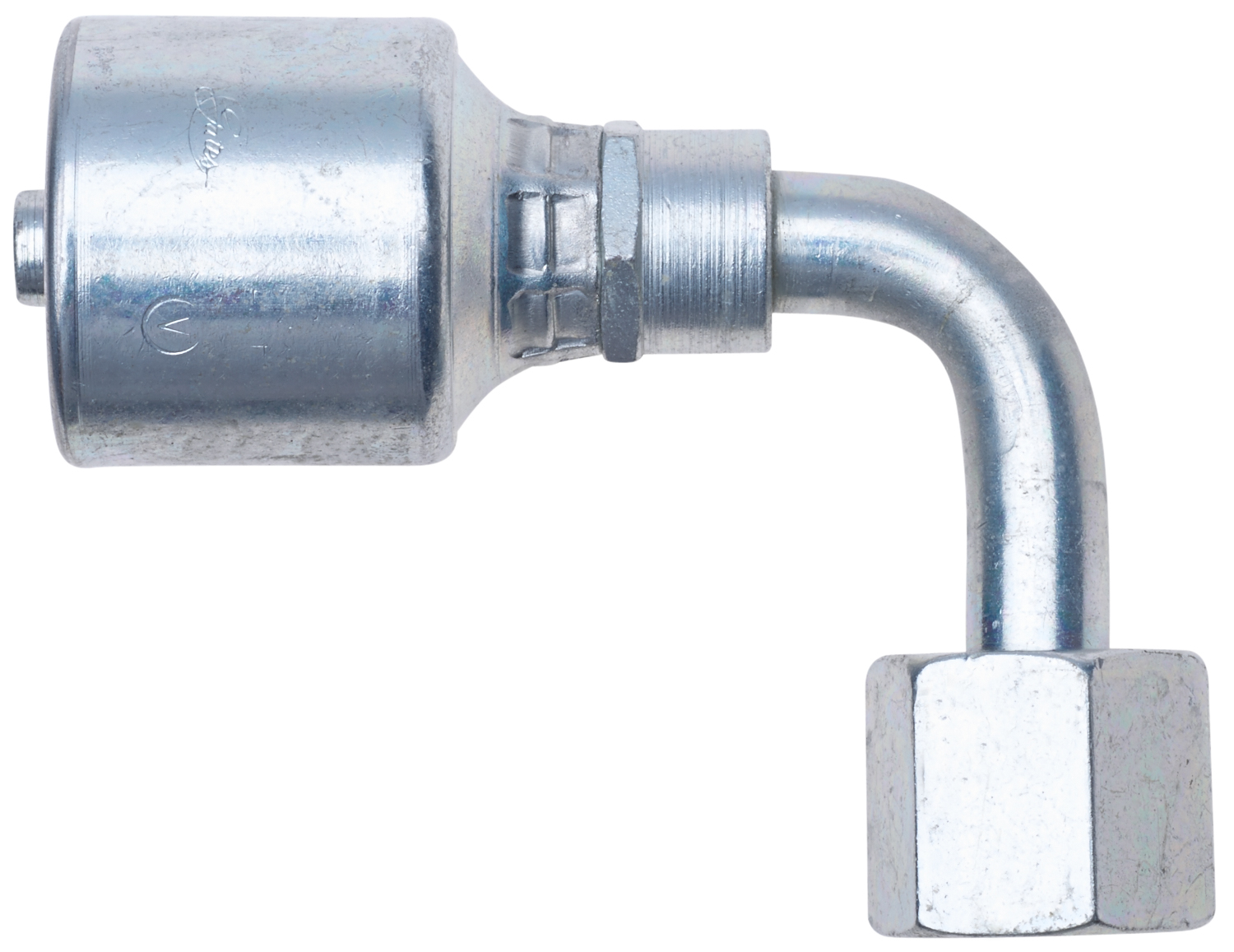

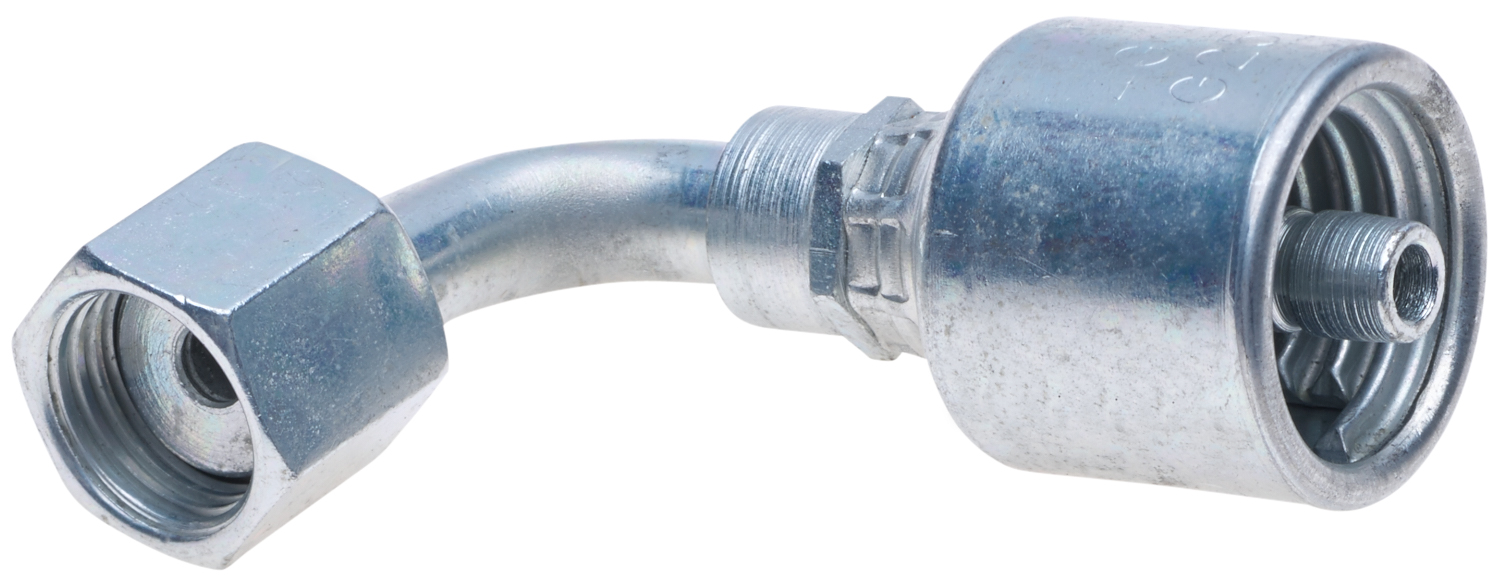

Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Gender: Female
Swivel: Yes
Thread Size: 1 3/16-12
Seal Type: O-Ring
Inside Diameter: .75
Length: 4.29
Drop Length: 2.28
Swivel: Yes
Thread Size: 1 3/16-12
Seal Type: O-Ring
Inside Diameter: .75
Length: 4.29
Drop Length: 2.28
Weight
0.9000
Compatibility
Alternative Part Numbers
- Aeroquip FJ9893-1212S
- Dayco 108973
- Goodyear 14715-1212
- Goodyear B2-OFFX90-1212
- Goodyear UC-OFFX90-1212
- Kurt Hydraulics FFX90-12-12
- Kurt Hydraulics FFX90M-12-12
- NAPA G25240-1212
- Parker 1J543-12-12
- Weatherhead 12UJ42
- Weatherhead 12ZJ42
