Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

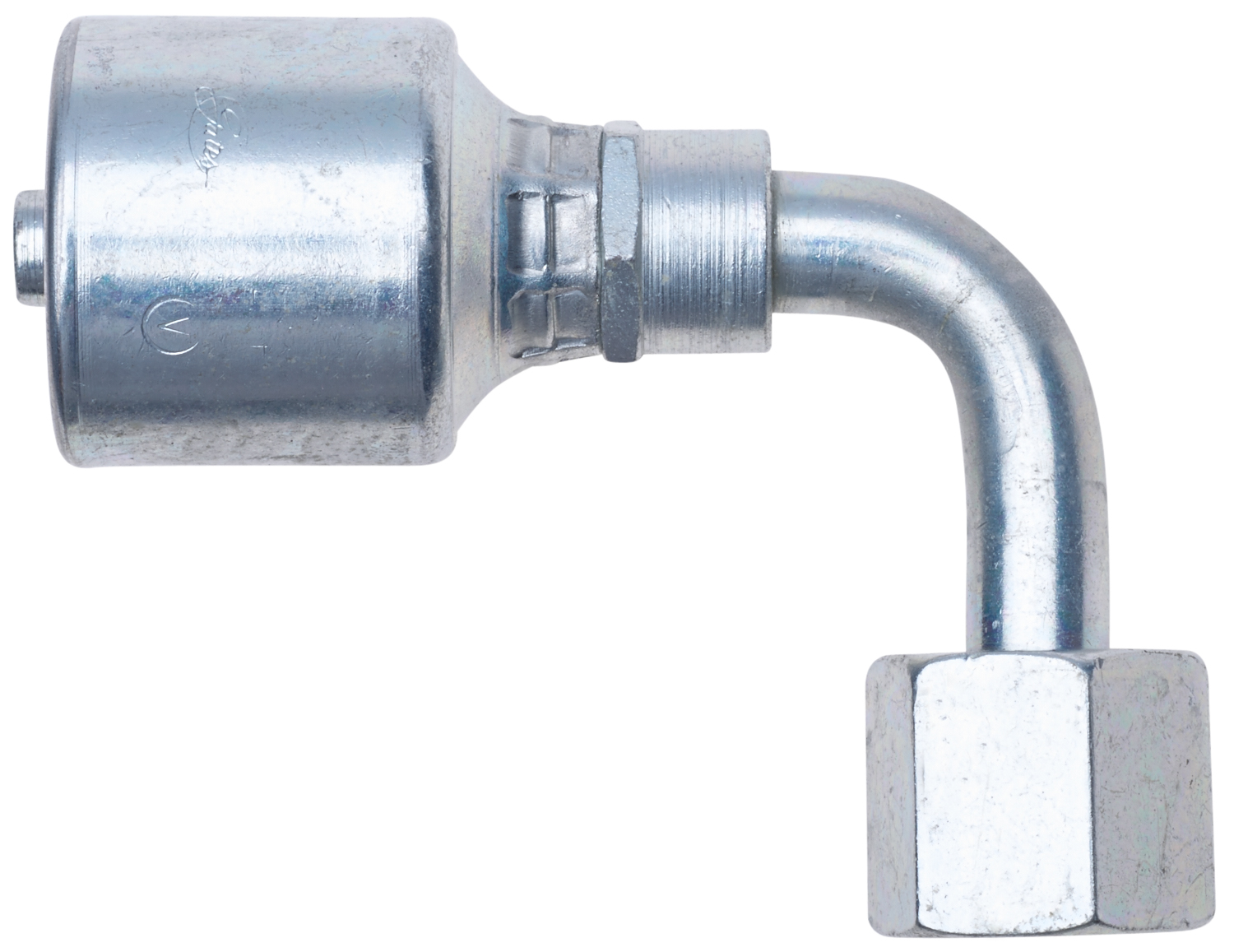

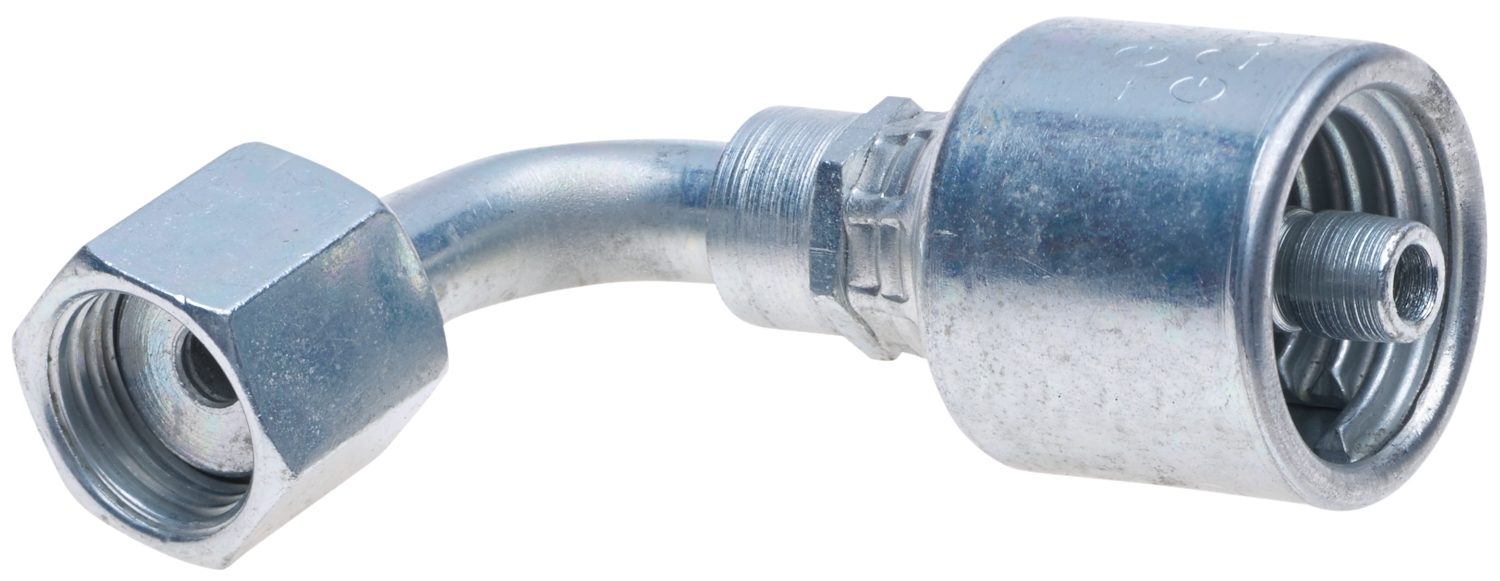

  • Female Flat-Face O-Ring Swivel - 90 Bent Tube (MegaCrimp)
Weight
0.5000
Gender:Female
Swivel:Yes
Thread Size:13/16-16
Seal Type:O-Ring
Inside Diameter:.5

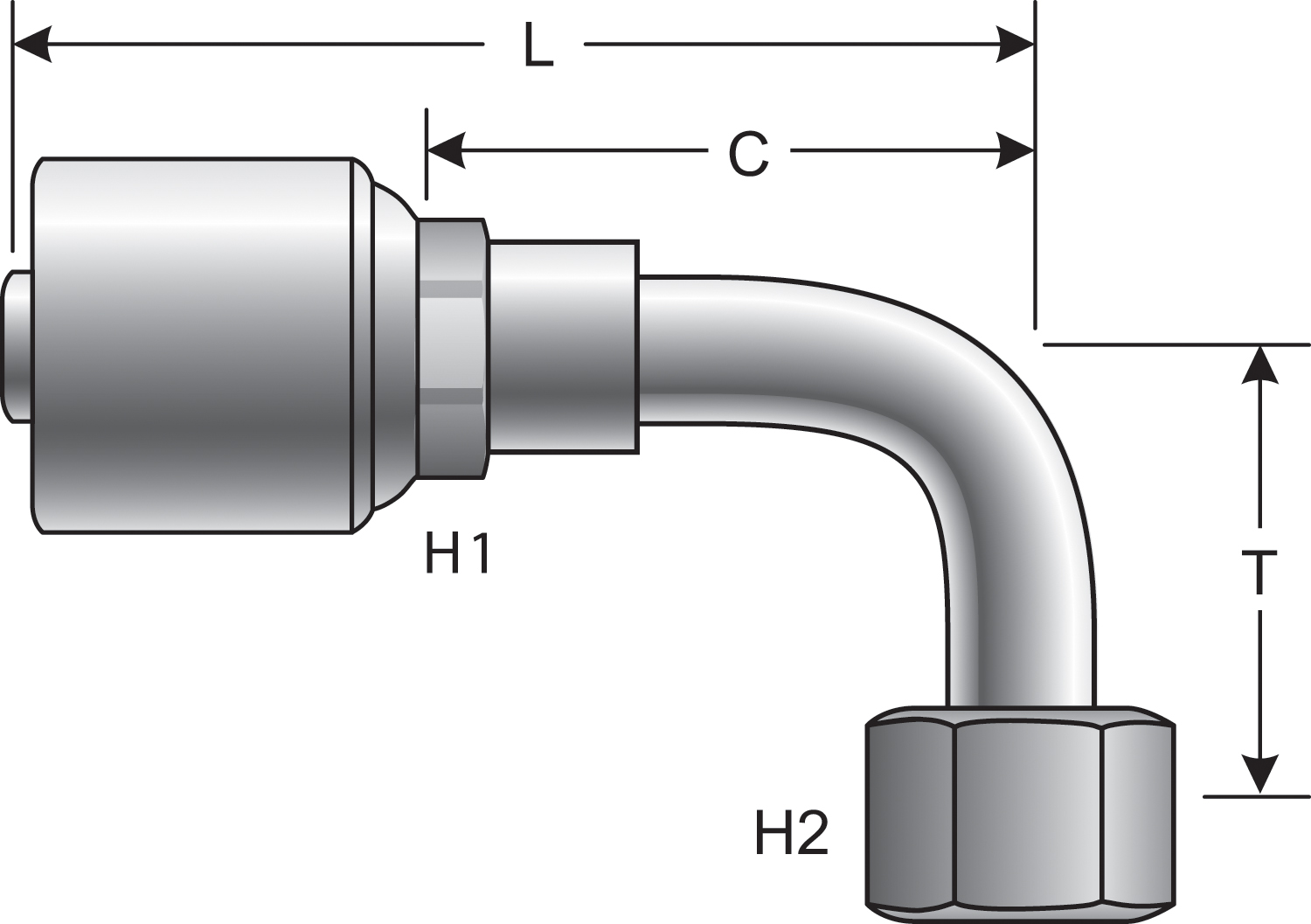

Length:3.3
Drop Length:1.61

Compatibility


Alternative Part Numbers

Aeroquip FJ9893-0808S
Dayco 101313
Dayco 108967
Goodyear 13715-0808
Goodyear 14715-0808
Goodyear B2-OFFX90-0808
Goodyear T8-OFFX90-0808
Goodyear UC-OFFX90-0808
Kurt Hydraulics 1J543-08-08
NAPA G25240-0808
Parker 1J543-08-08
Parker 1J543-8-8
Weatherhead 08UJ38
Weatherhead 08ZJ38
Goodyear FFX90M-08-08
Kurt Hydraulics FFX90-08-08
Kurt Hydraulics FFX90M-08-08
