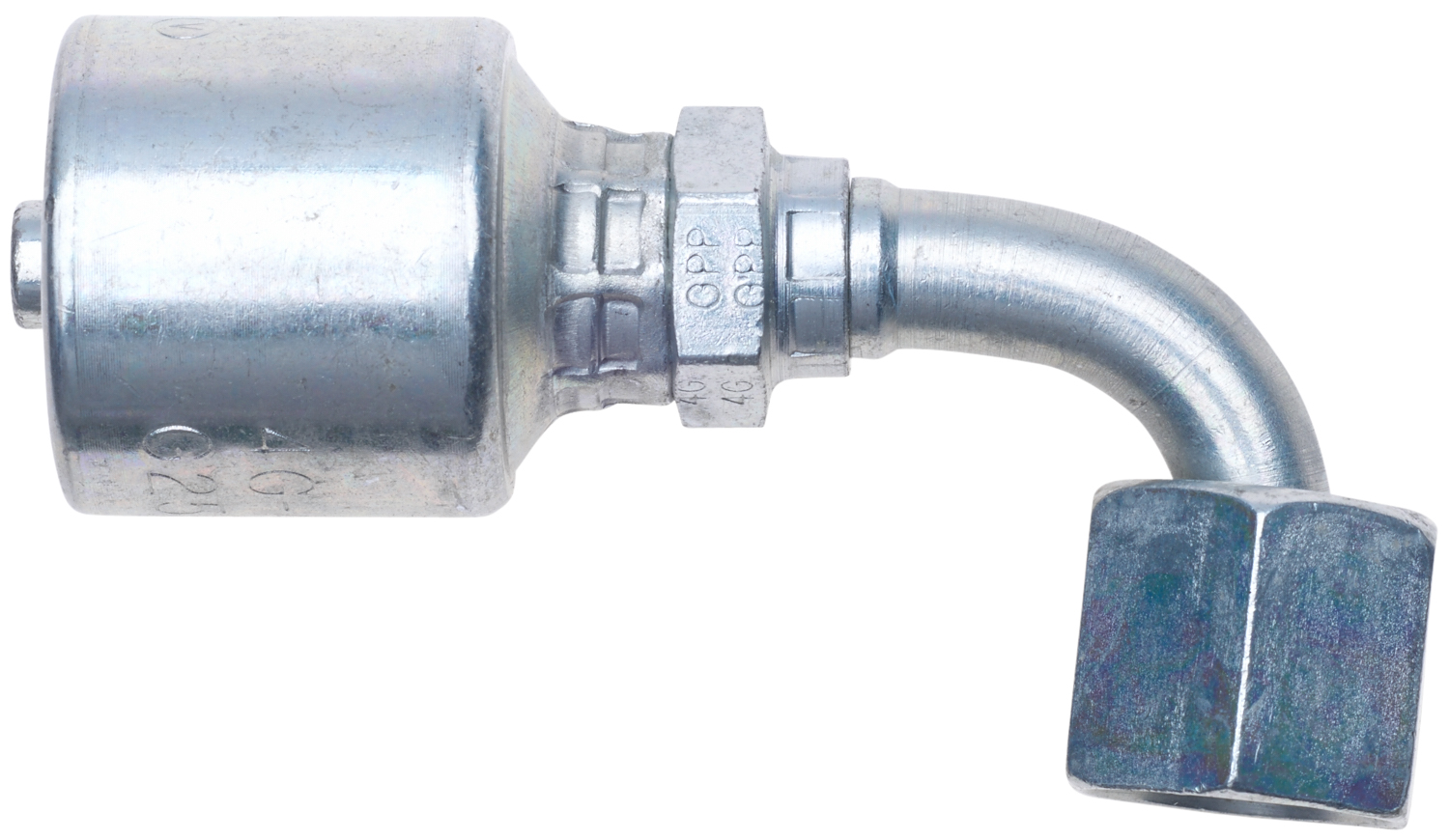

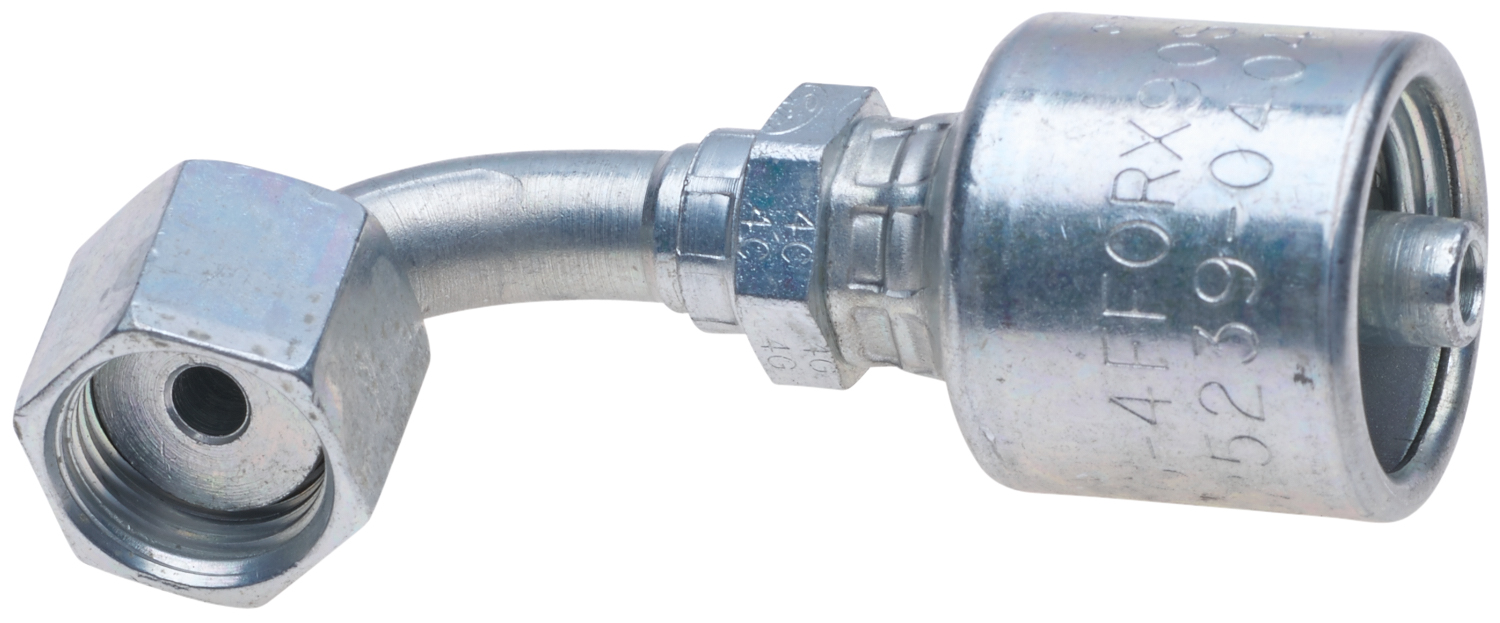

Hydraulic Coupling / Adapter - G25239-0808

Gates Corporation Hydraulic Coupling / Adapter Part No: G25239-0808

$29.00

MegaCrimp

Gates Hydraulic Coupling / Adapter G25239-0808 delivers secure and reliable connections for hydraulic systems, ensuring optimal performance even under high pressure. This hydraulic adapter is designed for durability, providing long-lasting performance in demanding environments. The hydraulic coupling offers leak-free operation, protecting your system from potential failures and maintaining its integrity. Easy to install, this hydraulic adapter integrates seamlessly into existing systems, improving overall efficiency. Ideal for industrial applications, this Gates hydraulic coupling guarantees reliability and minimizes maintenance costs. Whether upgrading or replacing components, this adapter ensures smooth and dependable operation for all hydraulic setups.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.

Gender:Female
Swivel:Yes
Thread Size:13/16-16
Seal Type:O-Ring

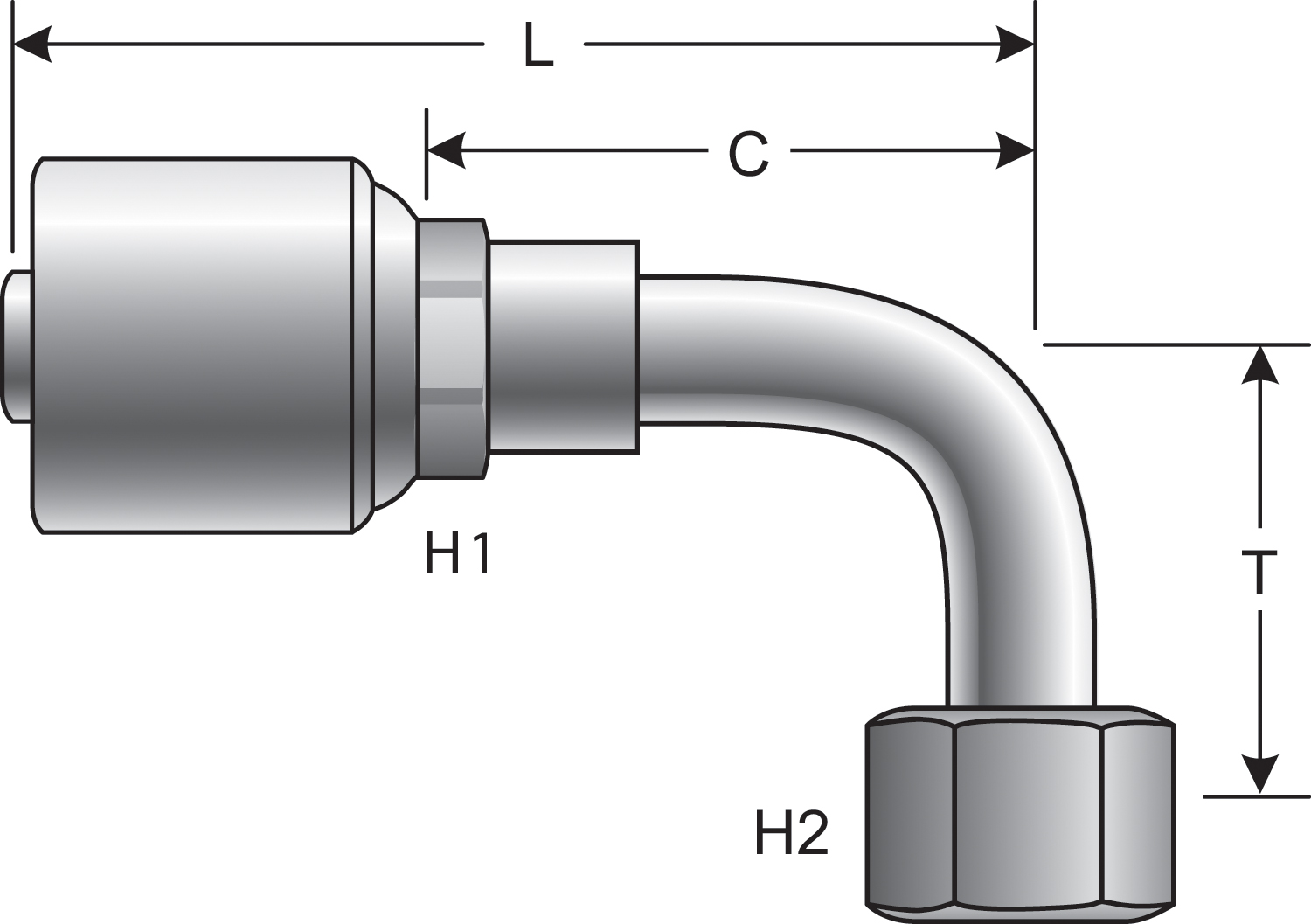

Inside Diameter:.5
Length:3.3
Drop Length:1.14

Weight

0.3500

Compatibility

Alternative Part Numbers

Aeroquip 1AA6FRB8
Aeroquip 1AA8FRB8
Aeroquip 1GA8FRB8
Caterpillar 124-2147
Dayco 108777
Dayco 149453
Dayco 151777
Dayco 1GA8FRB8
Goodyear 13725-0808
Goodyear 14725-0808
Goodyear B2-OFFX90S-0808
Goodyear UC-OFFX90S-0808
NAPA G25239-0808
Parker 1J943-08-08
Parker 1J943-8-8
Parker 1J9HY-8-8
Weatherhead 08UA28
Weatherhead 08ZA28
Weatherhead 33608E-A28
Weatherhead 33608EA28
