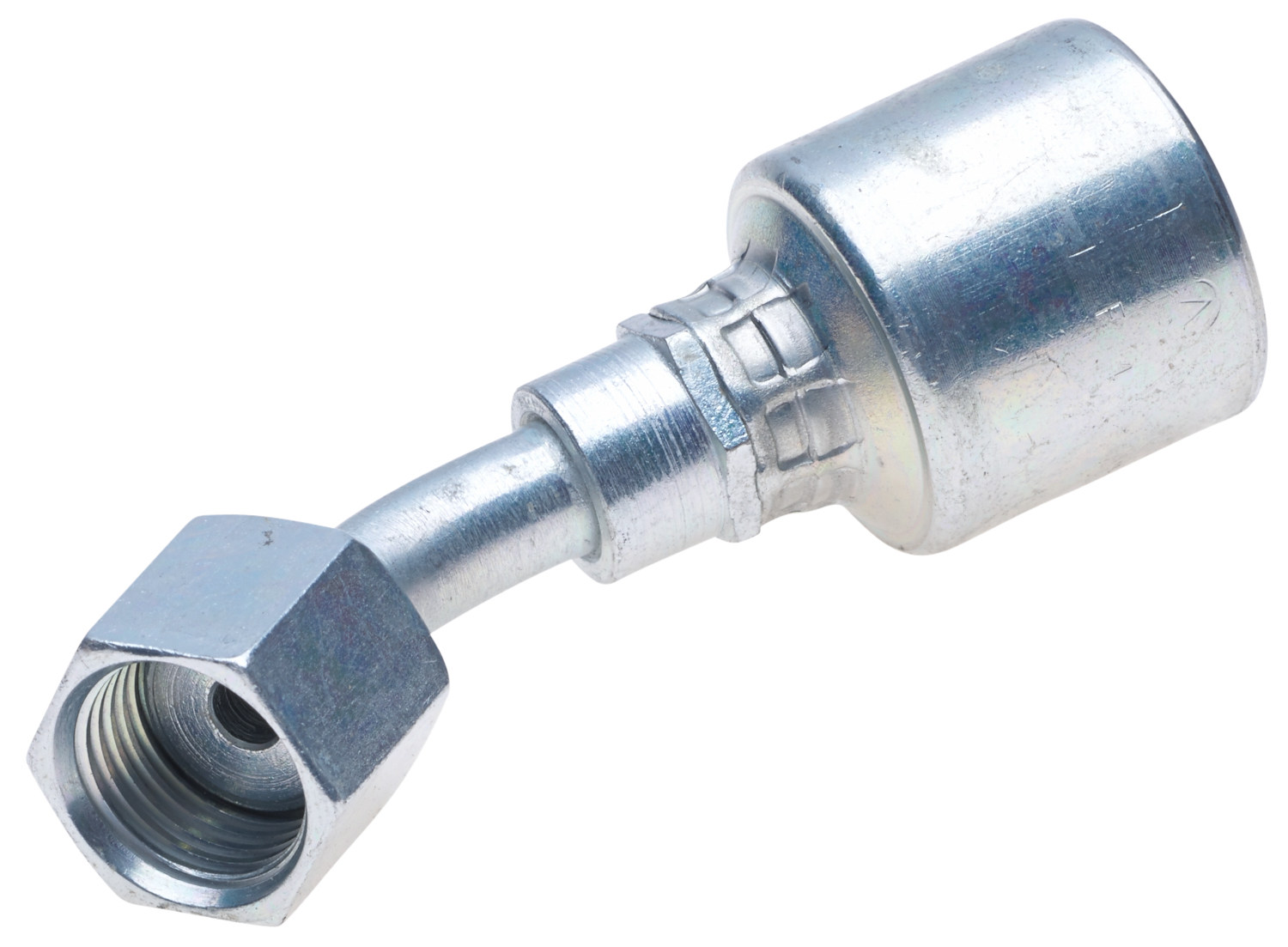

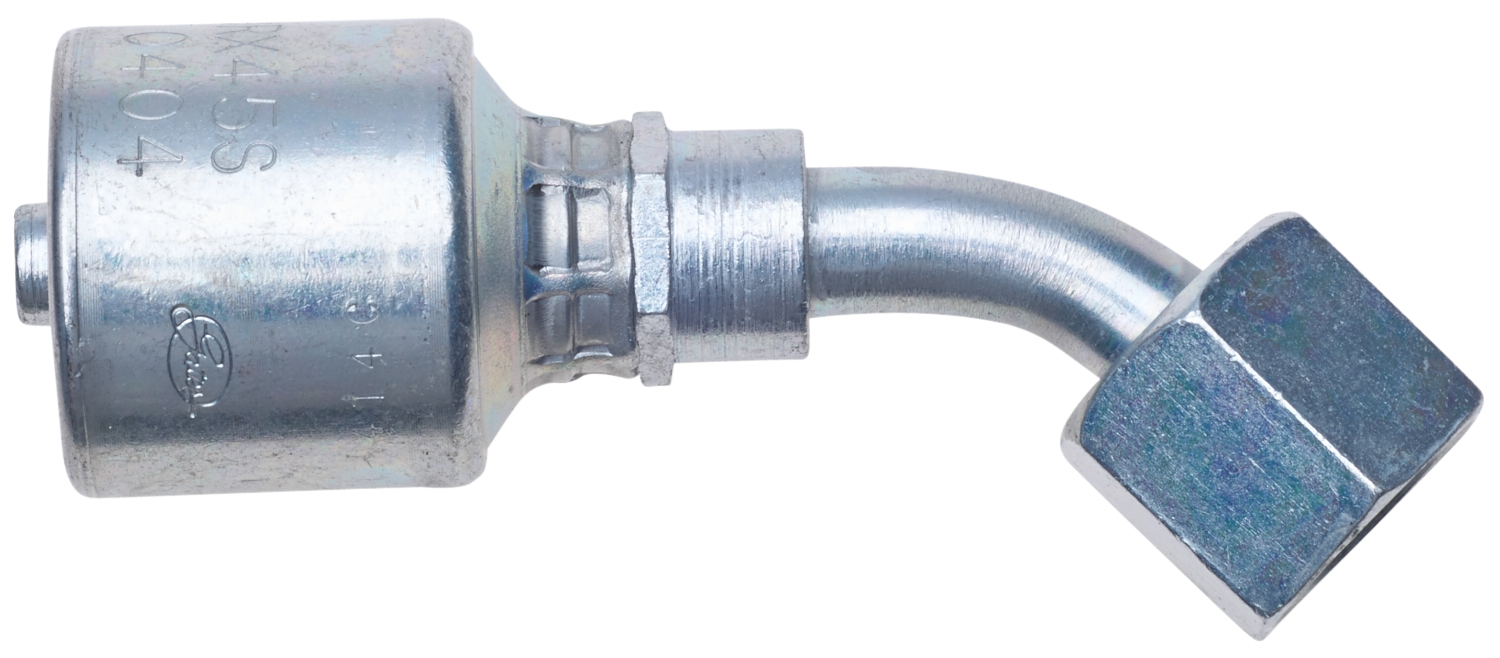

Gates Corporation Hydraulic Coupling / Adapter Part No: G25235-1212
$56.22
MegaCrimp
Gates Hydraulic Coupling / Adapter G25235-1212 is engineered for reliable, secure hydraulic connections, even in high-pressure environments. This hydraulic adapter is built to withstand tough conditions, offering durability and long-lasting performance. The hydraulic coupling provides leak-free operation, preventing failure and maintaining the integrity of your system. Designed for easy installation, this hydraulic adapter integrates seamlessly into existing systems, optimizing efficiency. Whether upgrading or replacing, this Gates hydraulic coupling ensures maximum performance and reliability. Trust this adapter for improved productivity, reducing maintenance costs, and ensuring optimal hydraulic system performance.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.
- Female Flat-Face O-Ring Swivel - 45 Bent Tube (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:1 3/16-12
Seal Type:O-Ring

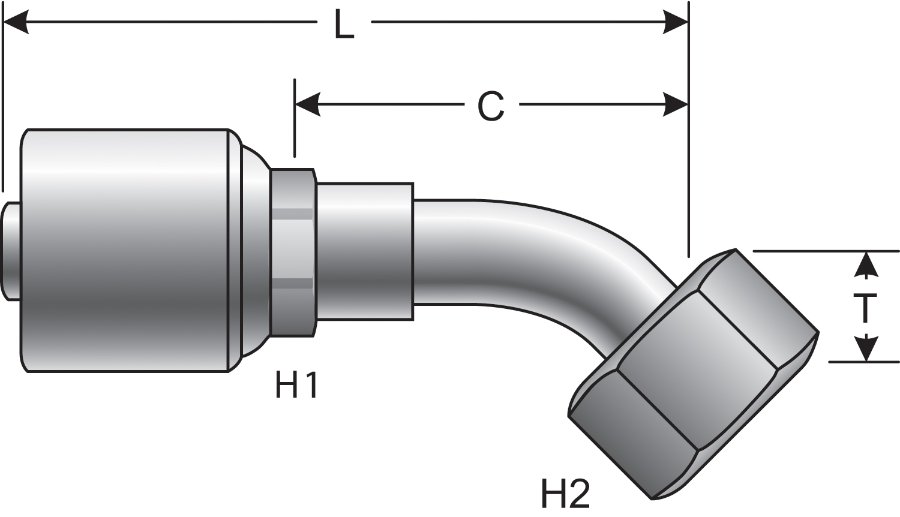

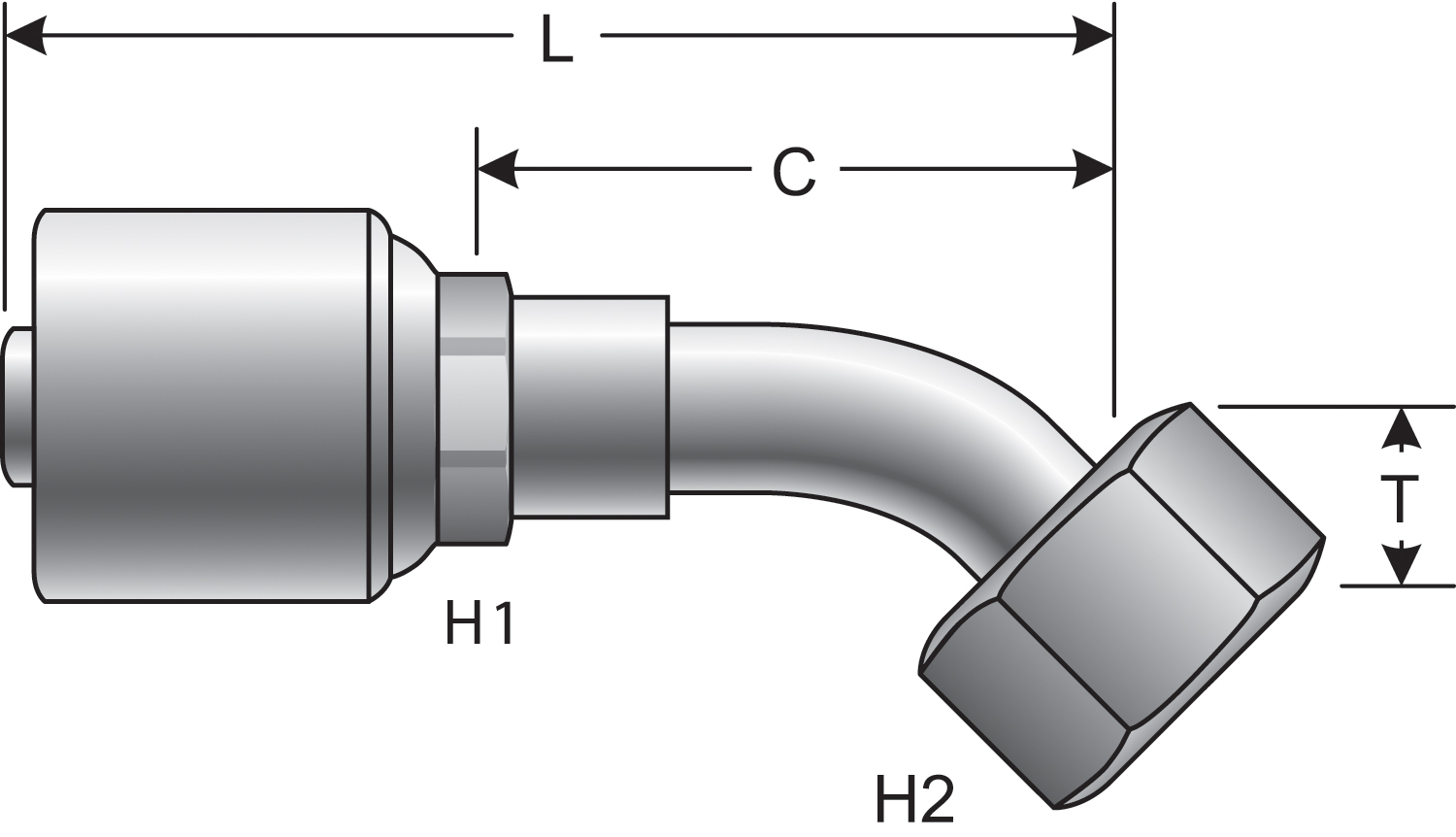

Inside Diameter:.75
Length:4.66
Drop Length:.83
Swivel:Yes
Thread Size:1 3/16-12
Seal Type:O-Ring
Inside Diameter:.75
Length:4.66
Drop Length:.83
Weight
0.8500
Compatibility
Alternative Part Numbers
- Aeroquip 1AA12FRA12
- Aeroquip 1GA12FRA12
- Aeroquip FJ9892-1212S
- Dayco 108755
- Dayco 149445
- Goodyear 14710-1212
- Goodyear B2-OFFX45-1212
- Goodyear G25235-1212
- Goodyear UC-OFFX45-1212
- Kurt Hydraulics FFX45-12-12
- NAPA G25235-1212
- Parker 1J743-12-12
- Parker 1J7HY-12-12
- Weatherhead 108755
- Weatherhead 12EEL72
- Weatherhead 12EL72
- Weatherhead 12UL72
- Weatherhead 12ZL72
