Hydraulic Coupling / Adapter - G25235-0808

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25235-0808 ensures reliable and secure hydraulic connections in high-pressure environments. This hydraulic adapter is engineered for long-lasting performance, offering exceptional durability and resistance to wear. The hydraulic coupling provides leak-free operation, maintaining system integrity and reducing potential maintenance costs. Designed for easy installation, this hydraulic adapter integrates smoothly into existing systems, improving overall efficiency and performance. Whether replacing or upgrading, this Gates hydraulic coupling guarantees long-term reliability and reduces system downtime. Trust this adapter for optimal performance and productivity in all hydraulic applications, ensuring seamless, secure connections.

Gates Corporation MegaCrimp Part No: G25235-0808

$31.97

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.

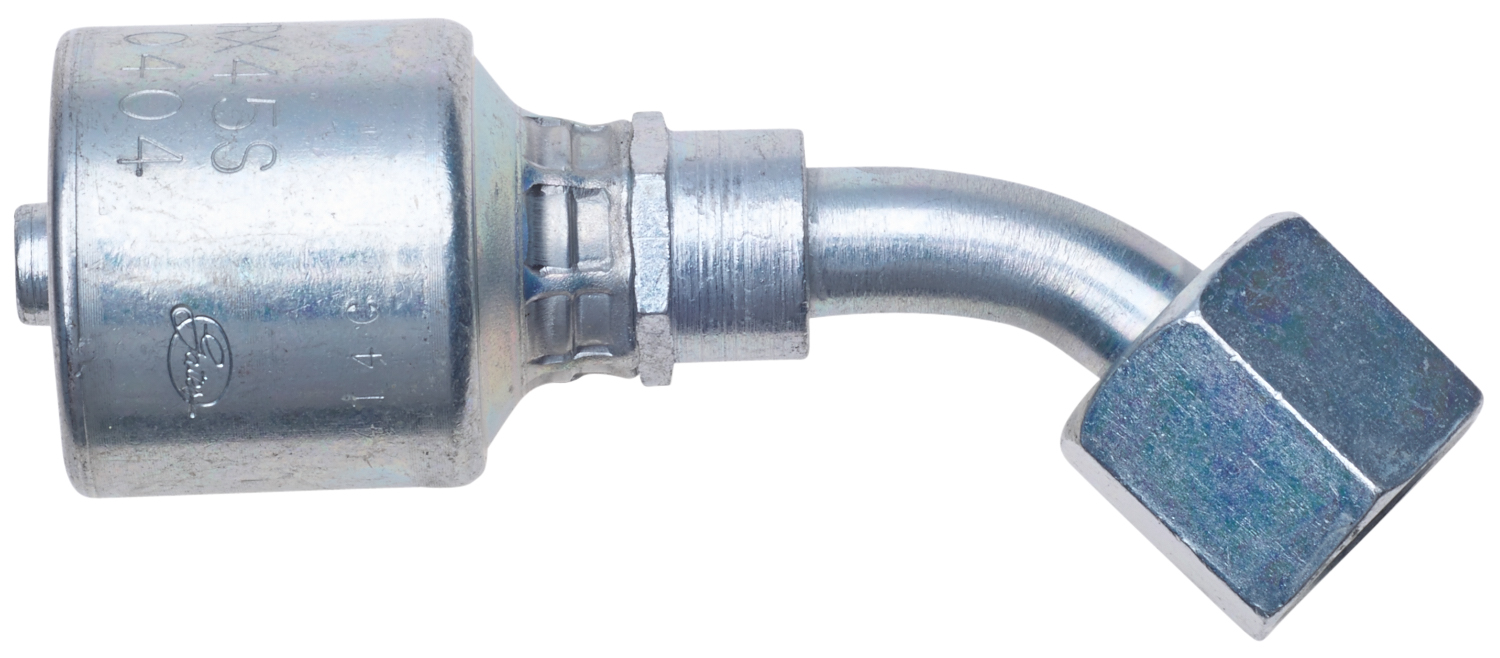

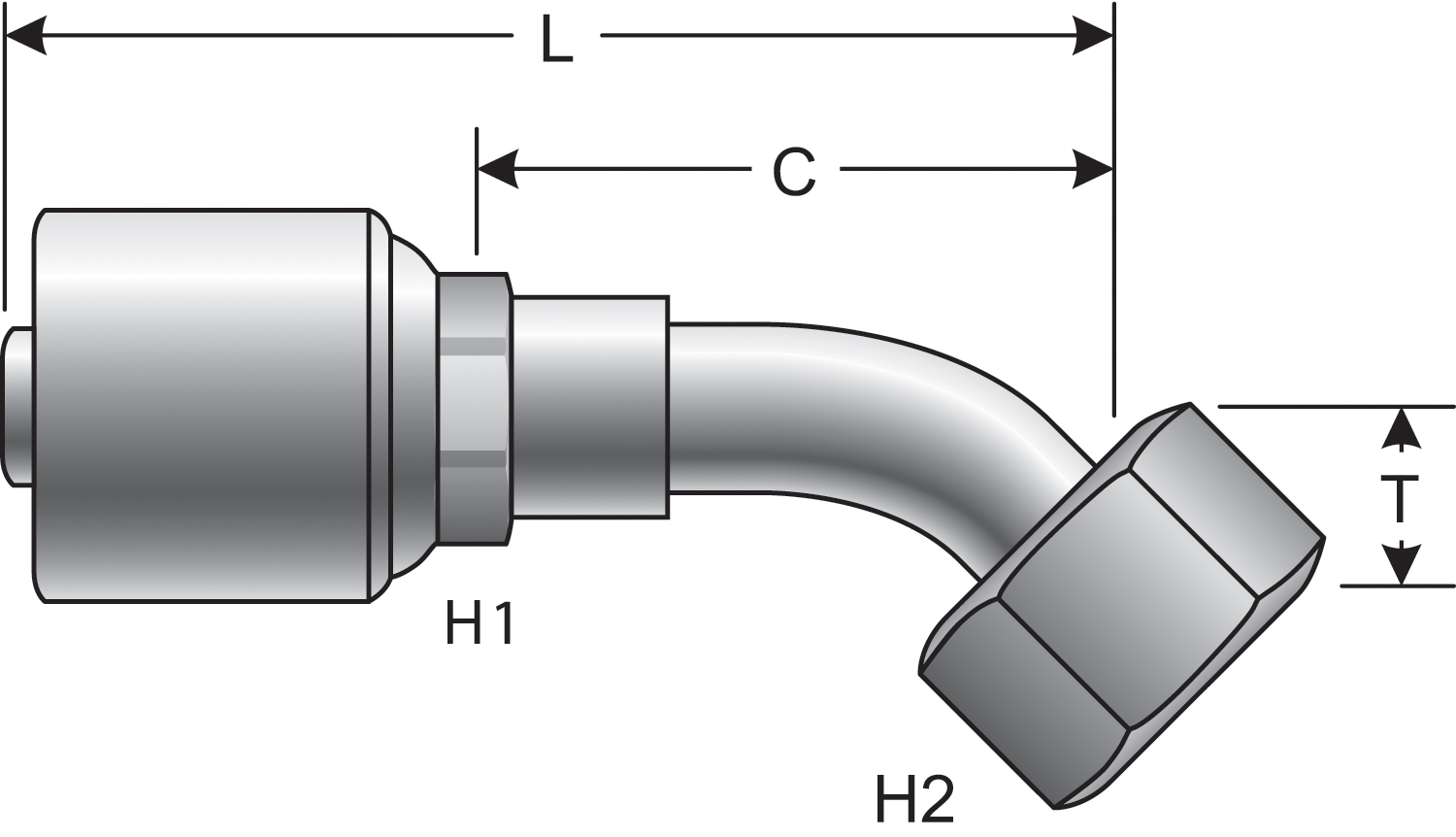

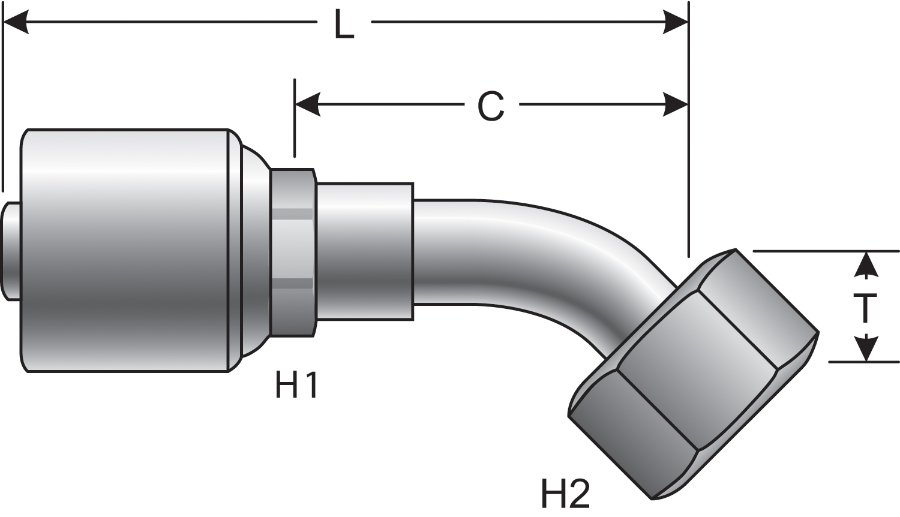

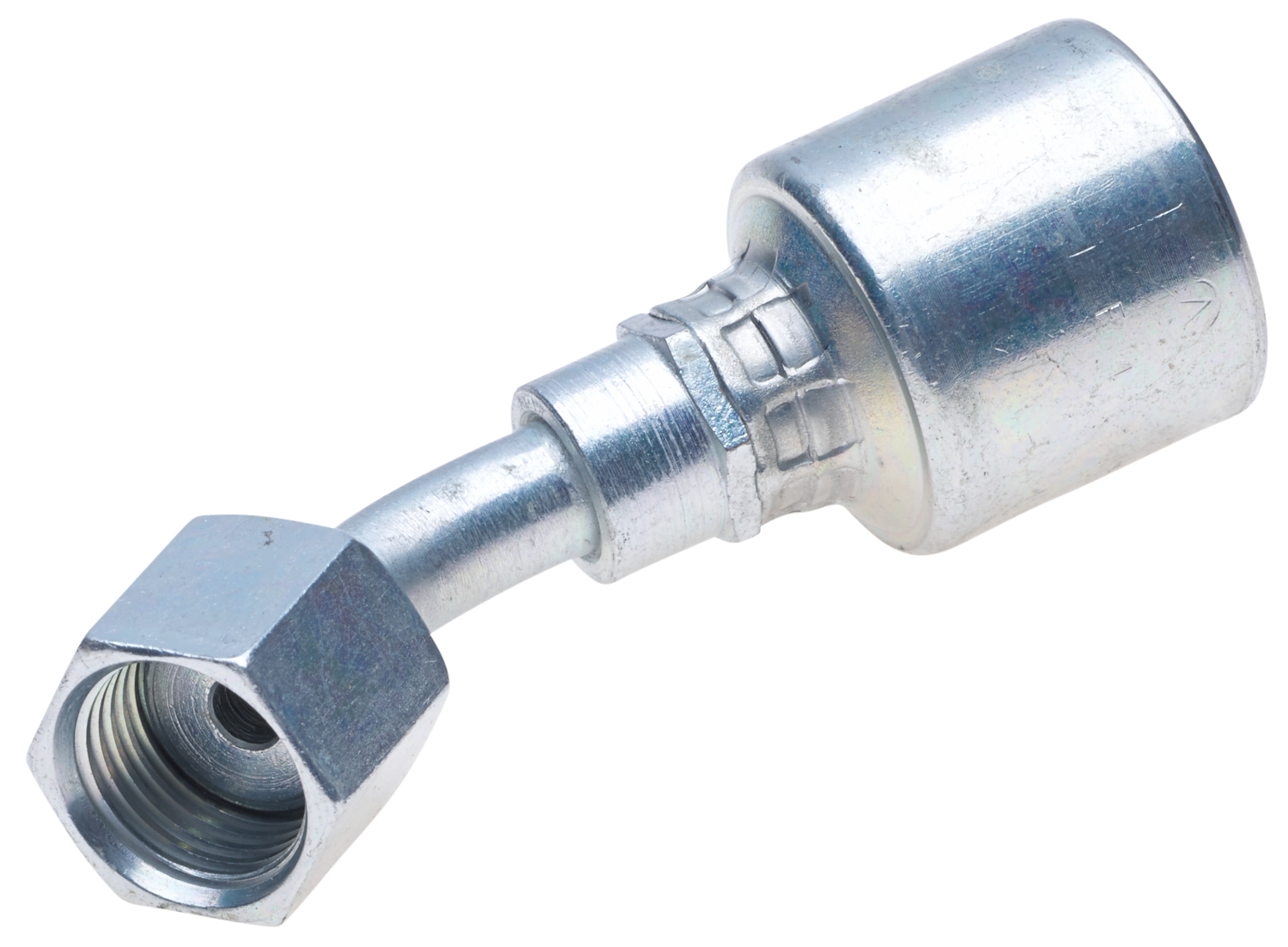

Female Flat-Face O-Ring Swivel - 45 Bent Tube (MegaCrimp)

Weight

0.3600

Gender:Female
Swivel:Yes
Thread Size:13/16-16
Seal Type:O-Ring
Inside Diameter:.5
Length:3.5
Drop Length:.59

Compatibility

Alternative Part Numbers

Dayco 108747
Dayco 149443
Dayco 151747
Aeroquip 1AA8FRA8
Aeroquip FJ9892-0808S
Caterpillar 124-2132
Goodyear 13710-0808
Goodyear 14710-0808
Goodyear B2-OFFX45-0808
Goodyear T8-OFFX45-0808
Goodyear UC-OFFX45-0808
Kurt Hydraulics FFX45-08-08
NAPA G25235-0808
Parker 1J743-08-08
Parker 1J743-8-8
Parker 1J7HY-8-8
Weatherhead 08EEL68
Weatherhead 08EL68
Weatherhead 08UL68
Weatherhead 08ZL68
Caterpillar FJ9892-0808S
