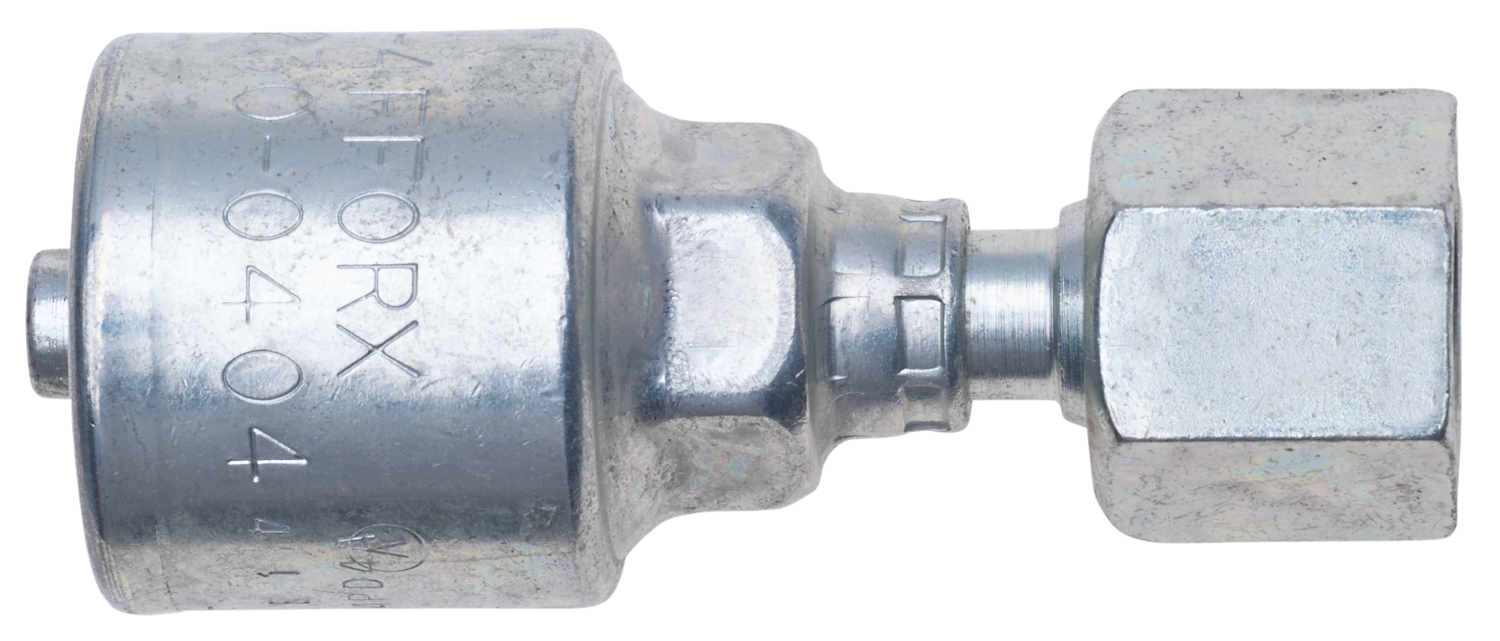

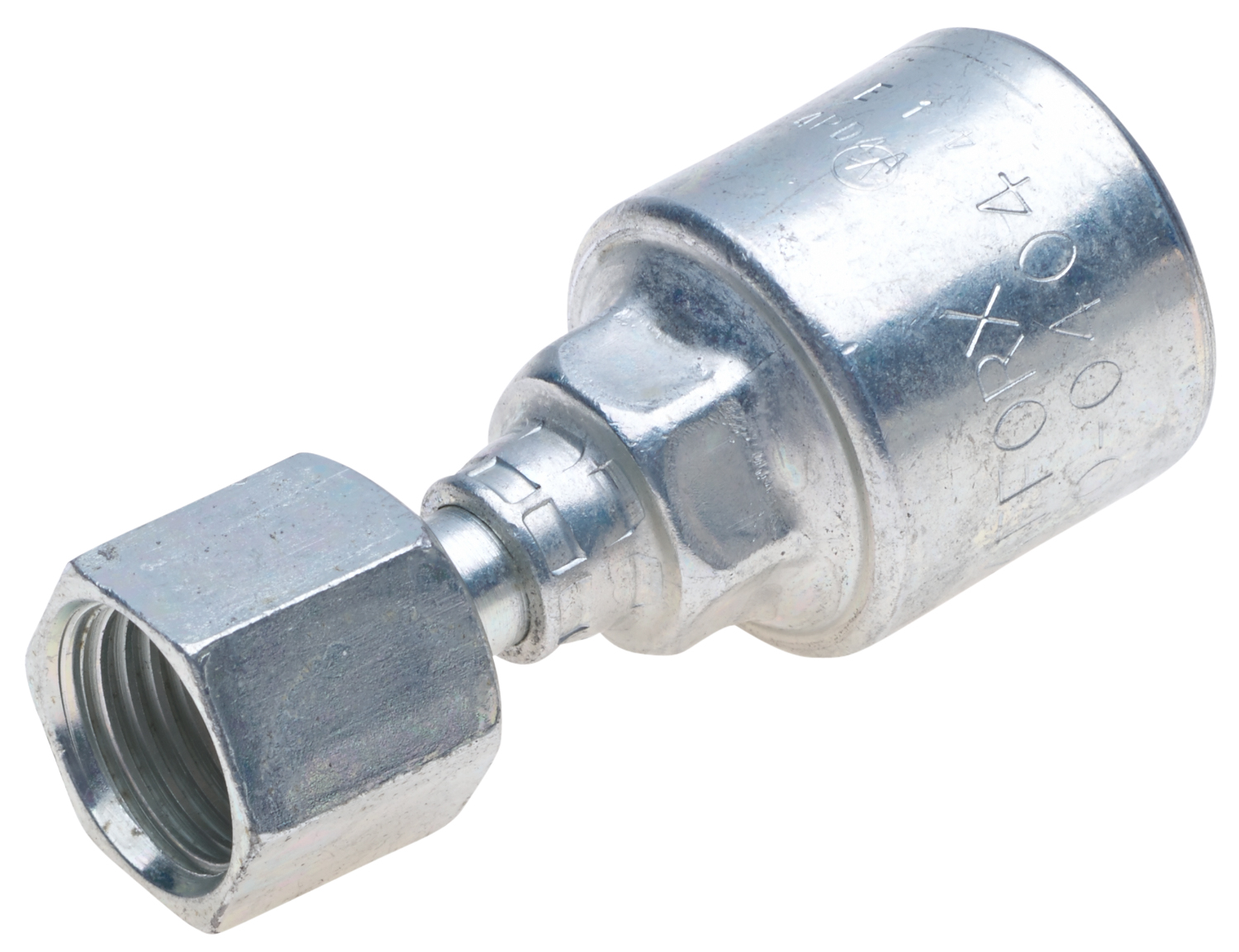

Gates Corporation Hydraulic Coupling / Adapter Part No: G25230-1616
MegaCrimp
Gates Hydraulic Coupling / Adapter G25230-1616 ensures reliable and secure hydraulic connections in high-pressure systems. This hydraulic adapter is designed for durability, offering long-lasting service even in tough operational conditions. The hydraulic coupling guarantees leak-free performance, reducing the risk of failure and maintaining system integrity. Built for easy integration, this hydraulic adapter supports seamless connections that enhance overall system efficiency. Whether you're upgrading or replacing, this Gates hydraulic coupling offers a dependable solution to maximize system productivity. Trust this adapter to maintain consistent performance in all hydraulic applications, ensuring a smooth, reliable operation.
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.
- Female Flat-Face O-Ring Swivel (MegaCrimp)
Gender:Female
Swivel:Yes
Thread Size:1 7/16-12
Seal Type:O-Ring
Inside Diameter:1

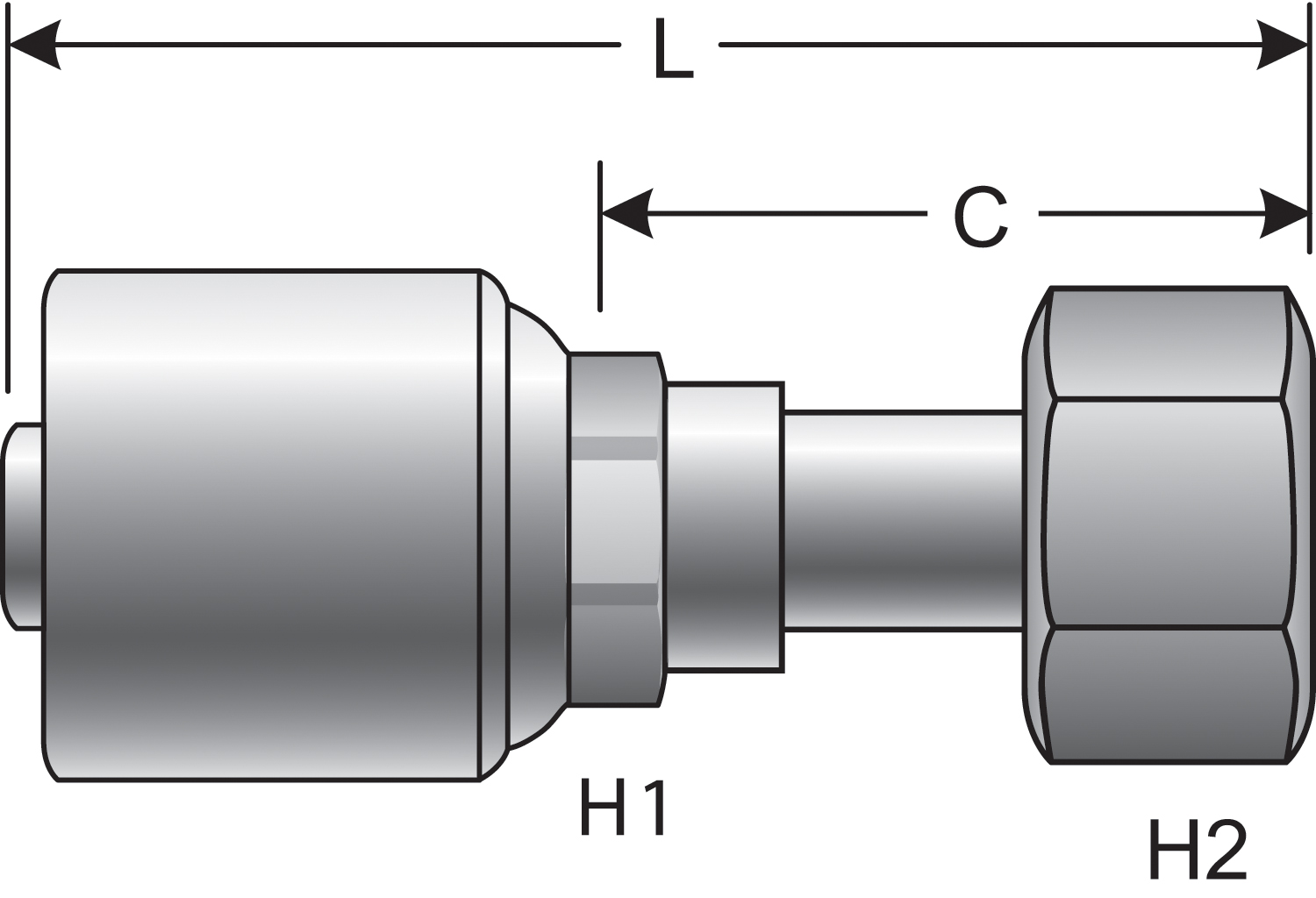

Length:4.09
Swivel:Yes
Thread Size:1 7/16-12
Seal Type:O-Ring
Inside Diameter:1
Length:4.09
Weight
1.4200
Compatibility
Alternative Part Numbers
- Aeroquip 1AA16FR16
- Aeroquip 1GA16FR16
- Aeroquip FJ9891-1616S
- Caterpillar 124-2123
- Dayco 108730
- Dayco 124-2123
- Dayco 149436
- Goodyear 14700-1616
- Goodyear B2-OFFX-1616
- Goodyear T7-OFFX-1616
- Goodyear UC-OFFX-1616
- Kurt Hydraulics FFX-16-16
- NAPA G25230-1616
- Parker 1JC43-16-16
- Parker 1JS43-16-16
- Parker 1JSHY-16-16
- Weatherhead 16ES76
- Weatherhead 16US76
- Weatherhead 16ZS76
