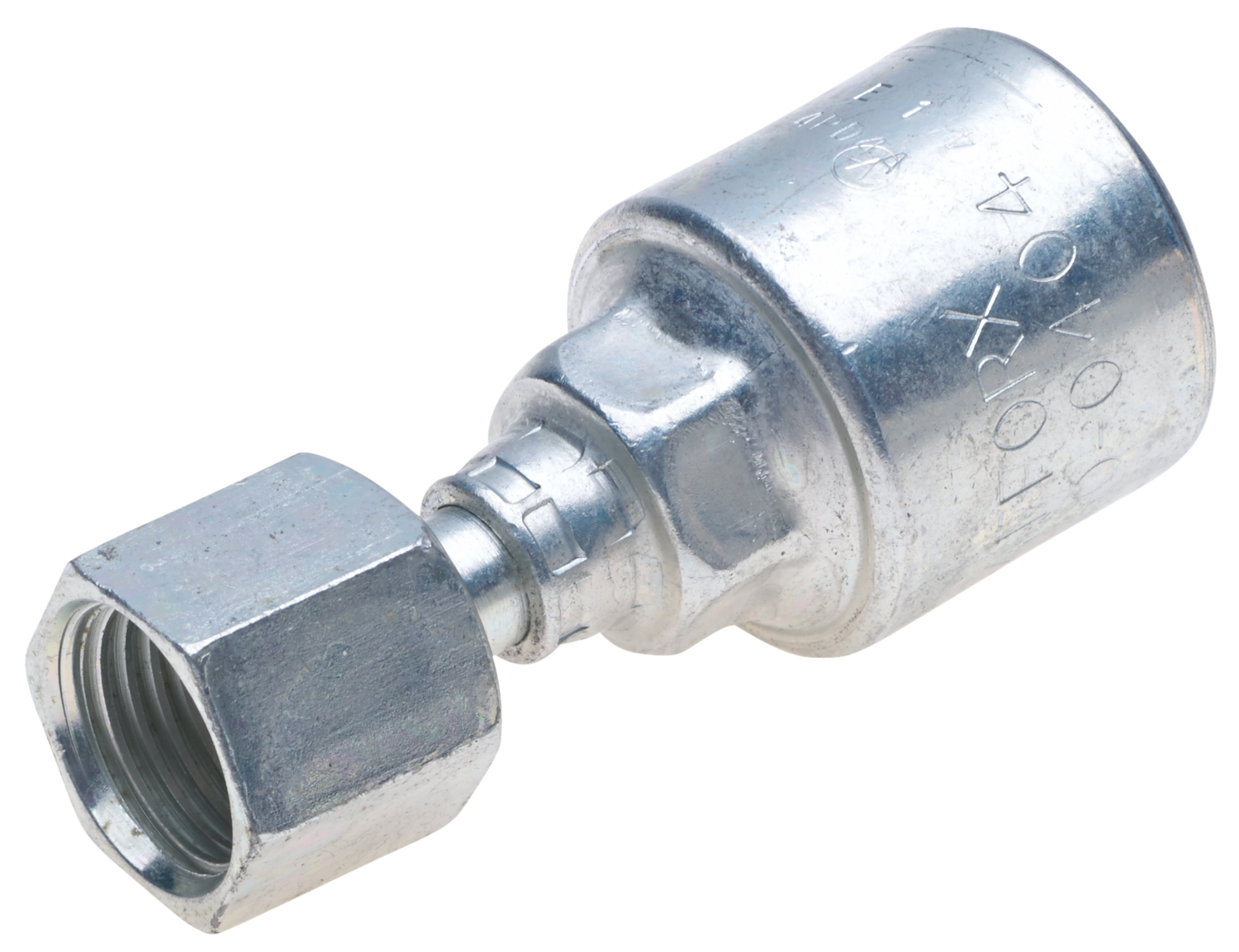

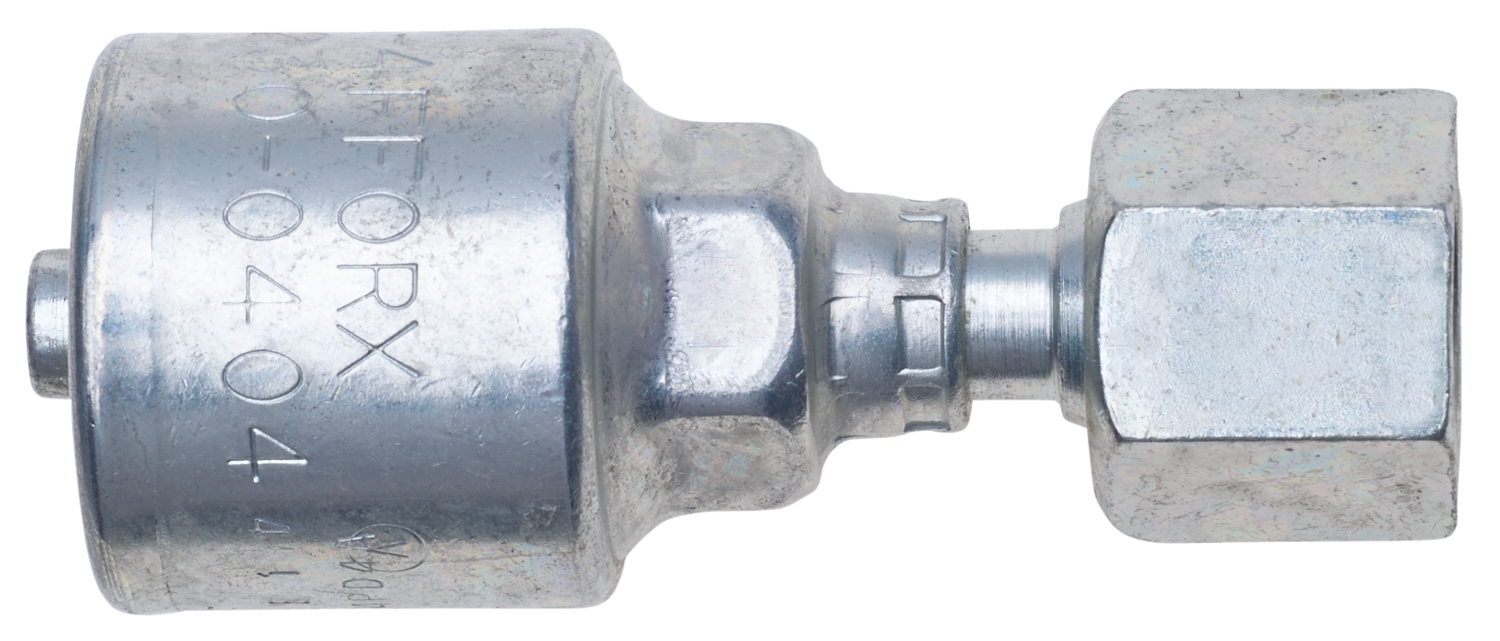

Gates Corporation Hydraulic Coupling / Adapter Part No: G25230-1212
$25.58
MegaCrimp
Female Flat-Face O-Ring Swivel (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.
Gender: Female
Swivel: Yes
Thread Size: 1 3/16-12
Seal Type: O-Ring
Inside Diameter: .75
Length: 3.65
Swivel: Yes
Thread Size: 1 3/16-12
Seal Type: O-Ring
Inside Diameter: .75
Length: 3.65
Weight
0.8000
Compatibility
Alternative Part Numbers
- Aeroquip 1AA12FR12
- Aeroquip 1GA12FR12
- Aeroquip FJ9891-1212S
- Caterpillar 124-2121
- Dayco 108725
- Dayco 108725BK
- Dayco 149435
- Goodyear 14700-1212
- Goodyear B2-OFFX-1212
- Goodyear T7-OFFX-1212
- Goodyear UC-OFFX-1212
- Kurt Hydraulics FFX-12-12
- NAPA G25230-1212
- Parker 1JC43-12-12
- Parker 1JCHY-12-12
- Parker 1JS43-12-12
- Parker 1JSHY-12-12
- Weatherhead 12EES72
- Weatherhead 12ES72
- Weatherhead 12US72
- Weatherhead 12ZS72
- Weatherhead 33612E-S72
- Weatherhead 33612ES72
