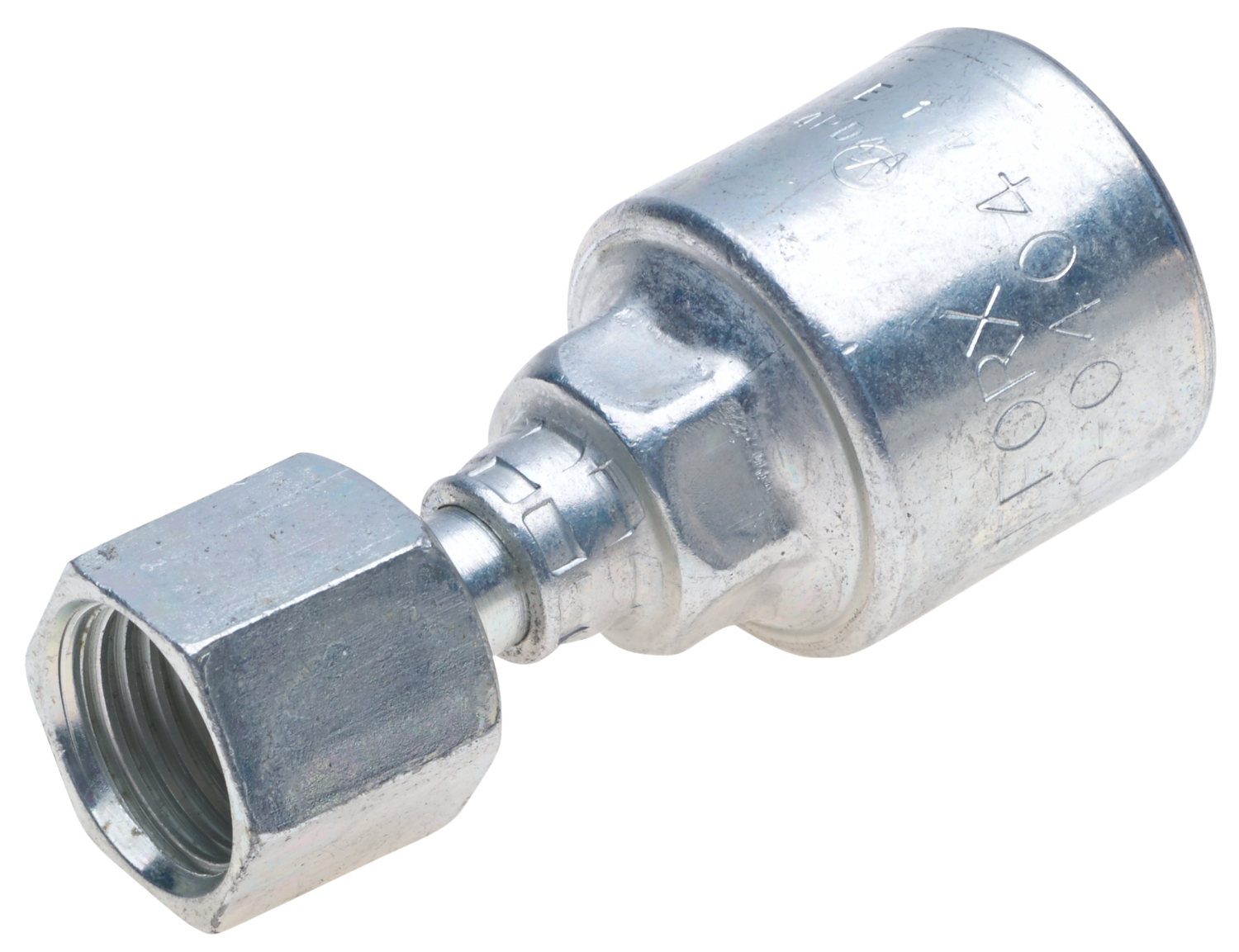

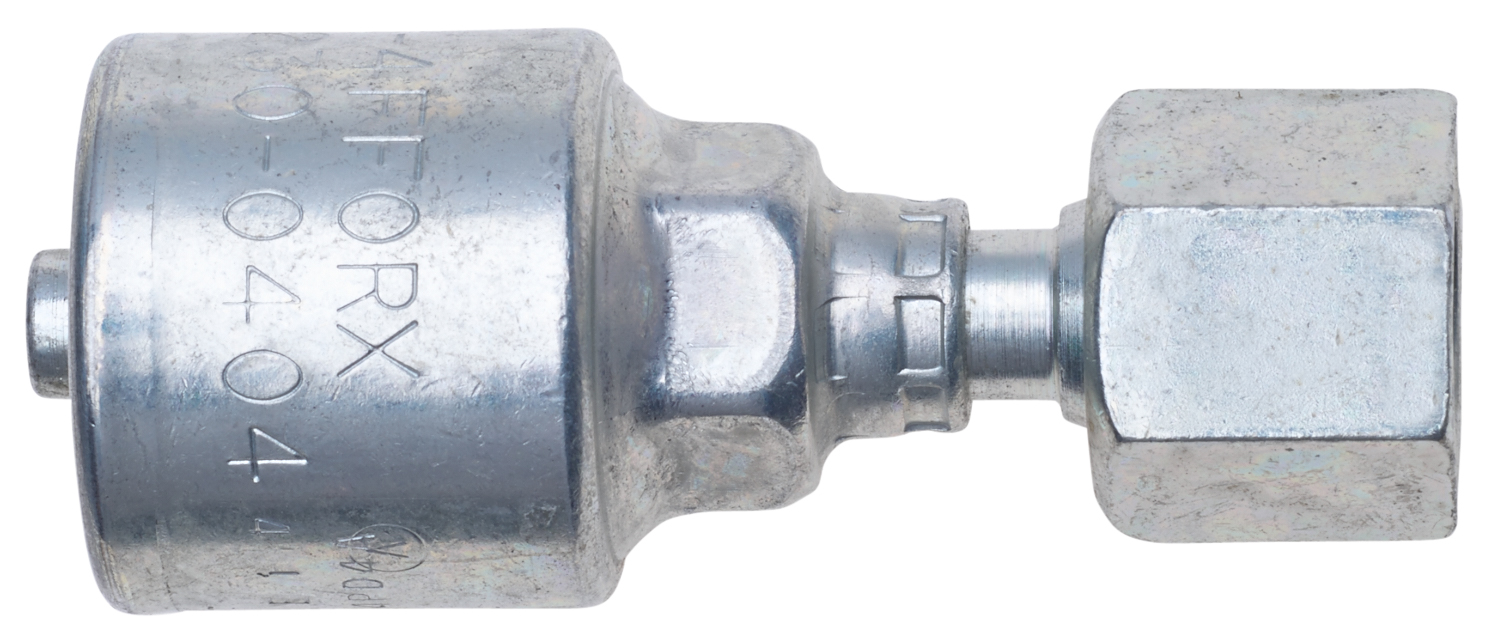

Hydraulic Coupling / Adapter - G25230-1010

Hydraulic Coupling / Adapter

Gates Hydraulic Coupling / Adapter G25230-1010 ensures high-performance and secure hydraulic connections under high-pressure conditions. This hydraulic adapter is built to last, offering exceptional durability and reducing maintenance needs. The hydraulic coupling guarantees leak-free operation, preventing failure and maintaining overall system integrity. Designed for easy integration, this hydraulic adapter supports seamless connections, improving system efficiency and reducing downtime. Whether upgrading or replacing components, this Gates hydraulic coupling provides long-term reliability and enhanced performance. Trust this adapter for dependable operation in a variety of hydraulic applications, ensuring optimal functionality and productivity.

Gates Corporation MegaCrimp Part No: G25230-1010

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.

Female Flat-Face O-Ring Swivel (MegaCrimp)

Weight

0.4884

Gender:Female
Swivel:Yes
Thread Size:1-14
Seal Type:O-Ring
Inside Diameter:.625

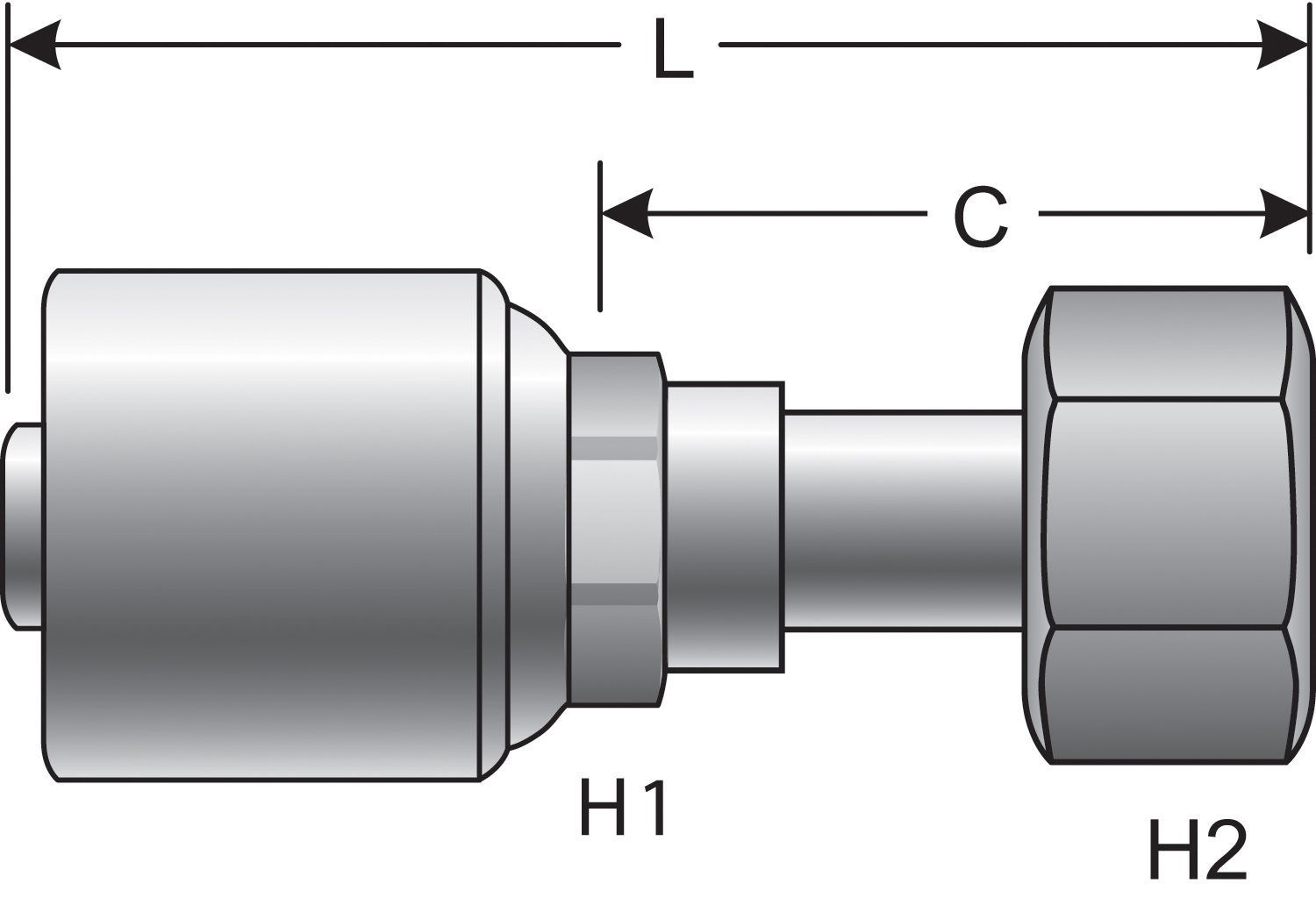

Length:2.99

Compatibility

Alternative Part Numbers

Dayco 108721
Aeroquip 1AA10FR10
Aeroquip FJ9891-1010S
Caterpillar 124-2119
Goodyear 14700-1010
Goodyear B2-OFFX-1010
Goodyear UC-OFFX-1010
Kurt Hydraulics FFX-10-10
NAPA G25230-1010
Parker 1JC43-10-10
Parker 1JS43-10-10
Parker 1JSHY-10-10
Weatherhead 10US70
Weatherhead 10ZS70
Kurt Hydraulics 1JS43-10-10
