Gates Corporation Hydraulic Coupling / Adapter Part No: G25230-0808
$16.66
MegaCrimp

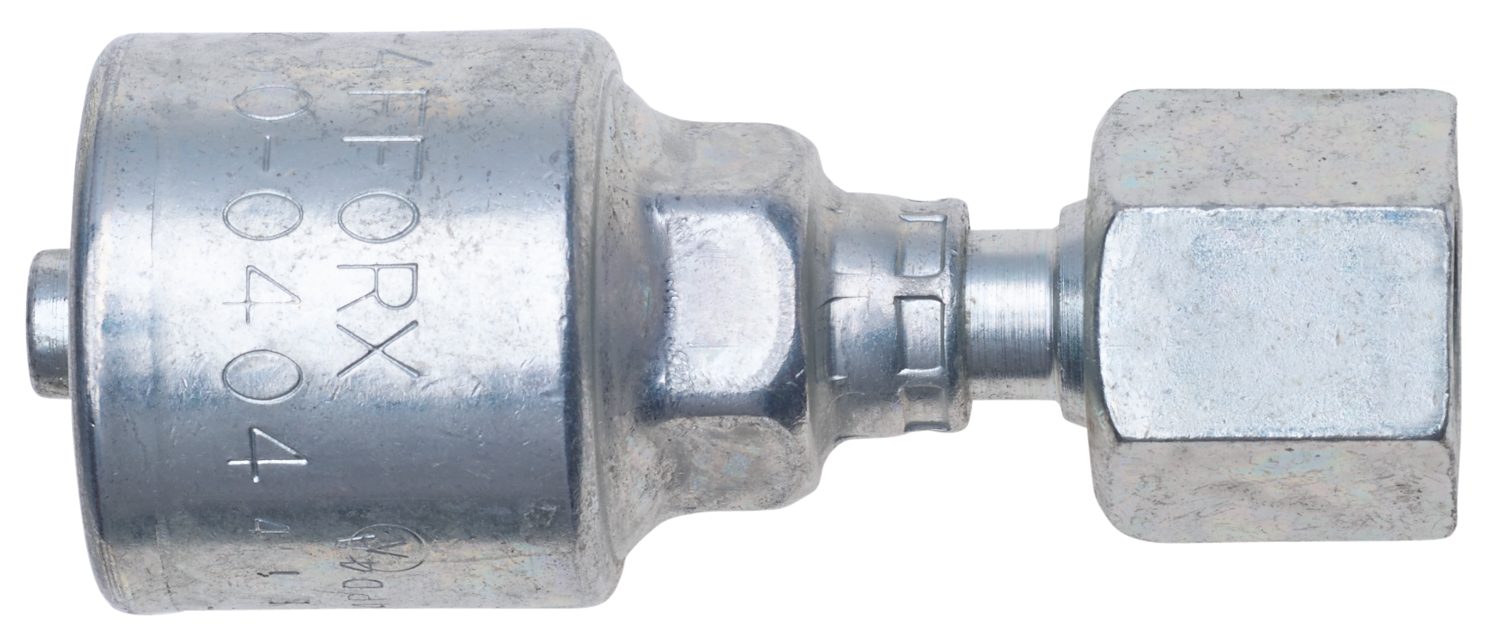

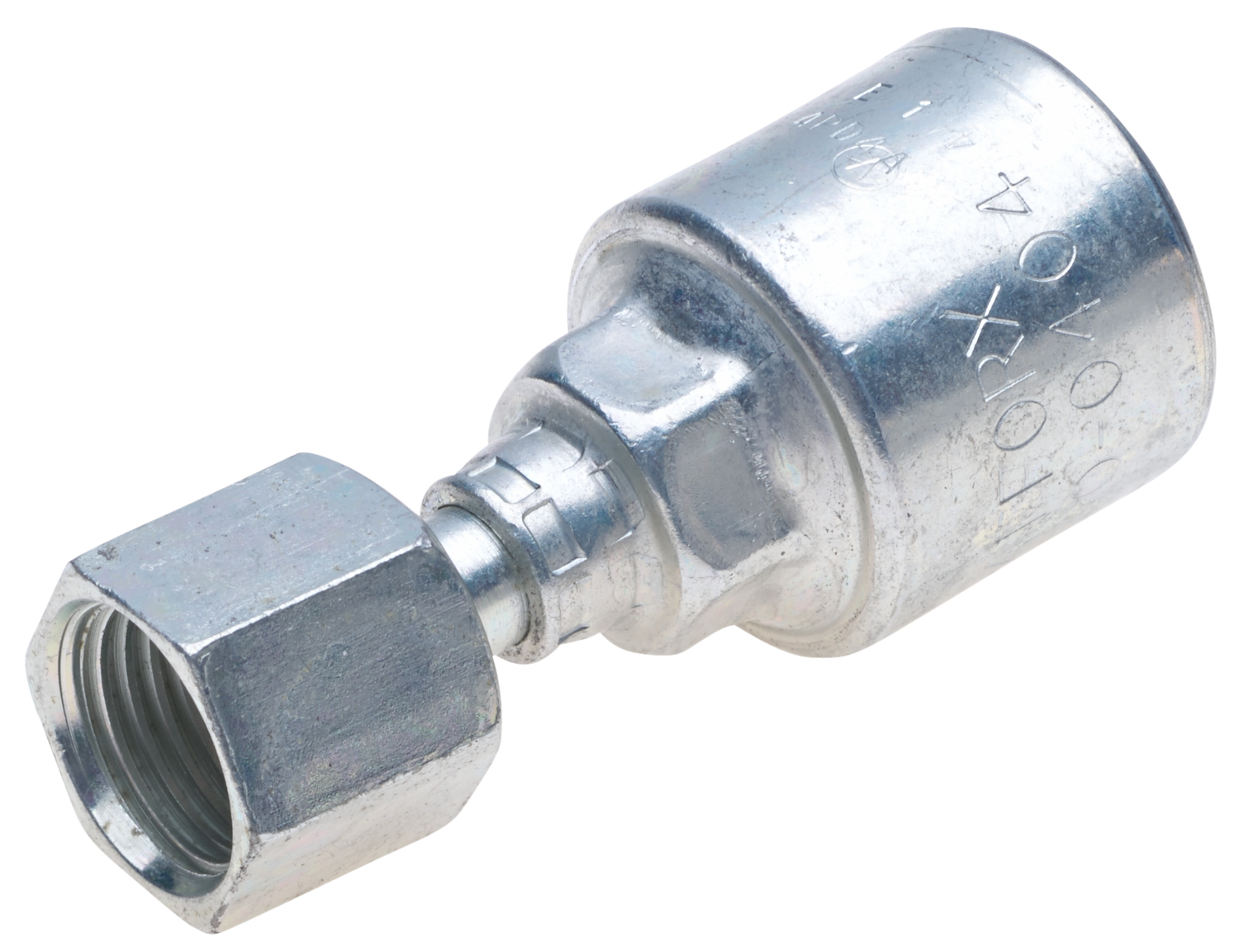

Female Flat-Face O-Ring Swivel (MegaCrimp)
Specifications
The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.
Gender: Female
Swivel: Yes
Thread Size: 13/16-16
Seal Type: O-Ring
Inside Diameter: .5

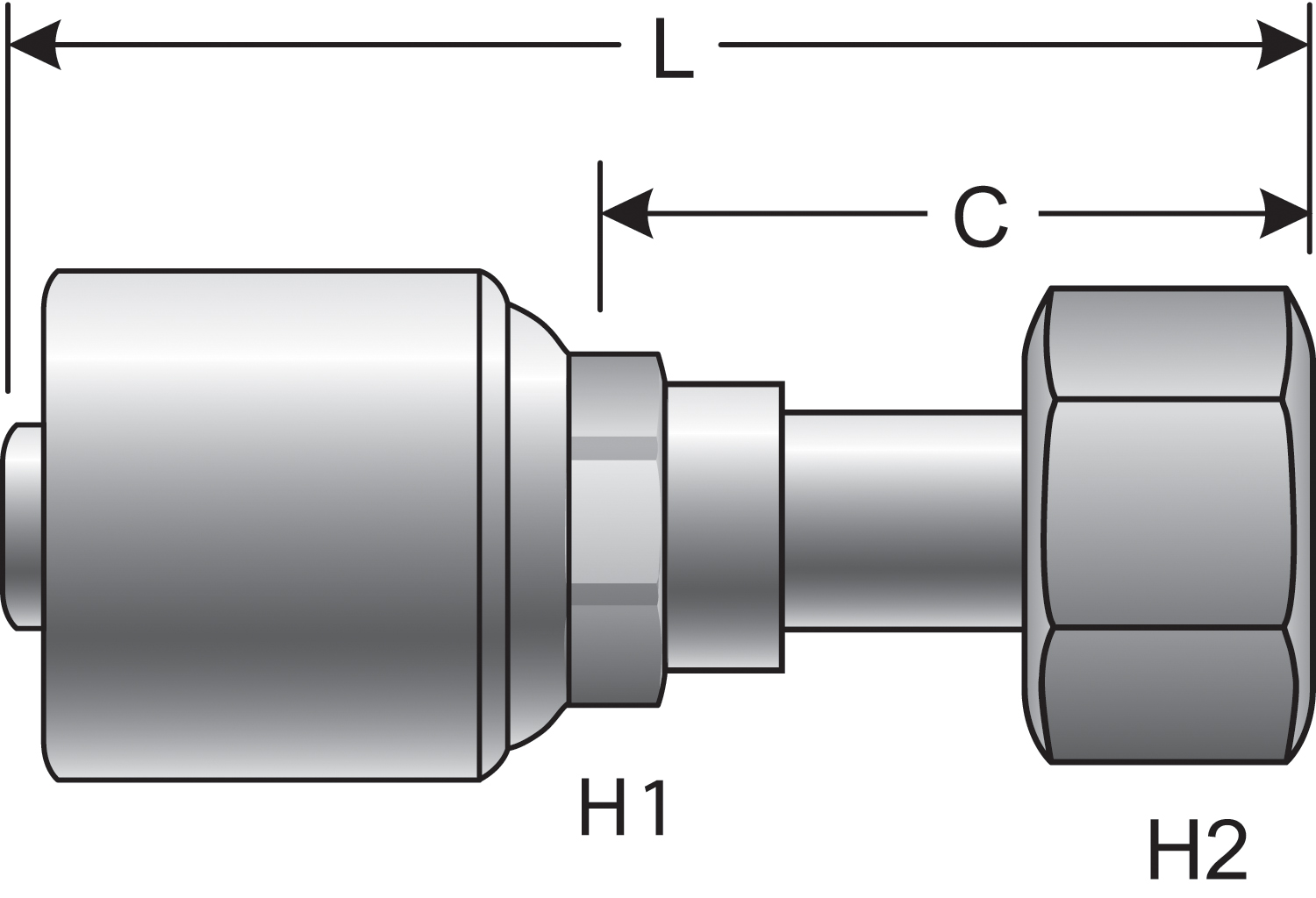

Length: 2.62
Swivel: Yes
Thread Size: 13/16-16
Seal Type: O-Ring
Inside Diameter: .5
Length: 2.62
Weight
0.3200
Compatibility
Alternative Part Numbers
- OEM:
- <br />
- Aeroquip 1AA8FR8
- Aeroquip 1GA8FR8
- Caterpillar 124-2117
- Dayco 108717
- Dayco 108717BK
- Dayco 149431
- Dayco 151717
- Gates 8G-8FFORX
- Gates G25230-0808
- Goodyear 13700-0808
- Goodyear 14700-0808
- Goodyear B2-OFFX-0808
- Goodyear T8-OFFX-0808
- Goodyear UC-OFFX-0808
- Kurt Hydraulics FFX-08-08
- NAPA G25230-0808
- Parker 1JC43-08-08
- Parker 1JC43-8-8
- Parker 1JCHY-8-8
- Parker 1JS43-08-08
- Parker 1JSHY-8-8
- Weatherhead 08EA28
- Weatherhead 08EEA28
- Weatherhead 08EES68
- Weatherhead 08ES68
- Weatherhead 08US68
- Weatherhead 08ZS68
- Weatherhead 33608E-S68
- Weatherhead 33608ES68
