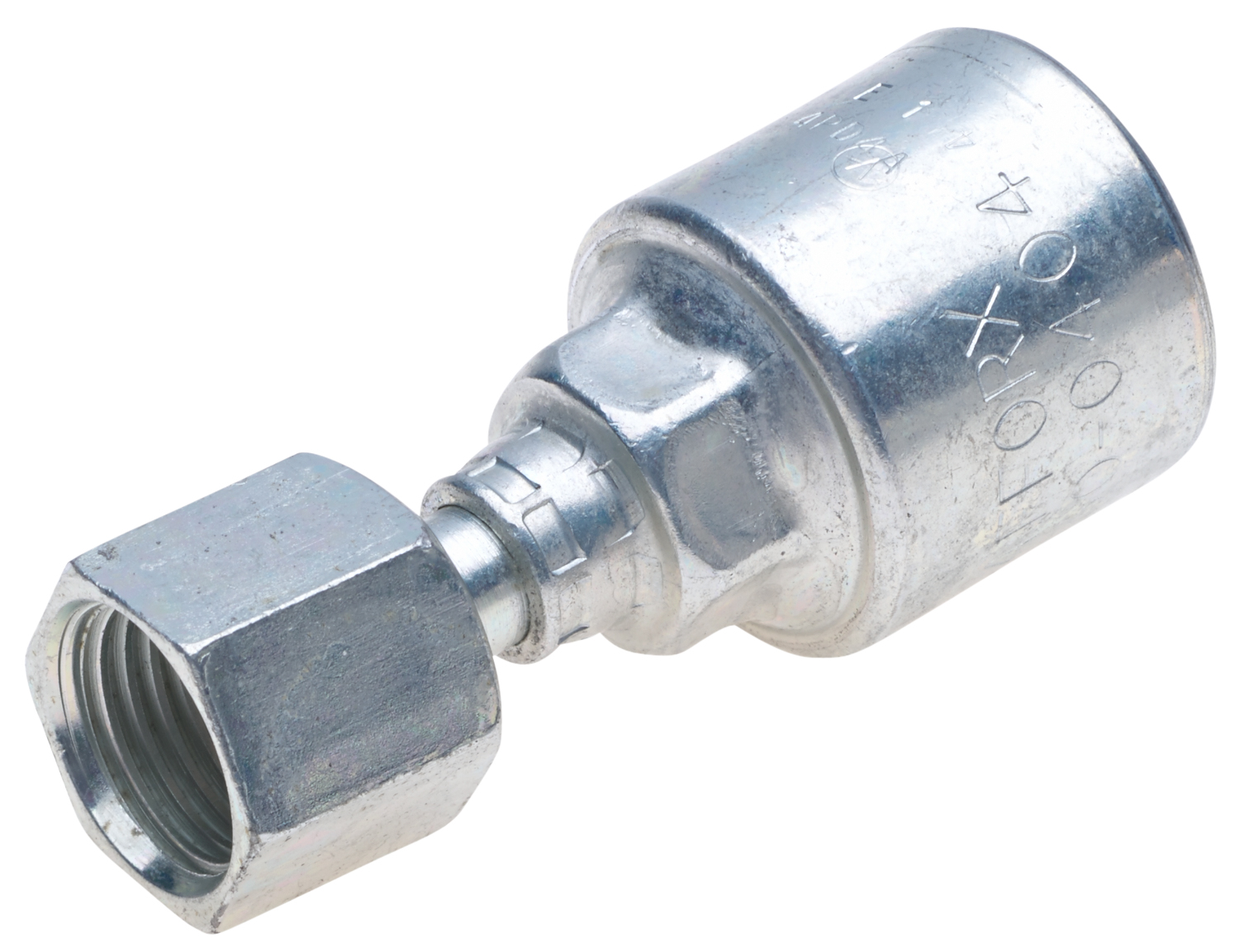

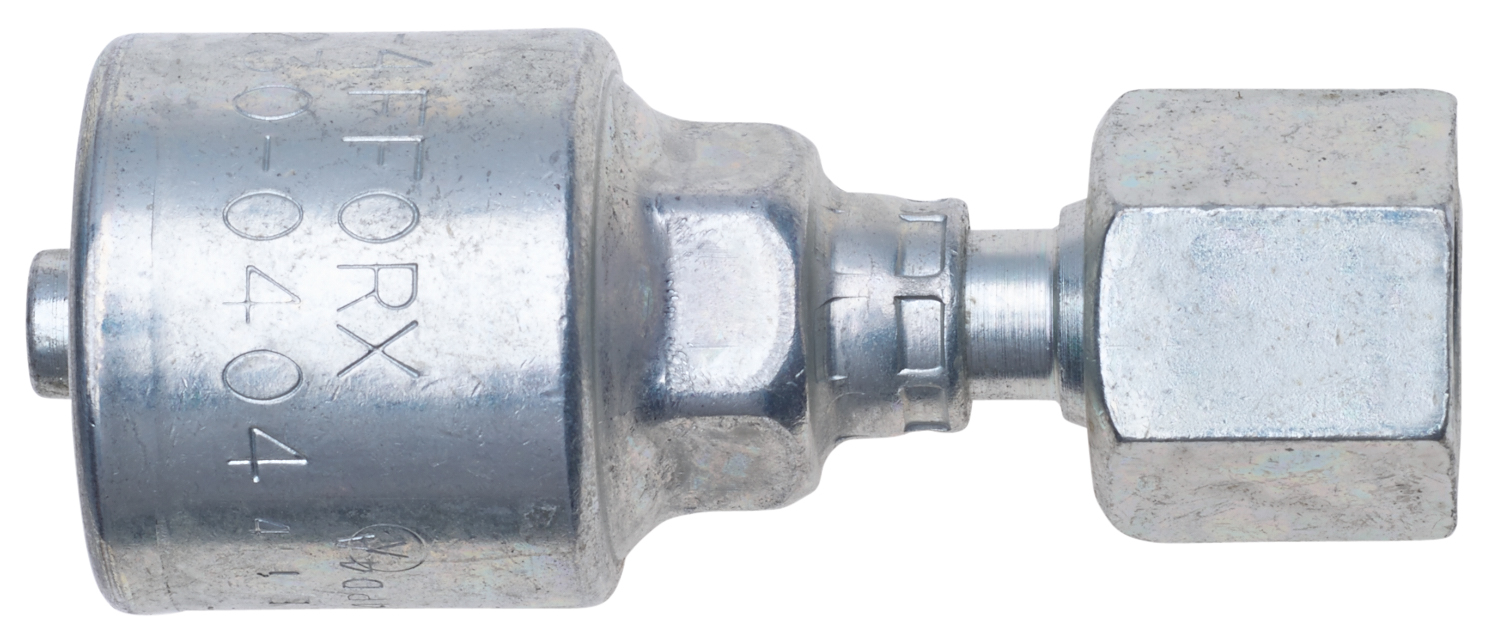

Hydraulic Coupling / Adapter - G25230-0608

Gates Corporation Hydraulic Coupling / Adapter Part No: G25230-0608

MegaCrimp

Gates Hydraulic Coupling / Adapter G25230-0608 ensures reliable connections in demanding hydraulic systems, even under high-pressure conditions. This hydraulic adapter provides exceptional durability, reducing maintenance costs and preventing potential failures. The hydraulic coupling guarantees leak-free performance, maintaining system integrity and maximizing efficiency. Designed for easy integration, this hydraulic adapter offers smooth, secure connections for a variety of hydraulic applications. Whether upgrading or replacing components, this Gates hydraulic coupling provides long-term performance and reliability. Trust this adapter for optimal functionality and productivity in all hydraulic setups.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.

Female Flat-Face O-Ring Swivel (MegaCrimp)

Gender:Female
Swivel:Yes
Thread Size:13/16-16
Seal Type:O-Ring
Inside Diameter:.375
Length:2.26

Weight

0.2600

Compatibility

Alternative Part Numbers

Aeroquip 1AA8FR6
Caterpillar 124-2116
Dayco 108714
Dayco 149429A
Dayco 151714
Dayco UC-OFFX-0608
Goodyear 13700-0608
Goodyear 14700-0608
Goodyear B2-OFFX-0608
Goodyear T7-OFFX-0608
Goodyear UC-OFFX-0608
Kurt Hydraulics FFX-06-08
NAPA G25230-0608
Parker 1JC43-08-06
Parker 1JC43-8-6
Parker 1JS43-08-06
Parker 1JS43-8-6
Parker 1JSHY-8-6
Weatherhead 06EES68
Weatherhead 06ES68
Weatherhead 06US68
Weatherhead 06ZS68
