Hydraulic Coupling / Adapter - G25225-1212

Gates Corporation Hydraulic Coupling / Adapter Part No: G25225-1212

$31.52

MegaCrimp

Gates Hydraulic Coupling / Adapter G25225-1212 ensures reliable, leak-free connections in hydraulic systems, even under high-pressure conditions. This hydraulic adapter is designed to handle tough environments, providing long-term durability and reducing maintenance costs. The hydraulic coupling offers secure and efficient connections, minimizing downtime and boosting overall system performance. With its precision engineering, this hydraulic adapter guarantees smooth integration into your existing system, improving both functionality and reliability. Whether upgrading or replacing, this Gates hydraulic coupling provides a dependable solution for your hydraulic needs. Trust this adapter for continuous, high-performance operation in all hydraulic applications.

Specifications

The patented "C" insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented "C" insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert's design ensures crimping forces are evenly distributed to form a concentric seal. The "C" insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 Captive O-ring Groove for improved O-ring retention.

Male Flat-Face O-Ring (MegaCrimp)

Gender:Male
Swivel:No
Thread Size:1 3/16-12
Seal Type:O-Ring
Inside Diameter:.75

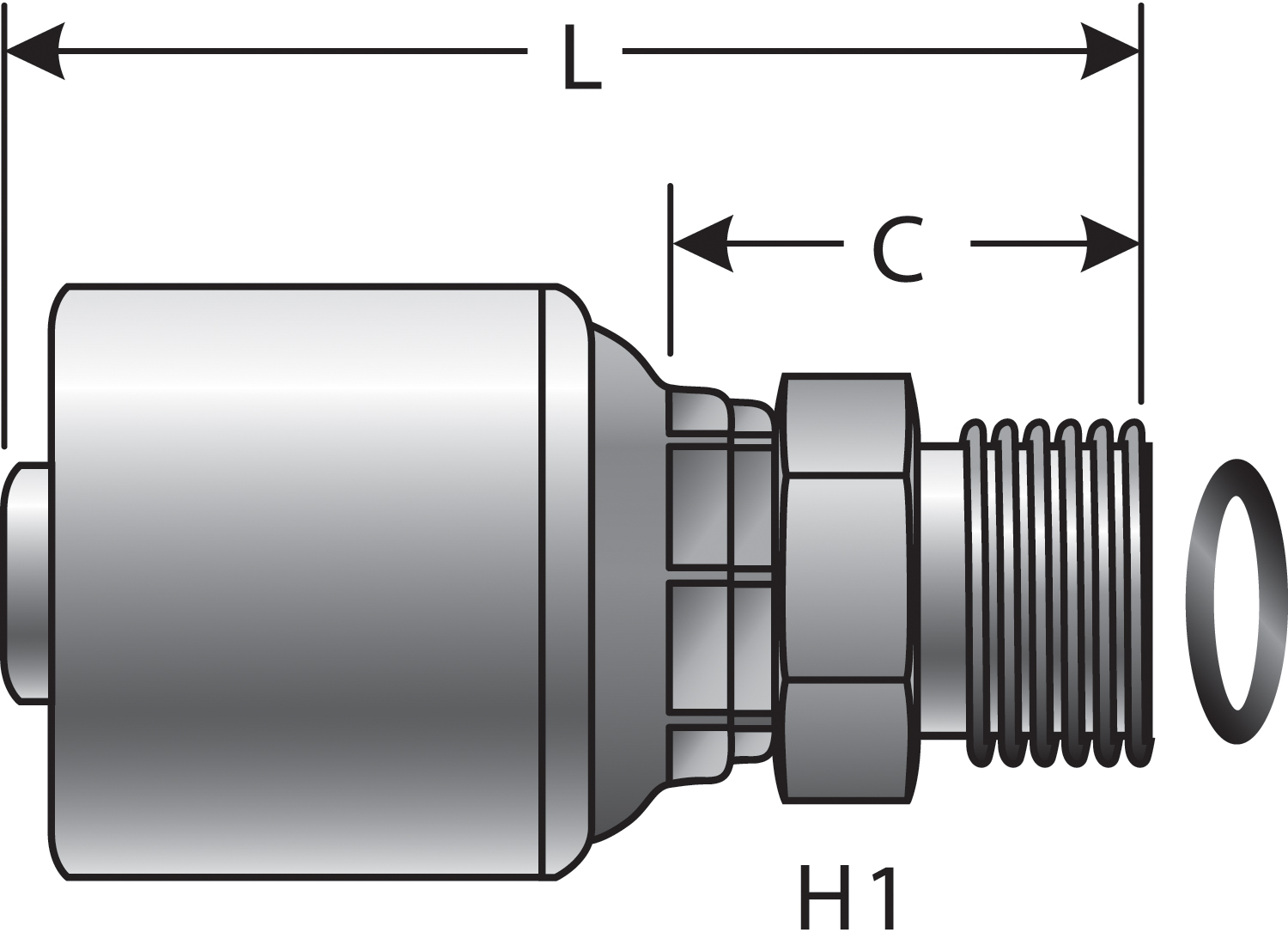

Length:3.54

Weight

0.7000

Compatibility

Alternative Part Numbers

Aeroquip 1AA12MR12
Dayco 108103
Goodyear 14730-1212
Goodyear B2-OFM-1212
Goodyear UC-OFM-1212
Kurt Hydraulics 12UEE72
Kurt Hydraulics 14730-1212
NAPA G25225-1212
Parker 1J043-12-12
Parker 1J0HY-12-12
Parker 1JM43-12-12
Weatherhead 12UE72
Weatherhead 12UEE72
Weatherhead 12ZE72
